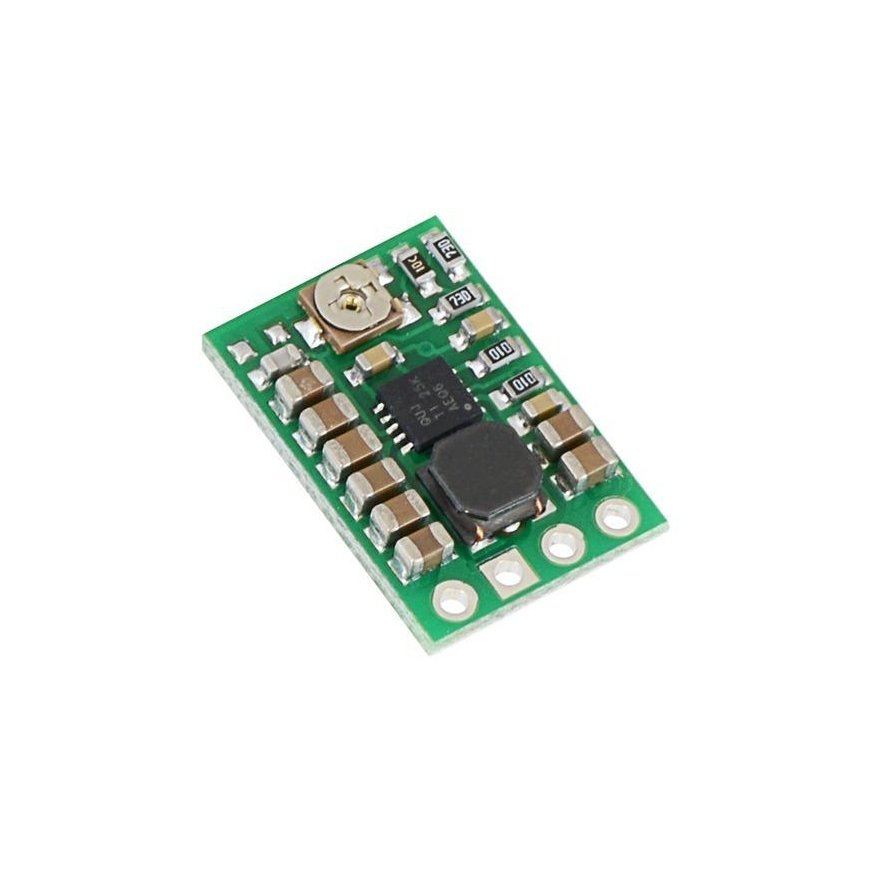

Pololu DC/DC Voltage Converter from 2.7V-11.8V to 2.5-8V S10V3F9 (STEP UP/DOWN)
3726919 AN-01255
5904422305758
Shipping 8-15 b.d.
All about the product
The S7V8A converter is a switching regulator type voltage Step-(up/down) (Buck-boost). It converts an input voltage of 2.7 V to 11.8 V from the output signal value, which the user can adjust from the range: 2.8 V to 8 V, with an average efficiency of 80%. This shows that the input voltage can be lower, higher, or equal to the input value, making the layout functional and universal. Flexibility in input voltages, therefore, the system works excellently in battery-powered systems that require stable voltage supply and independence from battery charge levels.
Specification
- Input voltage: from 2.7 V to 11.8 V
- Output voltage adjustable from 2.5 V to 8 V
- Typical continuous output current: 500 mA to 1 A in many input and output voltage combinations (Actual continuous output current depends on input and output voltages. For more information see
- Energy-saving feature supports high efficiency at low currents (quiescent current is less than 0.3 mA)
- Integrated over-temperature and short-circuit protection

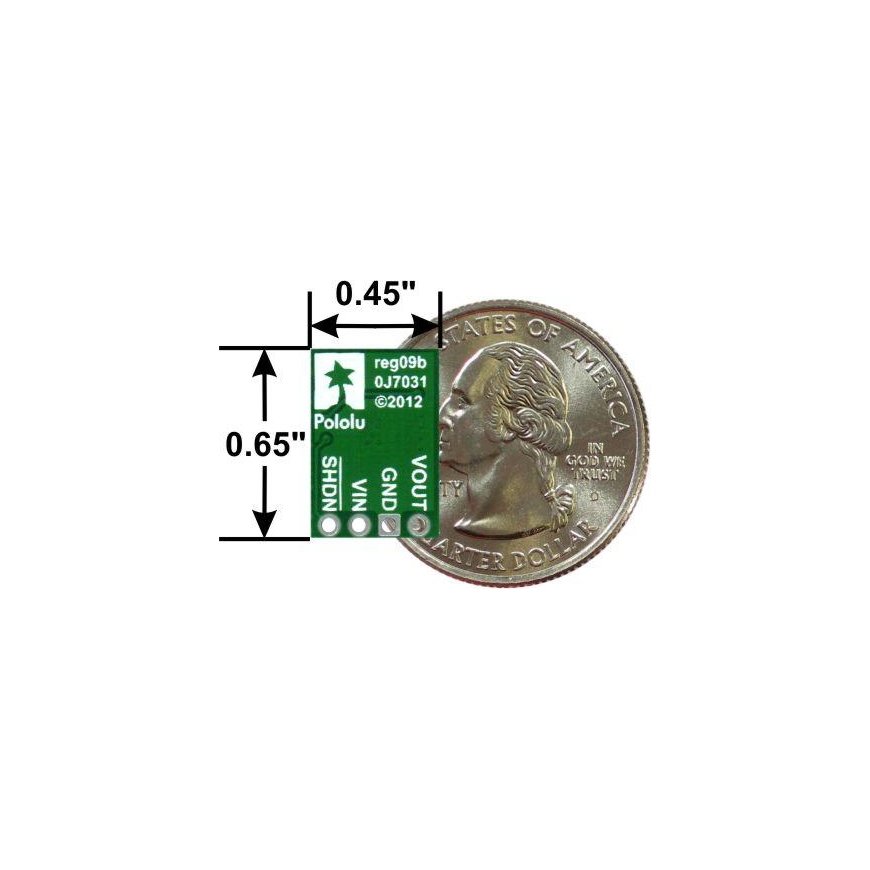

- Small size: 0.45 " × 0.65 " × 0.1 " (11 × 17 × 3 mm)
- Complete schematic provided
