Openplatform WiFi module ESP-12E + NodeMCU v2, 4MB
19.00 €
3726390 AN-04450
5903351241328
Shipping 8-11 b.d.
You are interested in this product?
All about the product

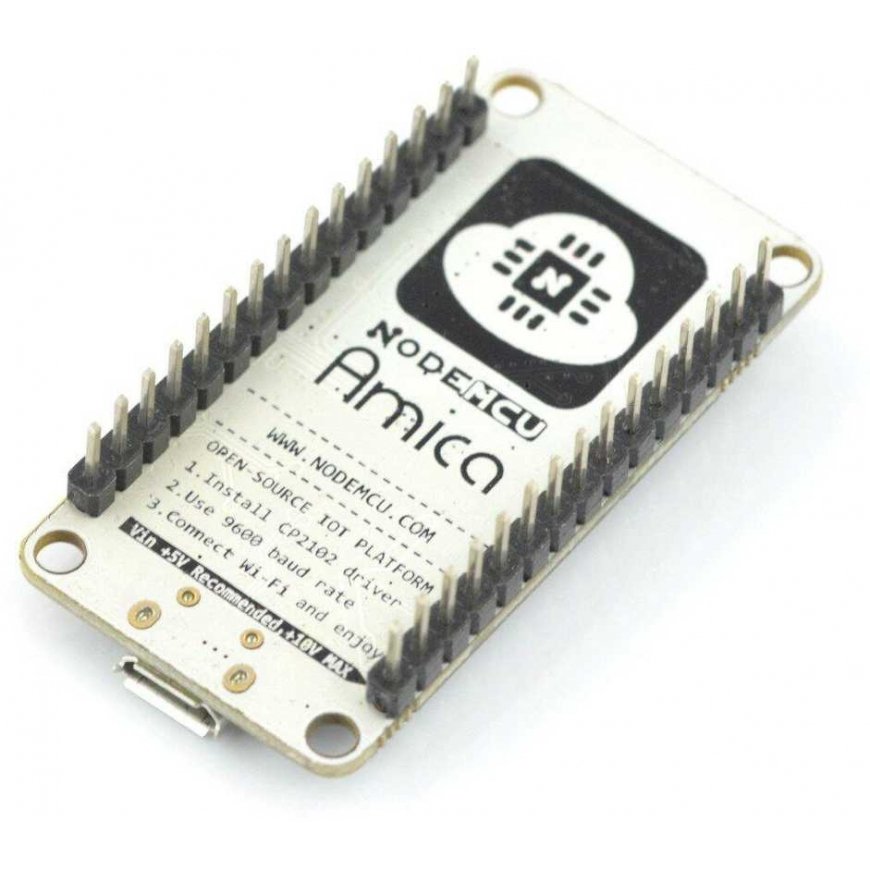

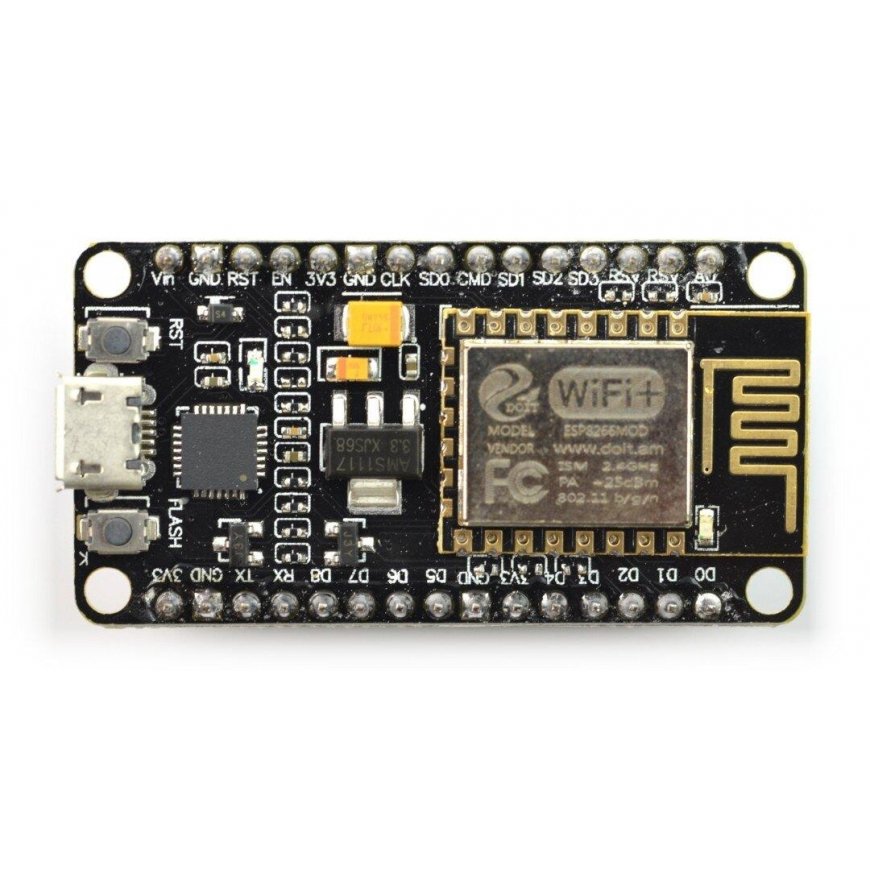

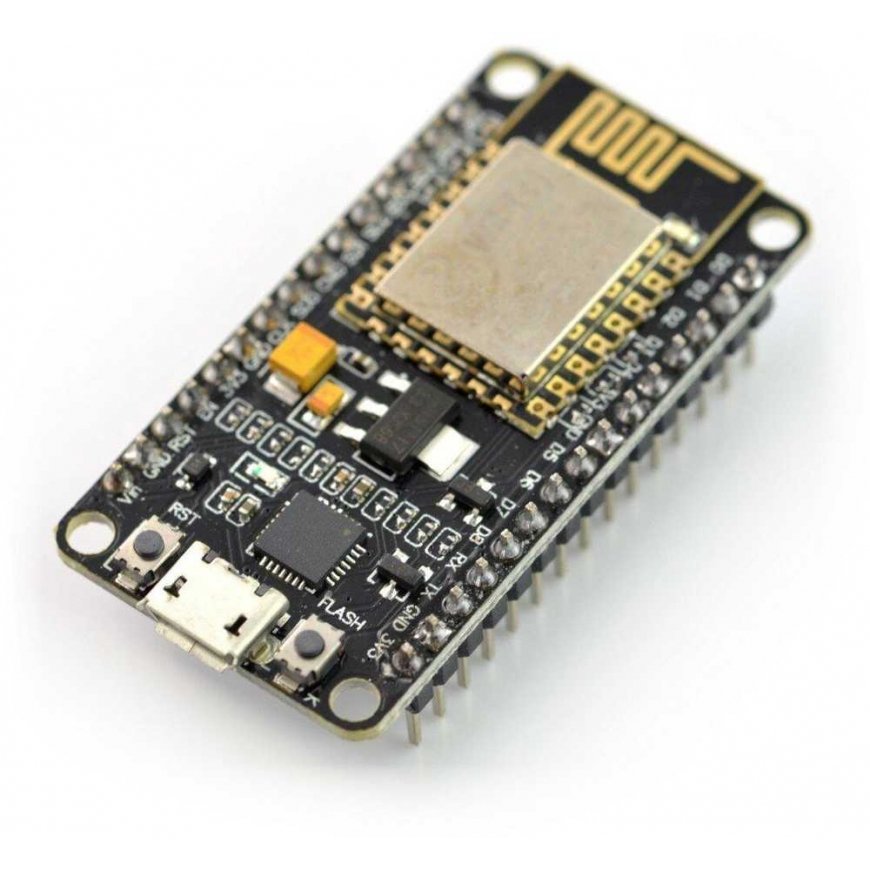

Wi-Fi module based on ESP-12E ESP8266. It has NodeMCU firmware that allows programming in the Lua scripting language. The system has 10 GPIO pins (each of which can be controlled by PWM signal), I2C bus, 1-Wire, 10-bit analog-to-digital converter, and a PCB antenna. Additionally, the board has a USB-UART converter (CP2102), allowing programming directly via USB port using the Arduino IDE environment. It has 4 MB of Flash memory.
Specifications:
- Module based on ESP-12E ESP8266
- 10 GPIO - each can function as PWM, I2C, or 1-Wire
- Flash memory: 4 MB
- Built-in microUSB connector
- USB to UART converter CP2102
- Built-in PCB antenna
- Pins: 2.54 mm
- Distance between connectors: 23 mm
- Module dimensions: 49 x 25 mm
