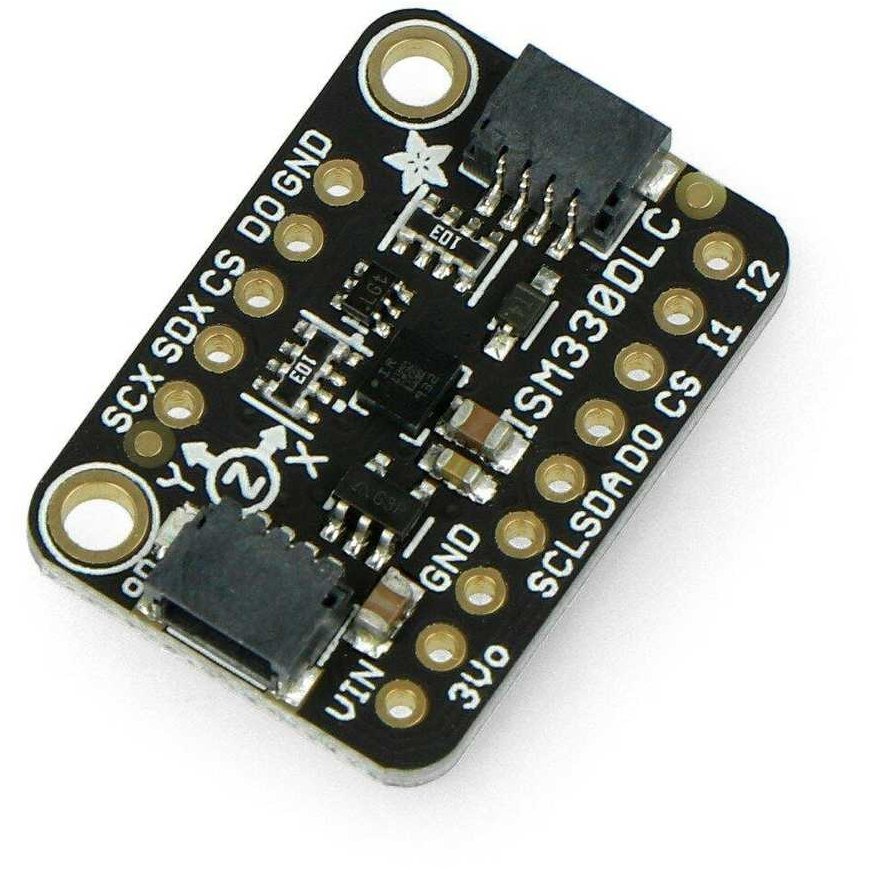

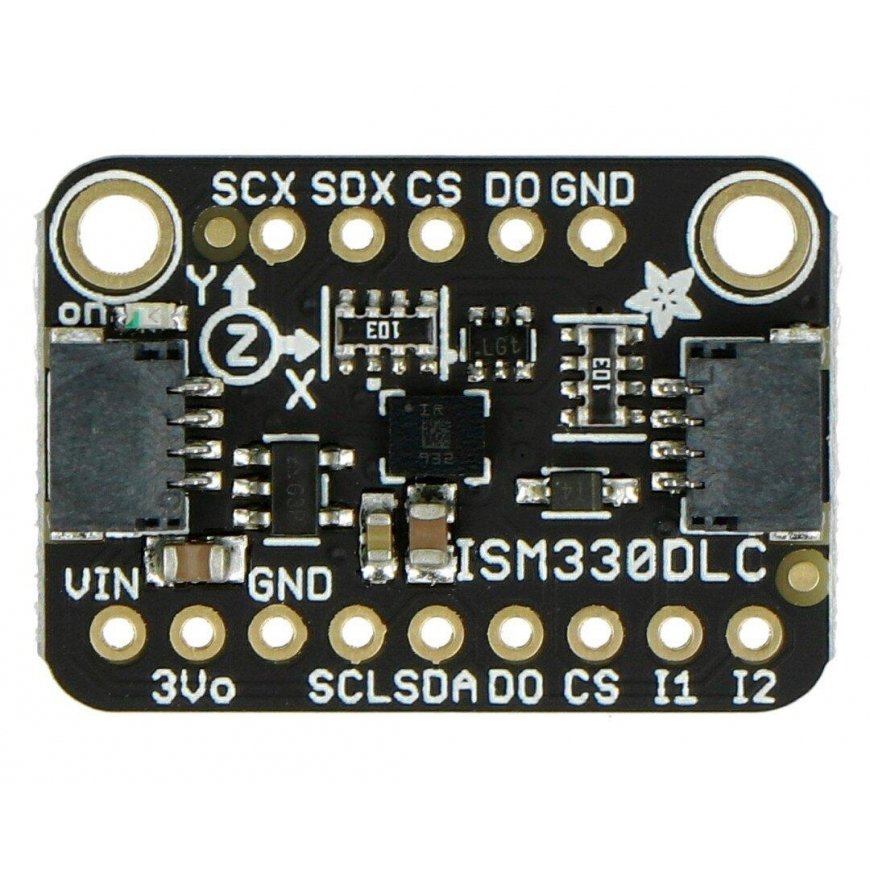

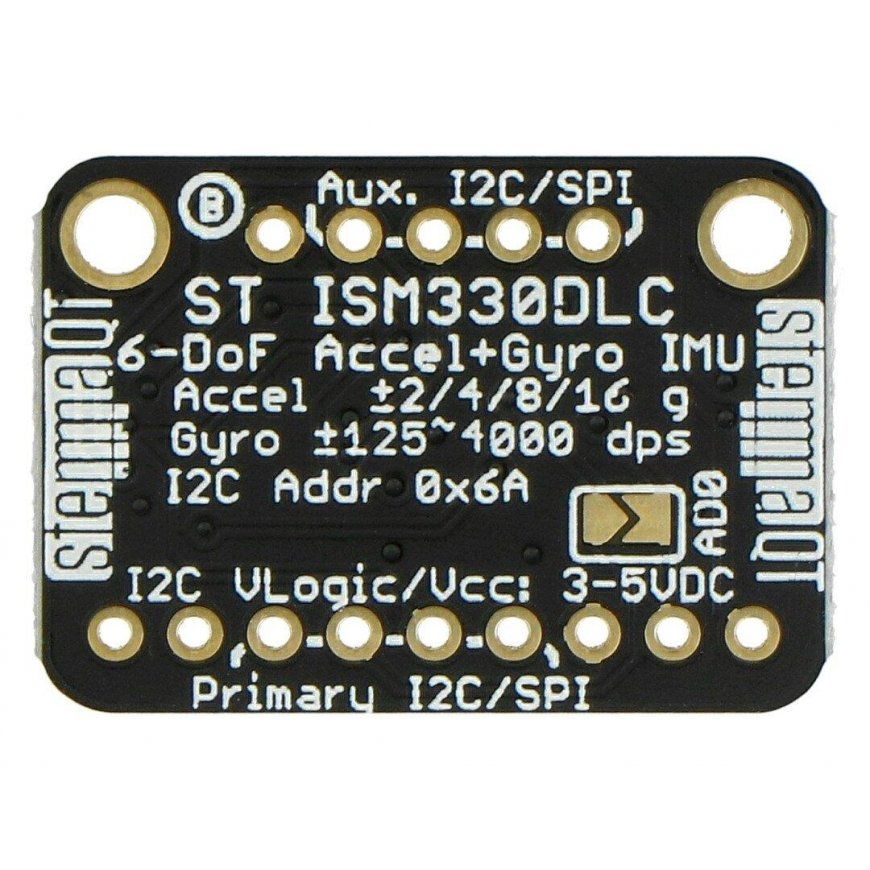

ISM330DHCX 6DoF IMU, 3-axis accelerometer and gyroscope, Adafruit 4502
3725495 AN-16458
5904422344528
Shipping 11-18 b.d.
All about the product
The DoF ISM330DHCX sensor features a 3-axis accelerometer and a 3-axis gyroscope. It measures linear acceleration of ±2 / ±4 / ±8 / ±16 g, at 1.6 Hz - 6.7 kHz, and angular velocity of ±125 / ±250 / ±500 / ±1000 / ±2000 / ±4000 dps, from 12.5 Hz to 6.7 kHz. These sensors are used in smartphones, tablets, and various game controllers. It also includes Qwiic connectors for easy connection. Communicates via I2C or SPI. Powered by 3 V or 5 V voltage.
Specifications:
- Supply voltage: from 3 V to 5 V
- Interface: SPI / I2C
- Connectors: 2x Qwiic
- Accelerometer:
- 3 axes: X, Y, Z
- Range: ±2 / ±4 / ±8 / ±16 g
- Frequency: from 1.6 Hz to 6.7 kHz
- Gyroscope:
- 3 axes: X, Y, Z
- Range: ±125 / ±250 / ±500 / ±1000 / ±2000 / ±4000 dps
- Frequency: from 12.5 Hz to 6.7 kHz
- Operating temperature: from -40 °C to 105 °C

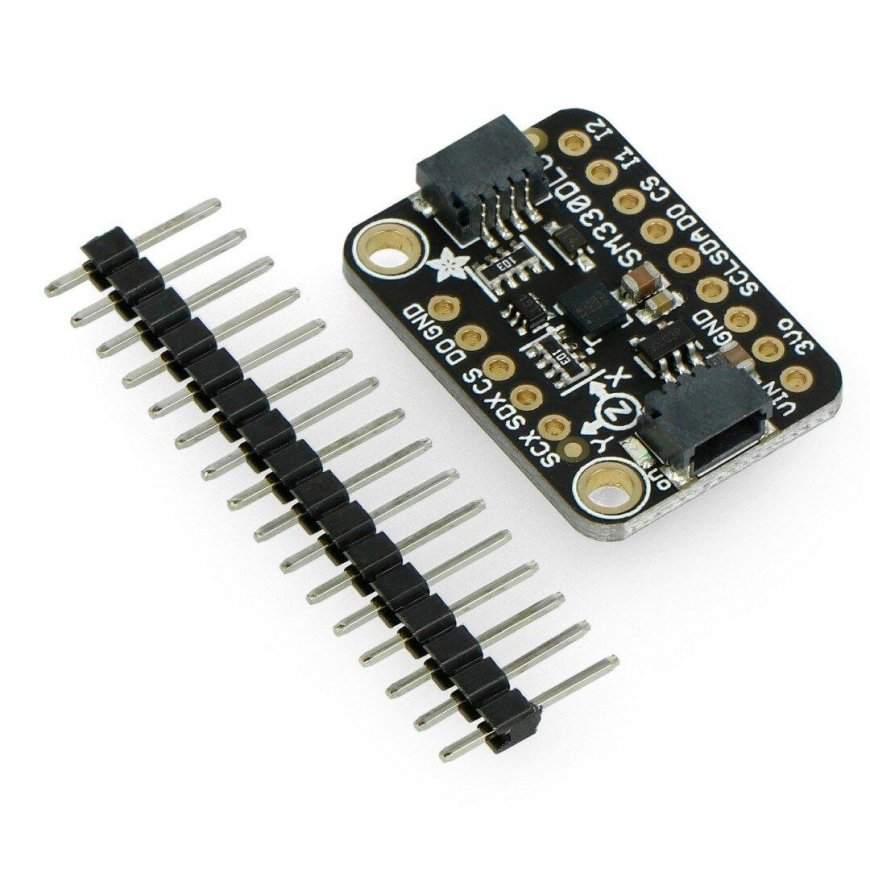

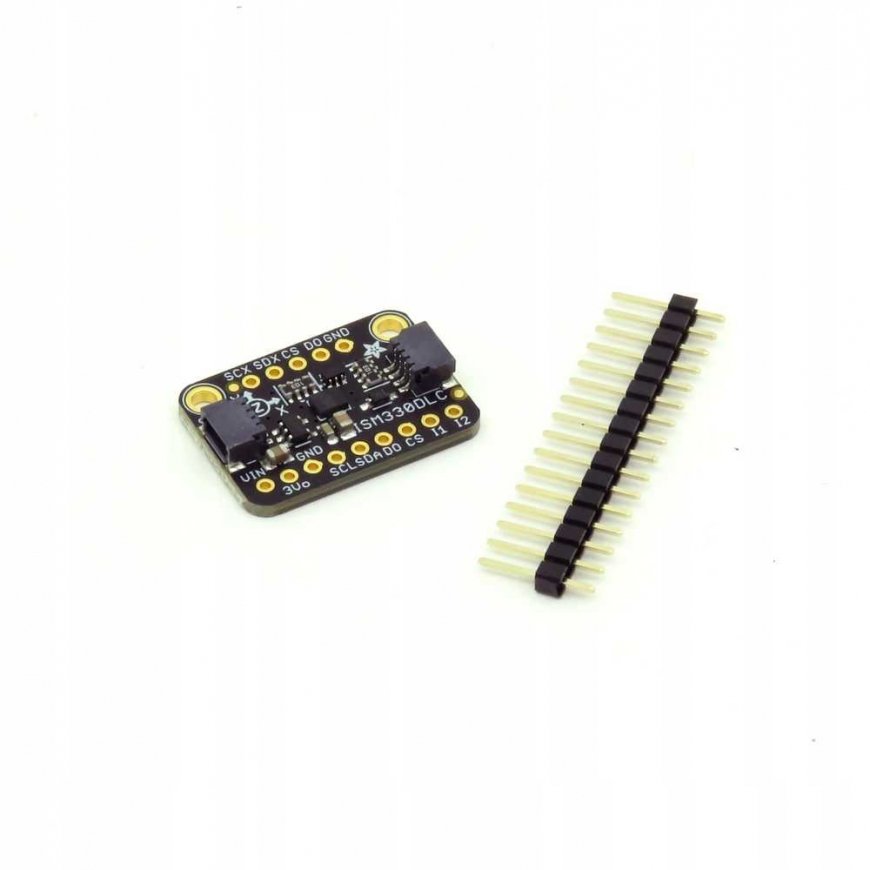

Included:
- ISM330DHCX sensor board
- 2.54 mm gold pin strip for soldering
