Power over Ethernet HAT (C), PoE and 802.3af/at power extension for Raspberry Pi 3B+/4B, Waveshare 1944
3725423 AN-18771
5904422364625
Shipping 11-18 b.d.
All about the product

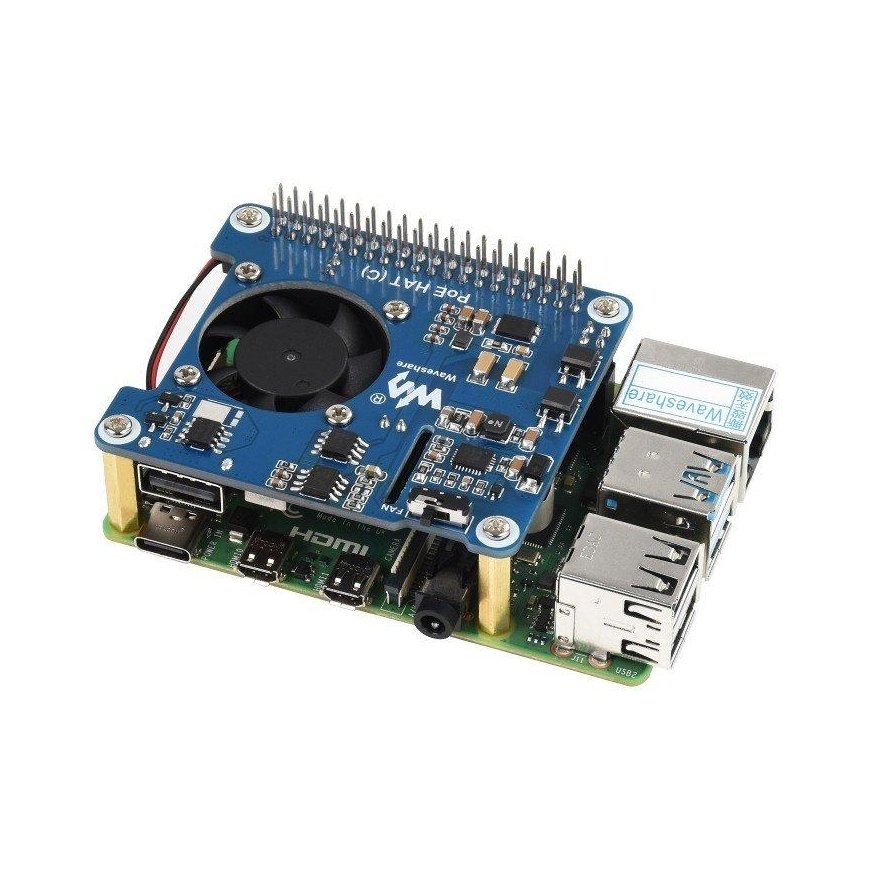

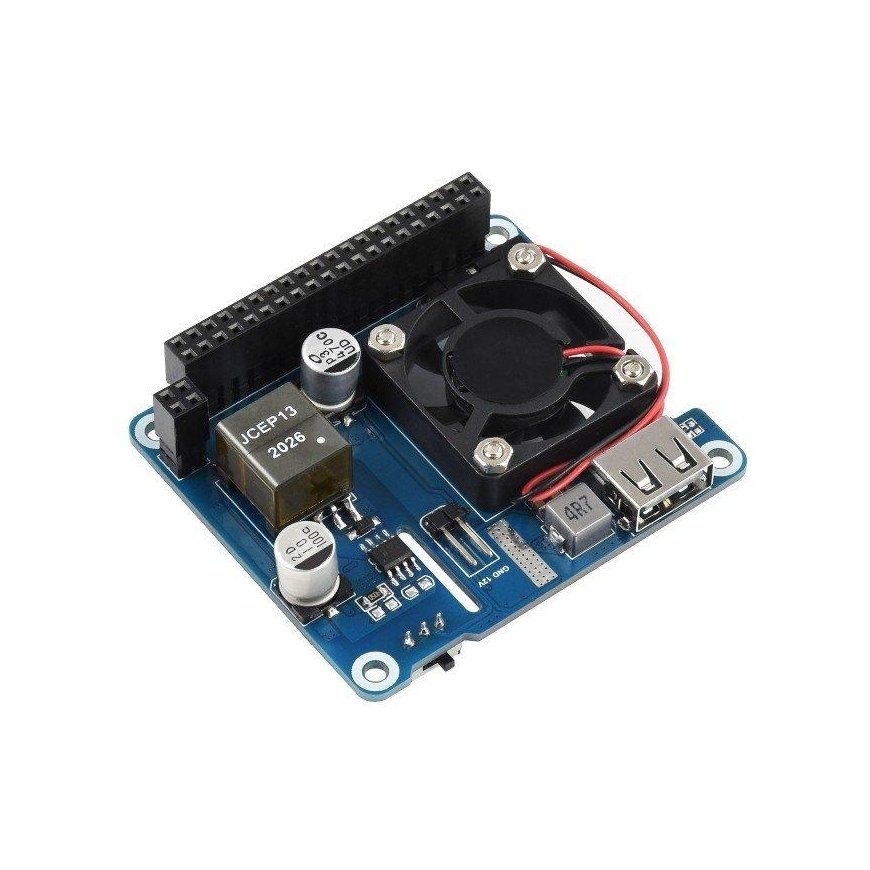

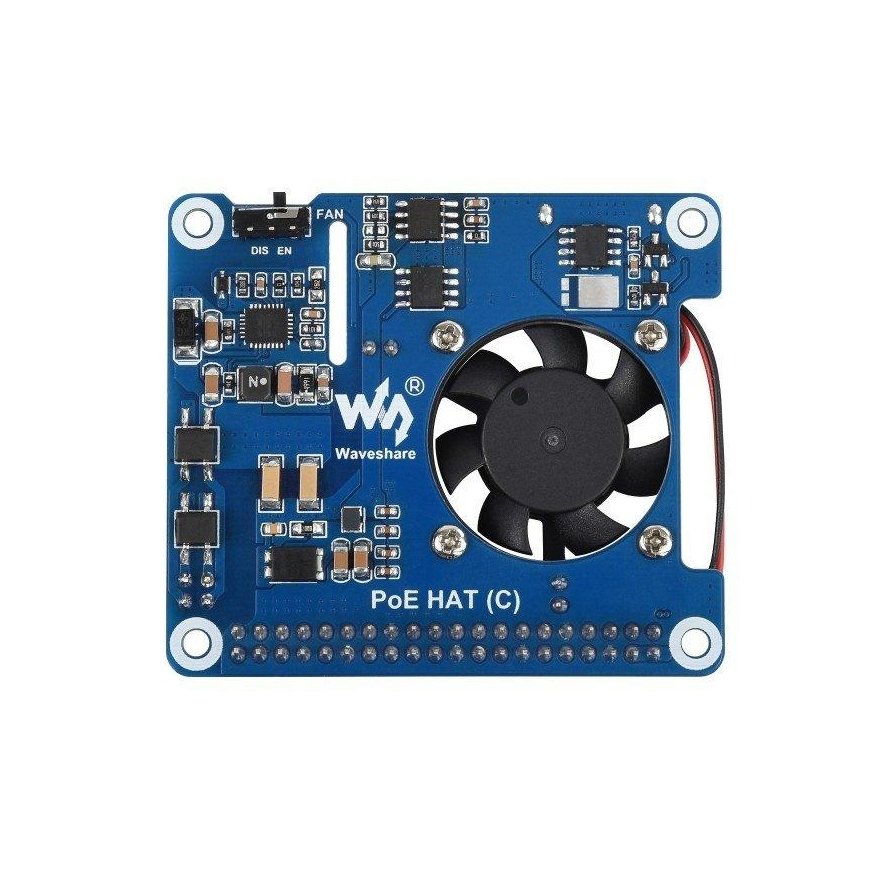

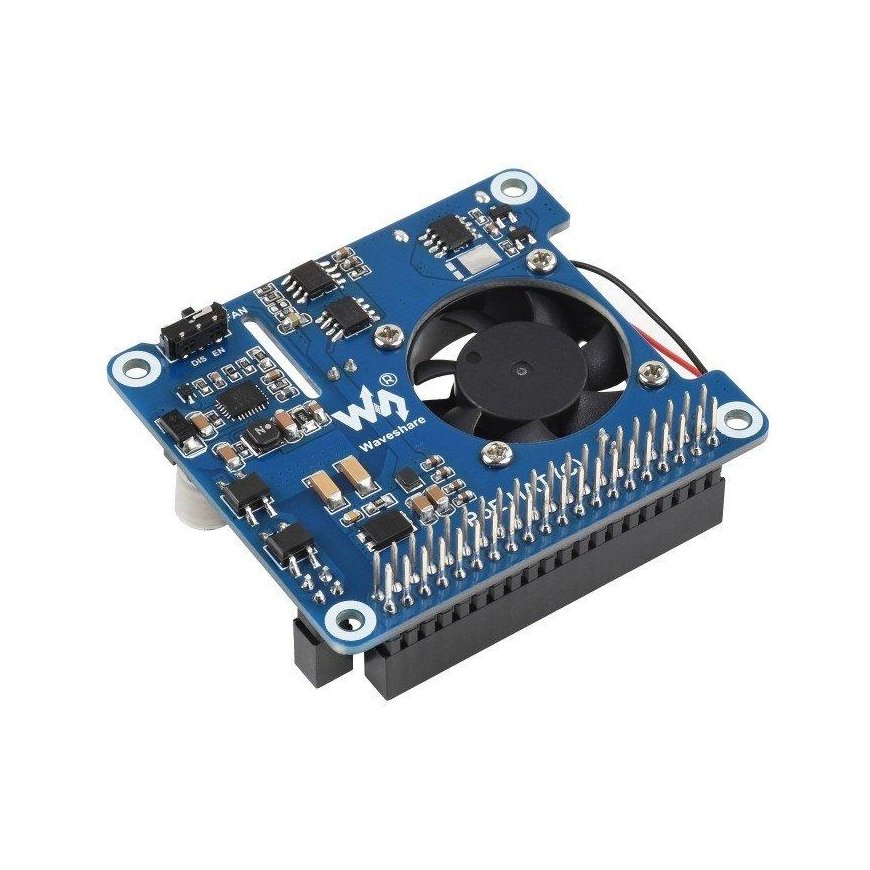

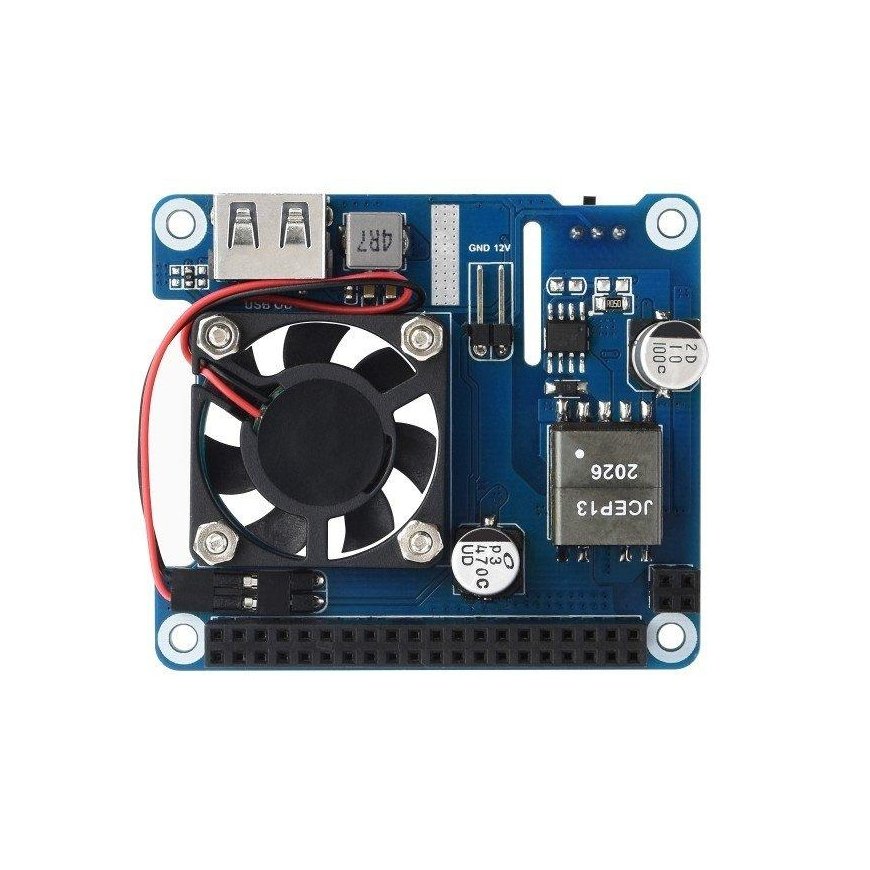

Power over Ethernet HAT (C) is a HAT accessory module designed for Raspberry Pi. It is compatible with the 3B+ and 4B versions of the mini computer. It enables 802.3af/at network connection and powers the Raspberry Pi via the Ethernet port - all using a single cable. The PoE input voltage ranges from 37 V to 57 V. It features an integrated MP8676 chip. The accessory also includes a built-in fan responsible for actively cooling the modules to ensure proper operation of Power over Ethernet; the HAT requires a router/switch with PoE functionality (Power over Ethernet).
Key features:
- The accessory has connectors compatible with Raspberry Pi GPIO pins
- Power over Ethernet (PoE) HAT (C) complies with the IEEE 802.3af/at network standard
- Allows connection to the network and power using a single cable
- Fully isolated switch mode power supply (SMPS)
- Built-in high-power active cooling fan
- Type: power supply module
- On board chip: MP8676
- Compatible with Raspberry Pi version 3B+ / 4B
- PoE power input: 37 V to 57 V DC
- Power output:
- USB Type A: 5 V / 4 A (maximum)
- 2-pin connector: 12 V / 2 A (maximum)
- Network Standard: IEEE 802.3af/at PoE
- Module dimensions: 56.5 mm x 65 mm
- Power over Ethernet HAT (C) - PoE and 802.3af/at power accessory
- Heat sink
- Mounting elements:
- spacer - x4
- screw - x4
- cover - x4
