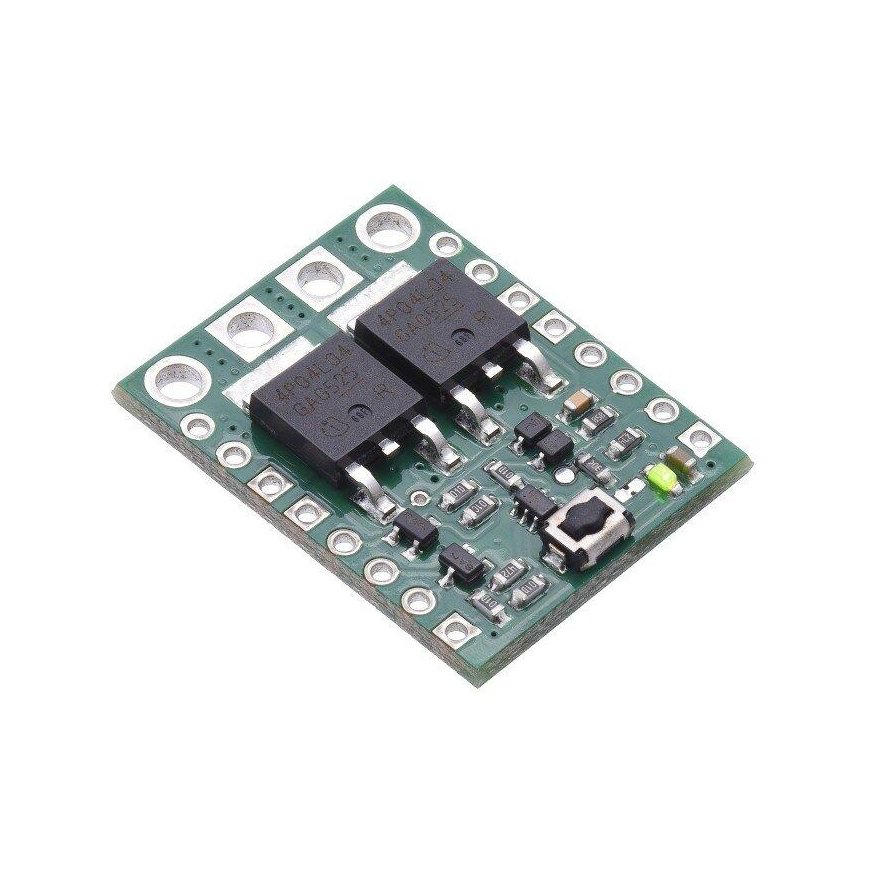

Large MOSFET switch HP 4.5-40V/16A, with reverse current protection, Pololu 2813
3724630 AN-05117
5903351244862
Shipping 11-18 b.d.
All about the product

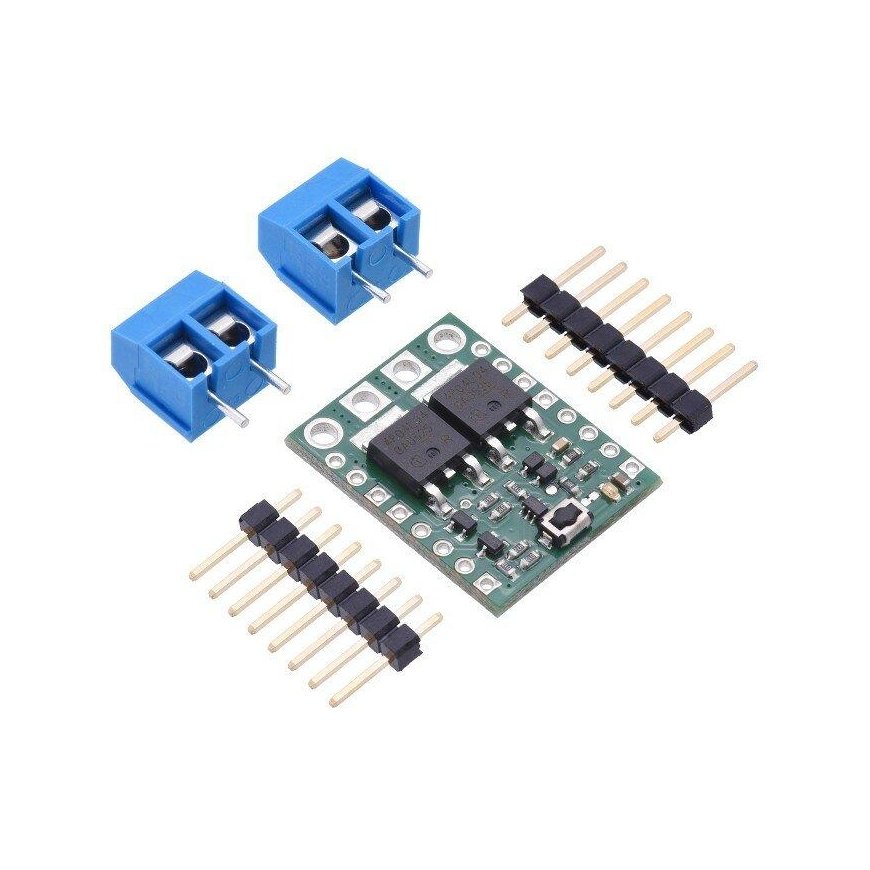

Button module as an alternative to mechanical buttons. The switch is bistable, one press turns on the power source, and another press turns it off. Additional inputs allow for automatic shutdown. The module operates from 4.5 V to 40 V voltage, with a current consumption of up to 16 A. The board has a built-in small button, and external buttons can be connected. The switch current does not affect the controlled system, so you can use different buttons to control the desired power.
Specifications:
- Maximum voltage: 40 V
- Recommended operating voltage: from 4.5 to 32 V
- Continuous current at 55 °C: 6 A
- Continuous current at 150 °C: 16 A
- Maximum current: 90 A
- LED color: green

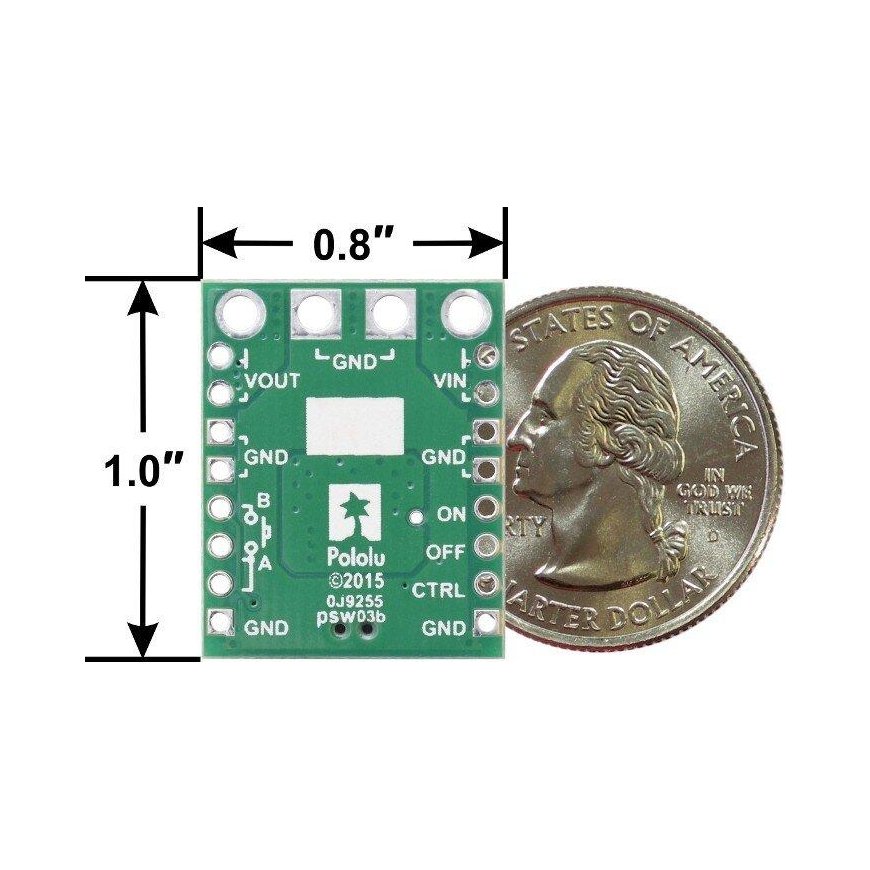

- Dimensions: 20 x 25 x 4 mm
- Weight: 2.7 g
