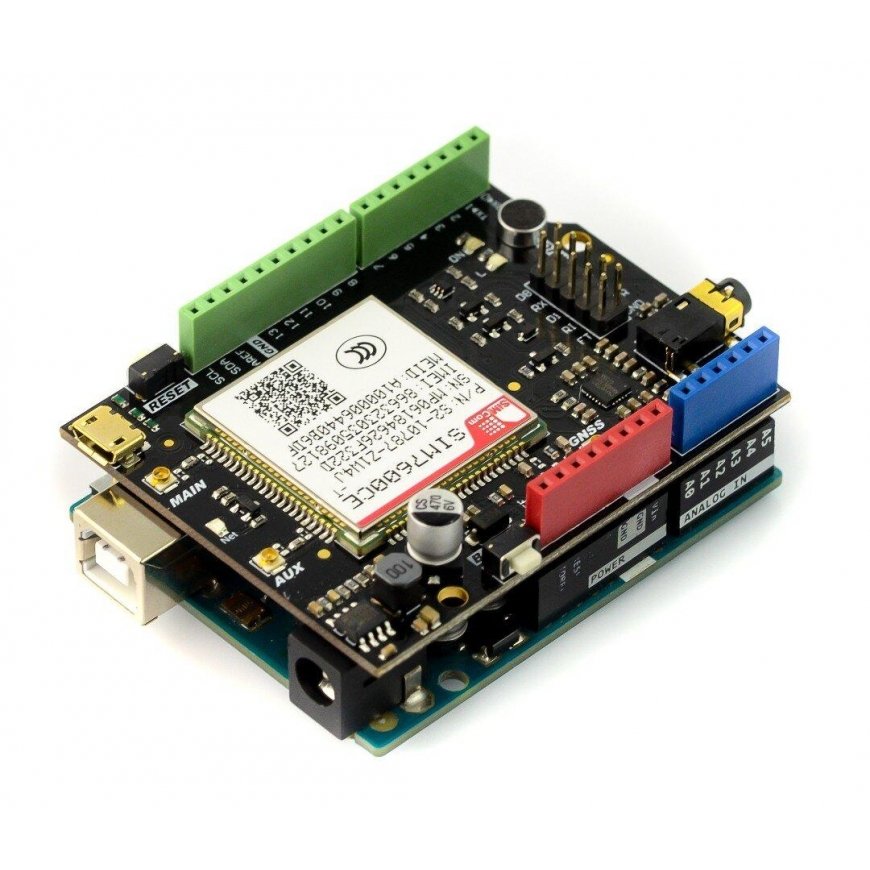

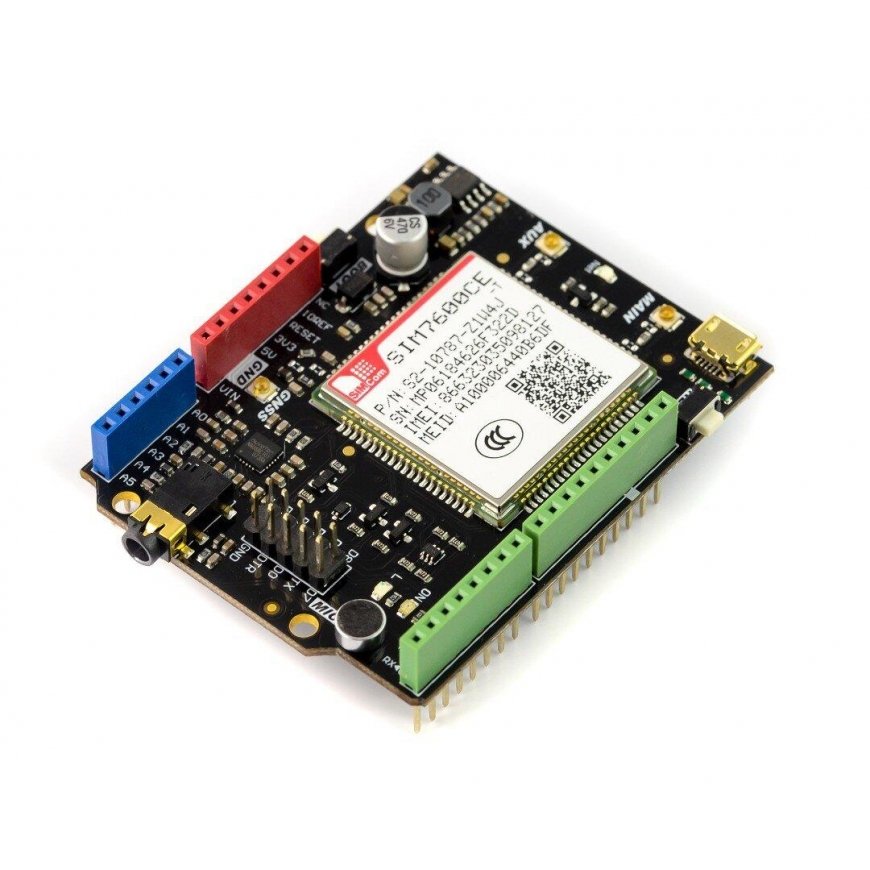

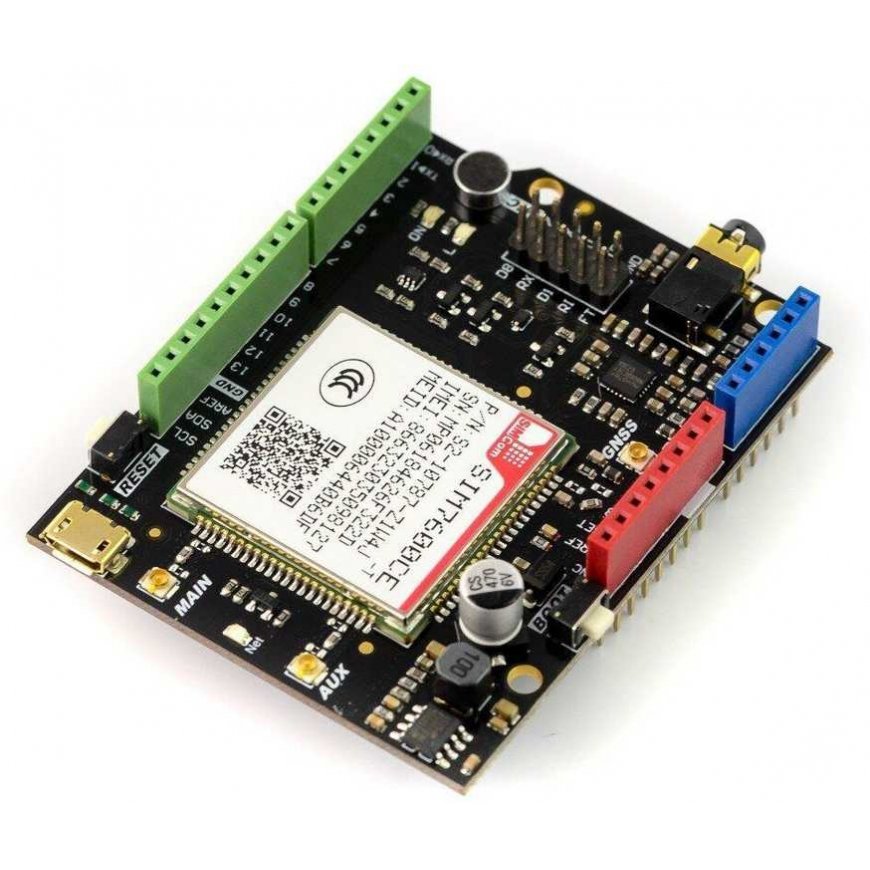

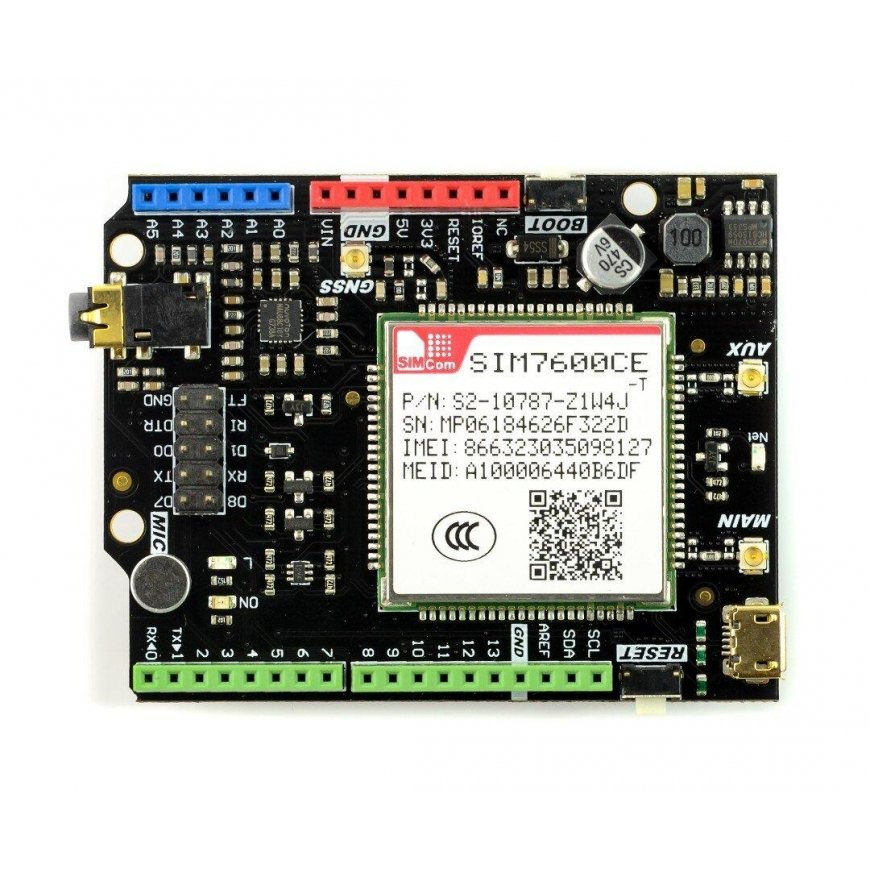

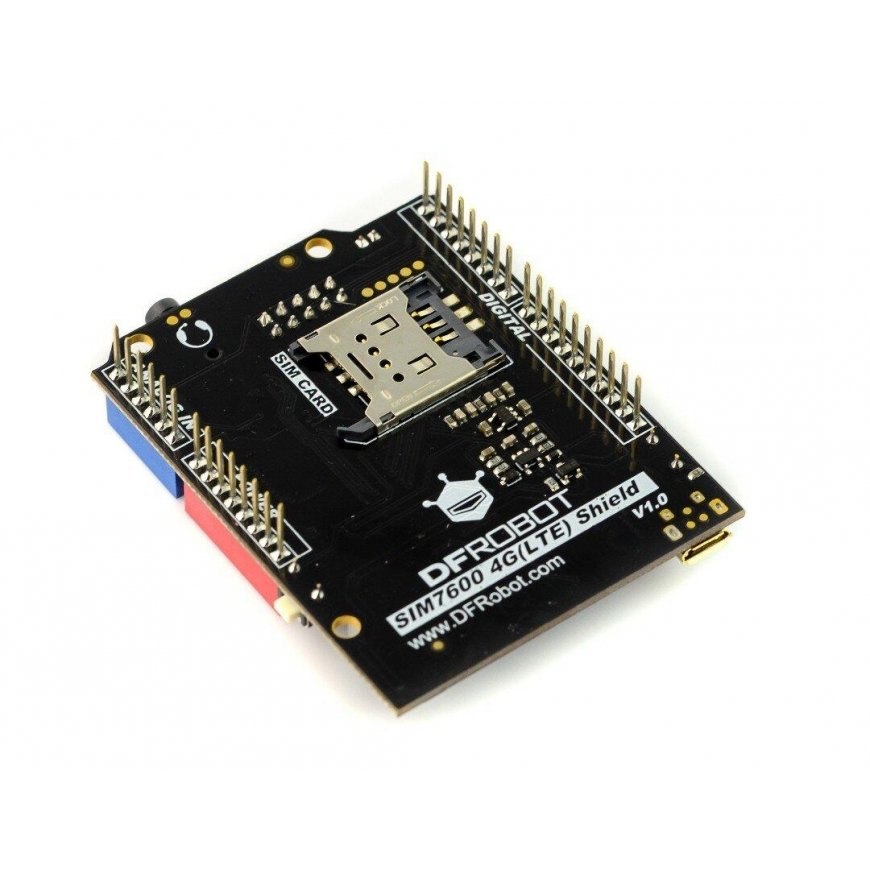

DFRobot SIM7600CE-T 4G (LTE) module designed for Arduino
119.00 €
Monthly payment from 3,96 €
3724503 AN-14047
5904422321819
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Arduino module with the SIM7600CE-T system supports LTE-TDD / LTE-FDD / HSPA + / TD-SCDMA / EVDO and GSM / GPRS / EDGE connectivity. It also supports LTE CAT4 (with a transmission speed of up to 50 Mbps and a download speed of up to 150 Mbps). This allows sending text messages and making calls on the GSM network. It also includes a GPS and LTE module. Communicates via UART (RX, TX) interface using AT commands.
Specifications:
- USB power supply voltage: 5 V
- Operating voltage: 5 V
- Input voltage: VIN - from 7 V to 23 V / USB - 5 V
- System: SIM7600CE-T
- Supported networks:
- TD-LTE B38 / B39 / B40 / B41
- FDD-LTE B1 / B3 / B8
- TD-SCDMA B34 / B39
- WCDMA / HSDPA / HSPA + B1 / B8
- CDMA 1X / EVDO BC0
- GSM / GPRS / EDGE 900/1800 MHz
- 4G: upload speed up to 50 Mbps, download speed up to 150 Mbps
- Supports AT commands: 3GPP TS 27.007, 27.005 and AT commands from the SIM7500 and SIM7600 series
- Supports GNSS positioning
- Low current consumption: 20 mA / 7 V - in flight mode
- Status LEDs: power, network connection, operating mode
- Operating temperature: from -40 °C to 85 °C
- Dimensions: 69 x 54 mm
Included:
- GPS antenna
- 4G LTE antenna
Links:
Manufacturer's page
