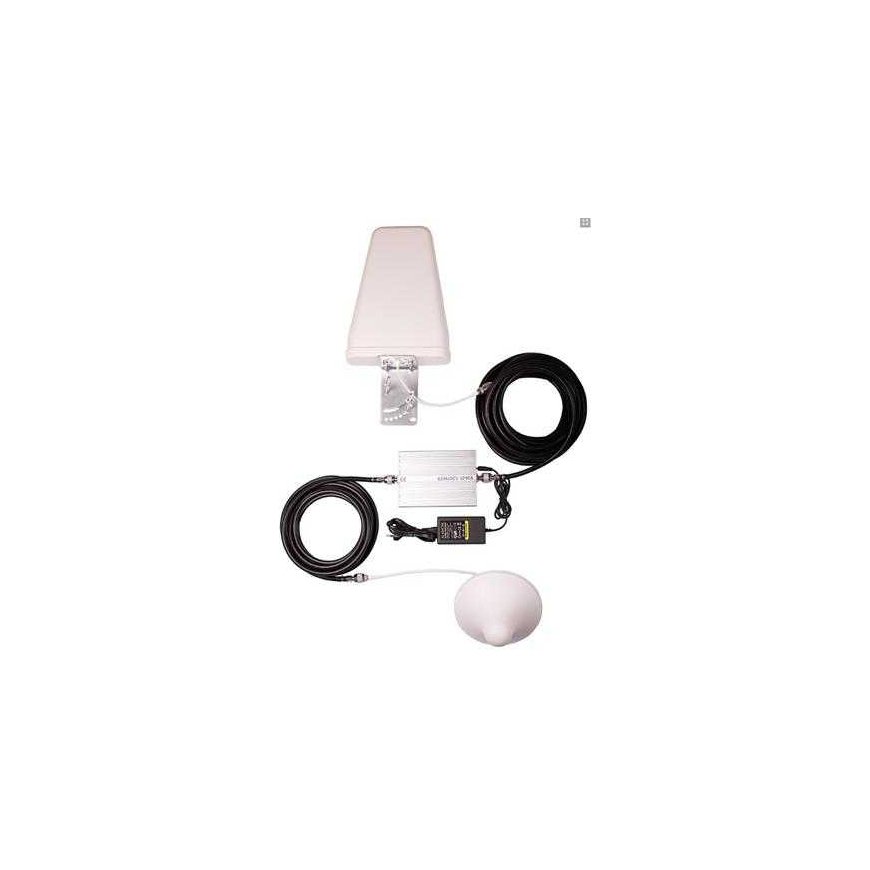

TESLA GSM-LTE, GSM signal amplifier/repeater (900/1800 MHz), set

All about the product

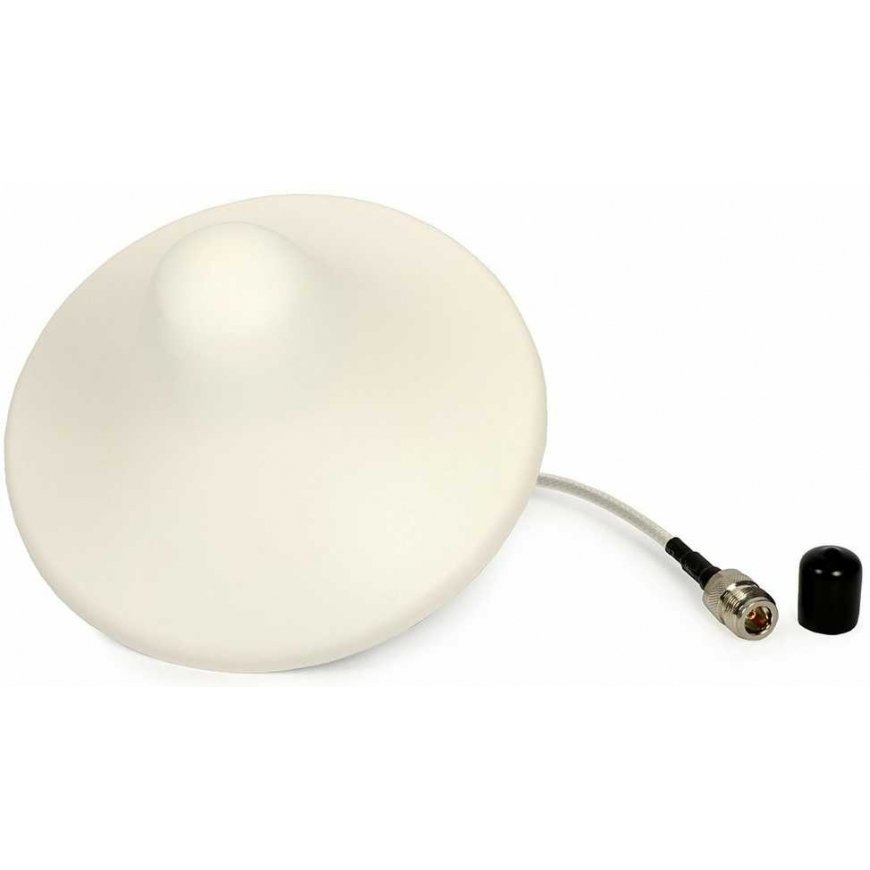

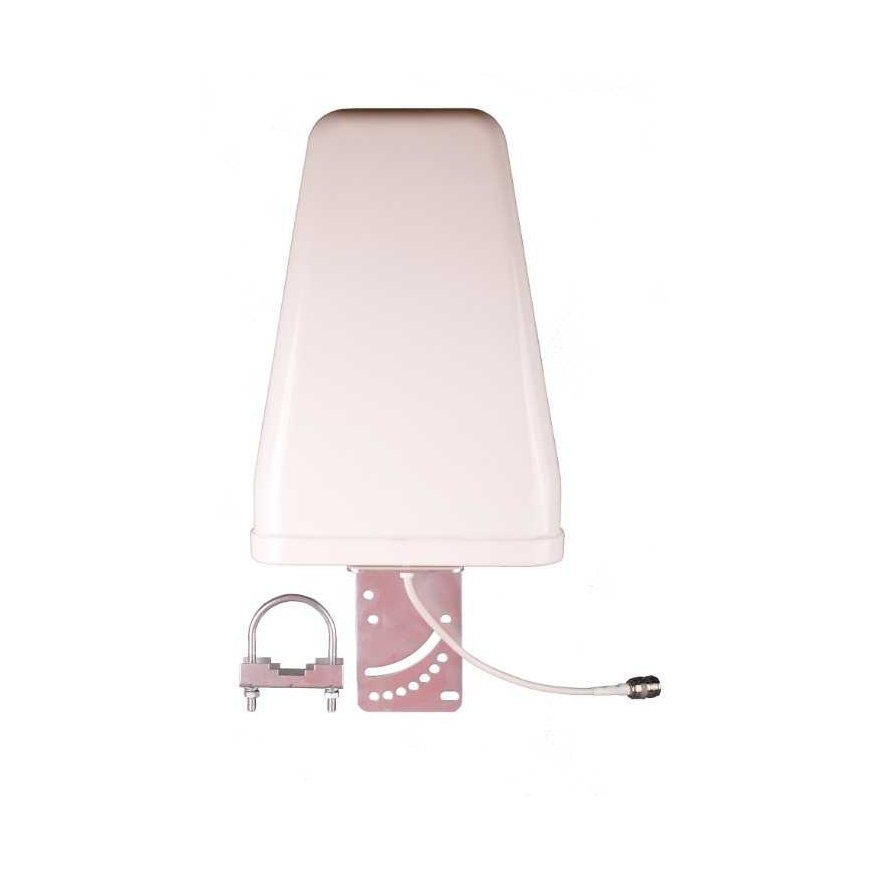

Product Description: A powerful mobile signal amplifier designed for areas where there is insufficient or no signal for your devices such as mobile phones, alarms, and other devices dependent on GSM/LTE signals. It amplifies the GSM 900 MHz transmission frequency and also the LTE 1800 MHz frequency. It supports LTE, fast data transfer. The manufacturer's specified coverage is up to 500 m2. Specifications: - frequency range: uplink (from amplifier to BTS) 890-915 MHz downlink (from BTS to amplifier) 935-960 MHz - LTE DCS 1710-1785 uplink, 1805-1880 MHz downlink - robust aluminum body also serves as a heat sink for the device - gain: uplink Gp 65 dB±3dB Downlink Gp 68 dB±3dB - maximum output power: uplink 23dBm/±1dBm downlink 27dBm/±1dBm - transmitted power: 27dBm - isolation: >70dB - impedance: 50 OHM (N connector) - pass-through attenuation: -3dB - noise: 4dB - response: 0.5 µs - operating temperatures: -10°C~60°C - power supply: AC 110/235V (AC/DC Adapter 5V DC) - operation and status indicators. Set components: - outdoor receiving antenna - indoor sector antenna - 2 x coaxial cables, from the outdoor antenna to the amplifier (10m) and from the amplifier to the indoor antenna (5m) - installation manual. Others: - package weight: 1.5 kg - amplifier weight: 1.0 kg - dimensions: 198 x 138 x 30 mm. GSM signal repeaters can be operated in the Czech Republic according to general authorization No. VOR/24/11.2008-16 for the operation of infrastructure devices for the dissemination of radio signals inside tunnels and indoor spaces of buildings. GSM signal repeaters can only be operated in the Czech Republic with the written consent of the network operators whose signal it covers.
