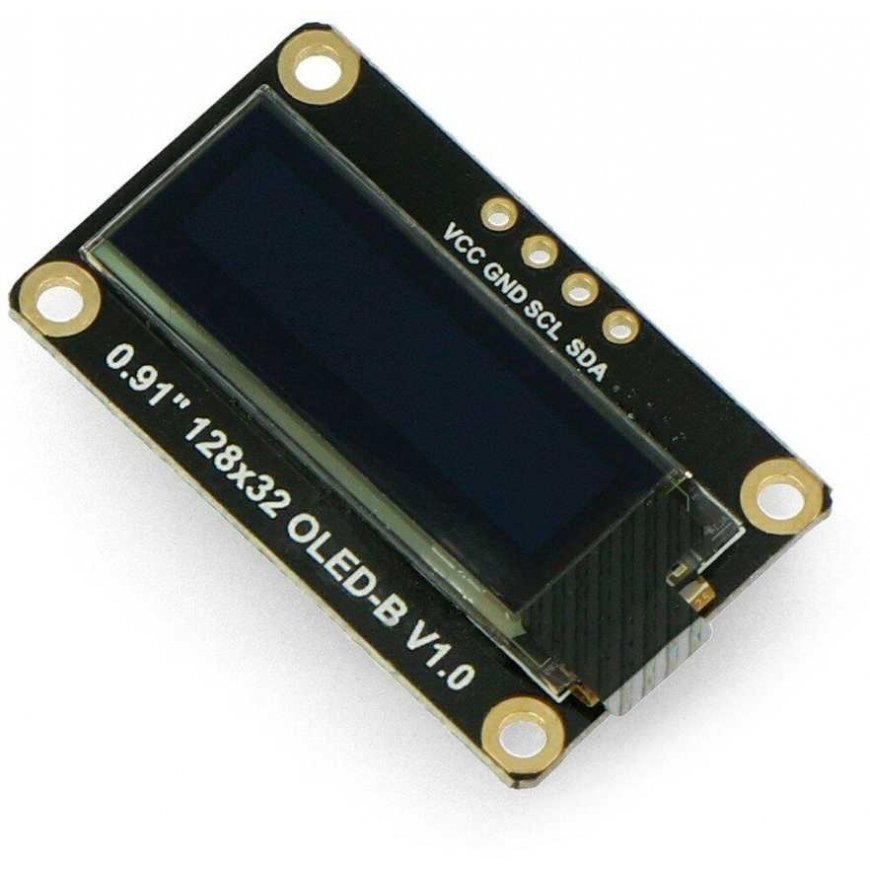

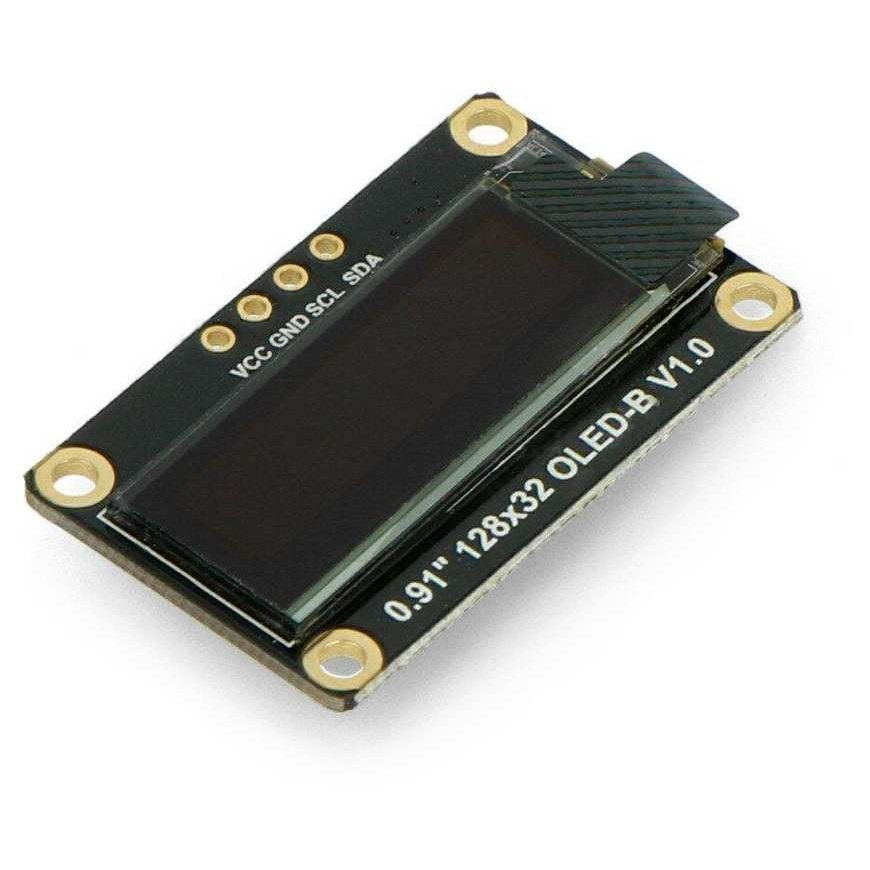

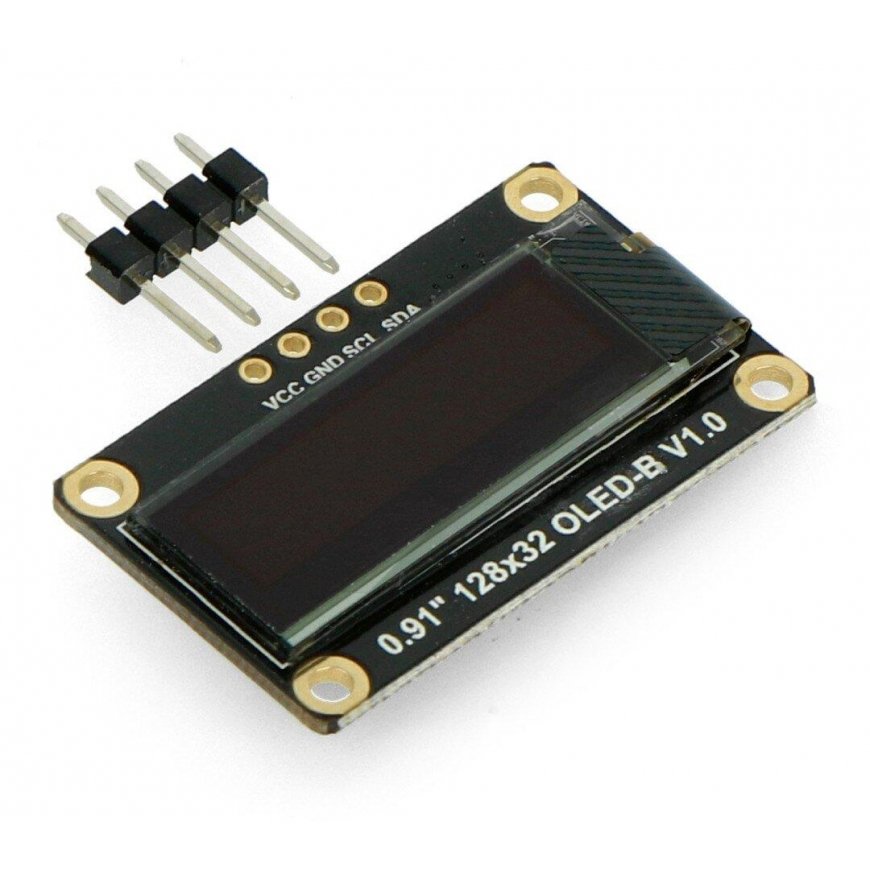

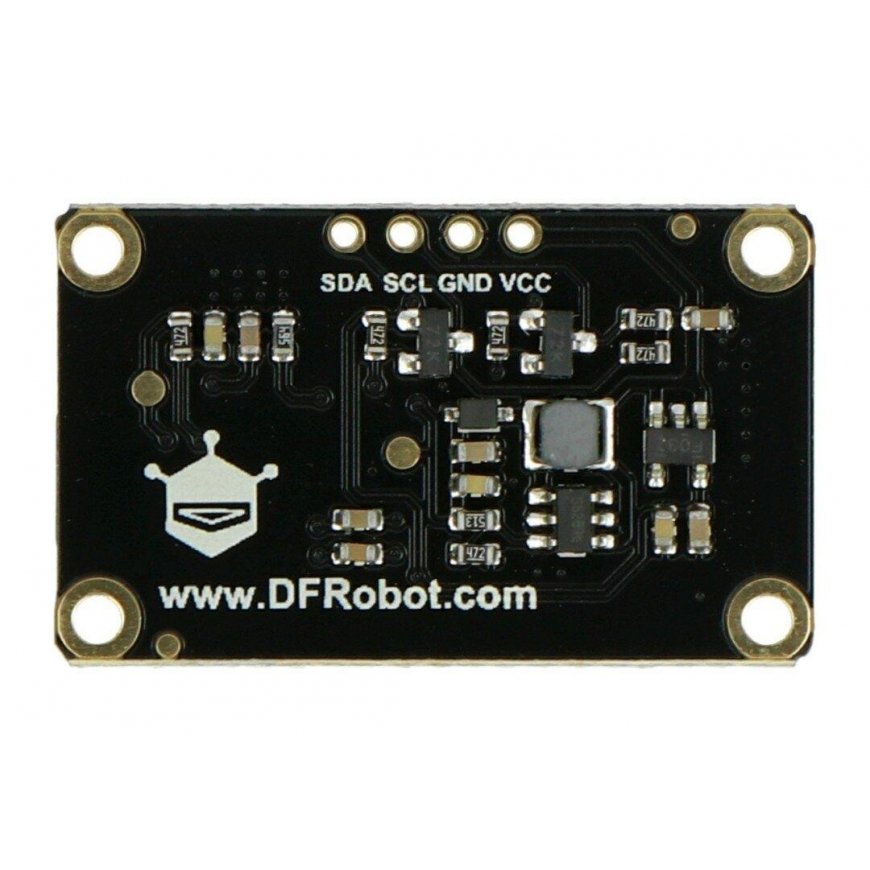

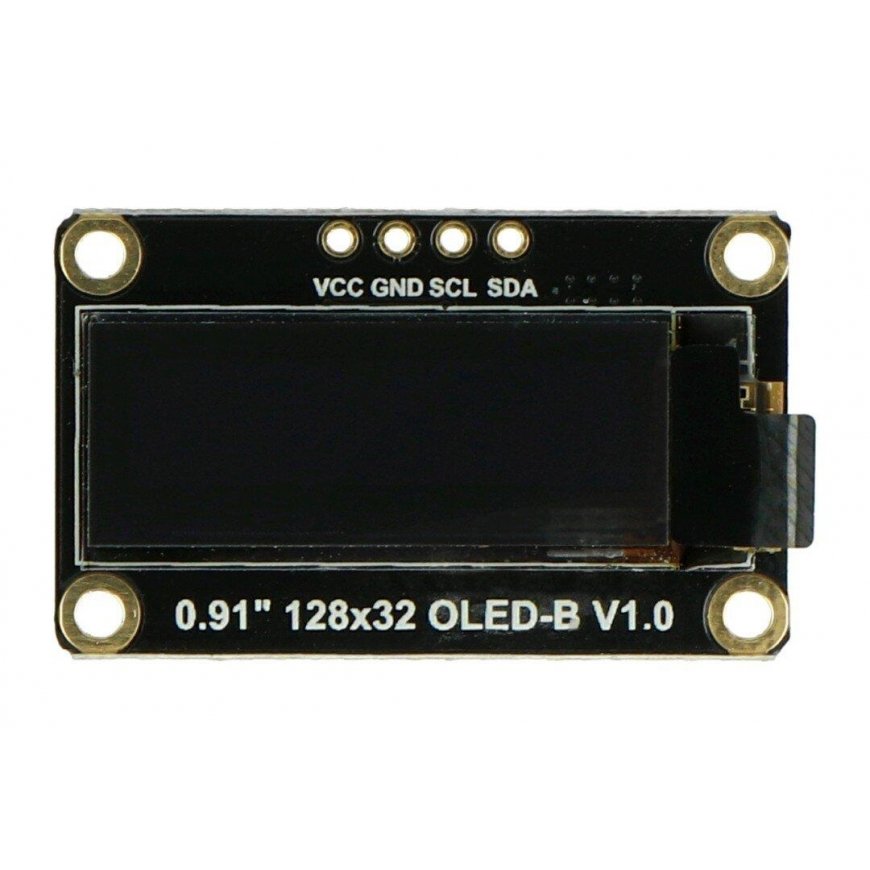

Single color OLED graphic display 0.91" 128 x 32 px I2C, DFRobot DFR0648
22.61 €
3723900 AN-16711
5904422326395
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Graphic OLED display with white characters on a black background, monochrome. The screen size is 0.91", and the resolution is 128 x 32 px. The display uses the SSD1306 chip, which utilizes the I2C interface for connections. The display is characterized by easy connection to a microcontroller and low power consumption. Powered by 3.3 V or 5 V. Compatible with Arduino, ESP32, FireBeetle.
Specifications:
- Operating voltage: 3.3 V and 5 V
- Character color: white
- Number of pixels: 128 x 32
- Interface: I2C
- Layout: SSD1306
- Brightness: 180 cd / m2
- Power consumption at full brightness: approx. 25 mA
- Power consumption with backlight off: approx. 2 mA
- Operating temperature: from -30 °C to 70 °C
- Display area: 22.38 x 5.58 mm
- Dimensions: 33 x 20 mm
- Weight: 2.7 g
