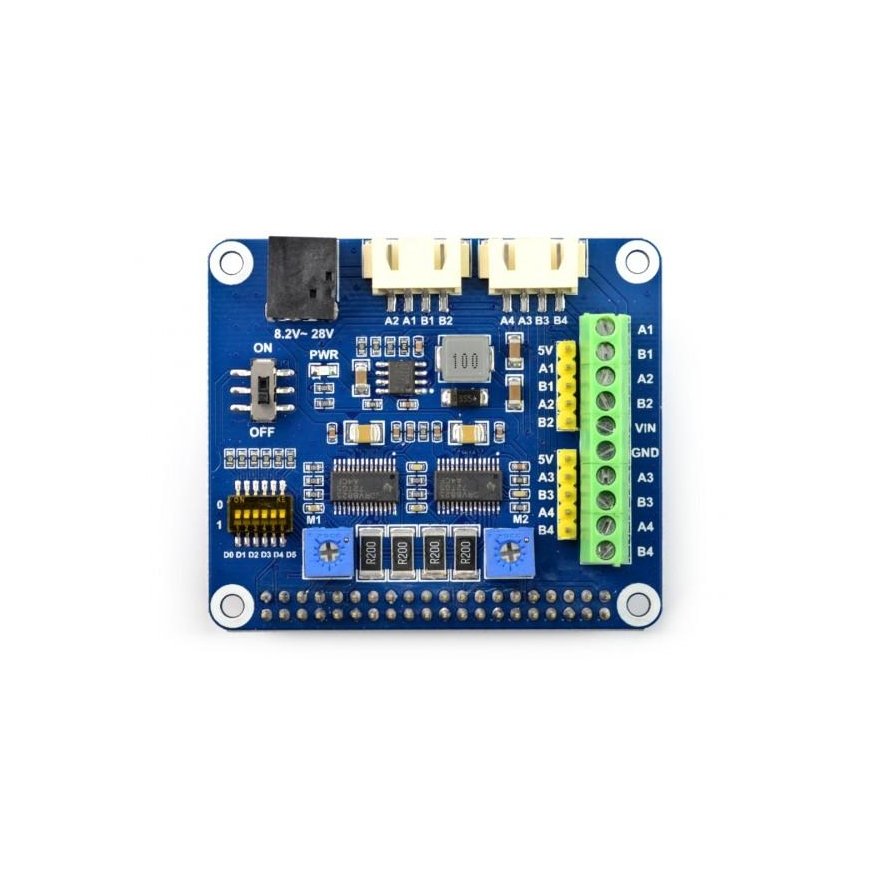

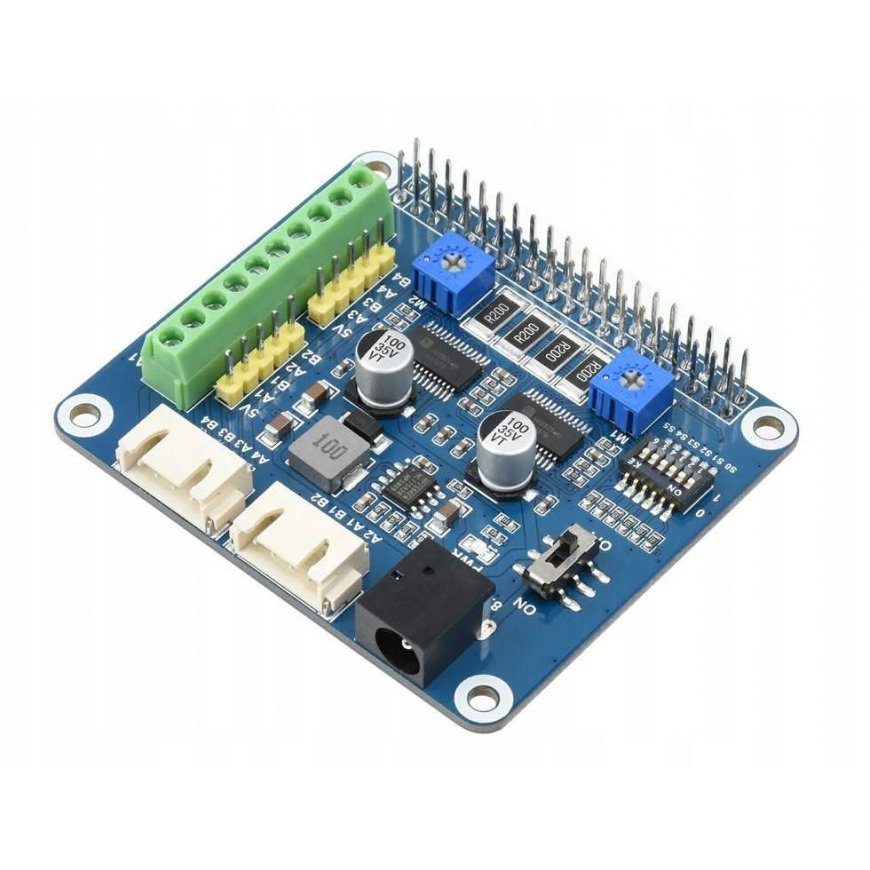

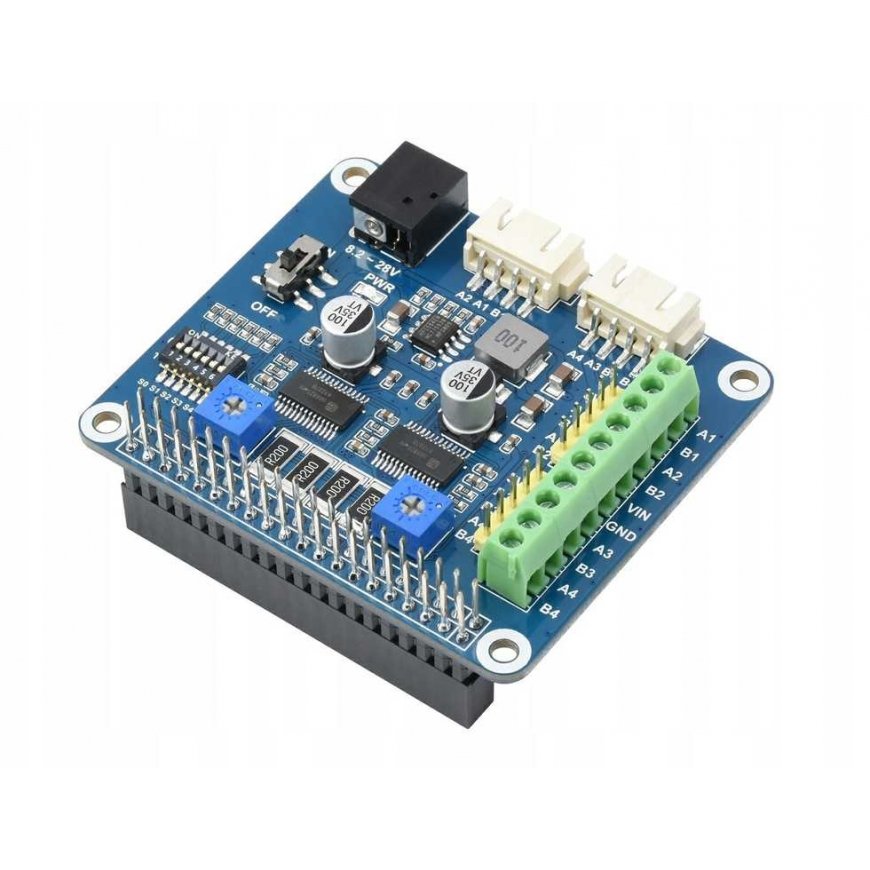

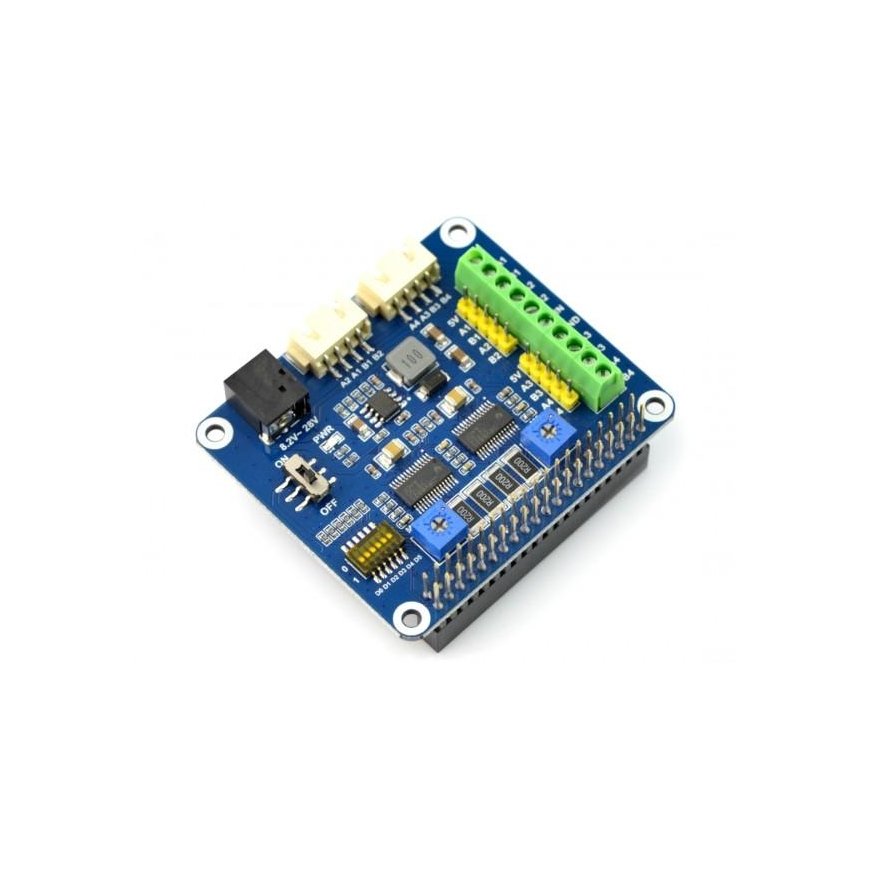

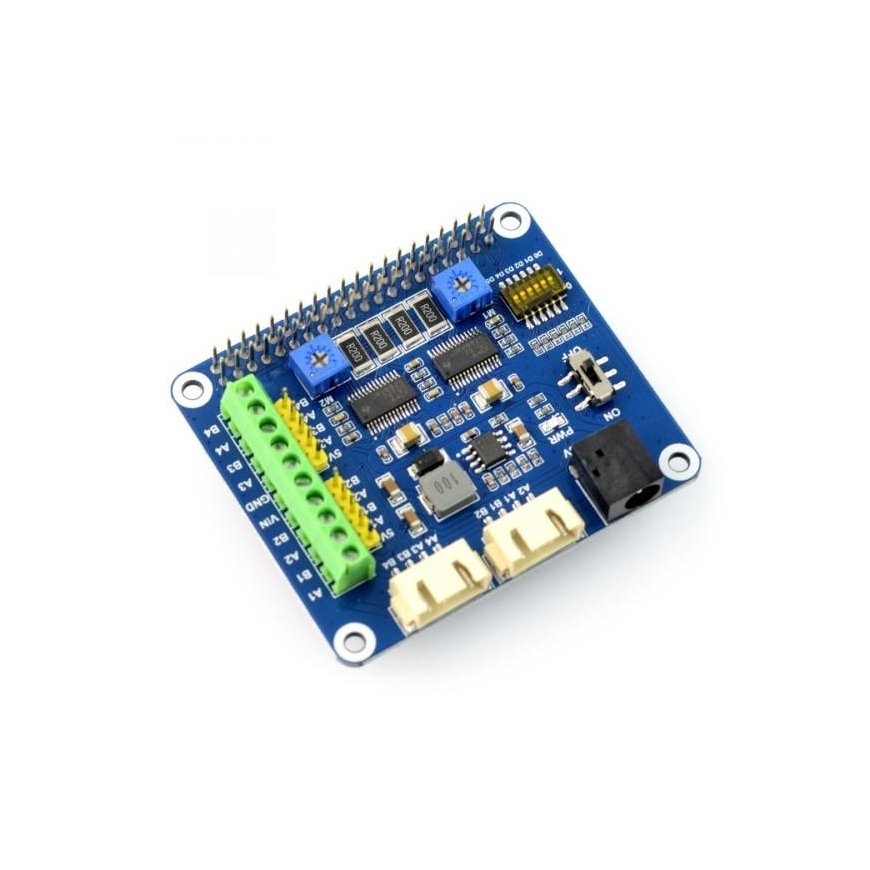

Stepper motor controller 28V/2.5A Raspberry Pi Waveshare 15669 dual channel
39.00 €
Monthly payment from 1,90 €
3723725 AN-13513
5904422320799
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Raspberry Pi module with the DRV8825 system allows controlling two stepper motors with a resolution of up to 1/32. The stepper motor driver works with motors that have a voltage from 8.2 V to 28 V, and the maximum current is 2.5 A. The module's operating voltage is 3.3 V.
Specifications :
- Module: DRV8825
- Motor supply voltage: from 8.2 V to 28 V
- Maximum motor current: 2.5 A
- Module voltage: 3.3 V
- Dimensions: 65 x 56 mm
- Mounting holes: 3 mm
Included:
- DRV8825 module
- Screws and spacers
