General LCD IPS display 1.28" 240x240px, designed for Raspberry Pi and Arduino, round, Waveshare 19192
29.00 €
3723340 AN-19040
5904422371845
Shipping 11-18 b.d.
You are interested in this product?
All about the product

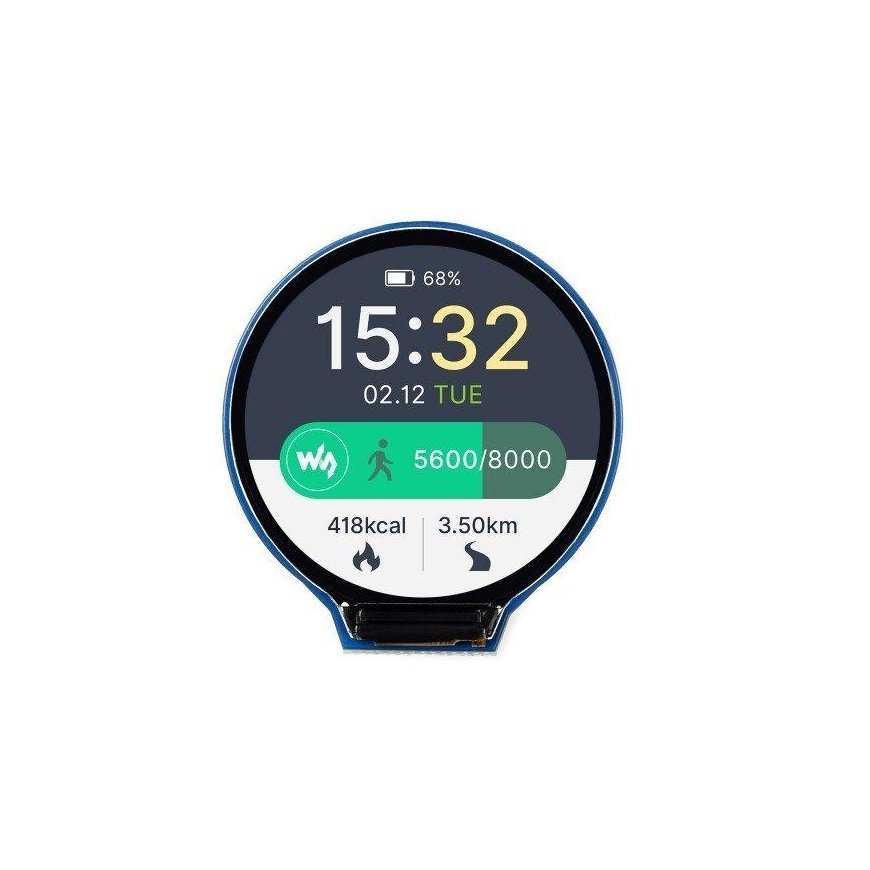

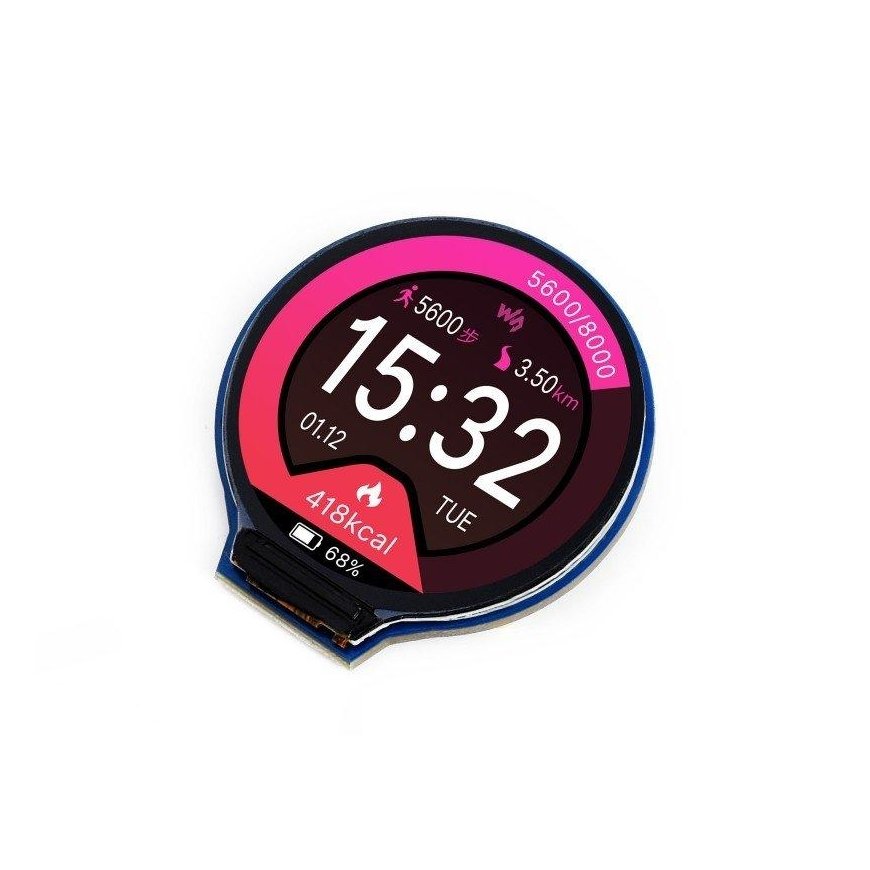

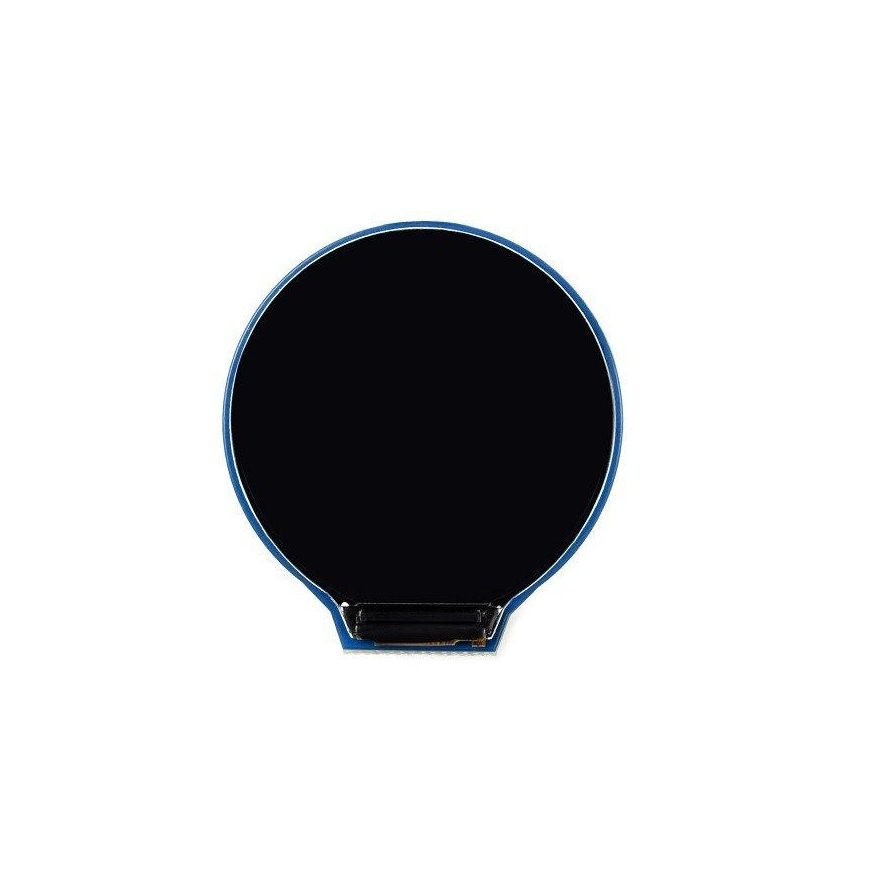

Round-shaped Waveshare display. The screen diagonal is 1.28", and the resolution is 240x240px. It provides a clear, properly contrasted, and saturated image displayed in the RGB color range. It uses a 4-pin SPI communication interface and is compatible with controllers such as Arduino, Raspberry Pi, Jetson Nano, and STM32. A cable is included.
Key features:
- RGB image displayed on a 1.28" screen

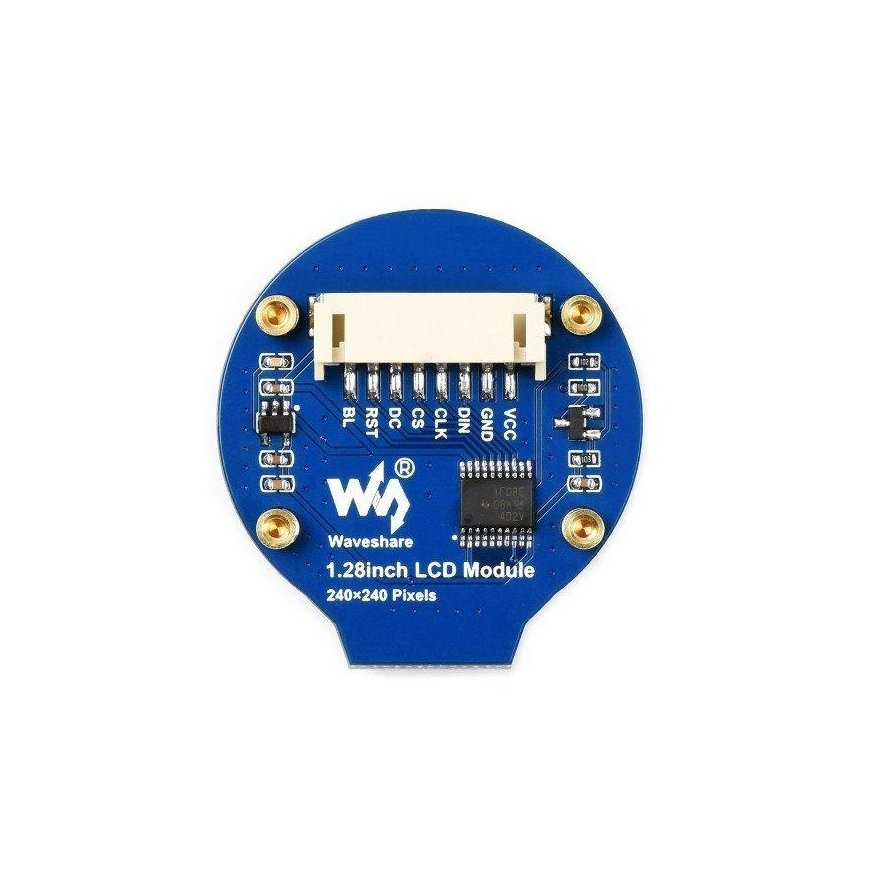

- Integrated GC9A01 chip
- Uses SPI bus to interact with other modules, thus it does not occupy input/output pins

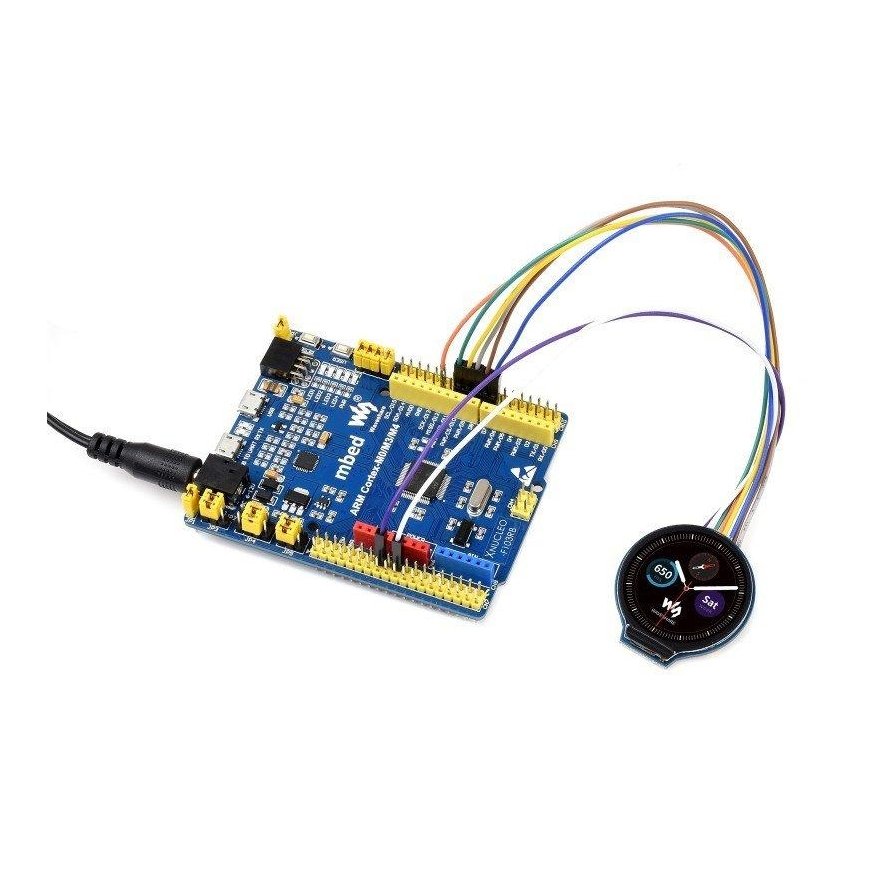

- Compatible with Raspberry Pi / Jetson Nano / Arduino / STM32
- The manufacturer provides ready-to-use programs for configuring the display with Raspberry Pi, Arduino, and STM32
- Display type: LCD IPS
- Screen diagonal: 1.28"
- Resolution: 240x240px
- Pixel size: 0.135x0.135
- Interface: 4-pin SPI
- Color range: 65 K RGB
- Power supply voltage: 3.3 V / 5 V
- Integrated controller: GC9A01
- Screen diameter: 32.4 mm
- External dimensions: 40.4 mm x 37.5 mm
