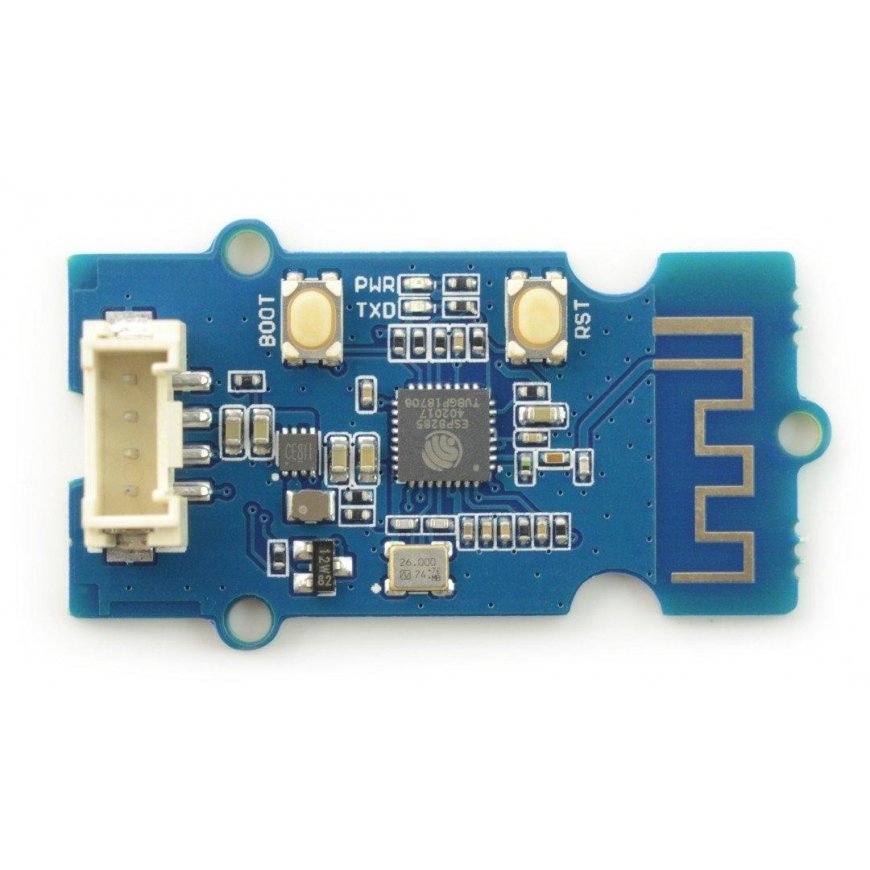

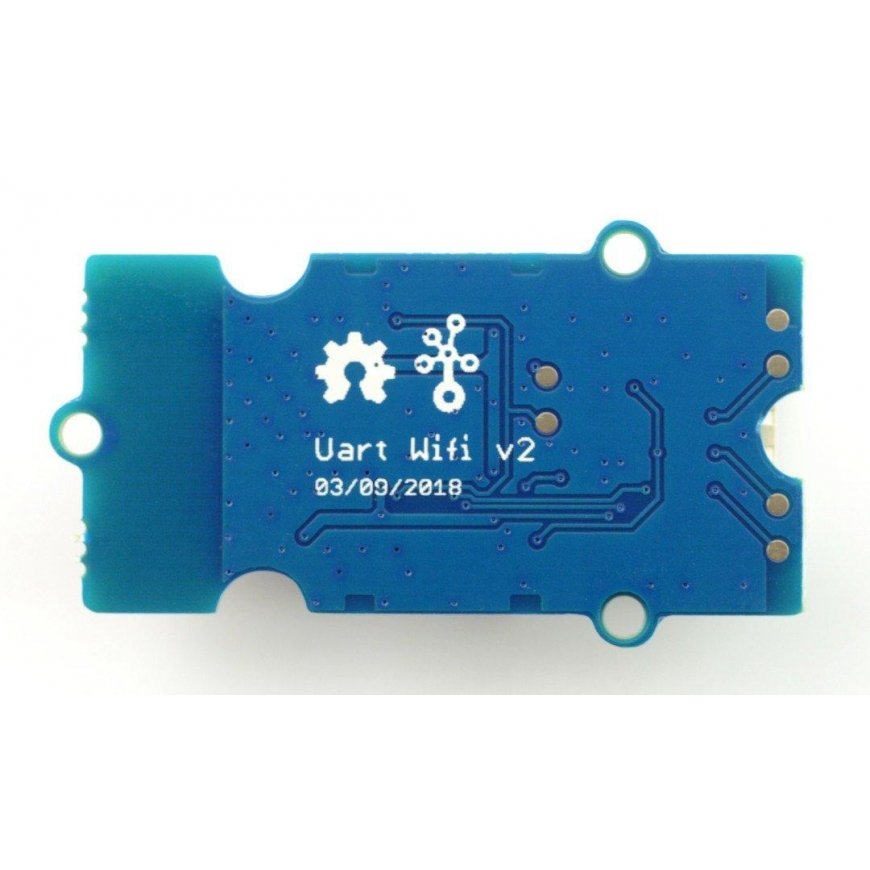

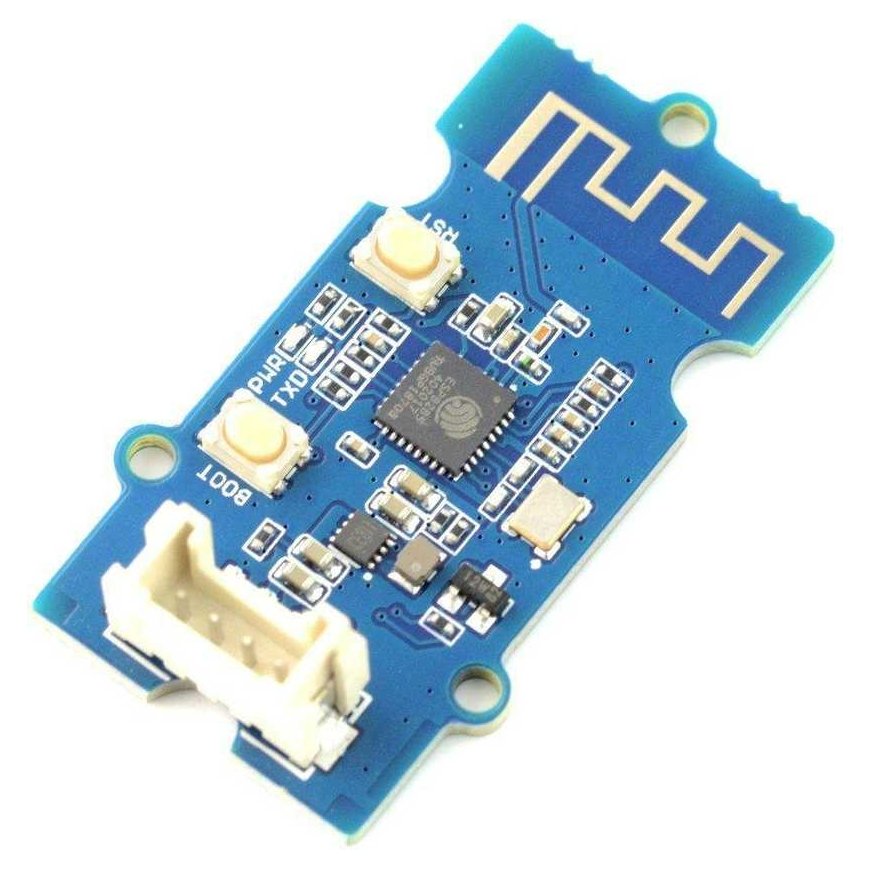

Seeed Studio Grove ESP8285 v2, WiFi UART module
3723118 AN-13241
5903351247252
Shipping 11-18 b.d.
All about the product

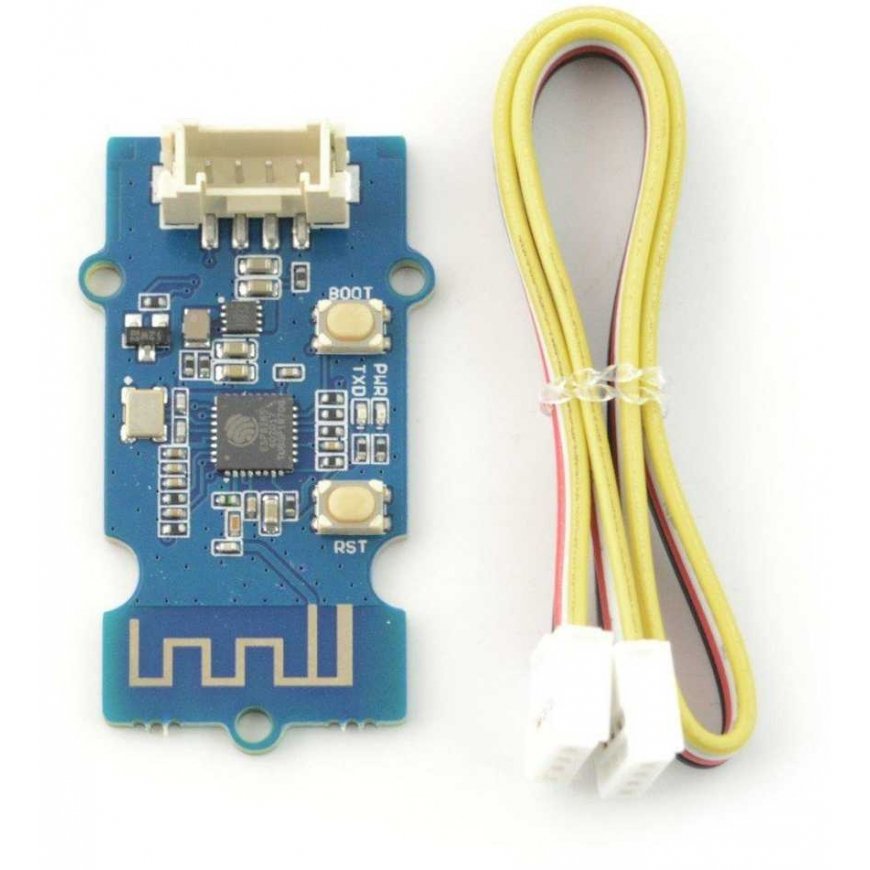

Grove Wi-Fi module based on the ESP8285 system, with built-in TCP / IP and supporting AT commands. It also supports popular security protocols such as WEP, WPA / WPA2, TKIP, AES, and WAPI. It can also function as an access point with DHCP or serve as a connection between two other Wi-Fi networks. It also has the capability to configure the MAC address and IP. Powered from 3.3 V to 5.5 V voltage. Interacts with the microcontroller via UART interface. Comes with a cable designed for Seeedstudio Base Shield v2.0.
Specifications:
- Wi-Fi system: ESP8285 ESP-07
- Supports AT commands
- Built-in antenna
- Protocol: 802.11b/g/n (2.4 GHz)
- QoS
- Interface: UART
- Capacity: 11520 bits/s
- Memory: 1 MB
- Power supply voltage: from 3.3 V to 5.5 V

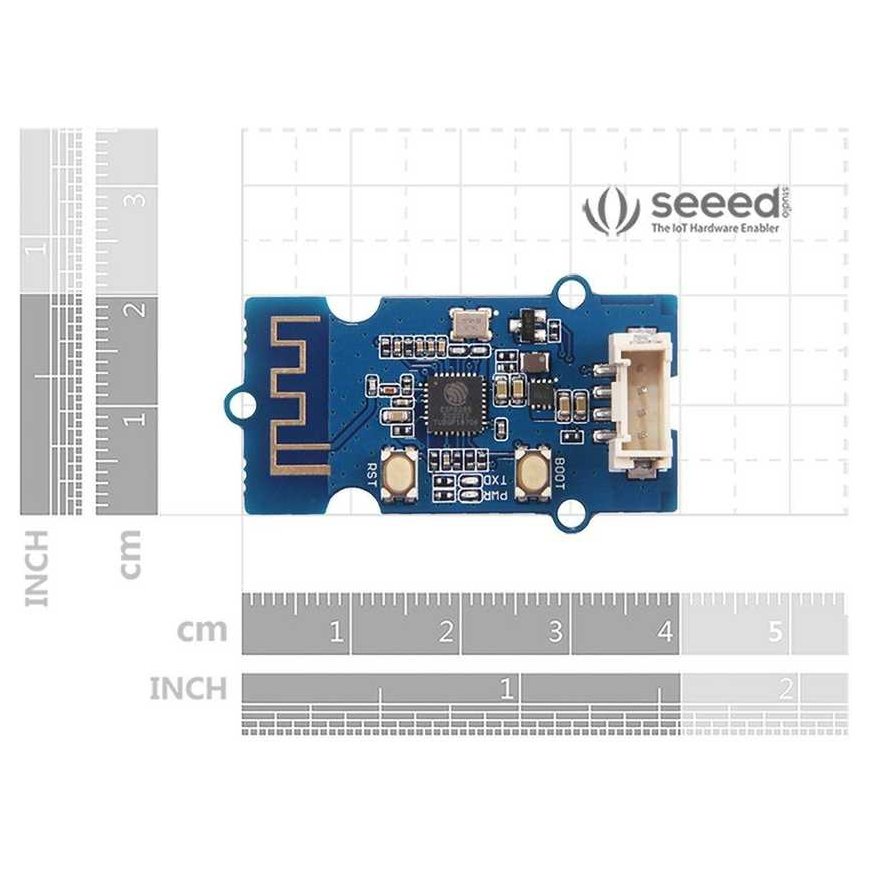

- Dimensions: 40 x 20 x 7 mm
- Weight: 3.4 g
