Seeed Studio Grove, NFC v1.1 module with antenna
39.00 €
Monthly payment from 1,90 €
3719882 AN-15265
5903351246842
Shipping 11-18 b.d.
You are interested in this product?
All about the product

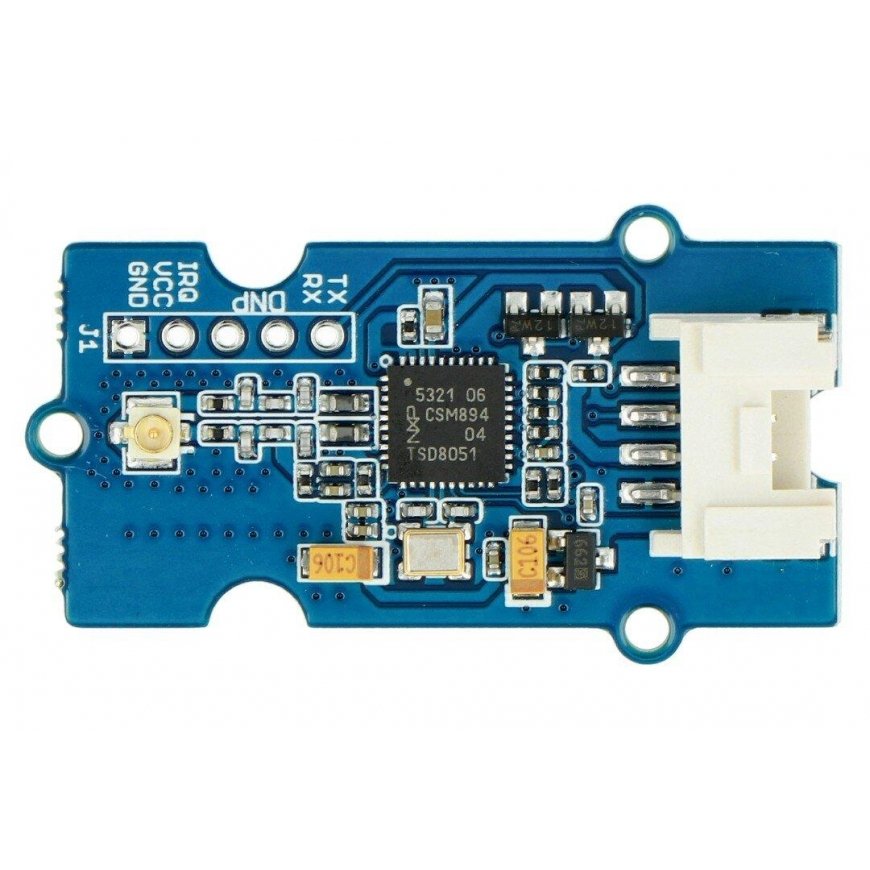

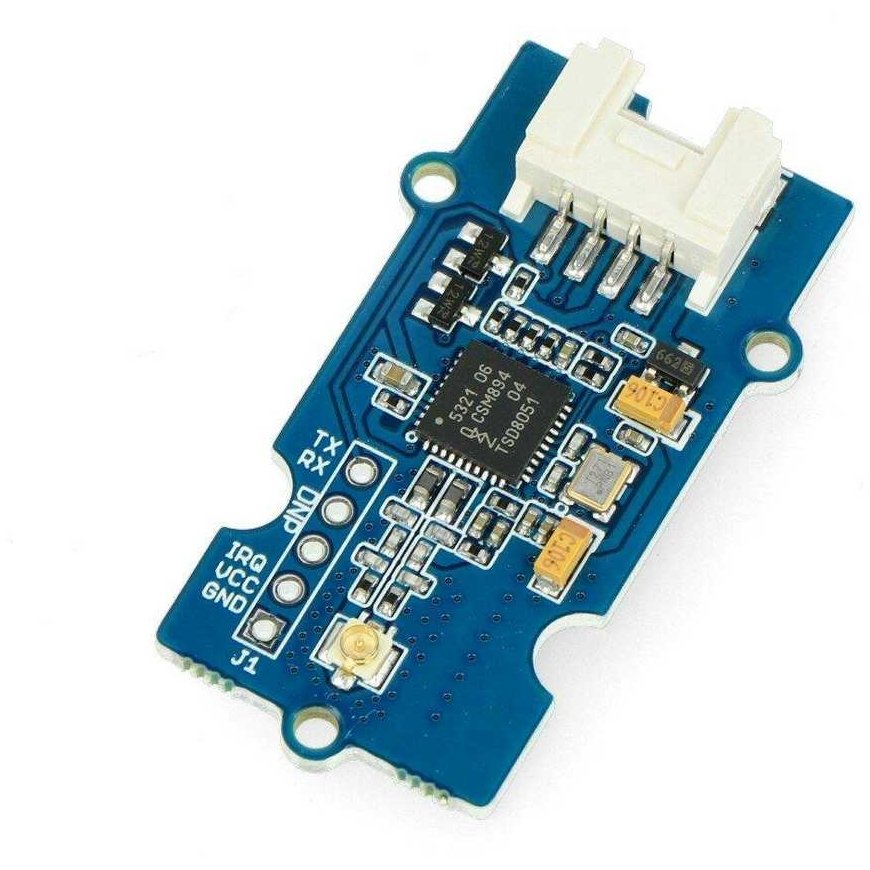

The module features a PN532 transceiver system, providing wireless communication in the 13.56 MHz band. It interacts via UART (default) and I2C interfaces. The kit includes an antenna with a u.FL connector, with a range of 50 mm. The module operates according to ISO14443 A and B types. The power supply voltage is 3.3 V.
Specifications:
- Operating voltage: 3.3 V
- Power consumption:
- Idle mode: 73 mA
- Read/Write mode: 83 mA

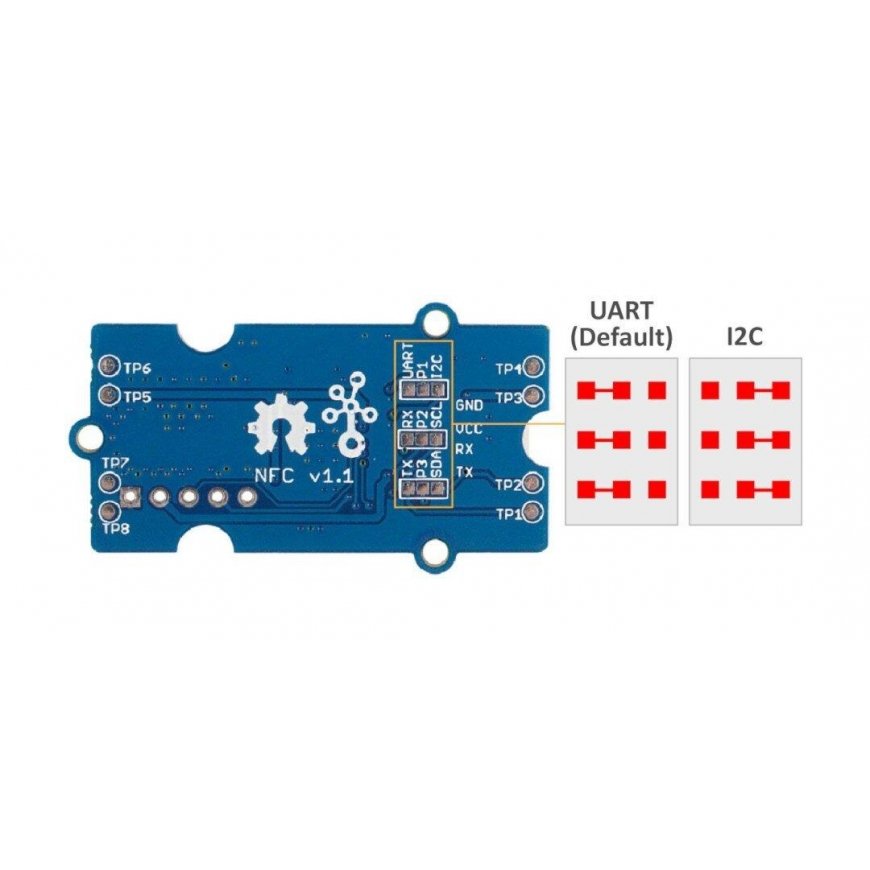

- Supported interfaces:
- UART (default)
- I2C
- Wireless communication in the 13.56 MHz band
- Supports ISO14443 A and B types
- P2P - peer to peer communication support
- Dimensions: 25 x 20 mm
- Weight: 5 g

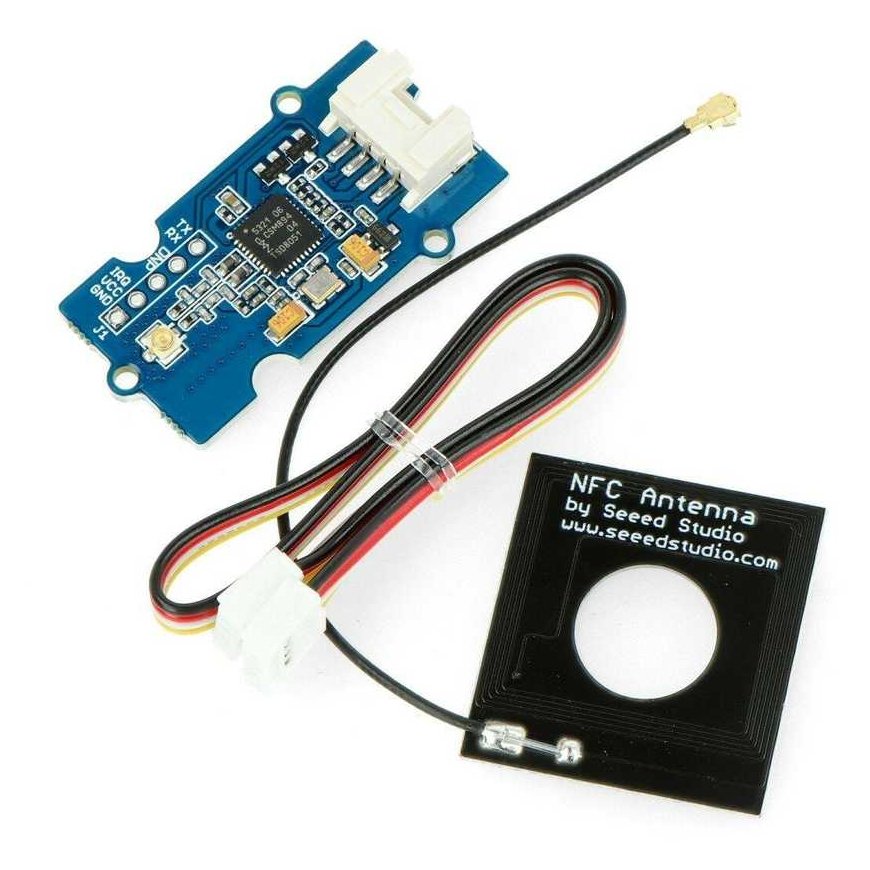

Included:
- NFC module
- Antenna
- Grove cable
