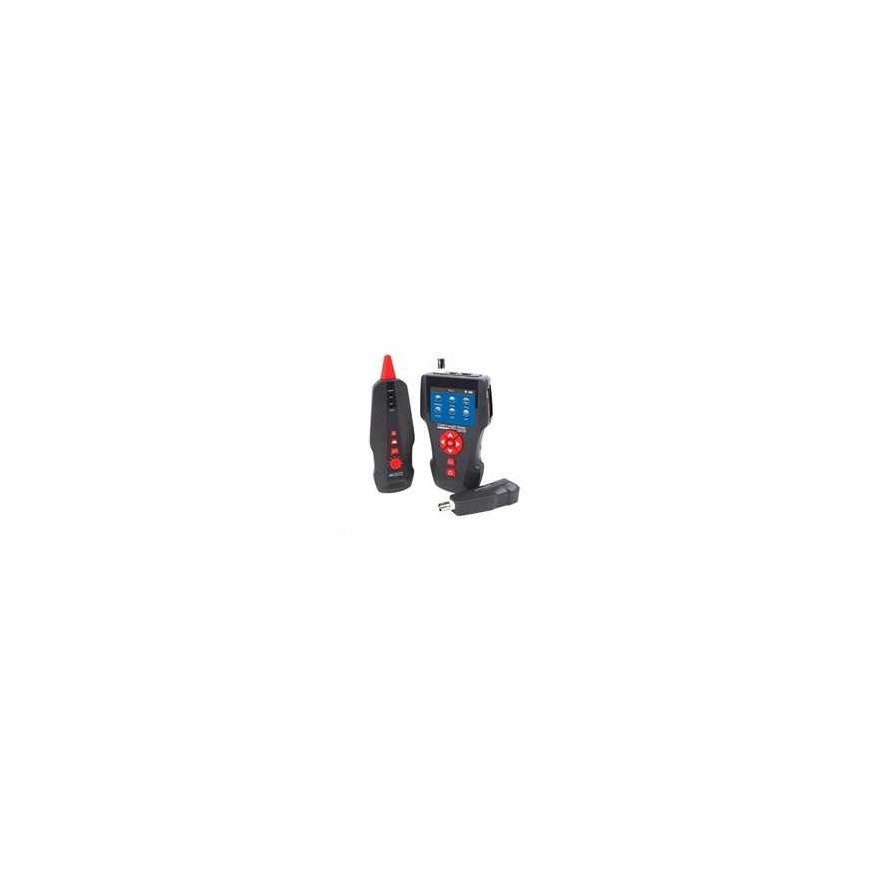

Xtendlan LAN cable tester TLCD80 with LCD, coax, Cat3/Cat5E/Cat6, UTP/STP, USB, PoE, ping, probe, shielded
3719645 TLCD80
6971278905073
Shipping 12-16 b.d.
All about the product
LAN cable tester TLCD80 with LCD, coaxial, Cat3/Cat5E/Cat6, UTP/STP, USB, PoE, ping, probe, anti-loop
UTP/STP (RJ-45), coaxial (BNC), telephone (RJ-11) and USB line tester. Ohmic measurement methods, including advanced PoE power tests and PING response.
Detection probe equipment designed to find cable connections, 1x anti-loop. Color LCD screen. Types of cables measured:
- UTP/STP typically CAT5, CAT5E, CAT6
- coaxial cables
- USB connecting wires
- telephone and other single pair cables
Types of measurements:
- Conductor length measurement, reflection method
- Disconnection / short circuit testing, identifying defects
- Cable connection diagram - only for RJ45 ports with a return line
- Cable line identification using probe
- Cable identification
- Ping (ICMP) to a selected IP address
- PoE voltage level measurement in wires
Length measurement accuracy:
- for an unknown cable after a previous calibration of at least 10 m length sample: 2% of length and +/- 0.5 m
- for CAT5E cables: 3% of length and +/- 0.5 m
| Technical details | |
| Display: | LCD, 128 x 64 px |
| Function: | Auto off |
| Battery: | 3.7 V, Lithium, 1800 mAh |
| Memory card reader: | uSD (TF) card slot for storing records (cable connections, cable lengths, PoE voltage in wires) |
