DRV8835, dual channel motor driver 11V/1.2A, Pololu 2135
3719033 AN-00851
5904422367220
Shipping 11-18 b.d.
All about the product

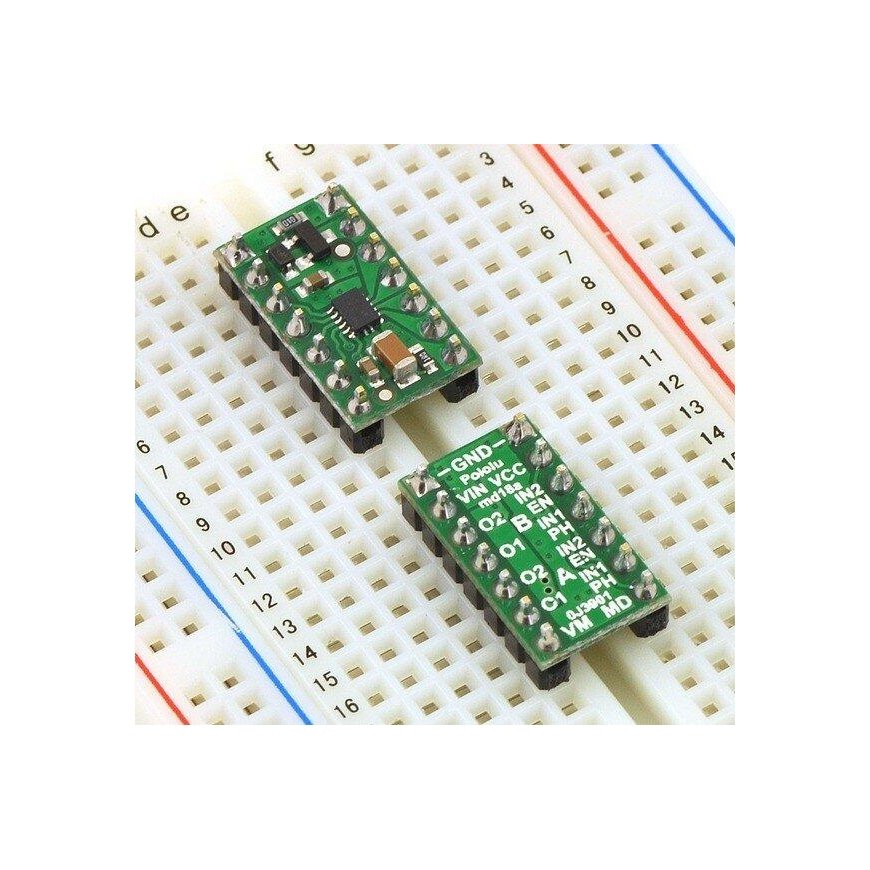

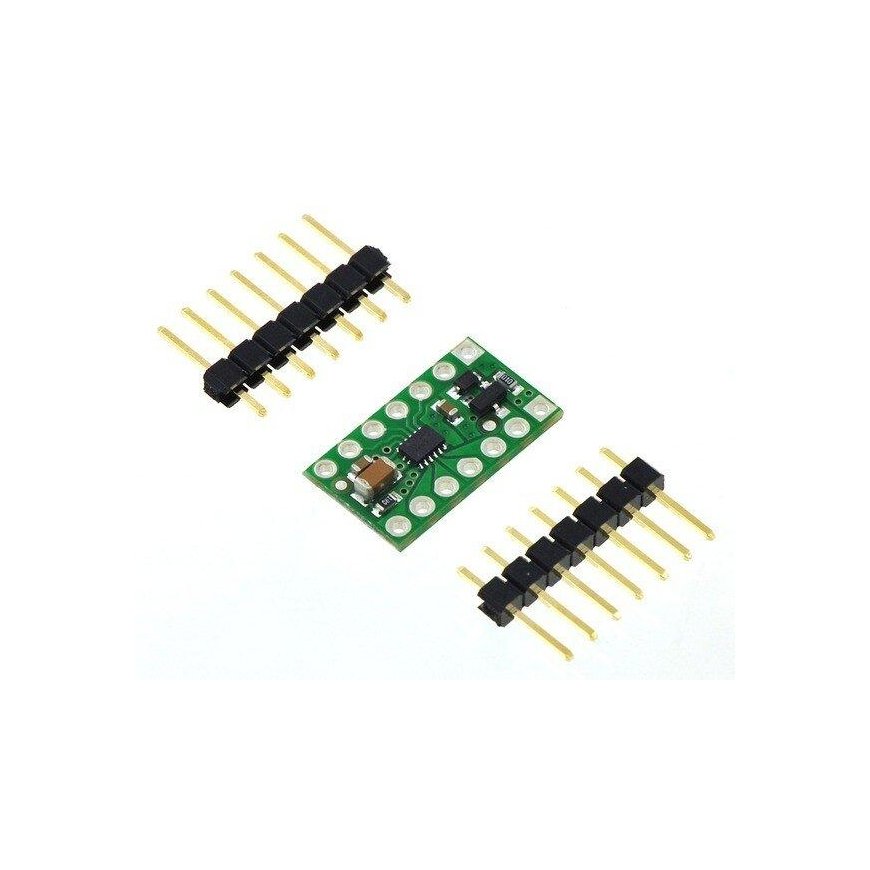

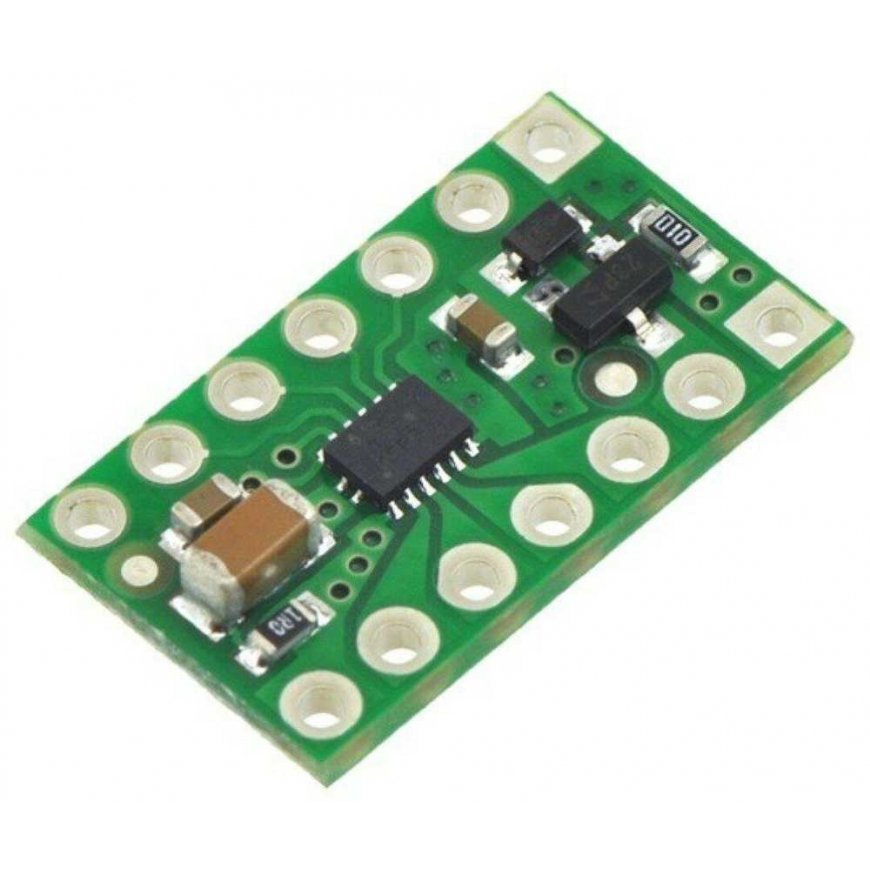

The module based on Texas Instruments DRV8835 is a dual-channel DC motor driver. The advantage of the system is its extremely small size - the board is the size of a 14-pin DIP package. The module can control motors with a voltage from 2.0 V to 11 V, with a continuous current consumption of up to 1.2 A. The controller channels can be connected to increase the current capacity - up to 2.4 A. The package includes the module and goldpin connectors.
Specifications:
- Number of channels: 2
- Supply voltage: from 2.0 V to 11 V
- Continuous current per channel: 1.2 A
- Maximum instantaneous channel current: 1.5 A
- Continuous current with connected channels: 2.4 A
- Reverse voltage protection
- Under-voltage and over-voltage protection

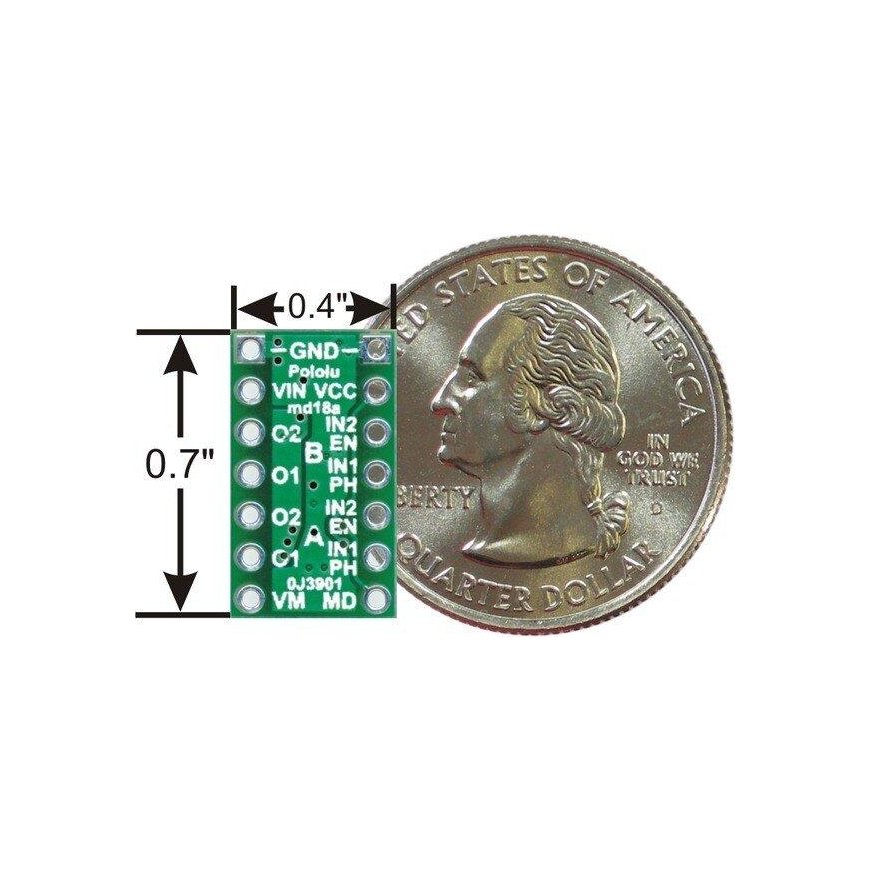

- Dimensions: 17.8 x 10.2 mm
- Weight: 0.5 g
