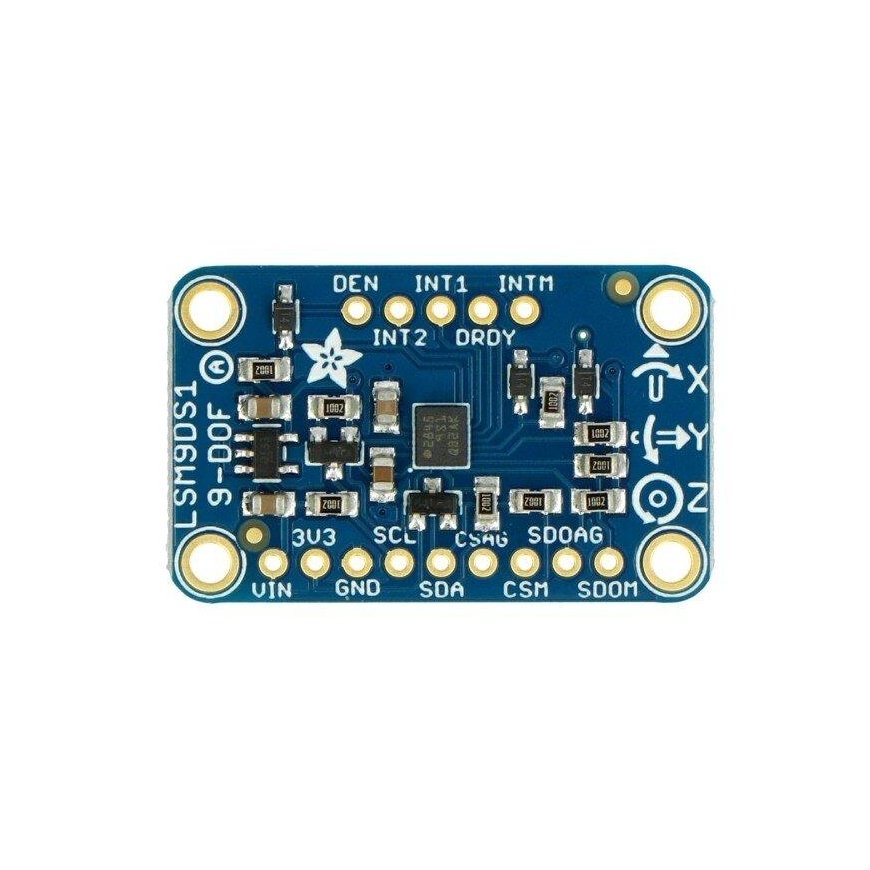

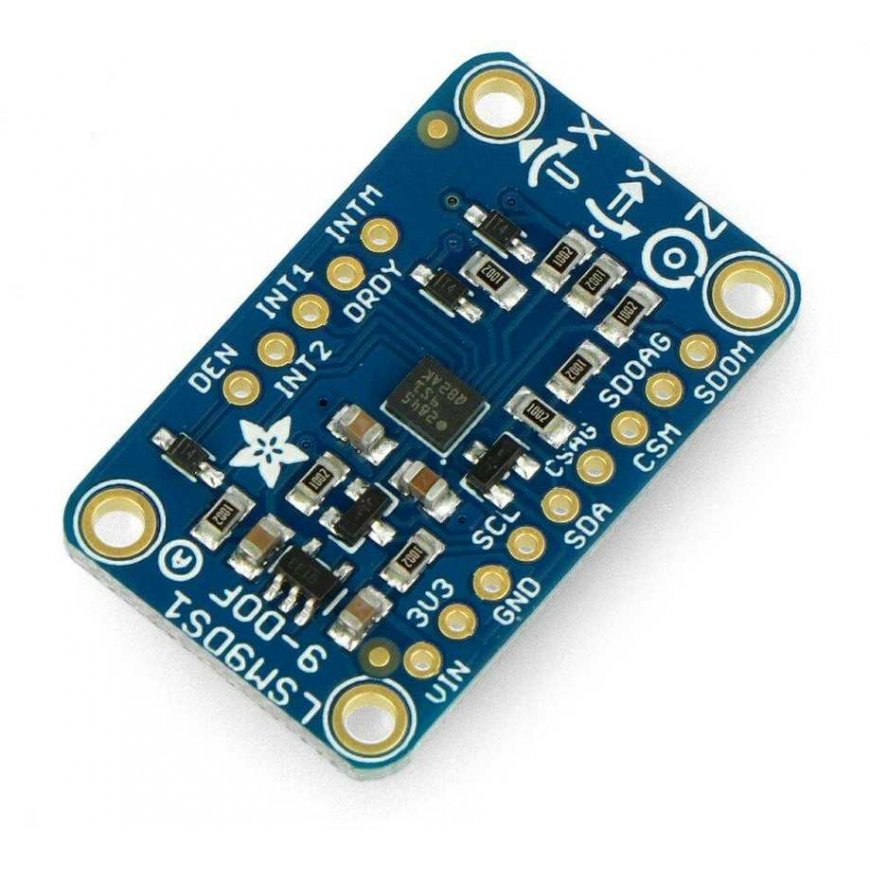

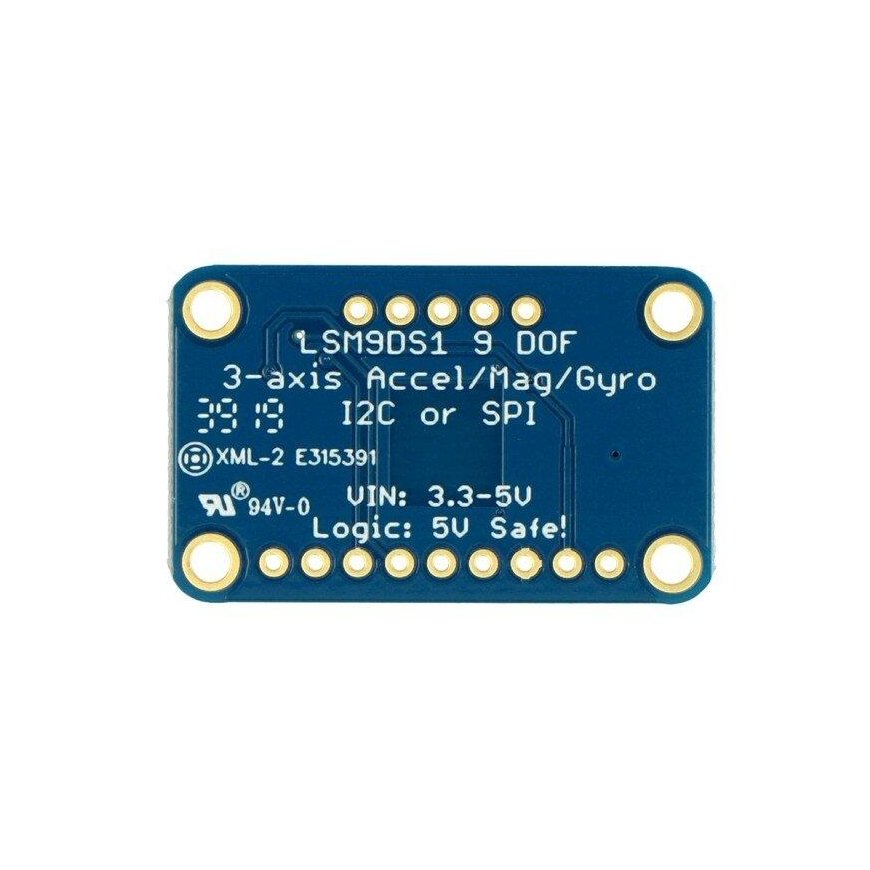

9-DOF 3-axis digital accelerometer, gyroscope, and magnetometer + temperature sensor, LSM9DS1, Adafruit 3387
49.12 €
Monthly payment from 2,16 €
3718772 AN-08441
5904422336516
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The sensor is a combination of a 3-axis digital gyroscope, accelerometer, and compass. This allows for the measurement of acceleration, magnetic field, and angular velocity in configurable ranges. It communicates via I2C or SPI bus, operates at 3.3 V and 5 V voltage, and has a built-in thermometer.
Specifications:
- Supply voltage: from 3 V to 5 V
- Built-in voltage converter - operates at 3.3 V and 5 V voltage
- Communication interface: I2C or SPI
- Built-in temperature sensor
- Gyroscope:
- 3 axes: X, Y, Z
- Adjustable range: ± 245, ± 500 and ± 2000 °/s
- Resolution: 16 bits
- Accelerometer:
- 3 axes: X, Y, Z
- Adjustable range: ± 2 g, ± 4 g, ± 8 g, ± 16 g
- Resolution: 16 bits
- Magnetometer (compass)
- 3 axes: X, Y, Z
- Range: ± 4, ± 8, ± 12, ± 16 gauss
- Resolution: 13 bits
- Pins: holes for gold pin connections - 2.54 mm
- Goldpin connectors are included for soldering
- Four mounting holes
- Dimensions: 33 x 20 mm

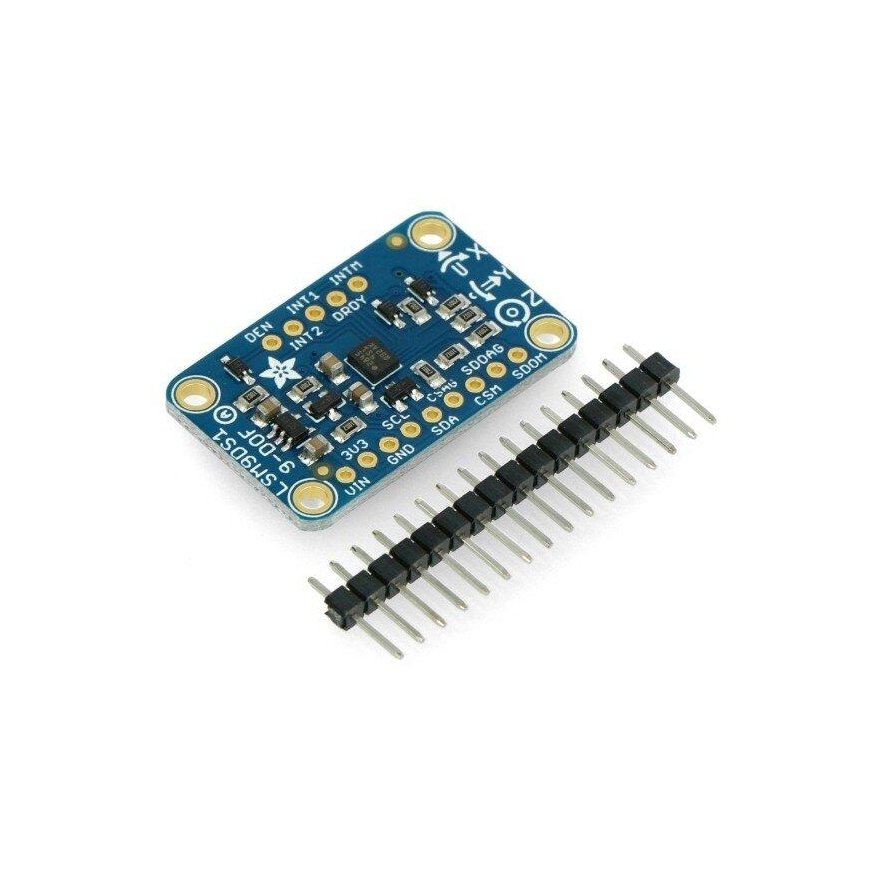

Included:
- Board with LSM9DS1 sensor
- Goldpin strip, 2.54 mm, for soldering
References:
Manufacturer's page
Manual
