ArduCam Sony IMX219 8MPx CS-mount camera, night vision with LS-1820 lens and IR-CUT, designed for Raspberry Pi
79.00 €
Monthly payment from 2,93 €
3718740 AN-11697
5904422317812
Shipping 11-18 b.d.
You are interested in this product?
All about the product

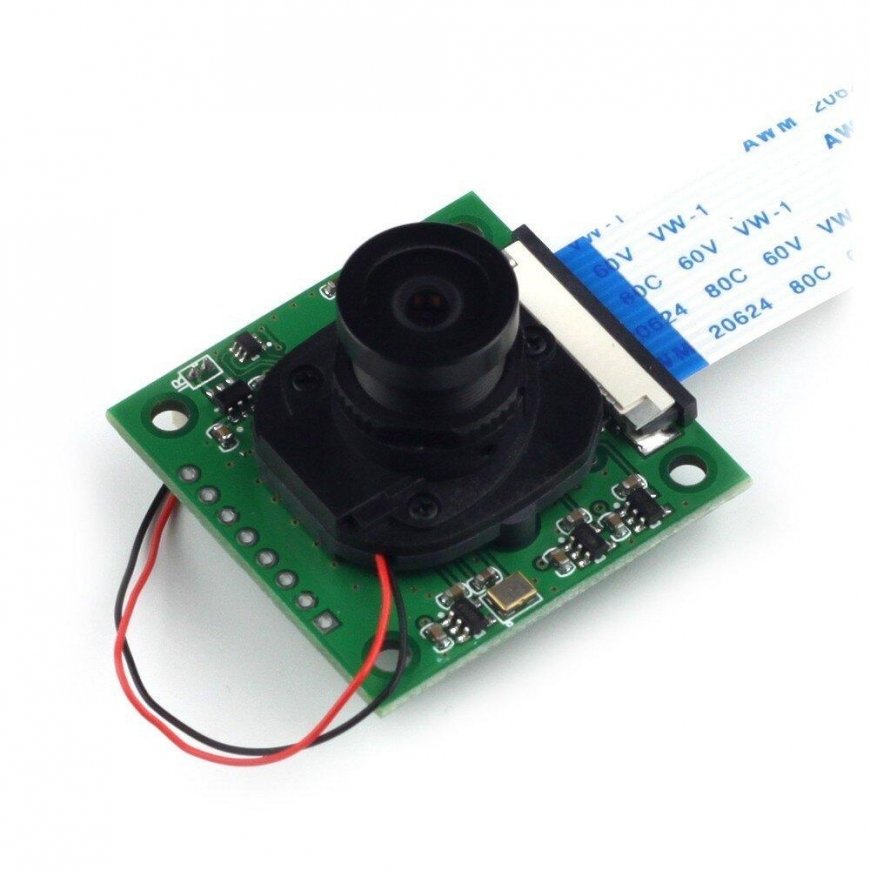

Camera module with Sony IMX219 sensor and LS-1820-NOIR lens, IR-CUT, allowing operation day and night. It connects to a special Raspberry Pi mini-computer interface in versions 3, 2, B+, A+, Zero, Zero W. The device has an 8 MPx resolution matrix, supports HD mode 1080px / 30 fps.
Specifications:
- The camera is compatible with Raspberry Pi versions 3, 2, B+, A+, Zero, Zero W (an additional adapter is required for Zero version)
- Matrix: 8 MPx
- CCD: 1/4"
- Sensor: Sony IMX219
- Resolution: 3674x2760px (active 3280x2464px)
- Pixel size: 1.12 x 1.12 m
- Video: up to 1080p, 30 frames per second
- Lens mount: CS-mount or M12x0.5
- Lens: LS-1820-NOIR
- Field of view: 100°
- Board size: 36 x 36 mm
- IR sensor: integrated sensor with drive, ensures visibility day and night
Included:
- Camera Sony IMX219 8 MPx with LS-1820-NOIR lens
- Cable for connecting to Raspberry Pi - 15 cm
Links:
Manufacturer's page
