Caterpillar gear set, 22T, black, Pololu 3030
25.26 €
3718497 AN-10207
5904422309862
Shipping 8-15 b.d.
You are interested in this product?
All about the product

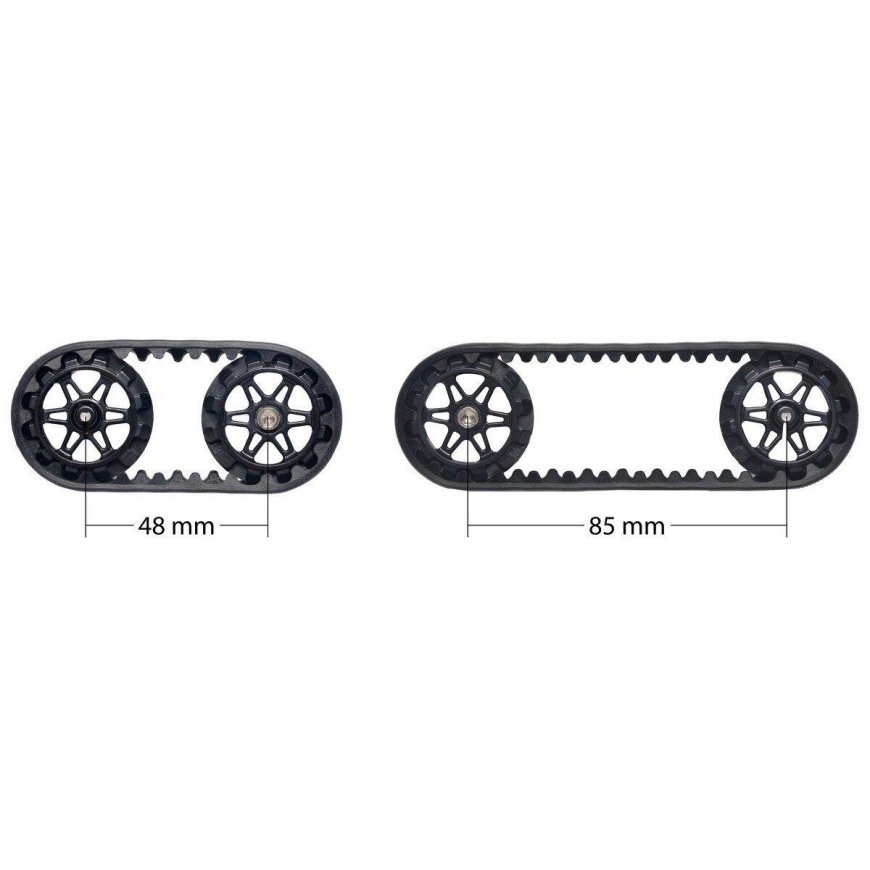

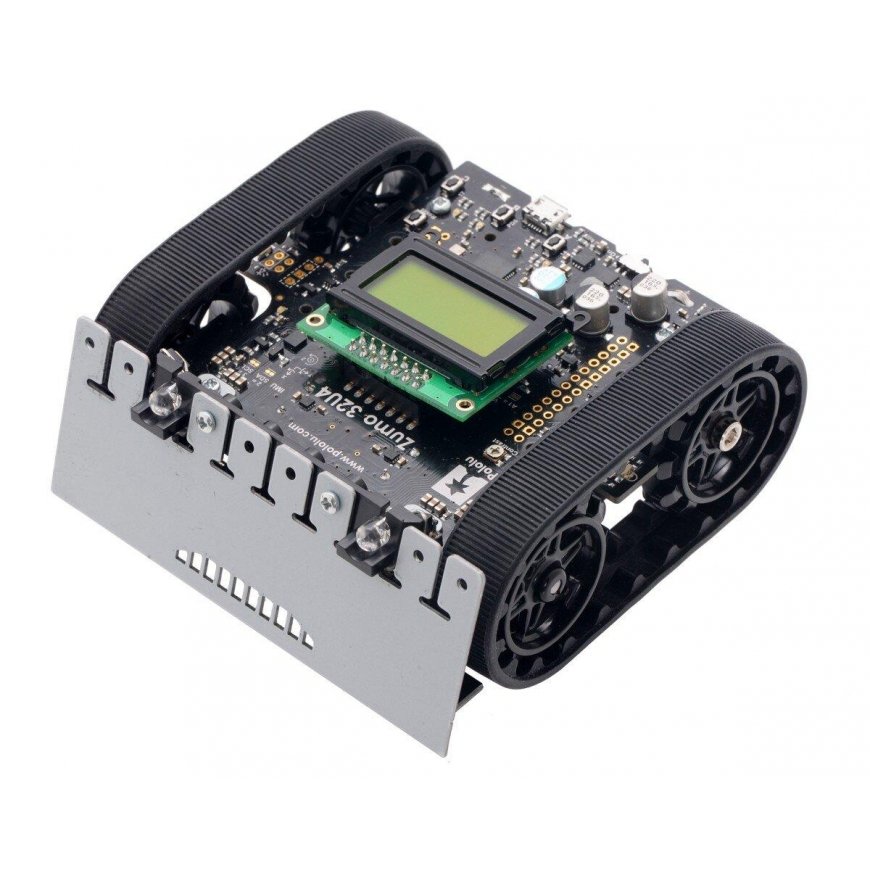

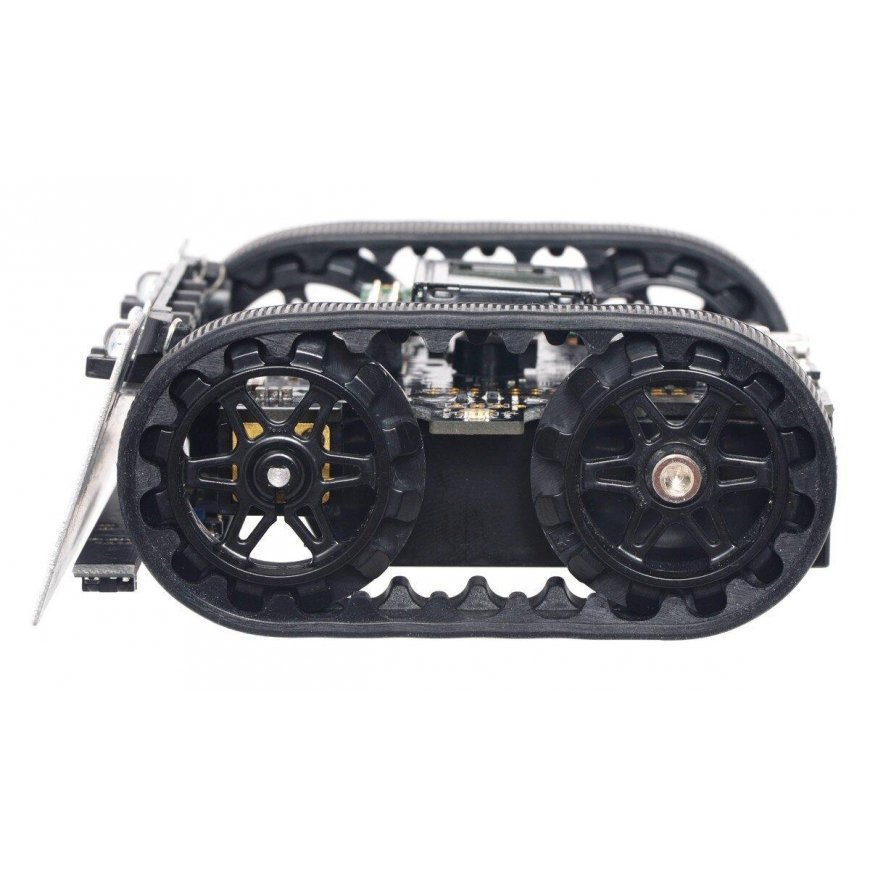

The elements help create a tracked chassis. The total length of the assembled 22T version is less than 90 mm, allowing the use of tracks in mini-sumo class robots. The drive wheels have been designed to fit directly onto Pololu micro motors' shafts (for example, Pololu HP 30:1). For motor installation, the manufacturer recommends using extended mounting elements.
Specifications:
- Outer drive diameter: 35 mm
- Track belt diameter: 39 mm
- Belt width: 14.6 mm

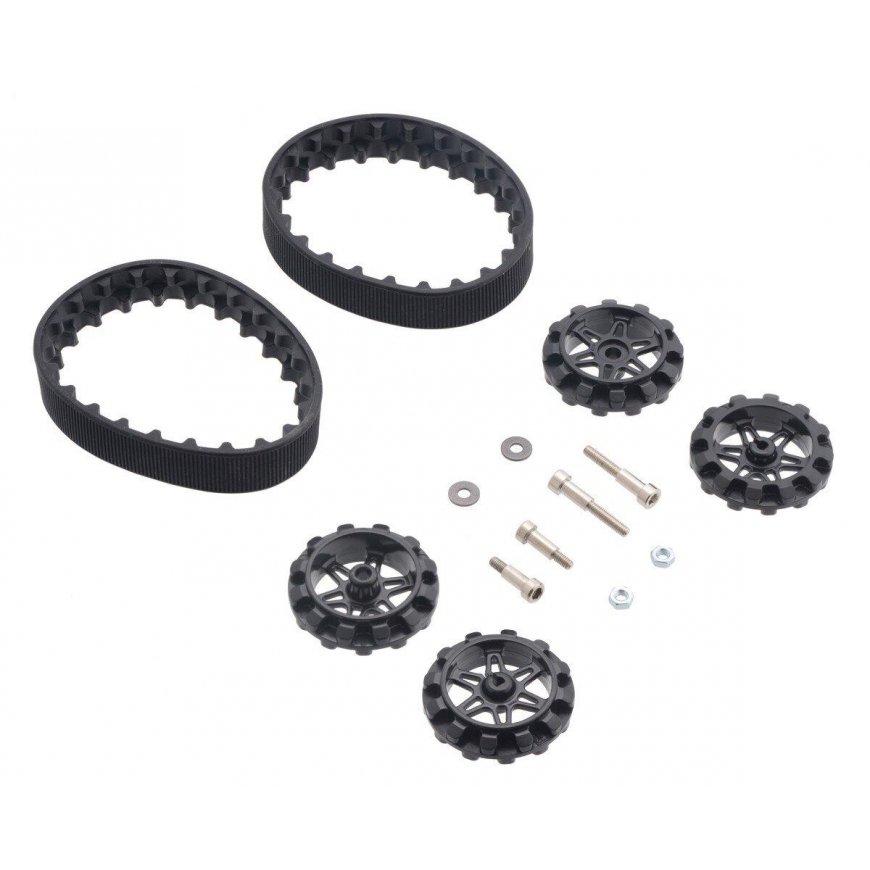

Included:
- Two silicone belts
- Two drive wheels suitable for a 3 mm shaft, type D
- Two free-running wheels

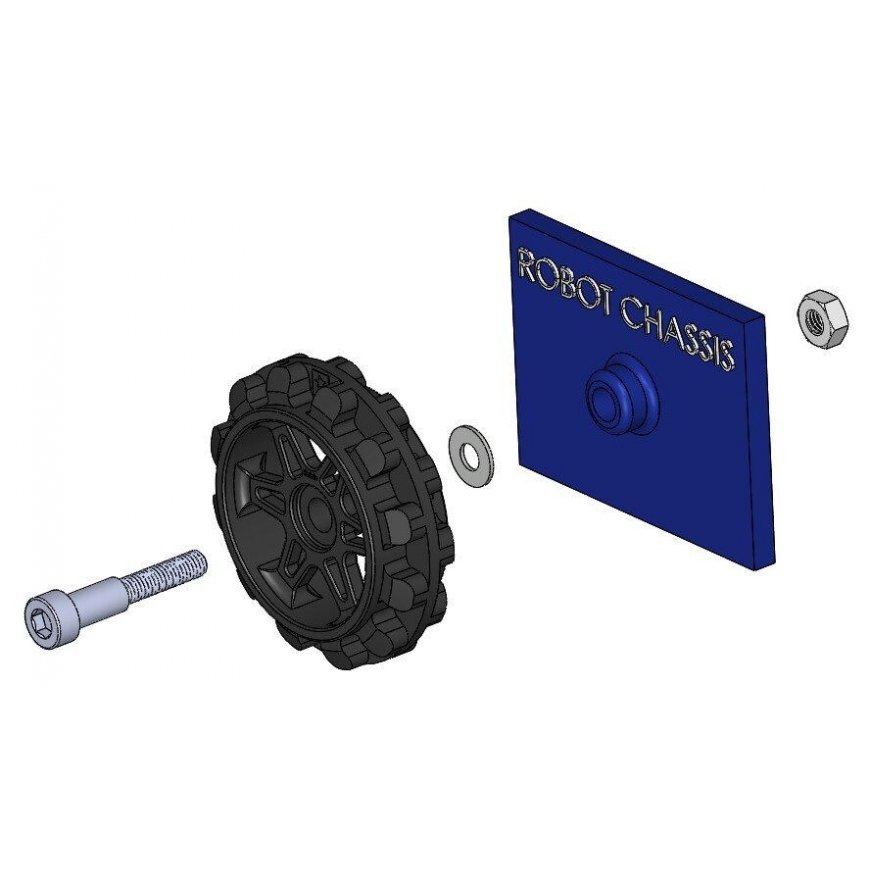

- Two screws, nuts, and washers for securing the wheels
Links:
Manufacturer's page
