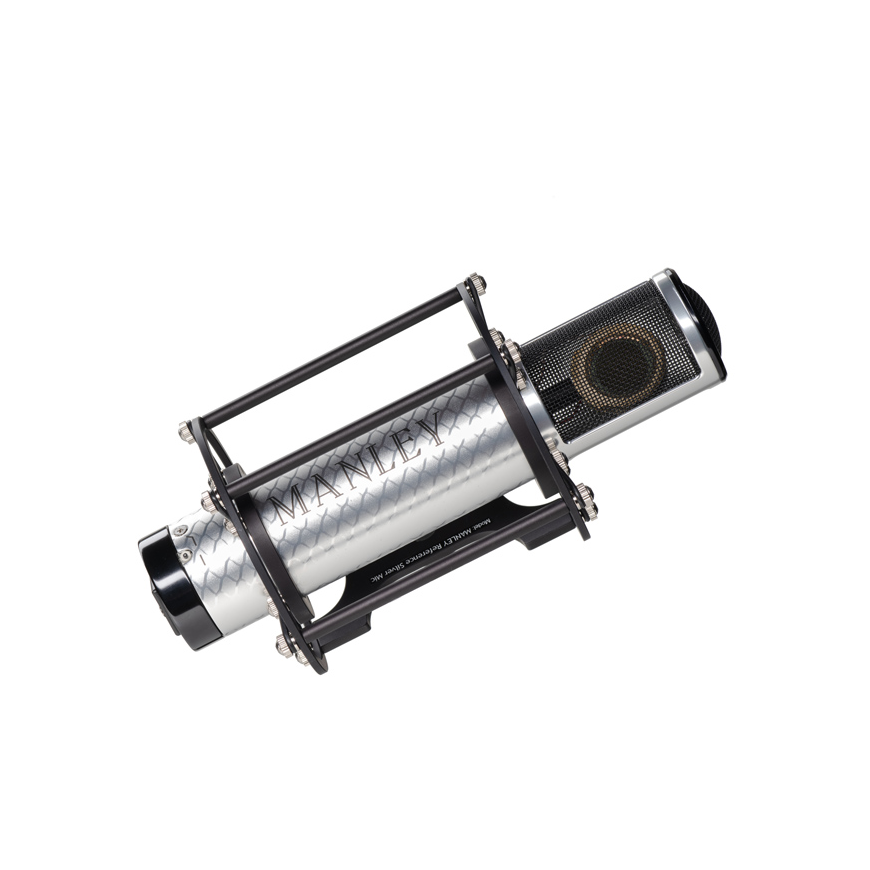

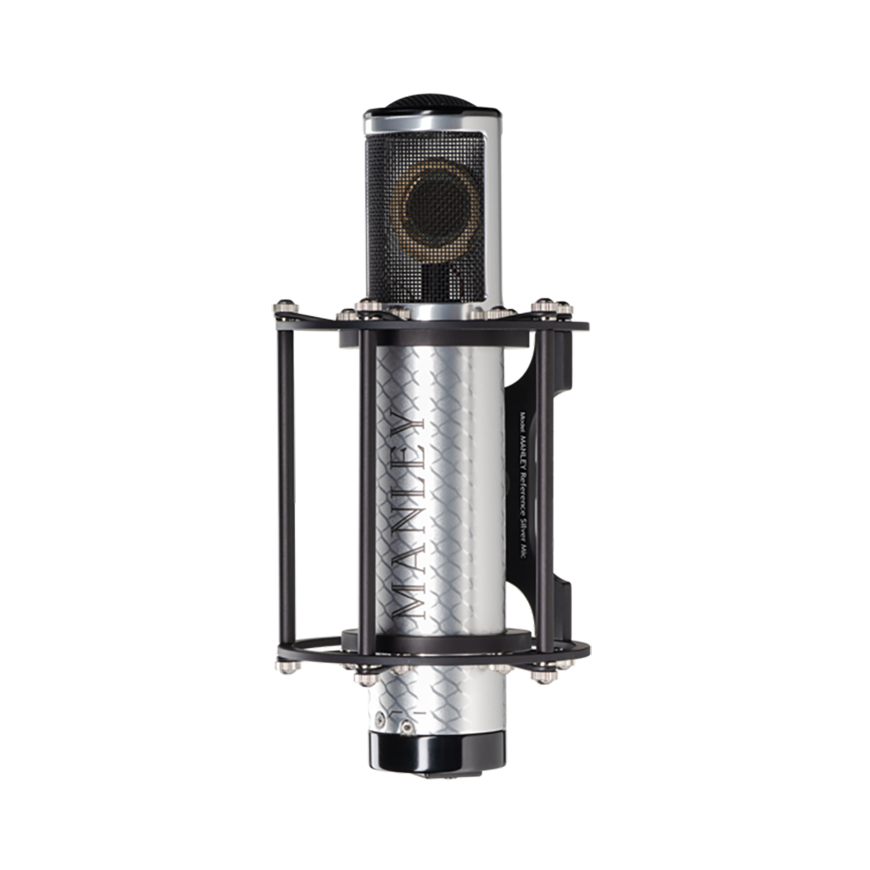

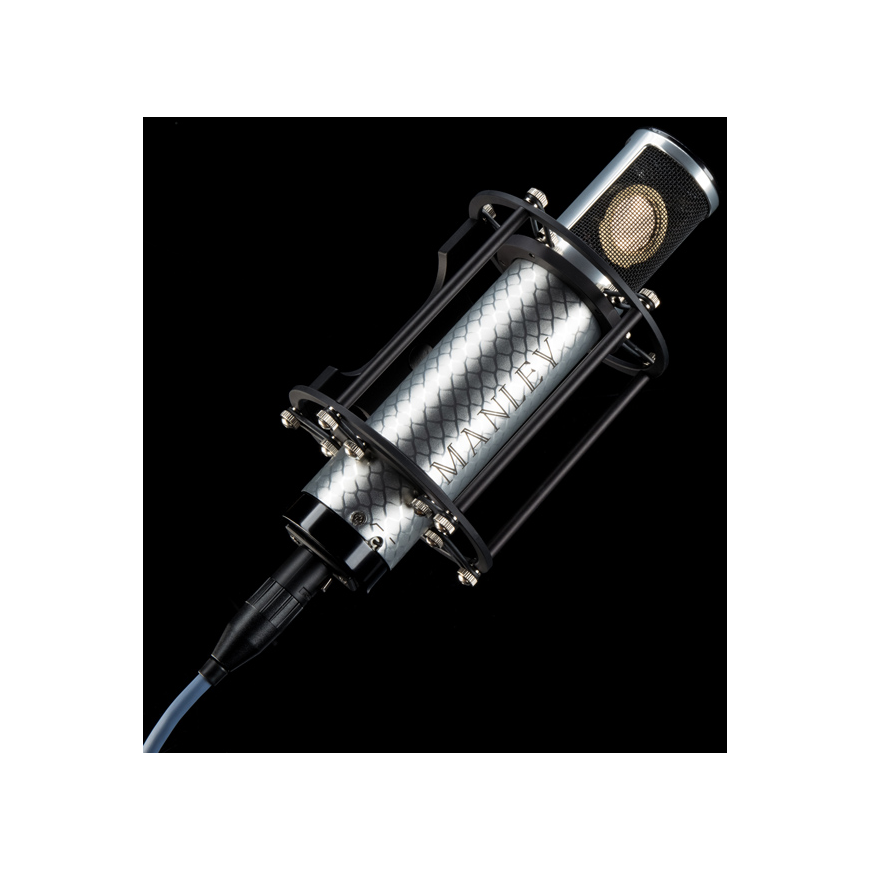

Manley REFERENCE GOLD – condenser microphone
6 549.00 €
Monthly payment from 169,54 €
3718217 MANLEYREFGOLD
0890833002254
Shipping 10-14 b.d.
You are interested in this product?
All about the product
Tube condenser microphone, 12AX7 tube, 3 characteristics, -10dB attenuation, frequency range 10Hz - 30KHz, sensitivity 17mV/Pa, max SPL 150dB, output impedance 250Ohm, "Manley Power", made in the USA
- Condenser transducer designed based on the classic "Sony C-37A" model. Handmade, made in the USA, "Josephson Audio"
- Unidirectional large diaphragm capsule with edge output,
- 5-micron thick, 1-inch diameter gold-sputtered diaphragm,
- Cardioid or omnidirectional polar pattern, adjustable via hole in fixed electrode,
- 5670 tube amplifier,
- Stable tube current source reduces tube-induced noise and selection,
- Hand-wound nickel core output transformer,
- Output impedance: 30Ω,
- High-frequency filter switch -3 dB at 55 Hz 6 dB / octave,
- Frequency response: 10 Hz–30 kHz, AMPLIFIER up to 60 kHz,
- MAXIMUM INPUT LEVEL: 150 dB SPL at capsule,
- Efficiency: 7 mV / Pa,
- Amplifier type: dual triode gain block. Low impedance output,
- Output polarity: balanced XLR, pin 2 – hot, pin 3 – cold
- Amplifier distortion: less than 0.05 % THD+N. Bandwidth 22–22 kHz (1 kΩ load, 1 kHz output -40 dBV).
- Amplifier noise: typical -108 dBV "A-weighted",
- Housing: silver anodized aluminum,
- Microphone weight: 680 g,
- Power supply weight: 1.07 kg,
- Microphone dimensions: 5.1 x 24.6 x 11.4 cm (including suspension),
- Power supply dimensions: 12.7 x 8.4 x 23.6 cm (including handle),

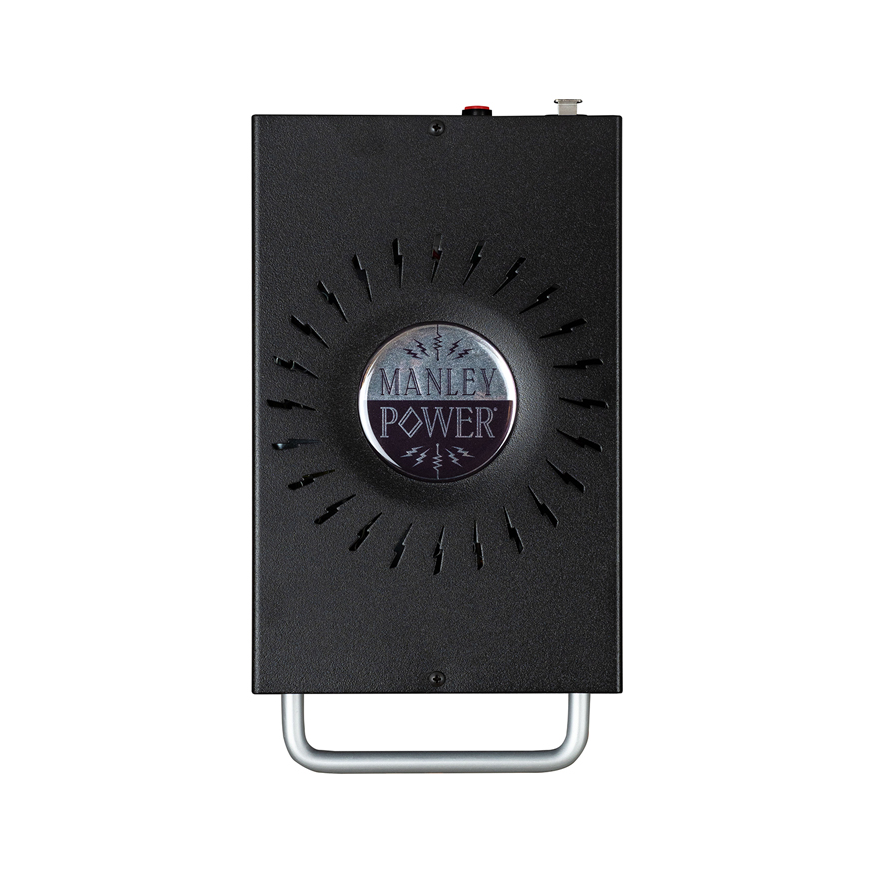

- Specially designed external switch-mode power supply, universal voltage 90 V ~ 250 V AC, 50 Hz - 60 Hz,
- Power consumption: 8 W,
- Power supply fuse: 5 mm x 20 mm, 2 A @ 250 V, ceramic, slow.
