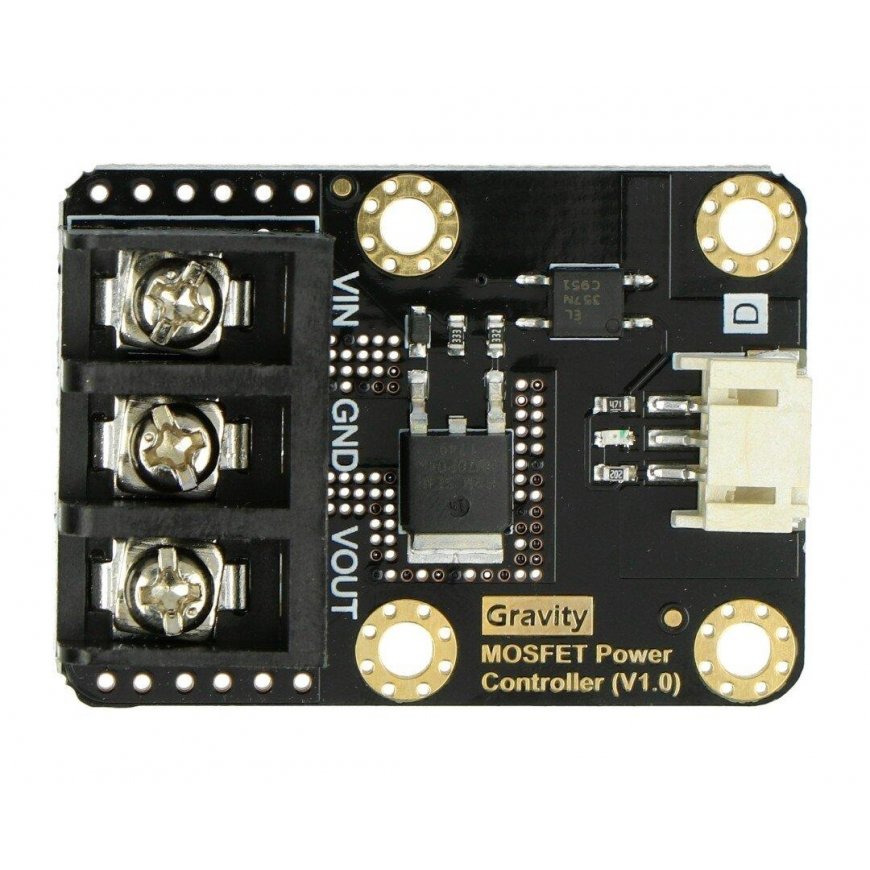

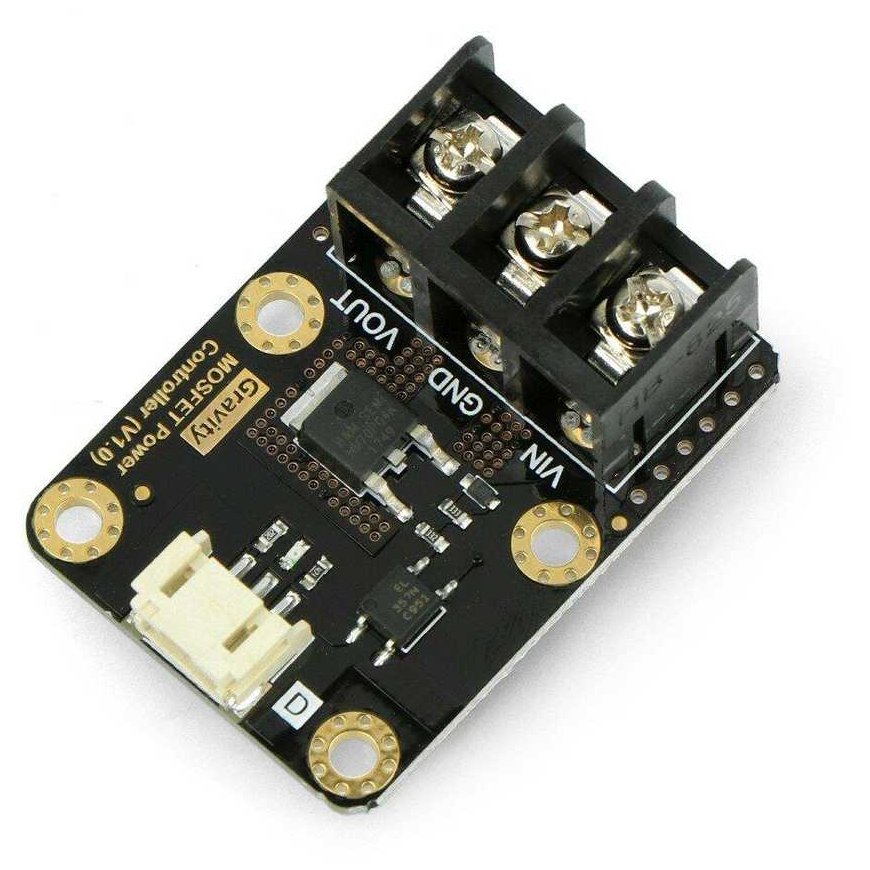

DFRobot Gravity MOSFET power controller
3717917 AN-08104
5904422310981
Shipping 11-18 b.d.
All about the product

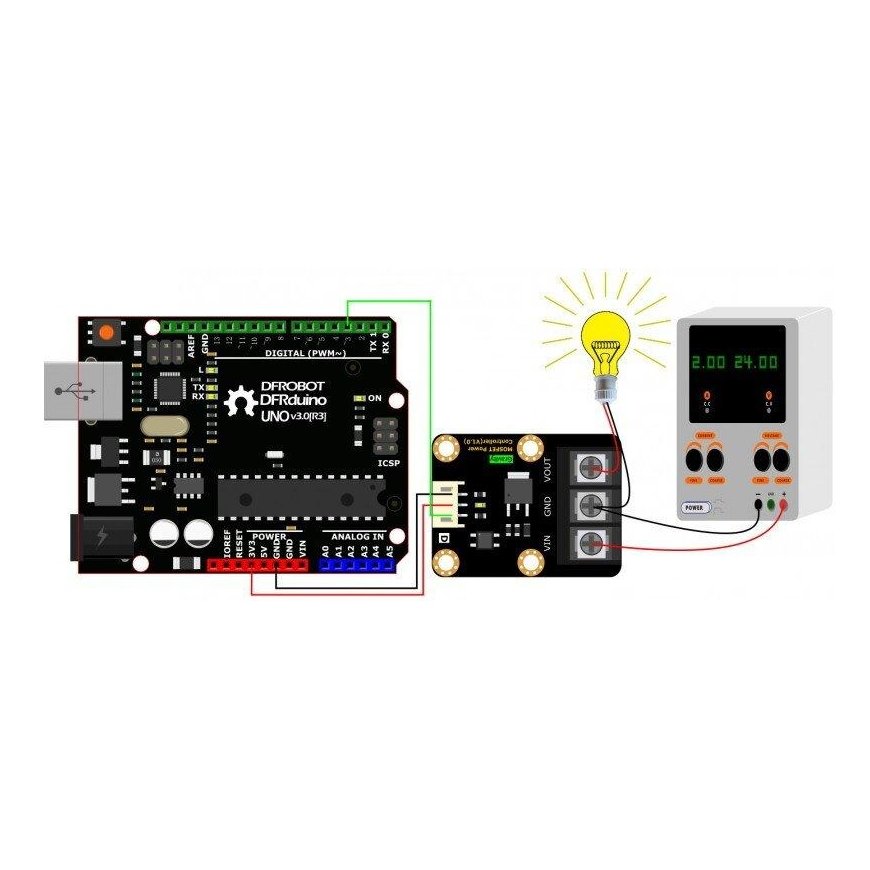

A switch that allows controlling a device that requires high current. Operates like a relay based on a MOSFET transistor. Powered from 5 V to 36 V, with a current consumption of up to 20 A (for currents above 10 A, it is recommended to use an additional heatsink). The digital control system signal from 3.3 V to 10 V changes the state of the switch. It can be controlled by any microcontroller, such as Arduino or Raspberry. The package includes a wire designed for the Gravity DFRobot IO expansion module.
Specifications:
- Supply voltage: from 5 V to 36 V
- Operating current: from 0 A to 20 A (above 10 A, we recommend using an additional heatsink)
- Logic system operating voltage: from 3.3 V to 10 V
- Switching signal: from 3.3 V to 10 V
- Switching frequency: from 0 kHz to 1 kHz
- Characteristic switching:
- Turn-on time: 20 µs
- Turn-off time: 50 µs
- Operating temperature: from -55 °C to 155 °C
- Dimensions: 44 x 32 mm

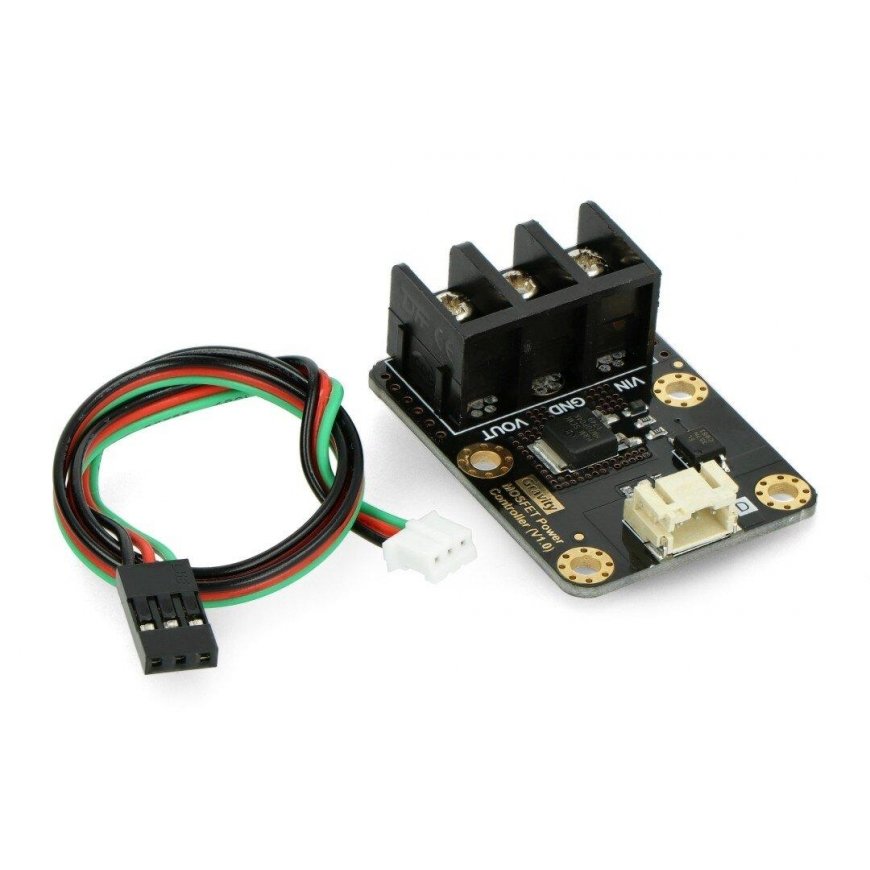

Included:
- Gravity digital sensor wire
