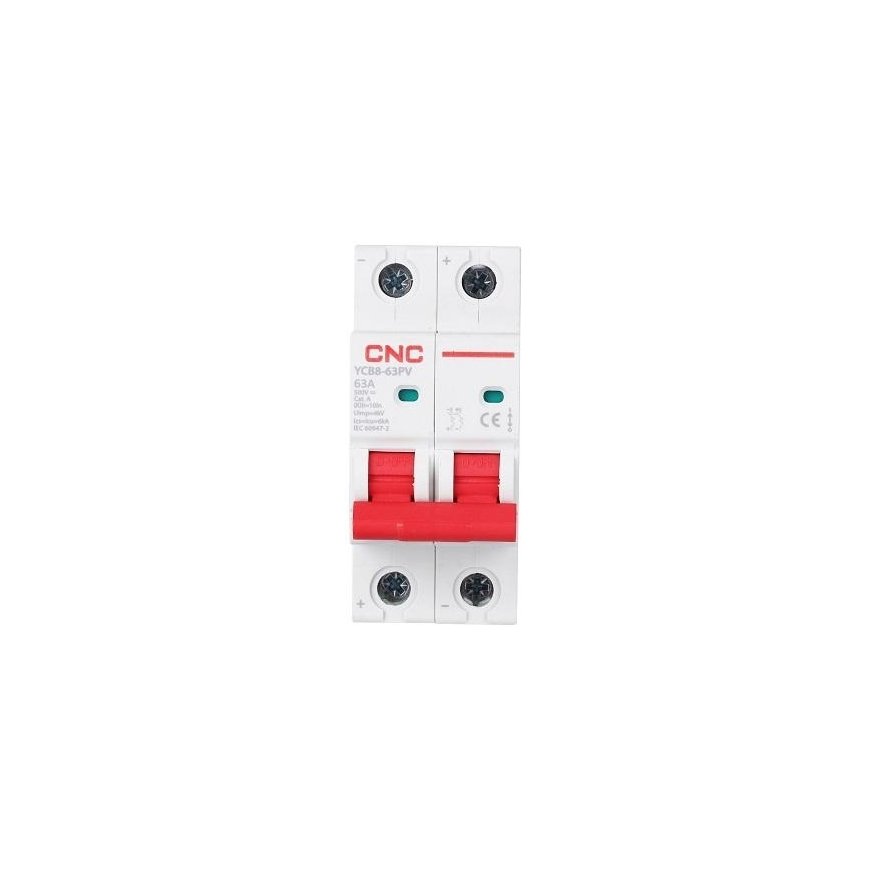

CNC DC automatic switch, 2P, 63A, 500VDC, 6kA
14.92 €
3717588 NV821662
6942367503326
Shipping 2-4 days
You are interested in this product?
All about the product
DC automatic circuit breaker, 2 contacts, 63A, 500V DC, 6kAFeatures:
The rated voltage of the DC automatic circuit breaker can reach 500V, and the rated operating current is 63A.
Ensures reliable operation of DC systems.
Used for insulation, short circuit protection, and overload protection.
Modular design. Convenient mounting on a DIN rail.
Contact position indication (red color indicates that the contact is closed, green - that it is open).
Complies with IEC/EN 60947-2 standards and EU ROHS environmental protection requirements.
Suitable for solar energy systems, industrial, civil, communication, and other systems.
Technical specifications:
Number of contacts: 2.
Rated current (In): 63 A.
Category: A.
Rated voltage (Ue): DC 500 V.
Insulation voltage (Ui): 1200 V.
Maximum breaking capacity (Icu): 6000 A.
Rated impulse withstand voltage (Uimp): 4000 V.
Operating principle: thermomagnetic.
Mechanical lifespan: 20000 cycles.
Electrical lifespan: 1500 cycles.
Protection class: IP20.
Cable cross-section area: 2.5 - 25mm².
Installation: on DIN rail (35mm).
Operating temperature: -35°C~+70°C.
Storage temperature: -40°C~+85°C.
Dimensions: 71.2 x 82 x 36 mm.
Standards: IEC 60947-2 / EN 60947-2.
Warranty:24 months.
