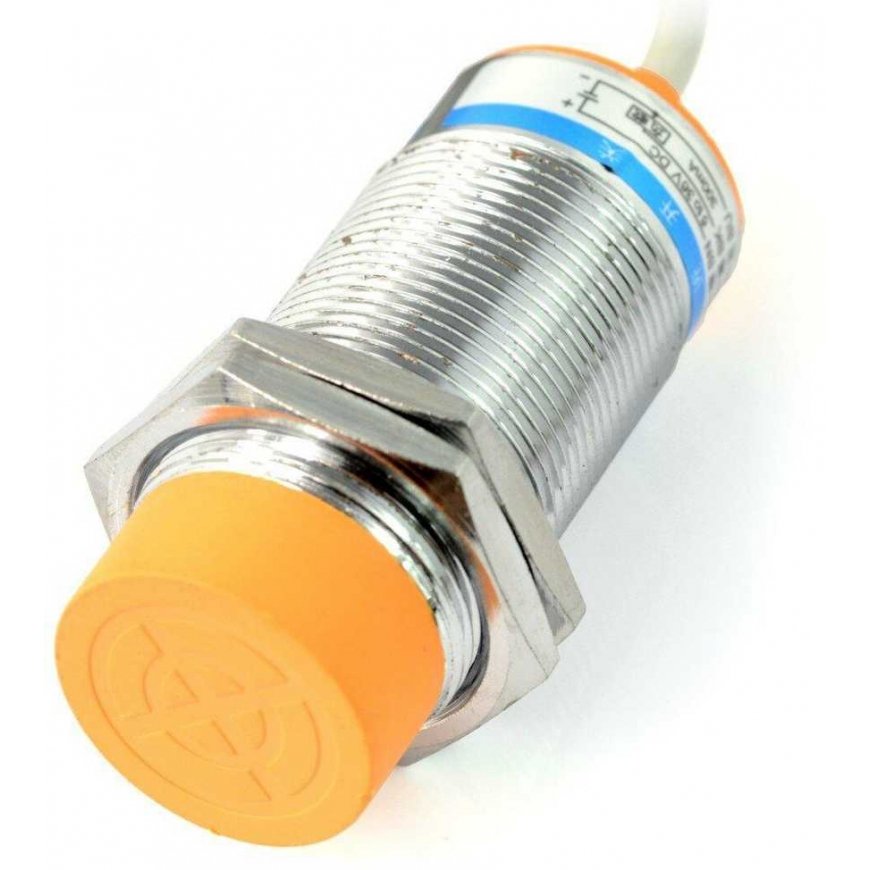

OEM Inductive Proximity Sensor LJ30A3-15-Z/BY 15mm 6-36V
22.31 €
3717456 AN-11874
5903351247566
Shipping 11-18 b.d.
You are interested in this product?
All about the product

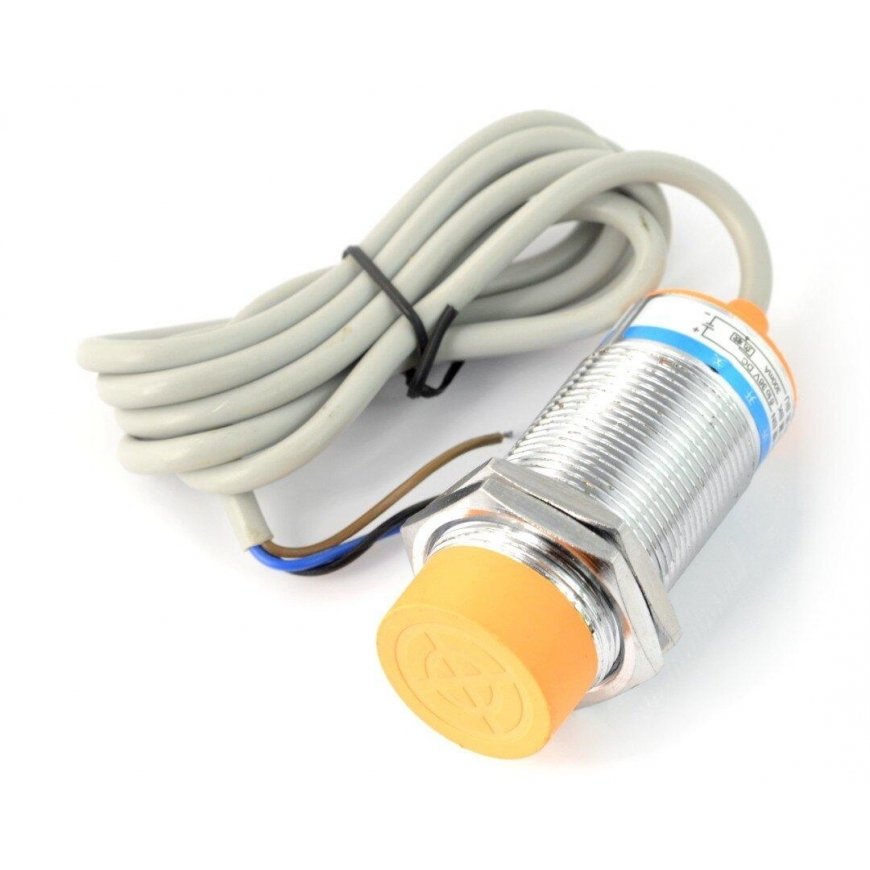

Inductive digital distance sensor with a 100 cm long cable and nuts for easier installation. It detects metal up to 15 mm away. The detection of an object is signaled by a high state output. Powered by a voltage from 6 V to 36 V. Type: PNP.
Specifications:
- Supply voltage: from 6 V to 36 V
- Current consumption: 10 mA
- Measurement range: 0–15 mm ± 10%
- Output signal: digital 300 mA
- Output state: by default, low state, upon object detection, it changes to high state
- Output type: PNP - NO (normally open)
- LED indicating object detection
- Detected object: metal
- Response time: less than 2ms
- Operating temperature: from -30 °C to 65 °C
- Diameter: 30 mm
- Sensor length: 70 mm
