Camera module Sony IMX219 8MPx automatic focus, designed for Raspberry Pi, ArduCam B0182
3717355 AN-16599
5904422344733
Shipping 11-18 b.d.
All about the product

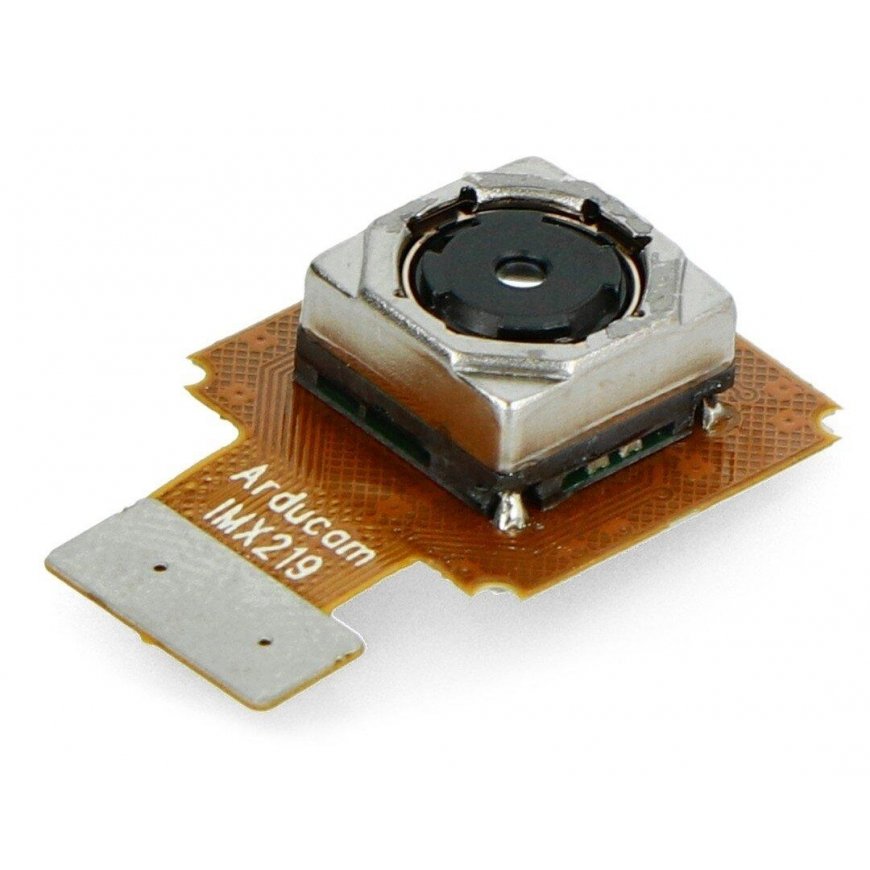

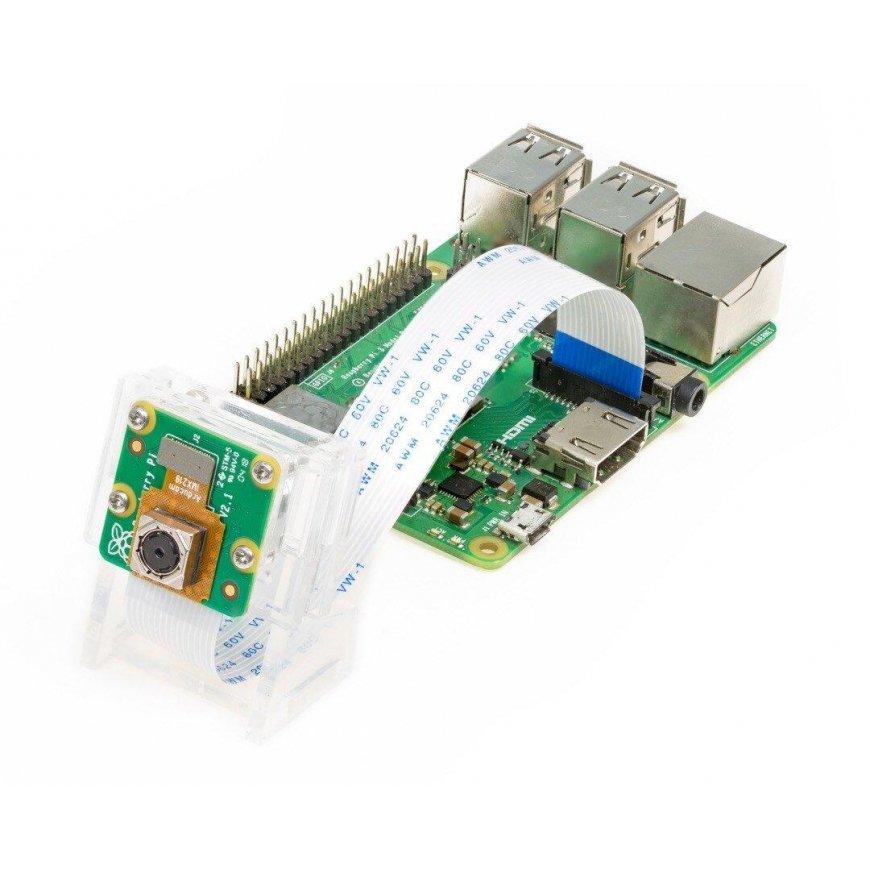

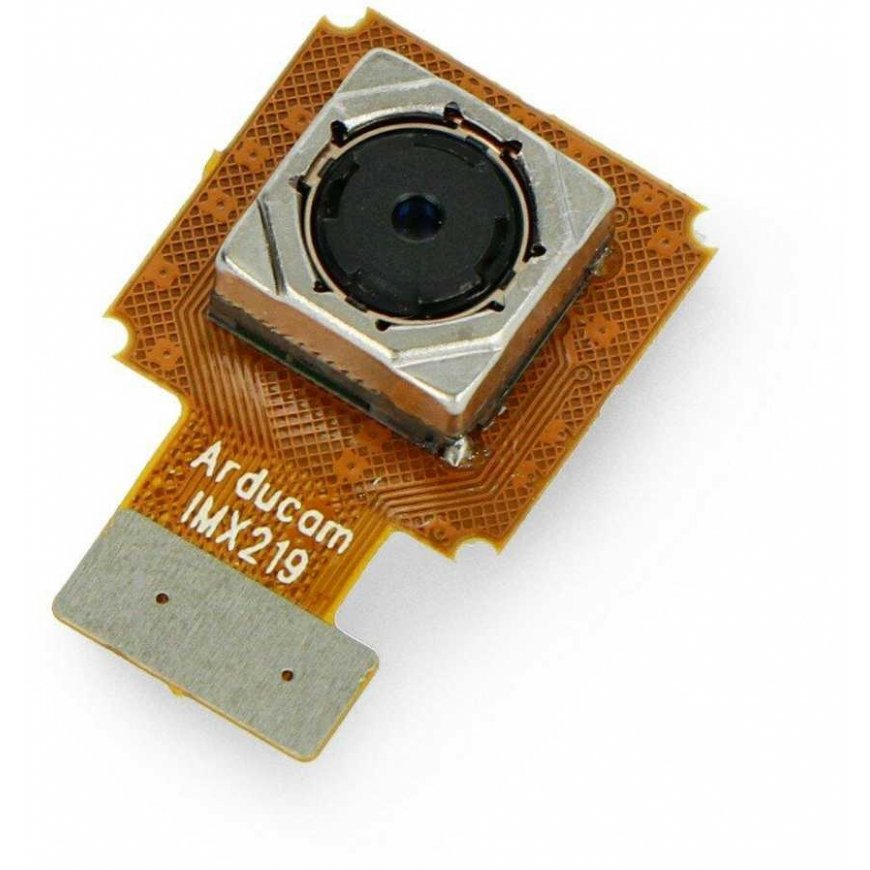

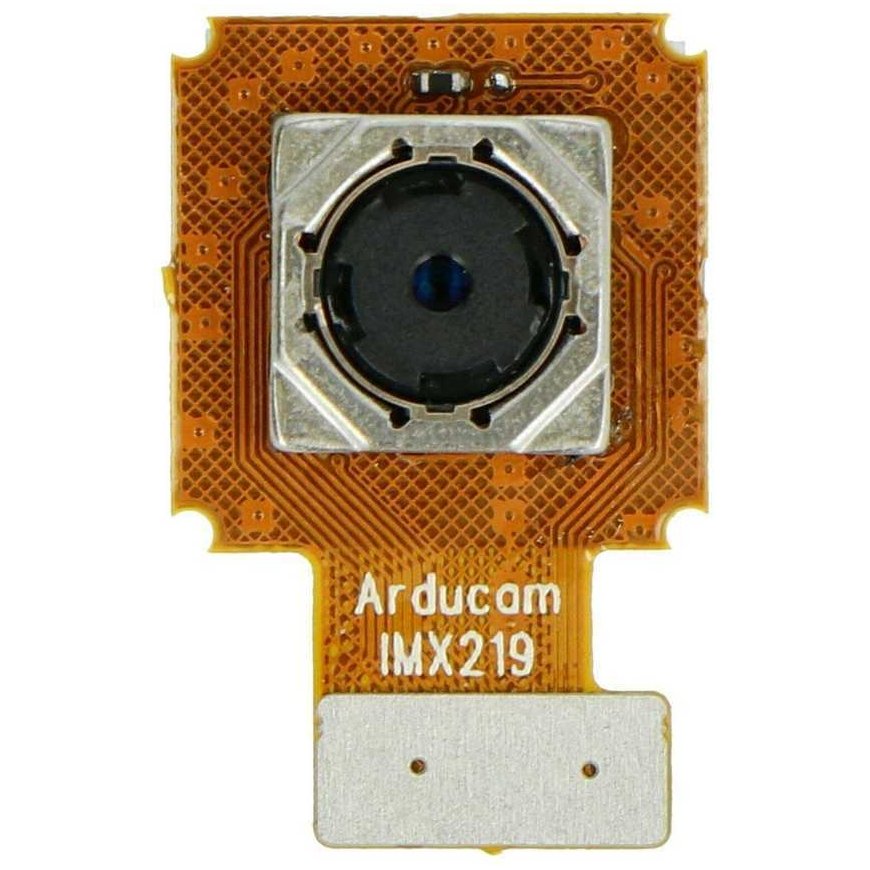

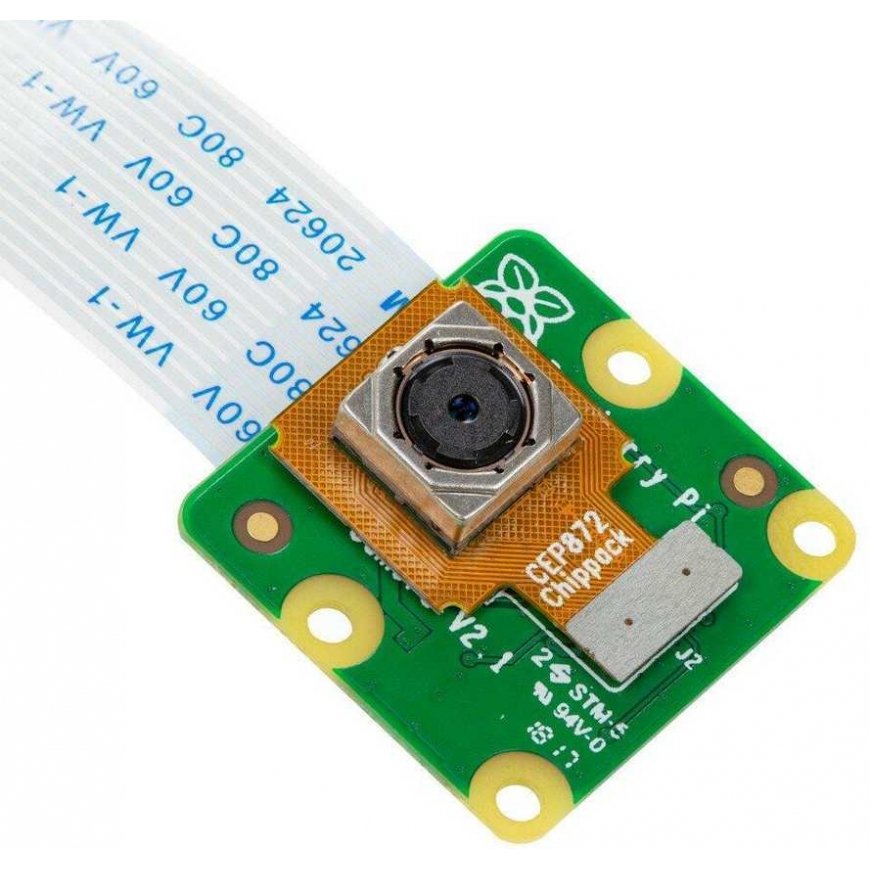

The Arducam B0182 camera module, equipped with a Sony IMX219 optical sensor and fish-eye lens, was designed according to the specifications of the Raspberry Pi mini computer's standard V2 camera hardware. The video focusing is assisted by maintenance-free software, but it can also be manually controlled with buttons. The Arducam B0182 camera can be successfully used in areas such as remotely operated vehicles, drones, as well as industrial surveillance systems.
Specifications:
- Sensor: Sony IMX219
- Resolution 8 MPx
- Format: 1/4"
- Frame rate: 30 frames per second / 8 MPx, 60 frames per second / 1080p, 180 frames per second / 720p
- Data format: RAW8 / RAW10
- Focal length (EFL): 2.8 mm
- Focal ratio (F. NO): 2.2
- Focusing type: programmable / automatic
- Field of view: 77.6° (diagonal)
- Interface: MIPI CSI
- IR sensitivity: visible light, built-in IR filter
