E-Paper Raw Panel Driver Shield, an add-on for e-paper displays, designed for Arduino, SPI, Waveshare 15082

29.00 €
3717257

AN-13460

5904422320706

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

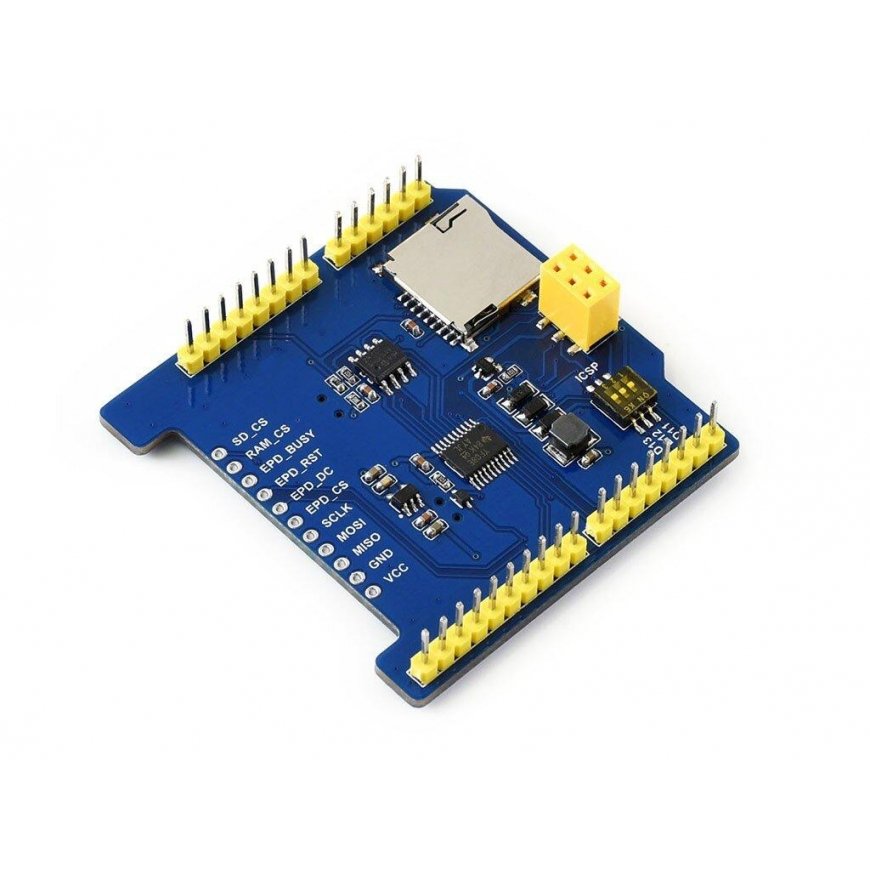

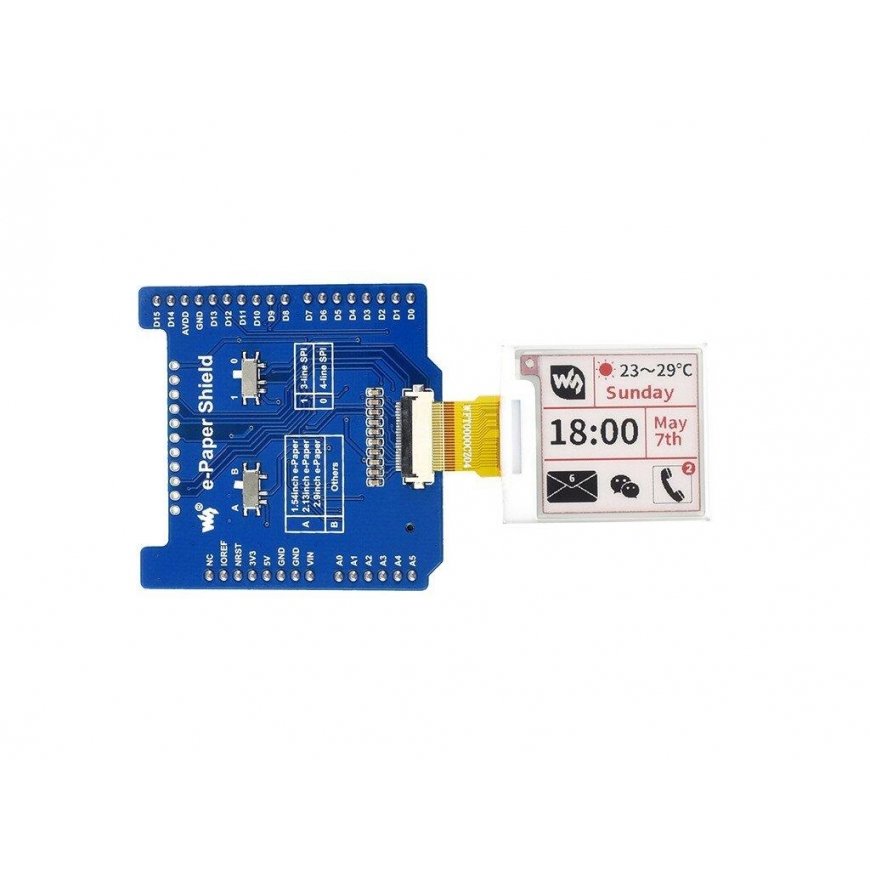

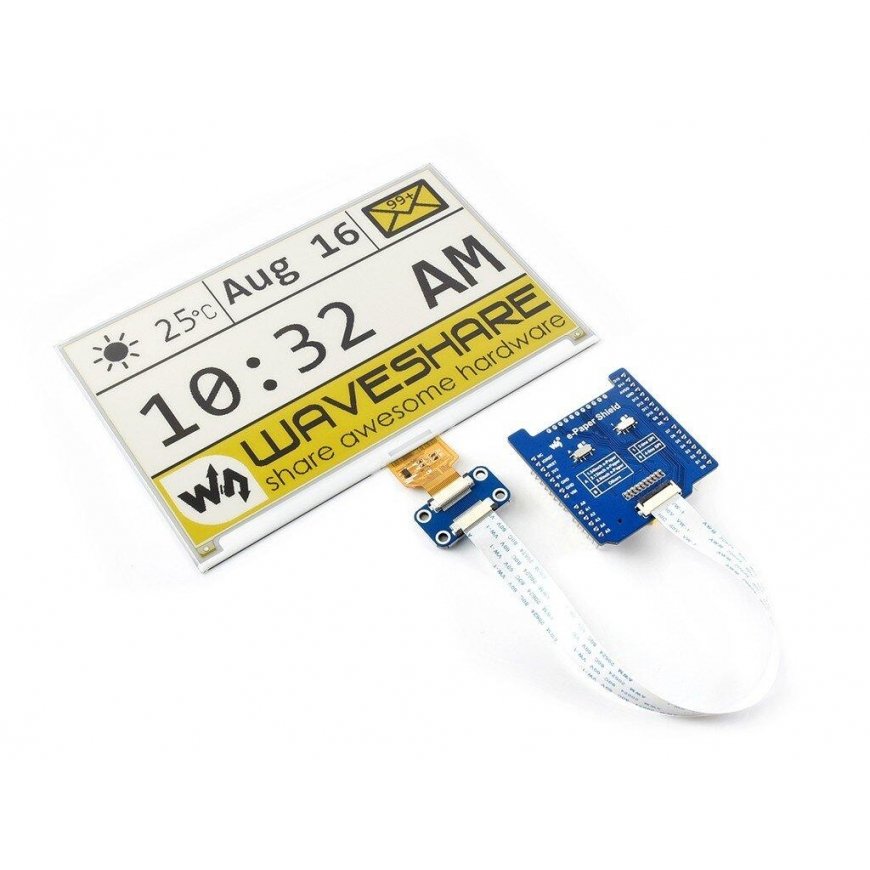

Universal add-on for connecting e-paper displays, designed for Arduino or Nucleo modules. Uses SPI interface for communication. Operates at 3.3 V and 5 V voltage.

Main features:

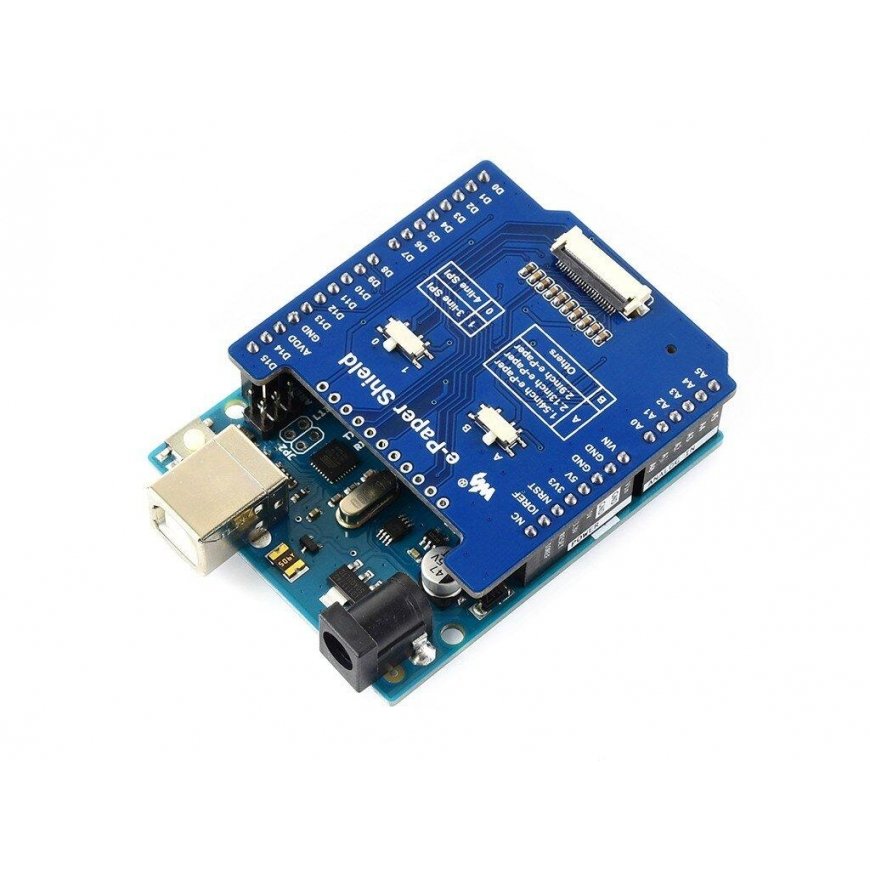

  • Standard Arduino pins compatible with Uno, Leonardo, Nucleo, XNucleo connectors
  • Voltage regulator 3.3 V and 5 V
  • External RAM on board
  • Slot for microSD memory cards, ability to store images for display on screen

Specifications:

  • Operating voltage: 3.3 V or 5 V
  • Interface: SPI
  • Size: 53.34 x 53.34 mm

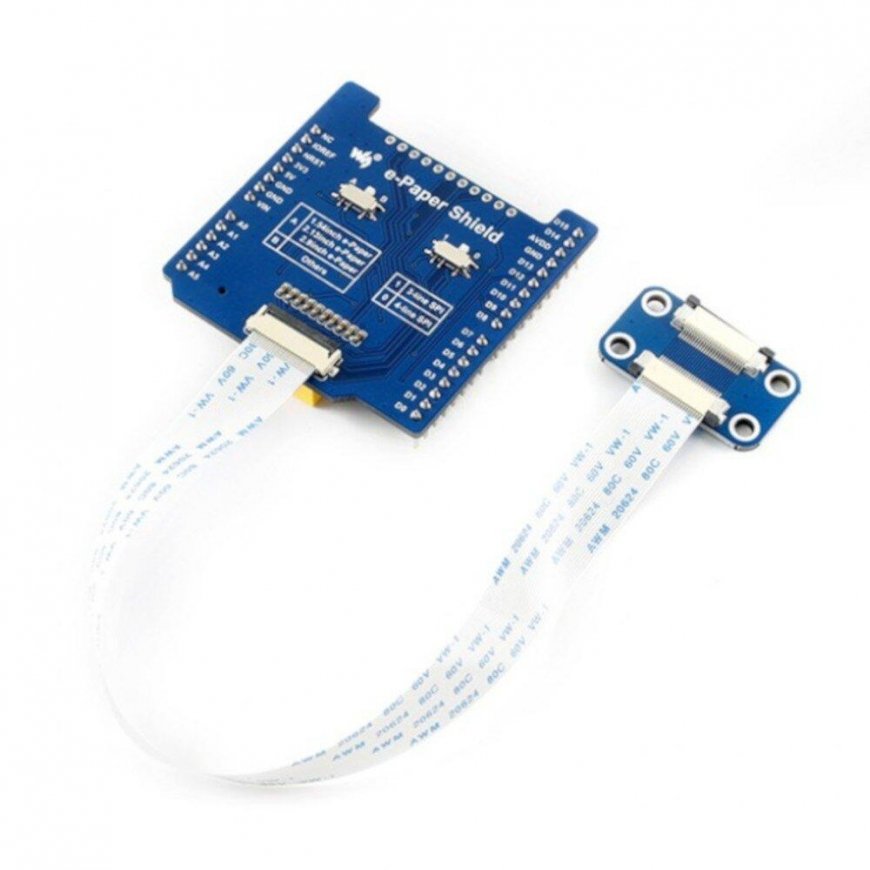

Included:

  • E-paper add-on
  • E-paper adapter
  • 24-pin FFC cable
