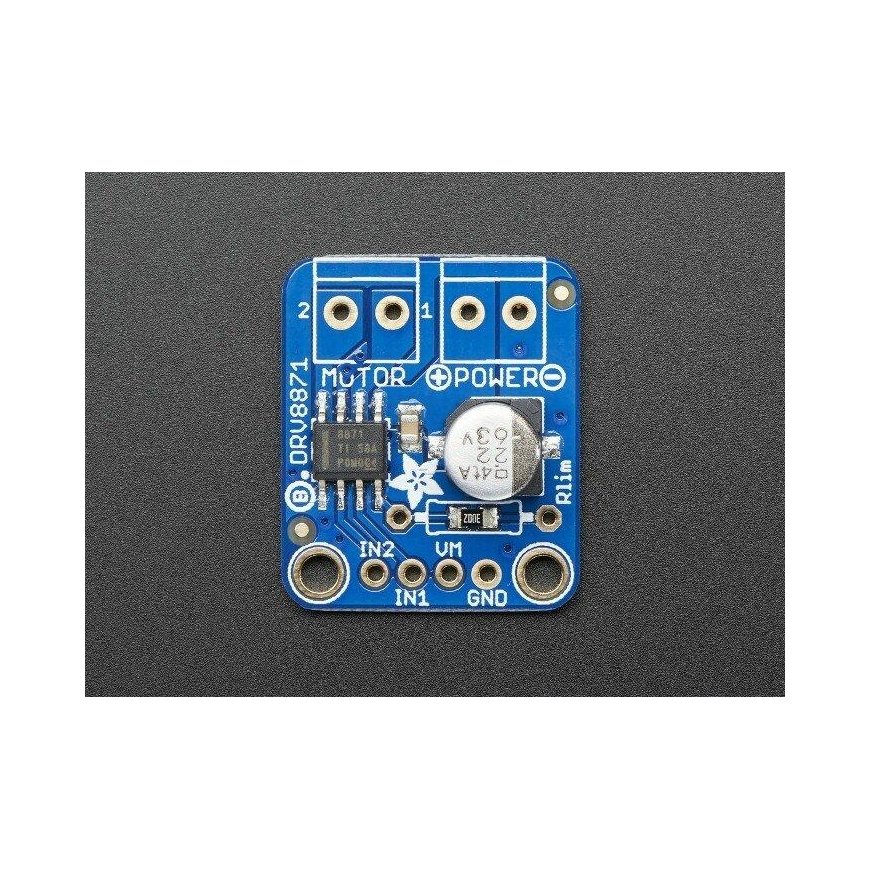

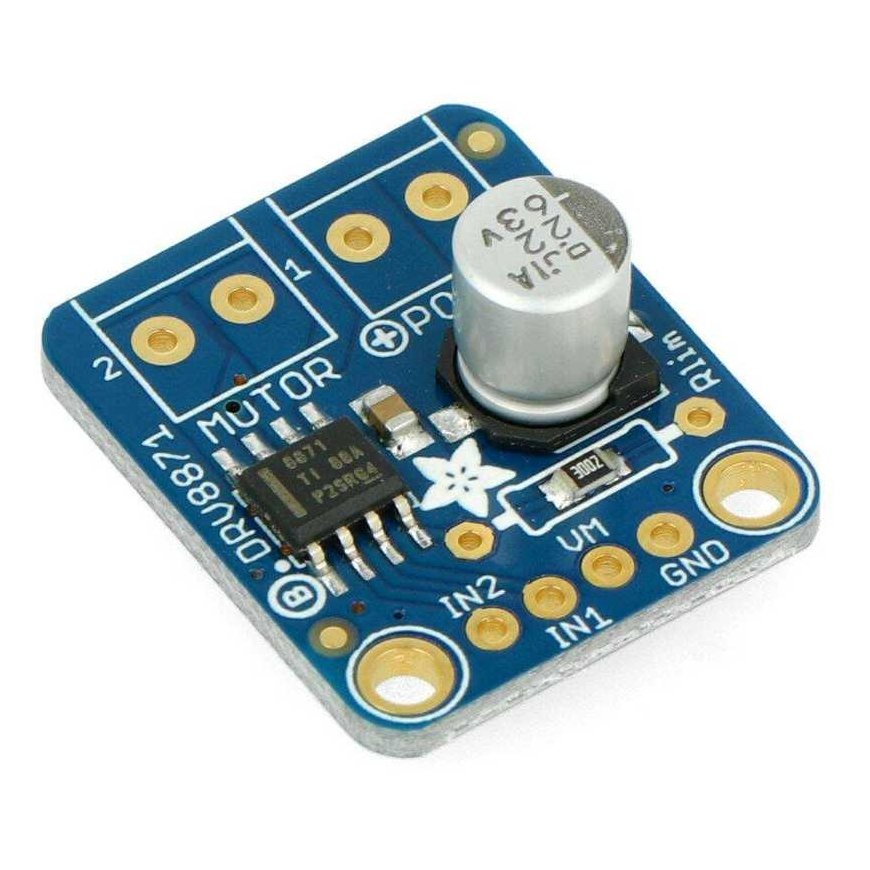

DRV8871 brushed DC motor driver breakout, Adafruit 3190
23.15 €
3716125 AN-07043
5904422335373
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The module based on the DRV8871 allows control of a single DC motor. The motor can be supplied with up to 45 V voltage, with a continuous current consumption of up to 2 A, and a peak (for a few seconds) of up to 3.6 A.
Specifications:
- Number of channels: 1
- Supply voltage: from 6.5 V to 45 V
- Logic part operating voltage: up to 5.5 V
- Continuous current per channel: 2 A
- Maximum channel current: 3.6 A
- PWM control
- Thermal protection
- Overcurrent protection
- Undervoltage protection
- Dimensions: 24.4 x 20.4 x 9.7 mm
- Weight: 2.2 g (without connectors)

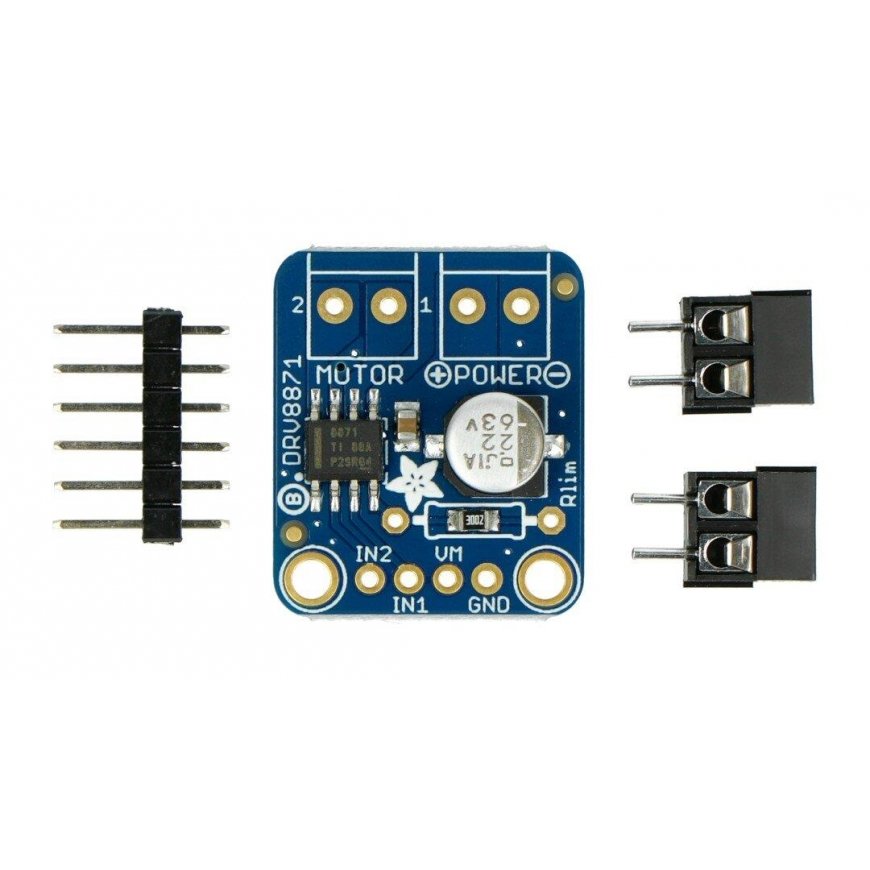

- Includes module, gold pins, and screw terminals
