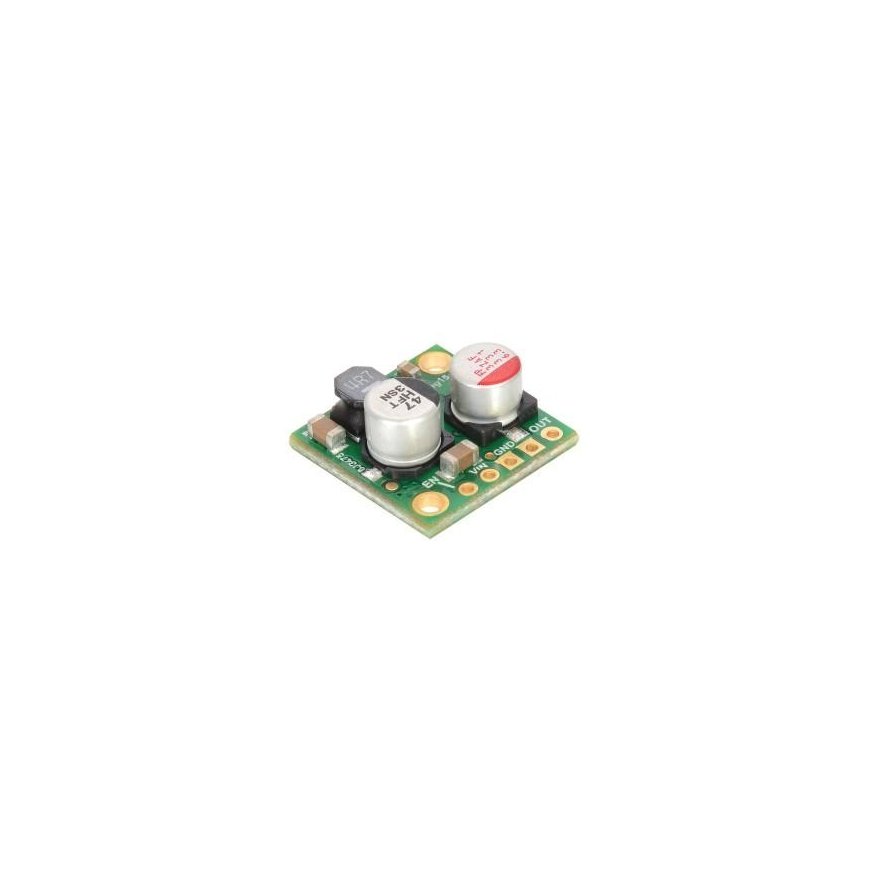

Justpi DC/DC Voltage Converter 6.1V-36V to 6V D24V5F6 (STEP DOWN)
19.06 €
3715973 AN-03111
5904422360122
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The regulator switch DC-DC converts the input voltage from 6.1 V * to 36 V with an output signal value of 6.0 V. Allows a current flow of up to 0.5 A. The system features high efficiency of 80–93%.
Specification
- Input voltage from 6.1 V * to 36 V
- Output voltage: 6 V
- Output voltage accuracy: 4%
- Maximum output current: 0.5 A
- Switching frequency: 500 kHz
- Integrated protection:
- Driver: ISL85415 (documentation)
- Dimensions: 13 x 10 x 3 mm
- Weight: 1 g (without connectors)
- The website of the manufacturer: Pololu 2844
