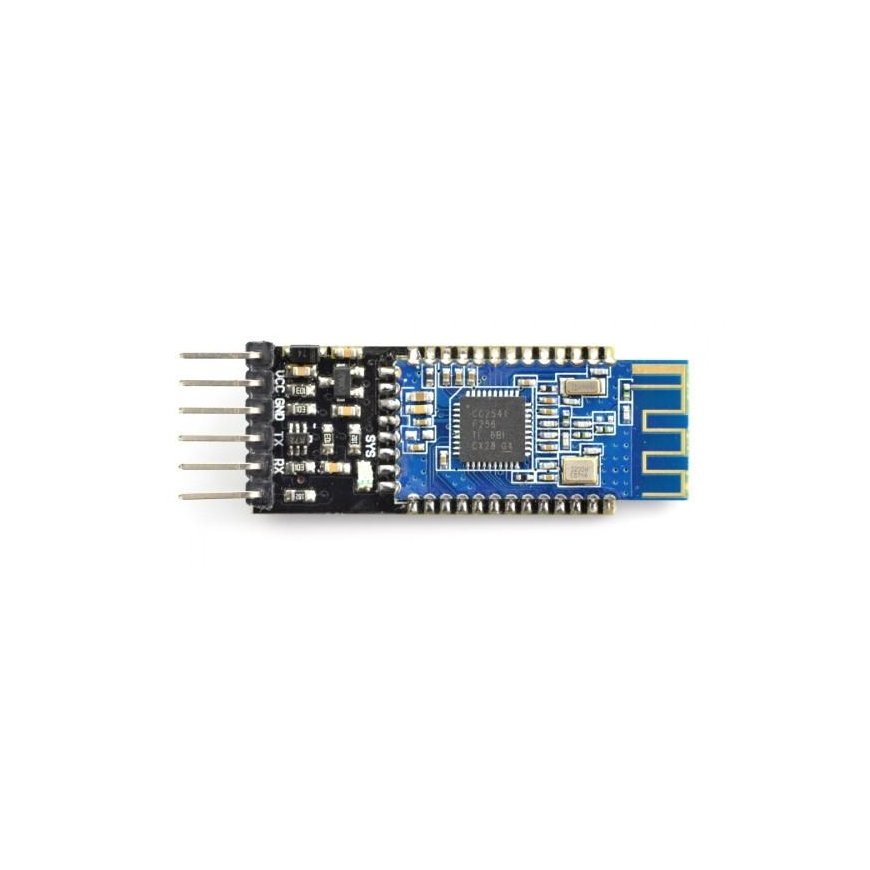

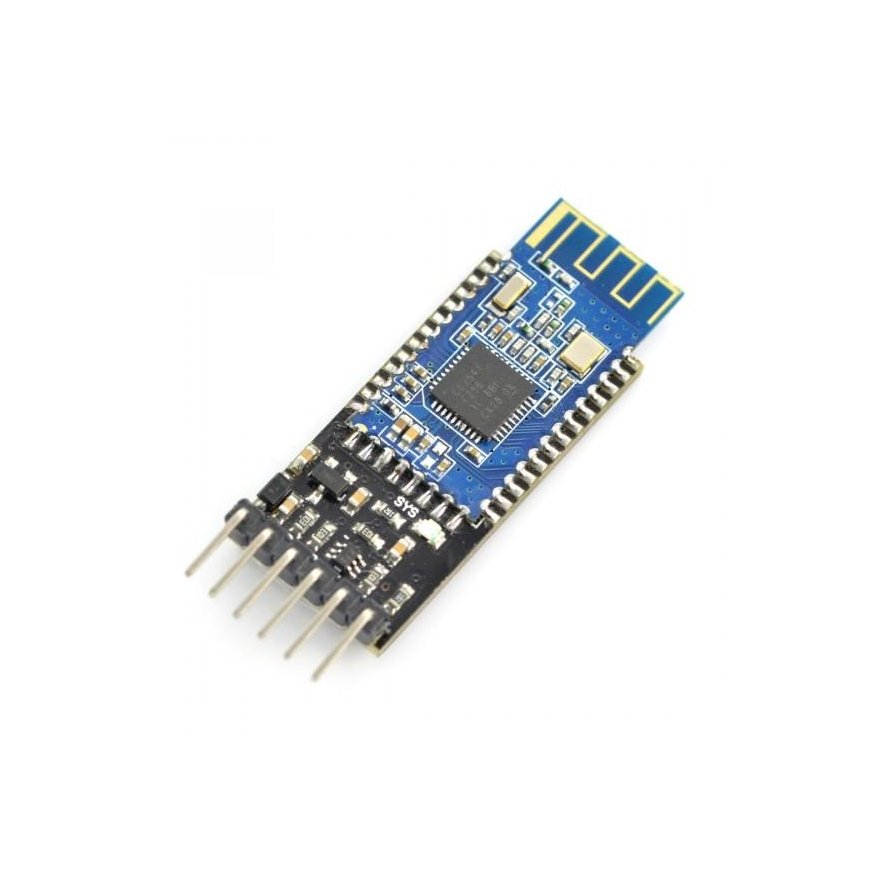

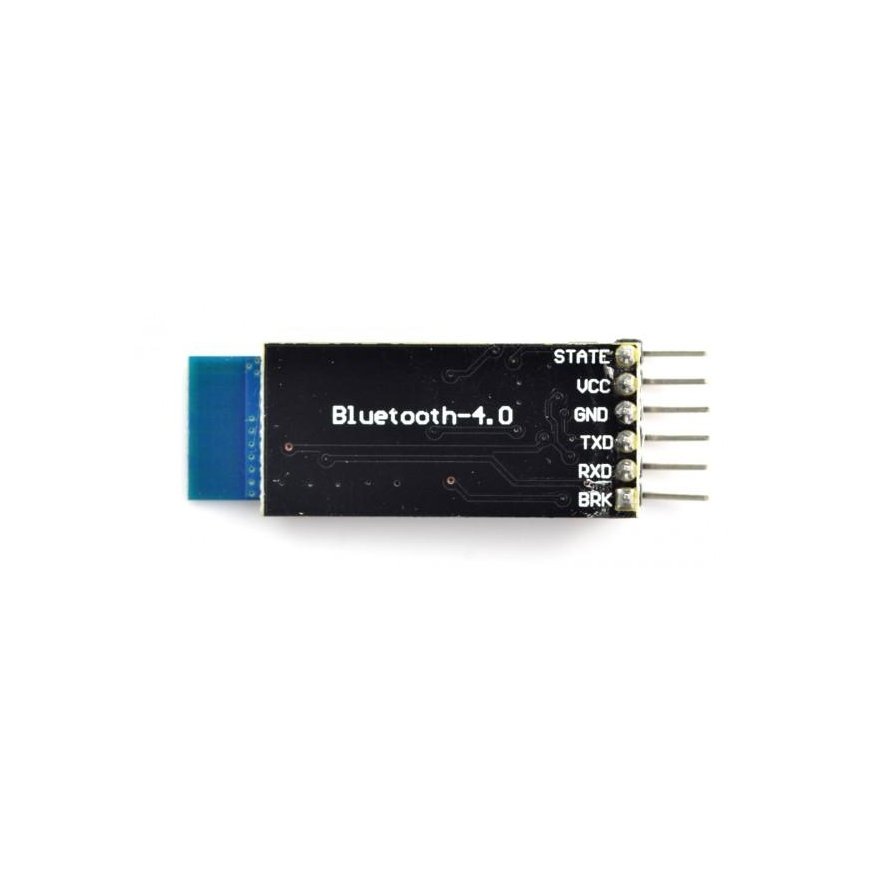

3Doodler HM-10 Bluetooth 4.0 BLE 3.3V/5V module
24.20 €
3715463 AN-08591
5904422311896
Shipping 9-14 b.d.
You are interested in this product?
All about the product
HM-10 Bluetooth 4.0 BLE 3.3V/5V module, suitable for Arduino, Raspberry, and other popular microcontrollers. Commands are sent to the module via standard RX TX connections through the Serial UART interface.
Technical specifications:
- Supply voltage: 3.3 V - 5V DC
- Current: up to 20 mA
- Transmission power: max. + 6 dBm
- Operating range: up to 10 m
- Pairing password: 000000
- Data transmission rate: 9600 bits/s.
- Bluetooth: 4.0 BLE
- Operating frequency 2.4 GHz with ISM band modulation GFSK
- Control interface: UART (RX, TX)
- Supported protocols: Central & Peripheral UUID FFE0, FFE1.
- Sensitivity: - 84 dBm at 0.1% BER.
- Size: 40 x 15 mm
