DFRobot Gravity 2x16 I2C LCD screen with RGB backlight, designed for Arduino
29.00 €
3714660 AN-09538
5904422313609
Shipping 11-18 b.d.
You are interested in this product?
All about the product

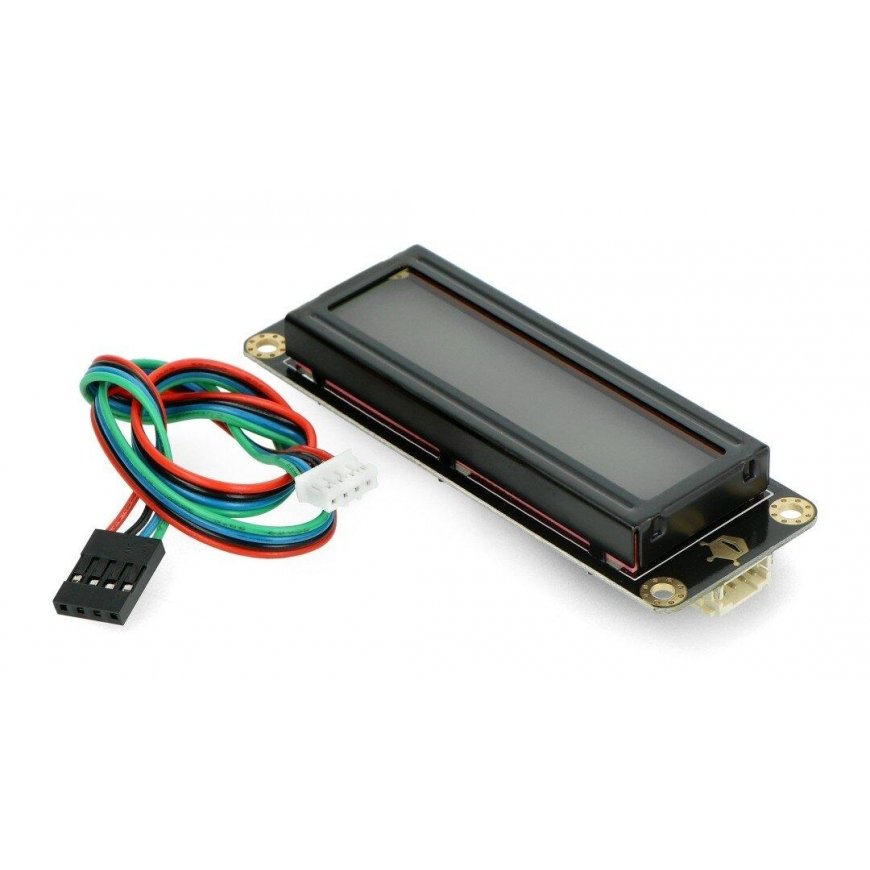

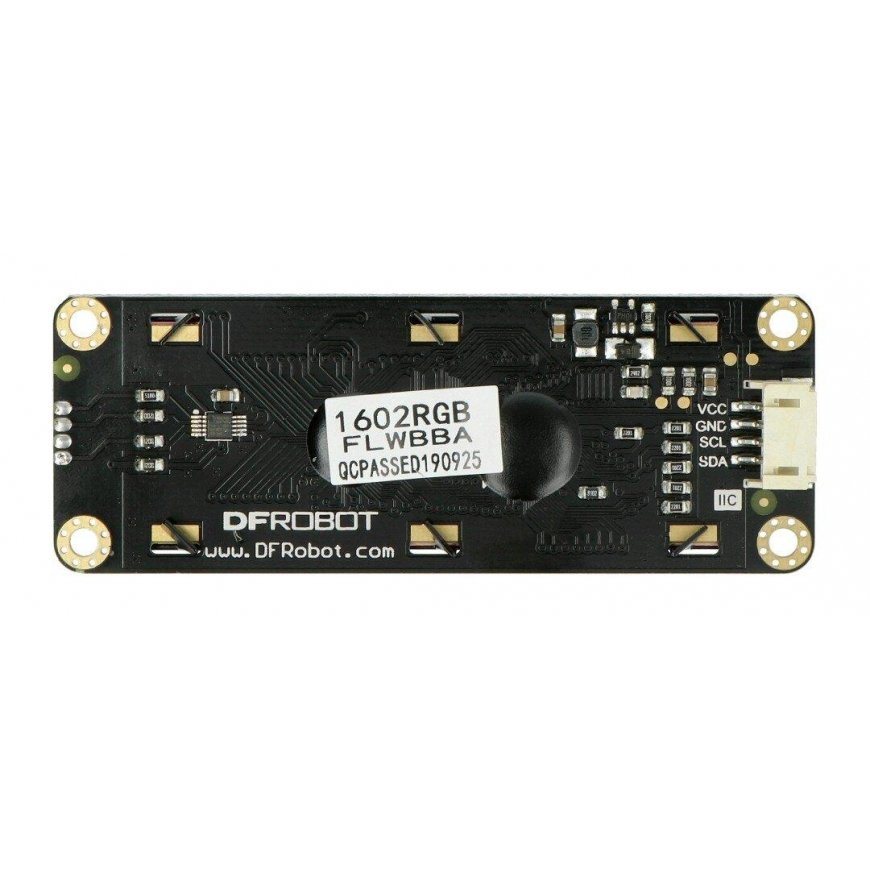

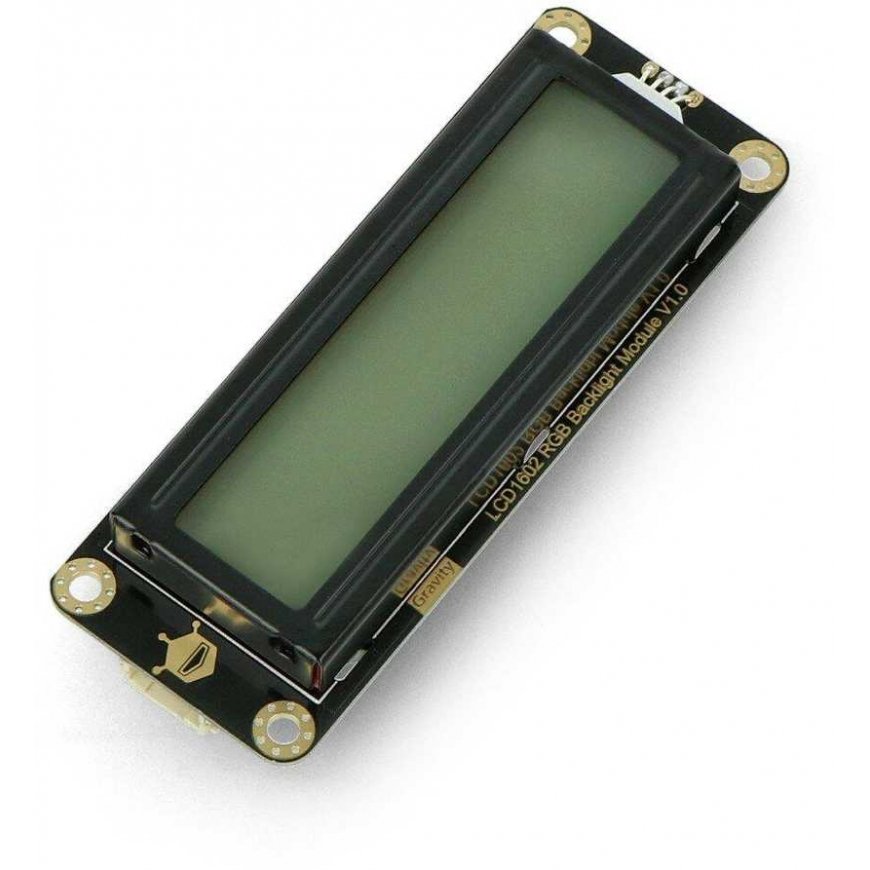

Tired of a black/white LCD screen? Want to try a color one? The DFRobot I2C 16x2 Arduino LCD screen with RGB backlight module will give you that opportunity. The RGB backlight has 16 million colors. This I2C 16x2 LCD screen uses the I2C communication interface. This means that the LCD screen only requires 4 connections: VCC, GND, SDA, SCL.
Specifications:
- Power supply voltage: from 3.3 V to 5 V
- Current consumption: 0.8 mA
- Display: 16 x 2 characters
- Connection: IIC / I2C
- Backlight: RGB - 16 million colors
- Operating temperature: from -20 to 70 ℃
- Ambient temperature: from -30 to 80 ℃
- Dimensions: 87 x 32 x 13 mm
Package includes:
- Gravity 4Pin I2C / UART sensor cable x1
Links:
Manufacturer's page
Manual
