OdSeven HD IR-CUT OV5647 5Mpx camera - day/night IR, designed for Raspberry Pi + IR modules
39.00 €
Monthly payment from 1,90 €
3713889 AN-07599
5904422310639
Shipping 11-18 b.d.
You are interested in this product?
All about the product

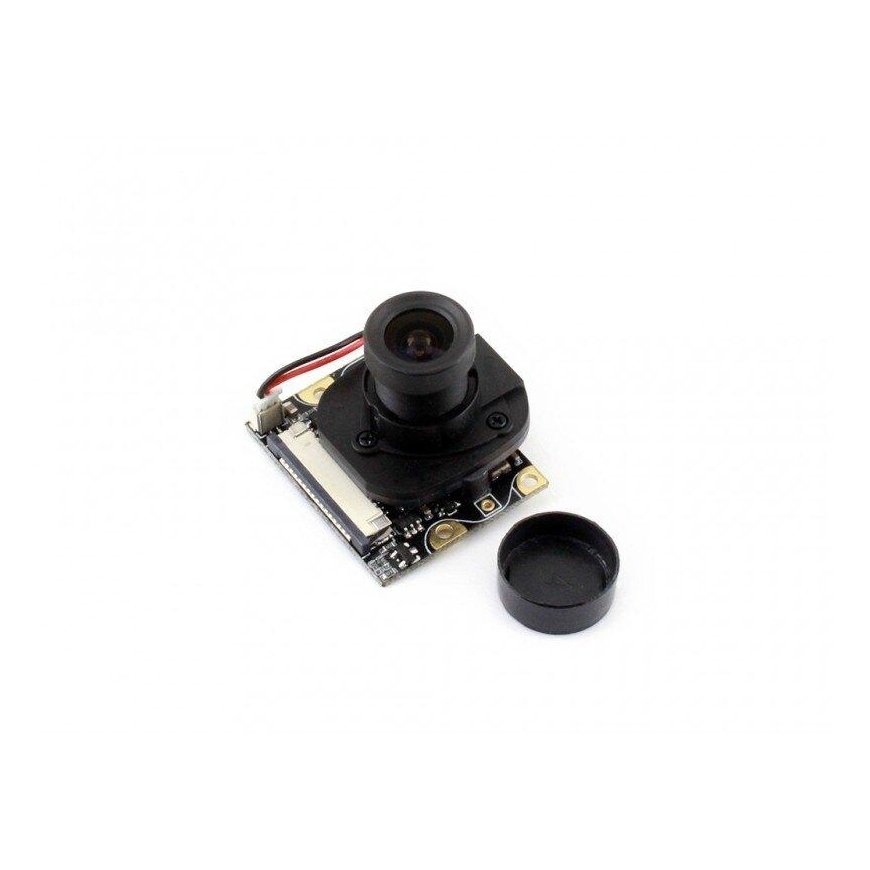

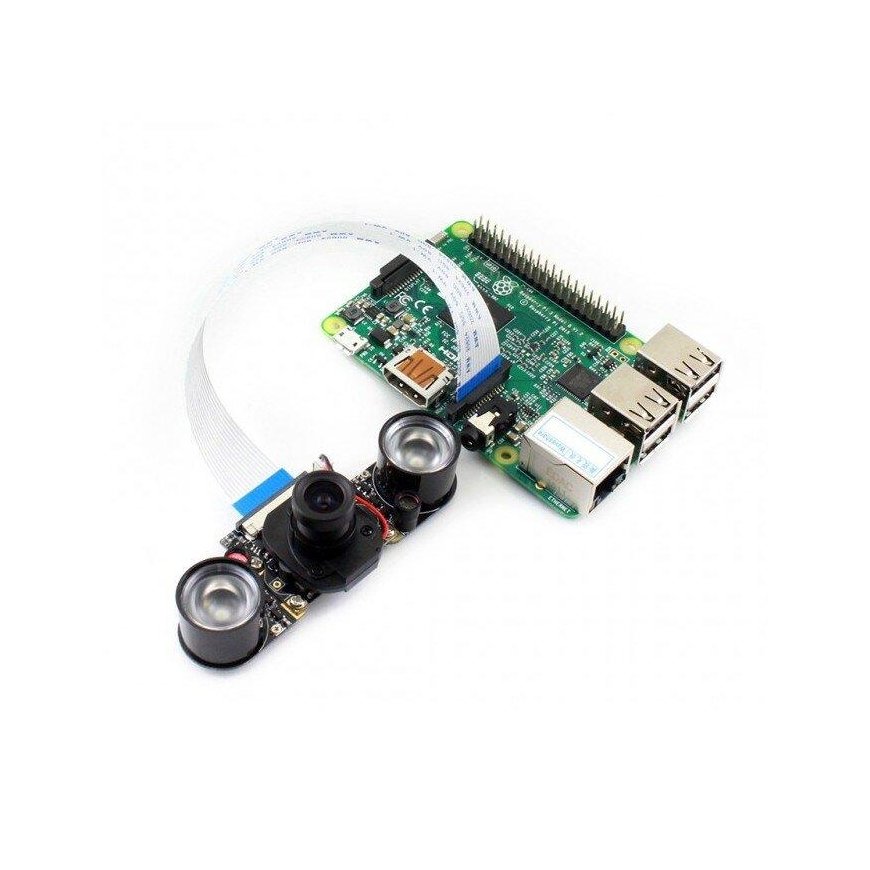

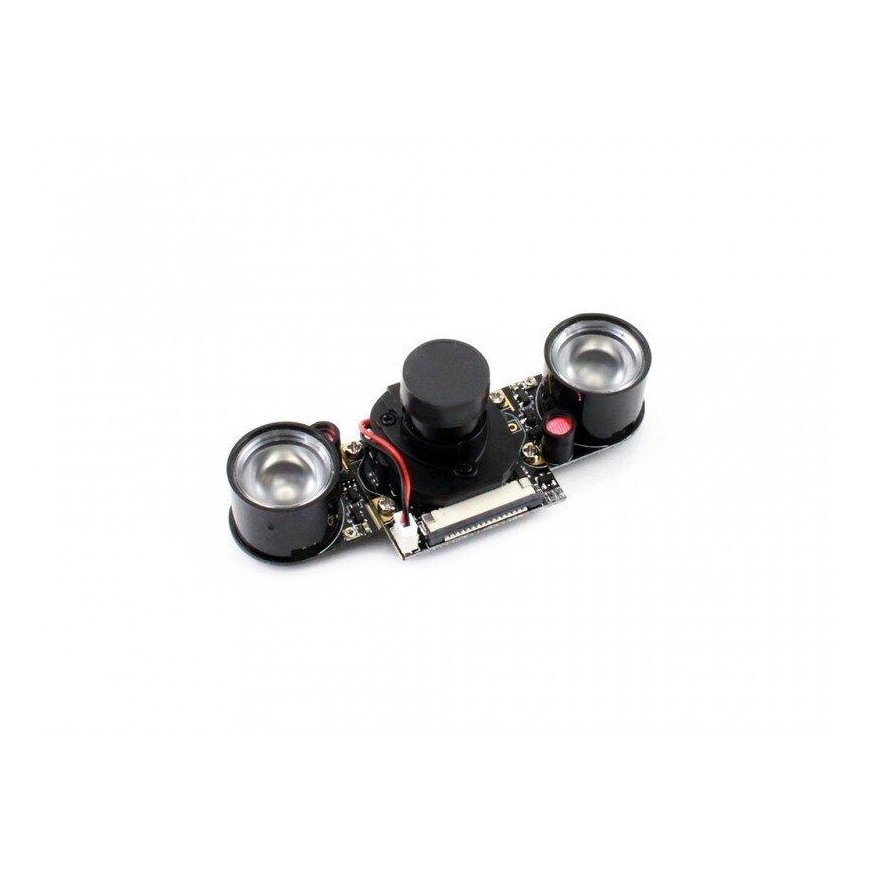

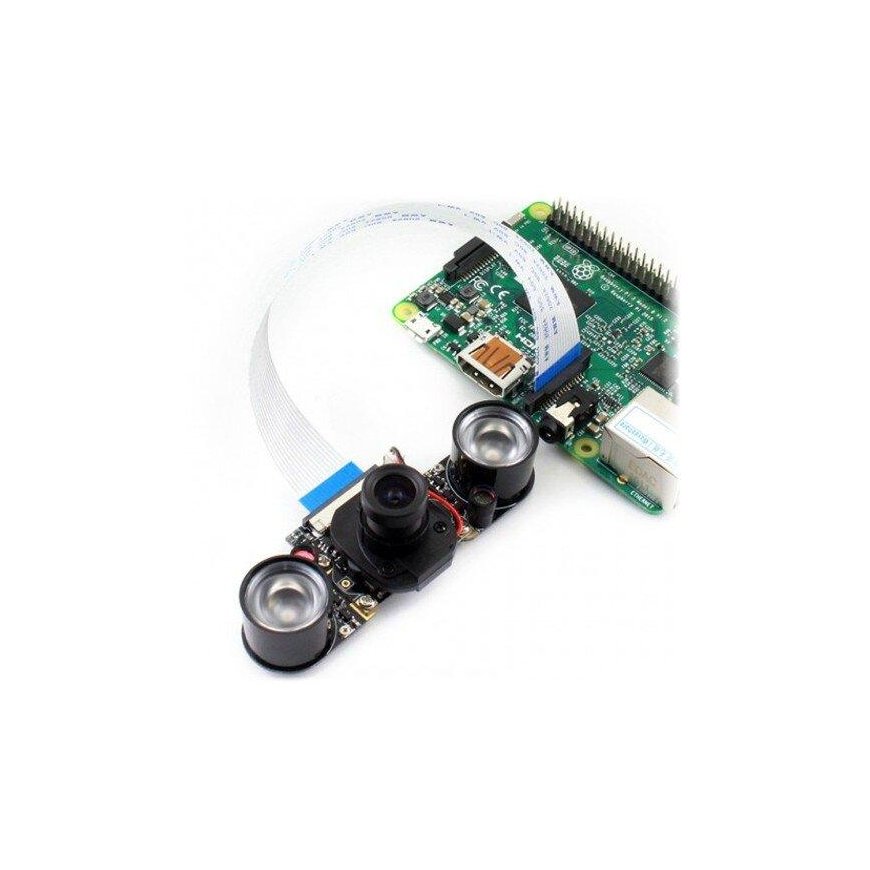

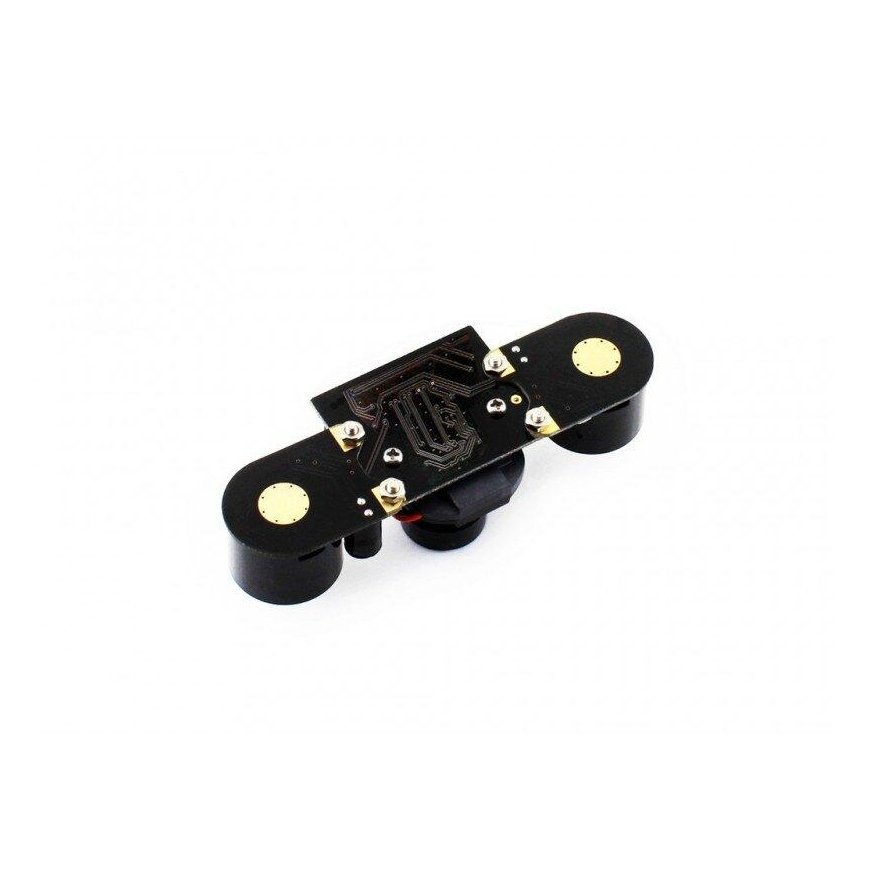

Module with a camera, connected to a special mini-computer Raspberry Pi 4, 3, 2, B+, A+ interface. It has a 1/4" matrix CCD with a resolution of 5 Mpx, supports HD 1080px mode. The camera allows recording excellent images day and night with a removable IR-CUT filter. The package also includes IR 3 W backlight modules.
Specifications:
- The camera is compatible with Raspberry Pi 4, 3, 2, B+, A+ and older A and B versions
- Matrix: 5 MPx
- Sensor: OV5647
- CCD matrix: 1/4"
- Viewing angle - diagonal: 72.4°
- Sent: 1.8
- Focal length: variable 3.6 mm
- Has 4 mounting holes
- Dimensions: 32 x 31 mm
Included:
- Camera 5 MPx
- Ribbon for connecting to Raspberry Pi
- 2x IR backlight modules with a power of 3 W
- Mounting screws
Links:
Manufacturer's page
Manual
