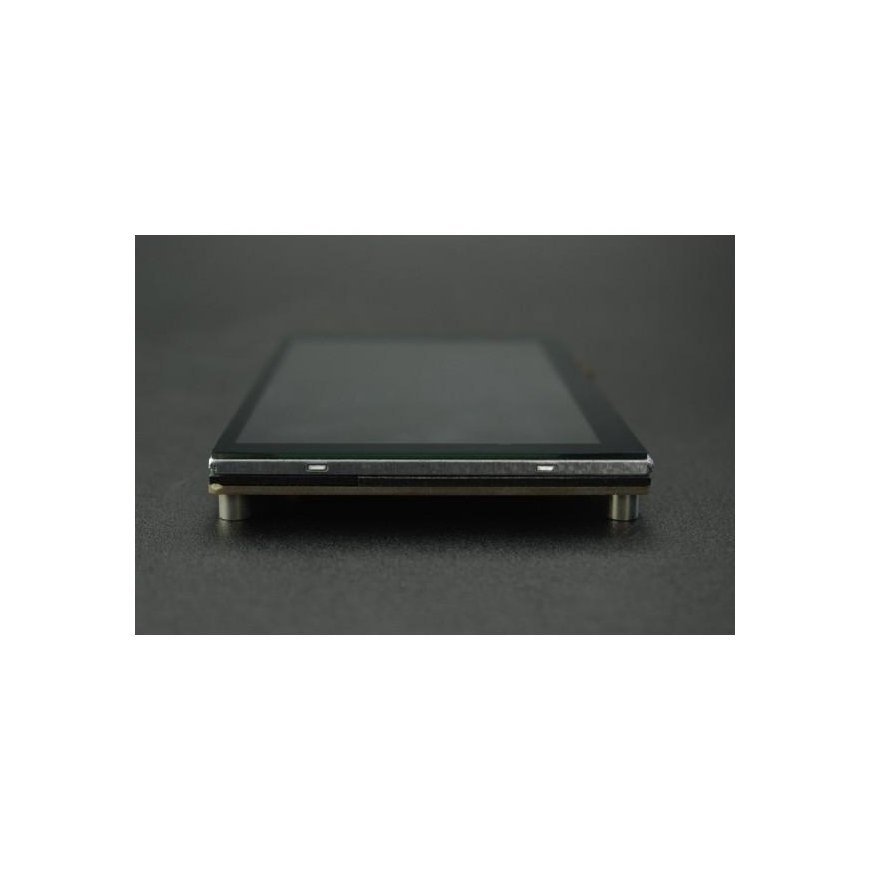

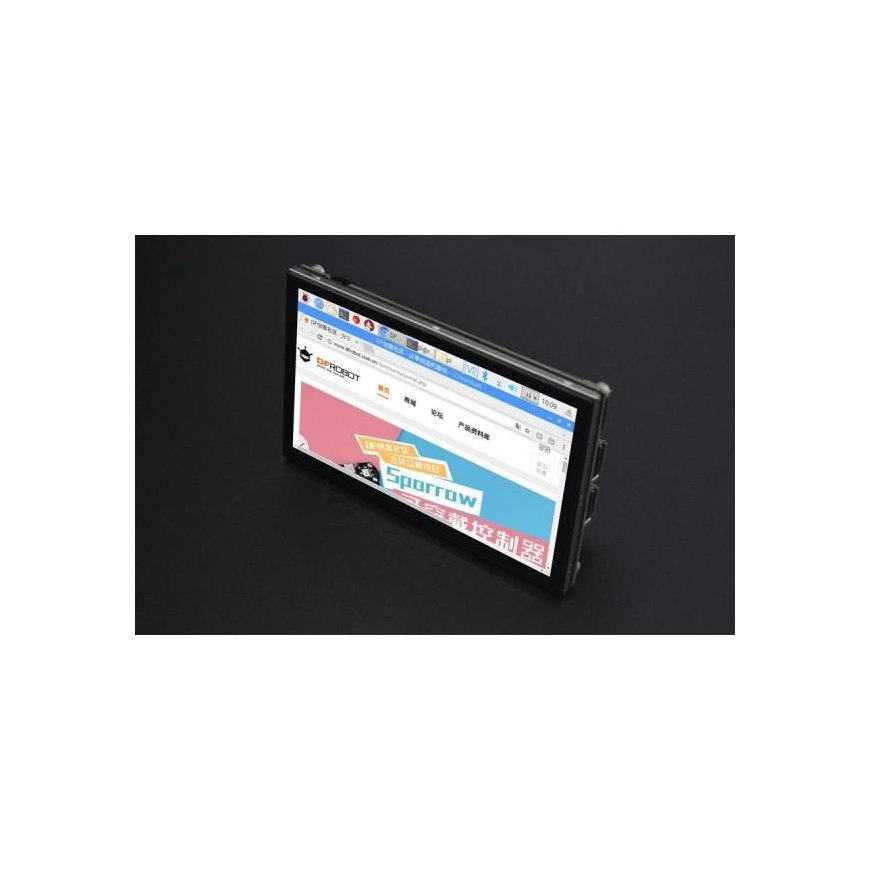

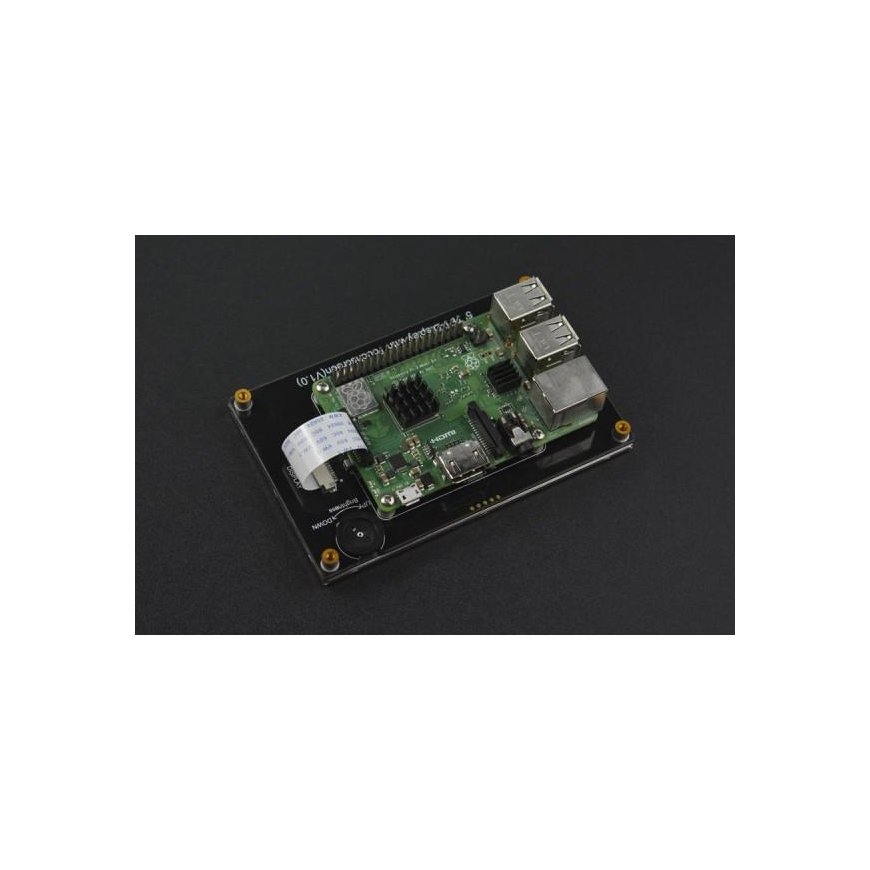

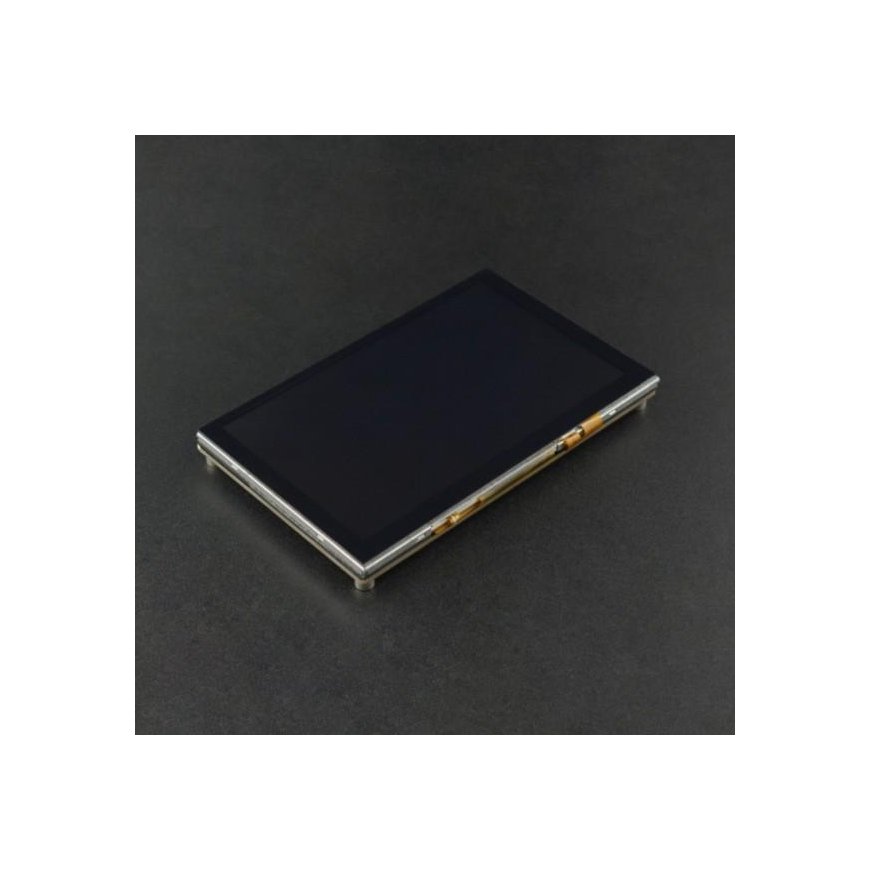

DFRobot Touch Screen for Raspberry Pi Microcomputer - LCD TFT 5"
88.99 €
Monthly payment from 3,19 €
3713171 AN-12853
5904422320133
Shipping 11-18 b.d.
You are interested in this product?
All about the product
5-inch touchscreen for Raspberry Pi computers. The screen resolution is up to 800 x 480 px. The touchscreen supports up to 5 touches simultaneously. Powered by the Raspberry DSI connector, it does not require an external power source.
Technical specifications :
- Operating voltage: 3.3 V
- Maximum current: 320 mA
- Current when the screen is off: 100 mA
- Interface: DSI Raspberry Pi
- Resolution: 800 x 480 pixels
- Number of touch points: 5
- Viewing angles: 60 ° / 70 ° / 70 ° / 70 °
- RGB888-16 Mega True Color
- Refresh rate: 60 Hz
- Luminance: 280 cd / m2
- Operating temperature: from -20 ° C to 70 ° C
- Dimensions: 121 x 76 mm
- Mounting holes: M2.5
- External distance of mounting holes: 113 x 68 mm
- Internal distance of mounting holes: 58 x 49 mm

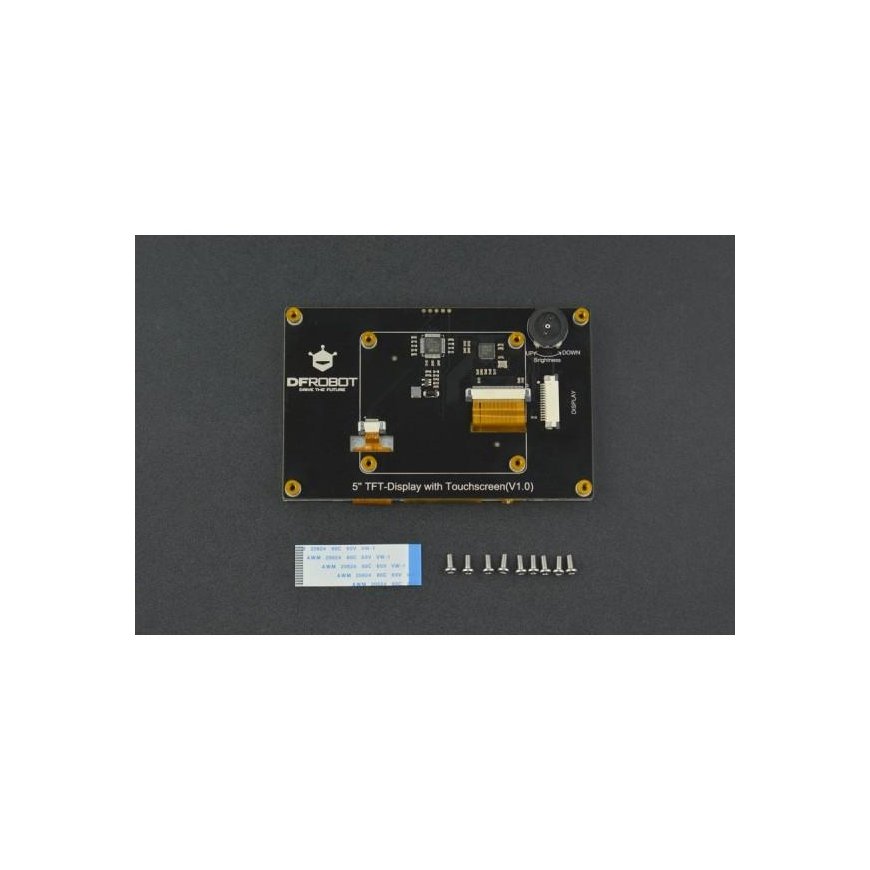

- Screen
- FFC cable 45 mm, 1 mm 15 contact pitch
- 8x M2.5 distance
- 8x M2.5 screw
