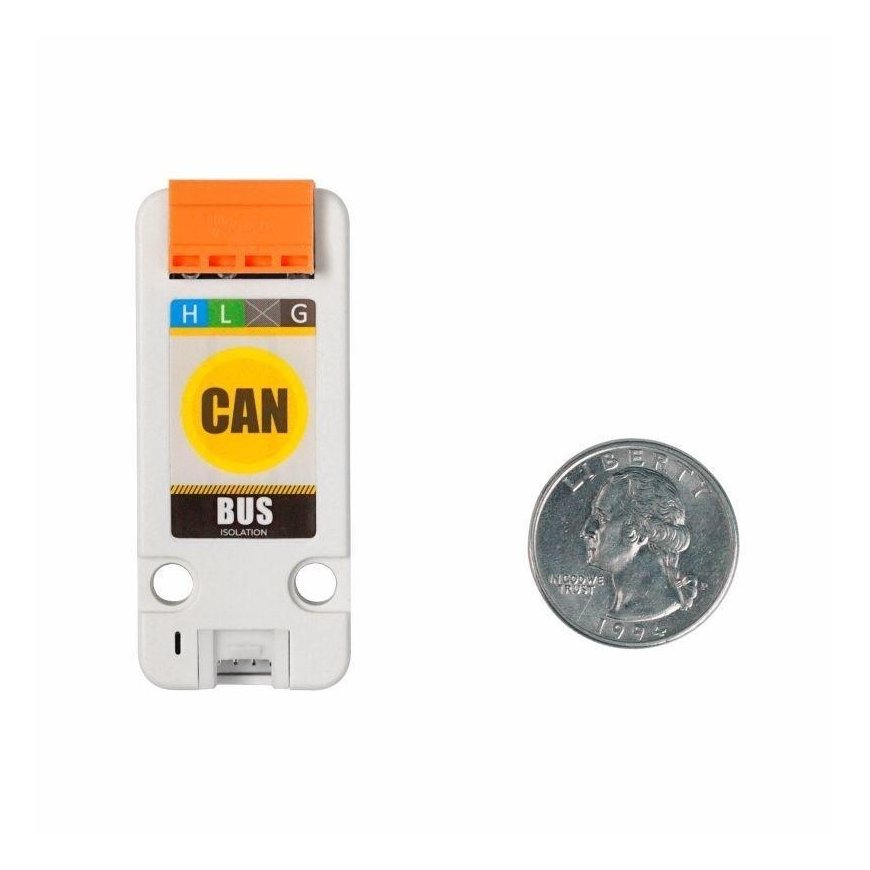

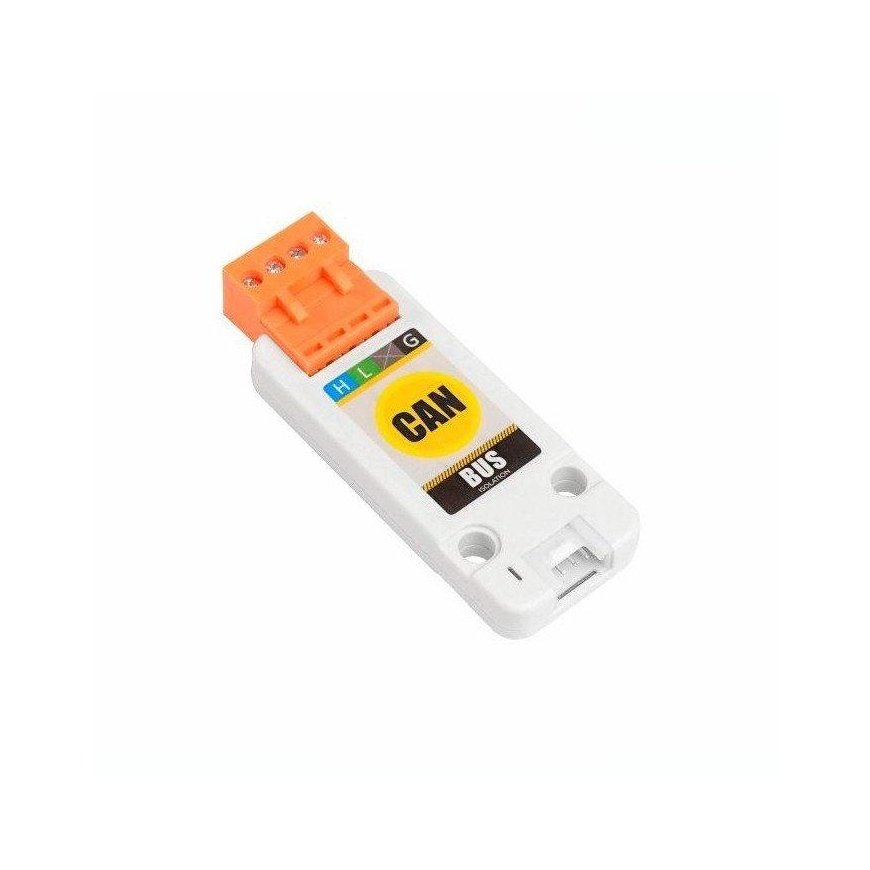

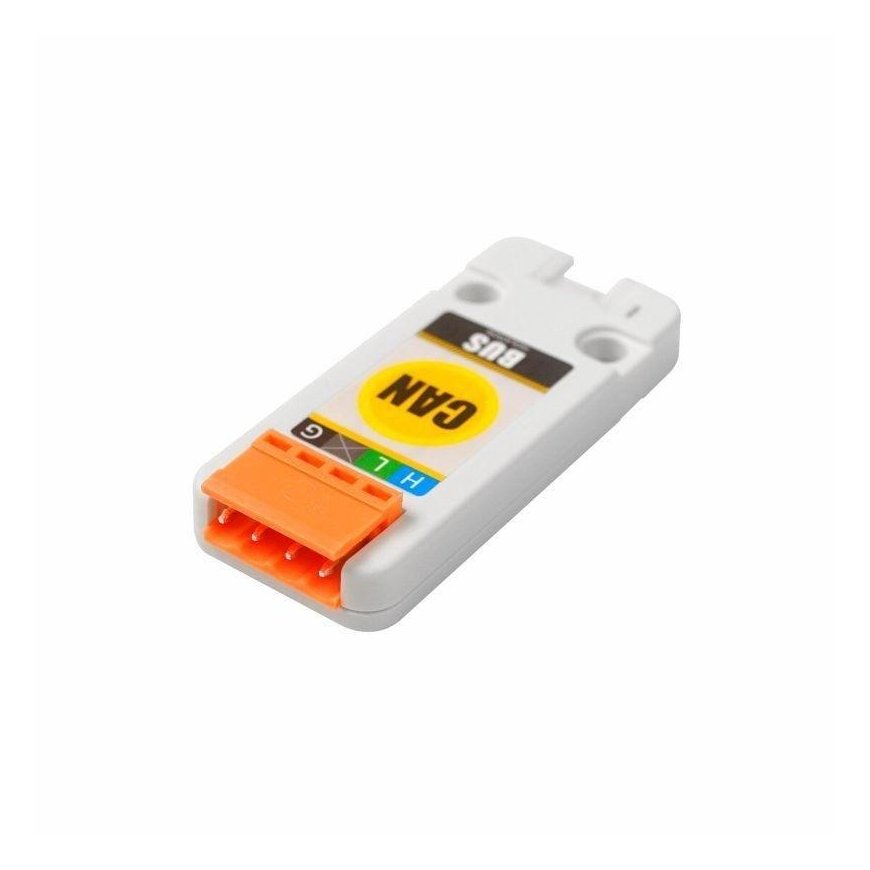

CAN bus module CA-IS3050G - an expansion module for M5Stack development modules
3713023 AN-19119
5904422363680
Shipping 8-15 b.d.
All about the product
The CAN transceiver block is an expansion of the unit type for the M5Stack development module family. This is an isolated CAN transceiver model capable of ensuring differential reception and differential transmission. CAN is an international ISO serial communication protocol and belongs to the field bus category. The communication distance can reach up to 10 km - at which point the transmission speed is less than 5 kbps. On the other hand, to maintain a maximum transmission speed of 1 Mb/s - the communication range should be less than 40 m.
Key features:
- Used as a CAN bus communication module
- Used in industrial field control projects, security systems
- Compatible with the M5Stack development module series
- Supported programming platforms: Arduino, UIFlow (Blockly, Python)
- With two holes that meet the LEGO standard
- Type: CAN bus transceiver block

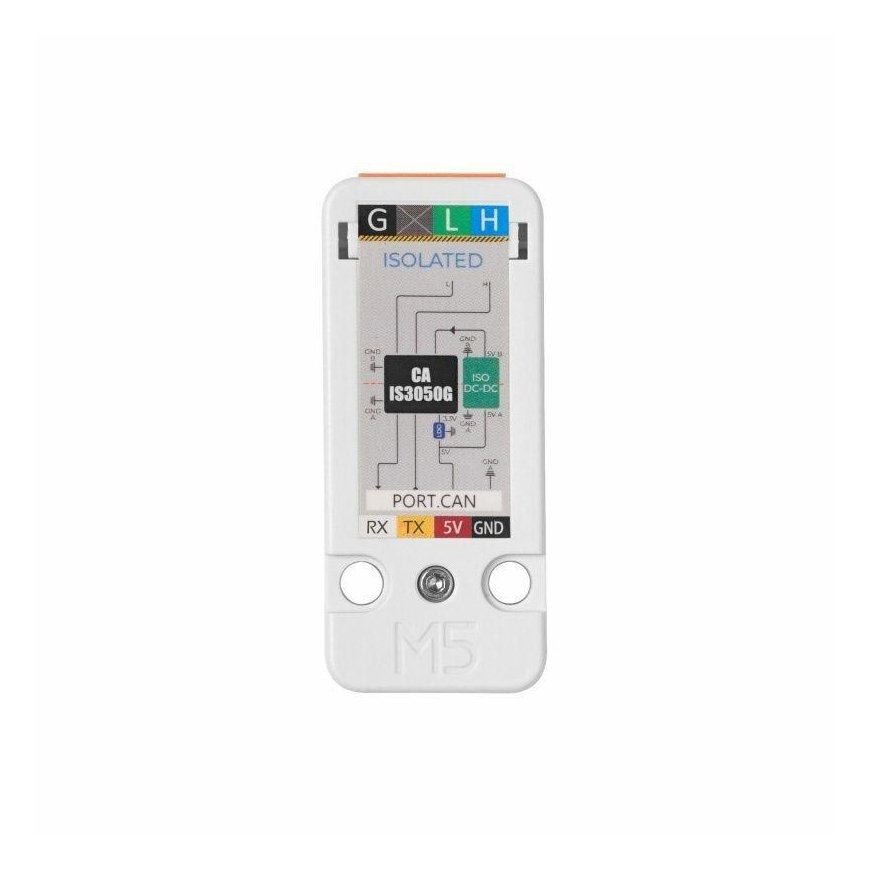

- Integrated chip: CA-IS3050G
- Rated maximum voltage: 1000 V
- Maximum transmission speed: up to 1 Mb/s
- Communication range:
- up to 10 km - transmission speed less than 4 kb/s
- up to 40 m - transmission speed approximately 1 Mb/s
- Number of nodes: 110
- Delay: - 150ns
- Operating voltage in normal mode: from -12 V to 12 V
- Protection: current limit, overvoltage protection, signal isolation, dynamic time-off function
- Housing material: plastic (PC)
- Module dimensions: 65 x 24 x 8 mm
- Weight: 12 g

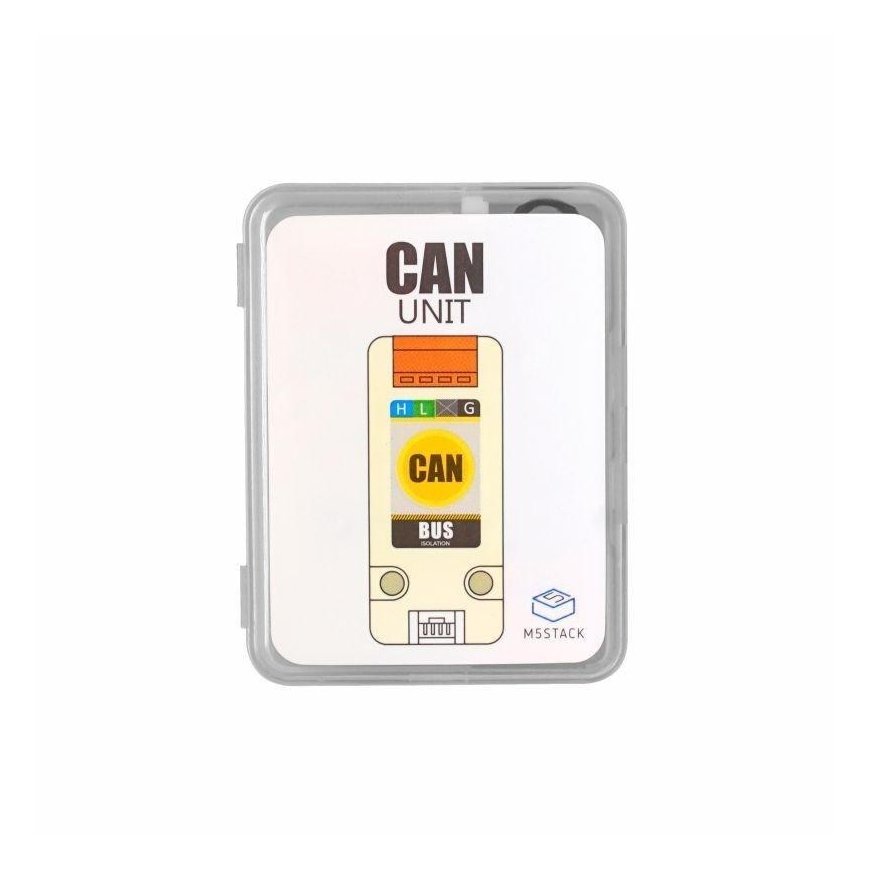

- CAN bus expansion module
- Connecting cable with Grove connector - length 5 cm
