Seeed Studio Grove, 2 channel relay with opto-isolation, 10A/250VAC, coil 5V + transparent case
23.30 €
3712863 AN-12626
5904422319779
Shipping 11-18 b.d.
You are interested in this product?
All about the product

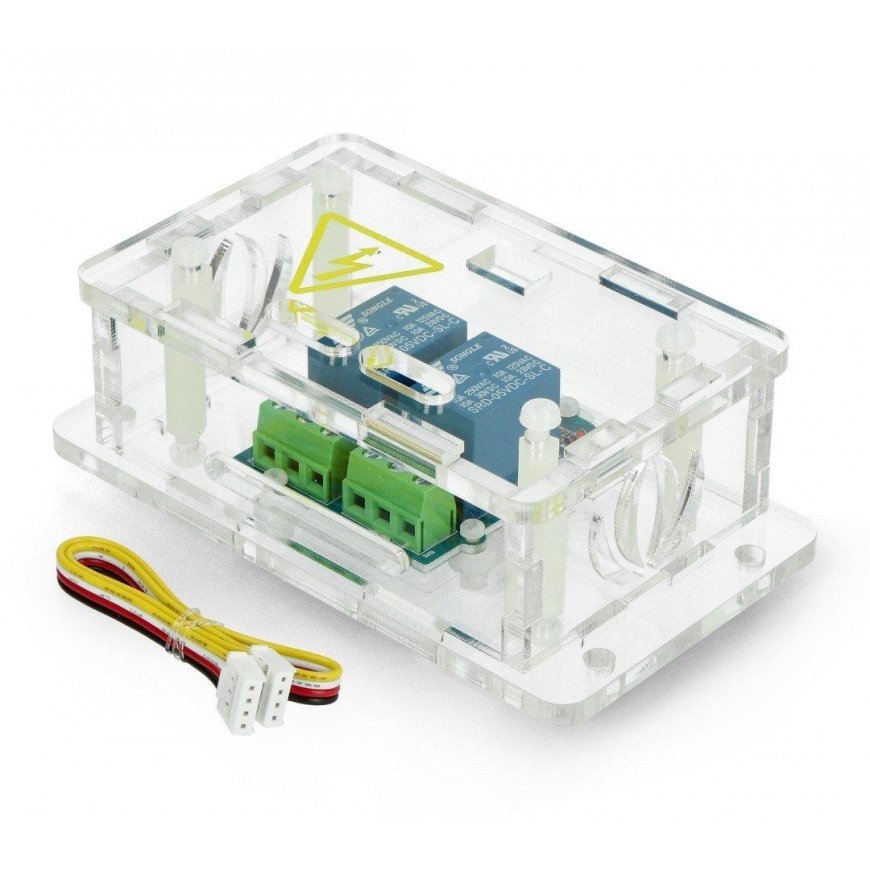

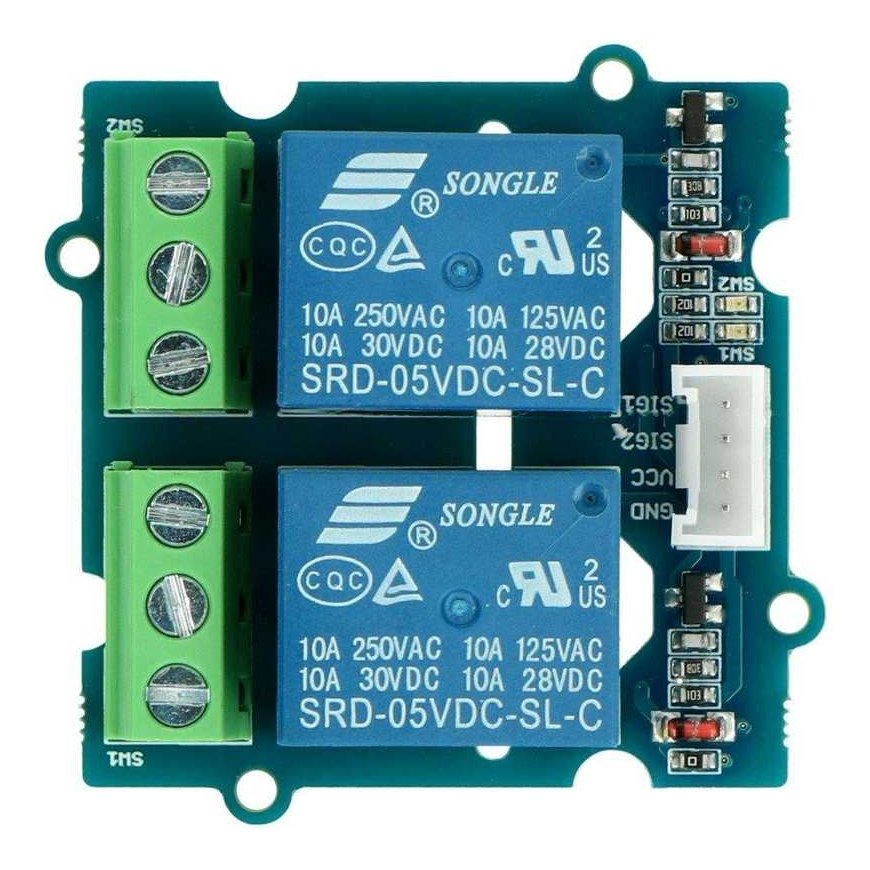

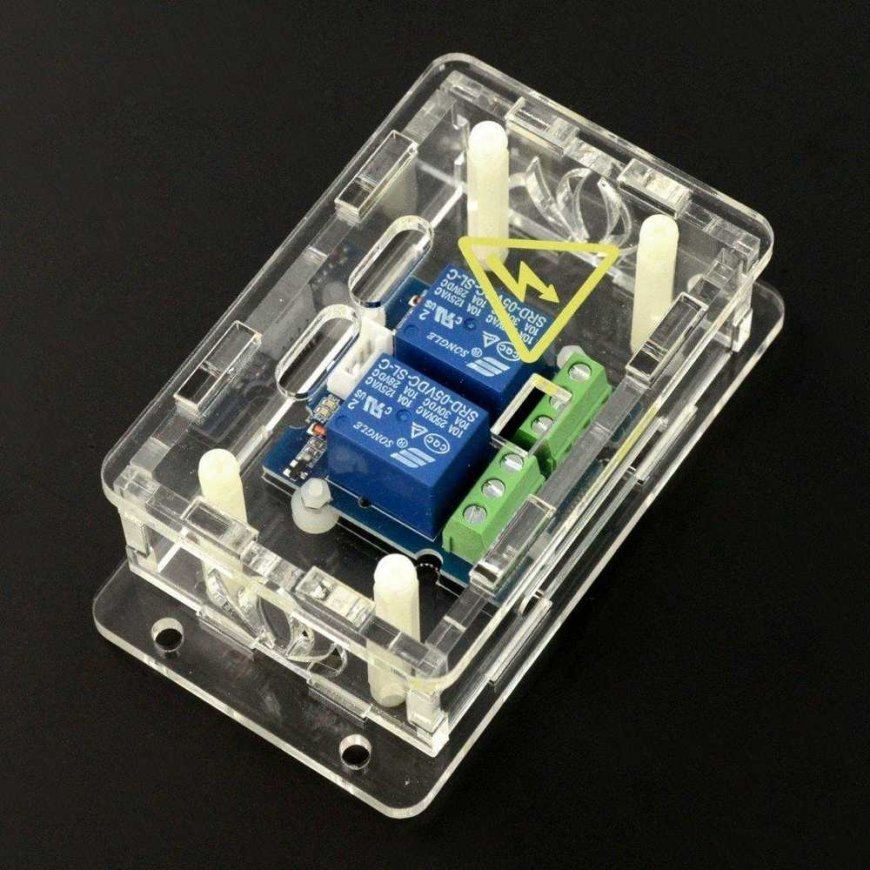

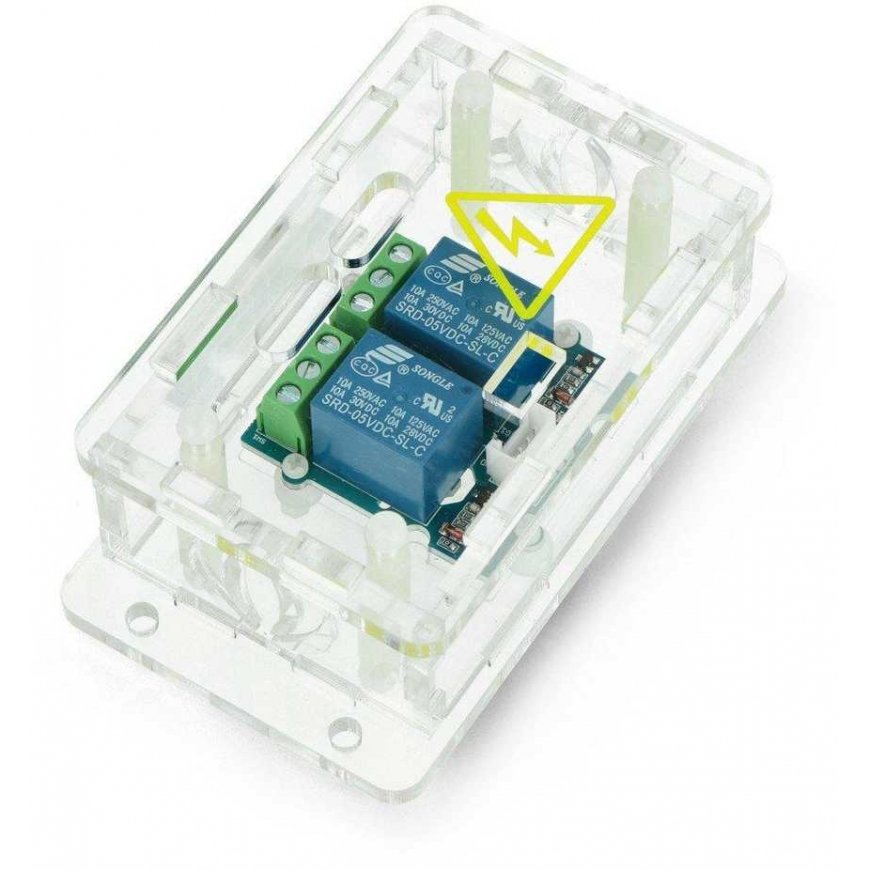

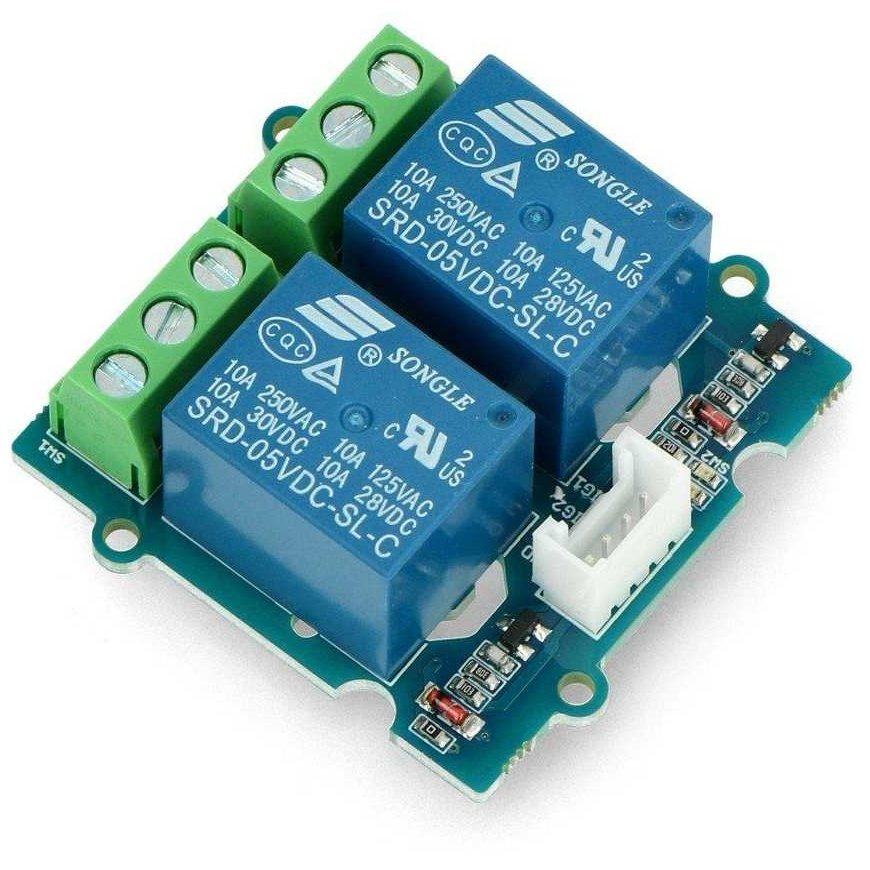

The module has two SRD-05 relays, which are powered by a 5 V coil, with input and mounting hole optical isolation. The system allows controlling actuators using microcontroller ports or any development kit. It features a Grove series socket. The kit includes a transparent case and a connecting wire.
Specifications:
- Supply voltage VCC 5 V
- Activated by low state
- Relay: SRD-05VDC-SL-C
- Coil voltage: 5 V
- Maximum contact voltage: 250 VAC, 30 VDC
- Maximum current: 10 A
- Optical isolation EL817
- Board with case dimensions: 110 x 60 x 35 mm
- Mounting hole diameter: 4 mm
- Distance between mounting holes: 95 mm and 39 mm
Included:
- Relay module, 2 channels
- Transparent case
- Grove 4 pin wire
- Mounting components
- Mounting guide
