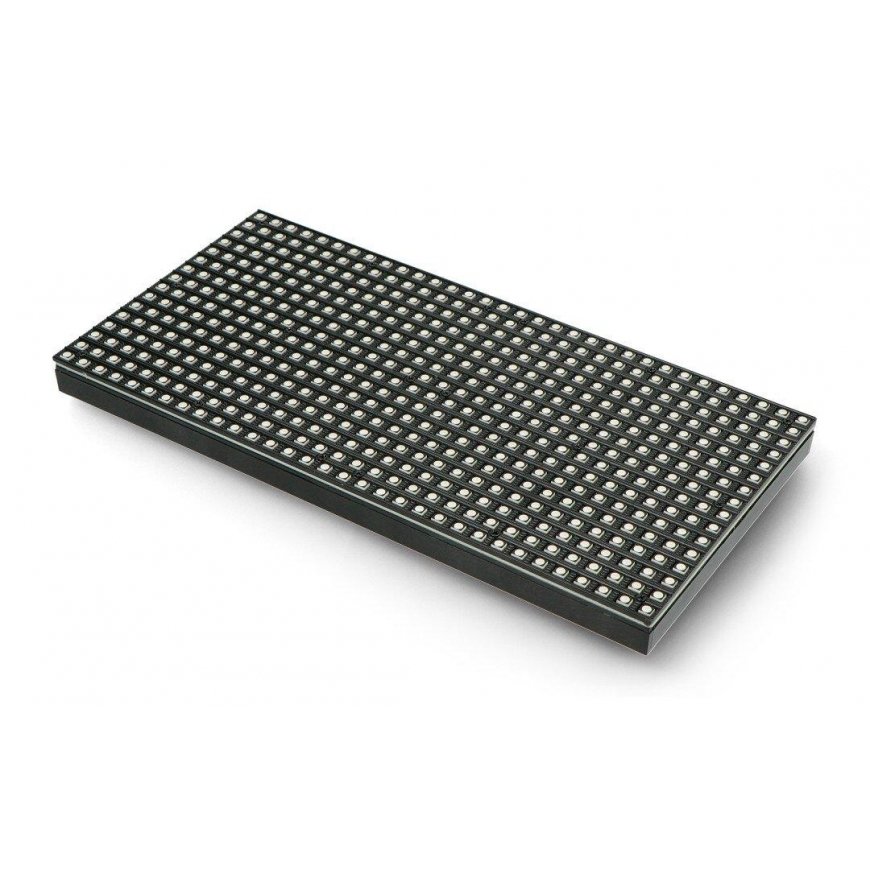

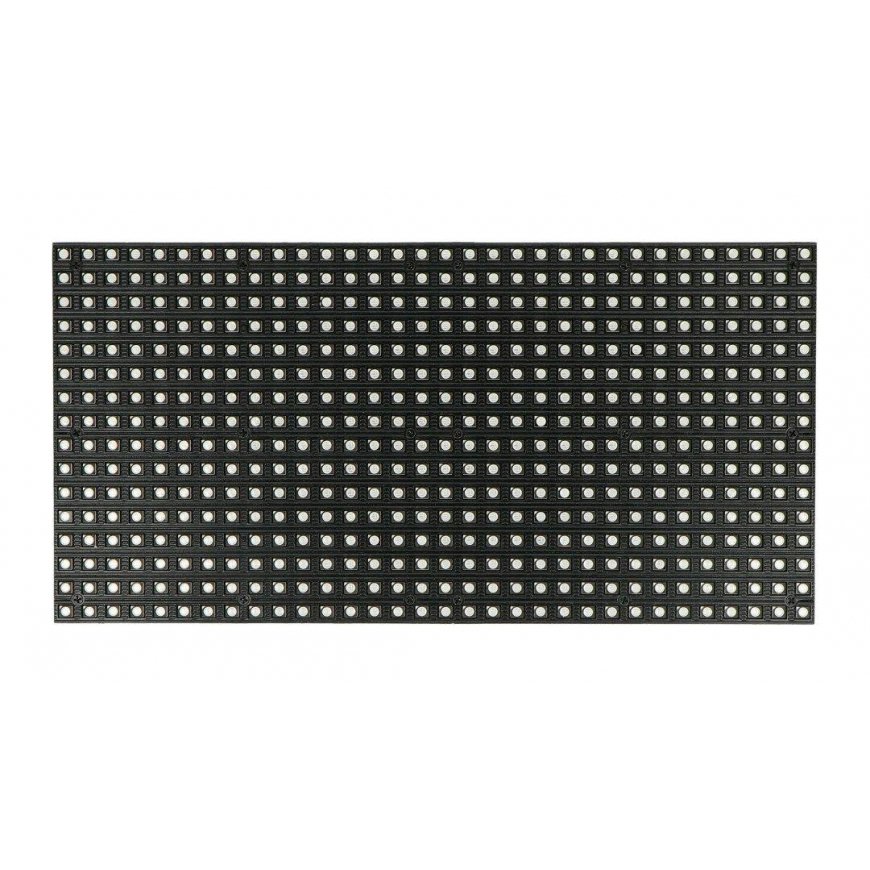

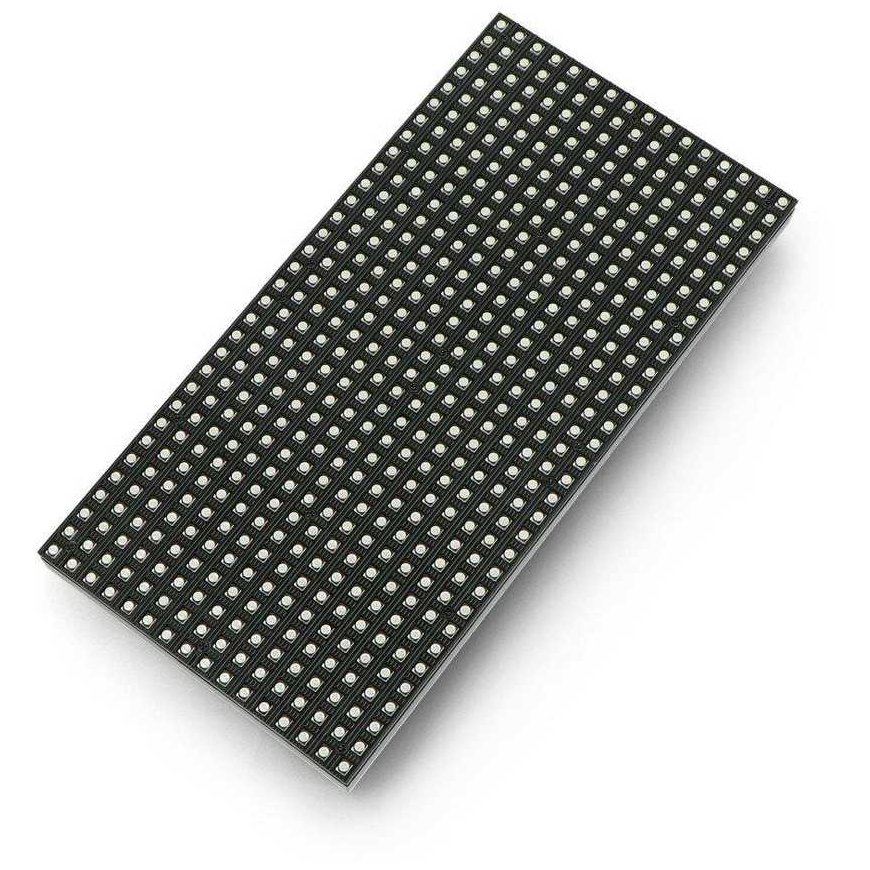

DFRobot RGB LED matrix 32 x 16, 512 light-emitting diodes
39.00 €
Monthly payment from 1,90 €
3712801 AN-12264
5904422340858
Shipping 11-18 b.d.
You are interested in this product?
All about the product

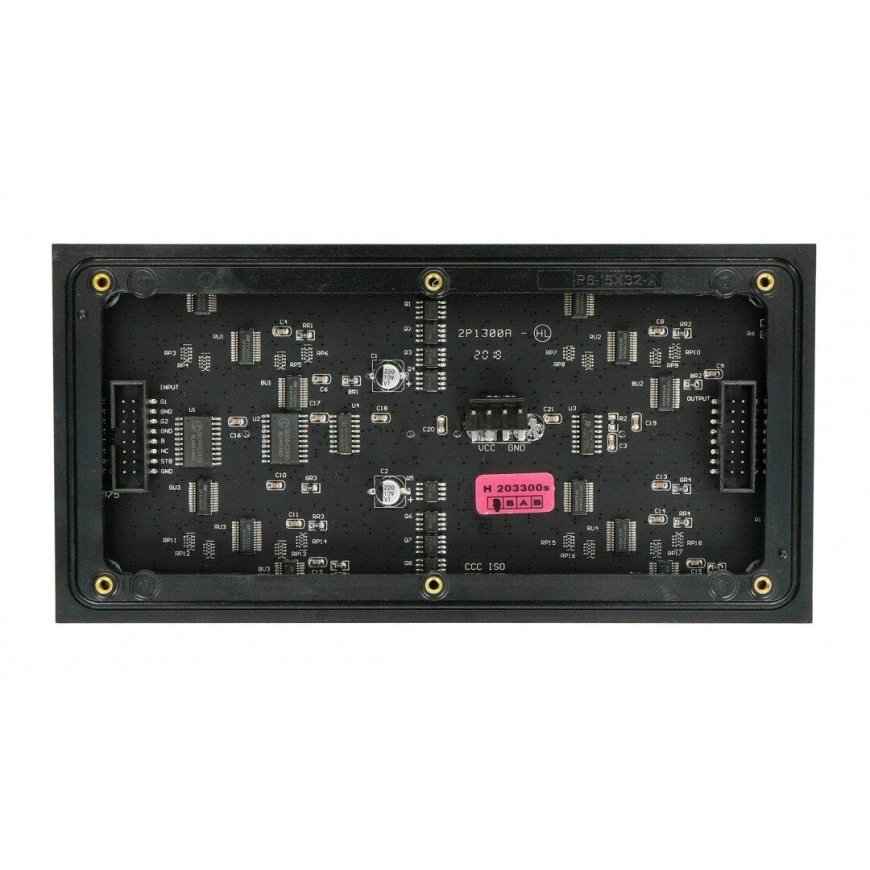

The matrix consists of 512 RGB LEDs arranged in 32 rows and 16 columns. To control the module, you need to use 13 microcontroller pins. The matrix can be connected in cascade using an IDC connector. Power supply voltage is 5 V / 2 A.
Specifications:
- Power supply voltage: 5 V / 2 A
- Average power consumption: <500 W / m2
- Maximum power consumption: <1000 W / m2
- Number of LEDs: 512 (32 x 16)
- Viewing angle: > = 160°
- Control mode: synchronous
- Control mode: 1/8 scanning speed
- Frequency repetition: > = 60 Hz
- White balance brightness: > = 1200 CD / m2
- Refresh rate: > = 300 Hz
- MTTF: > = 5000 h
- Service life: from 7500 h to 100000 h
- Pixel pitch: 6 mm
- Dimensions: 192 x 96 x 11 mm

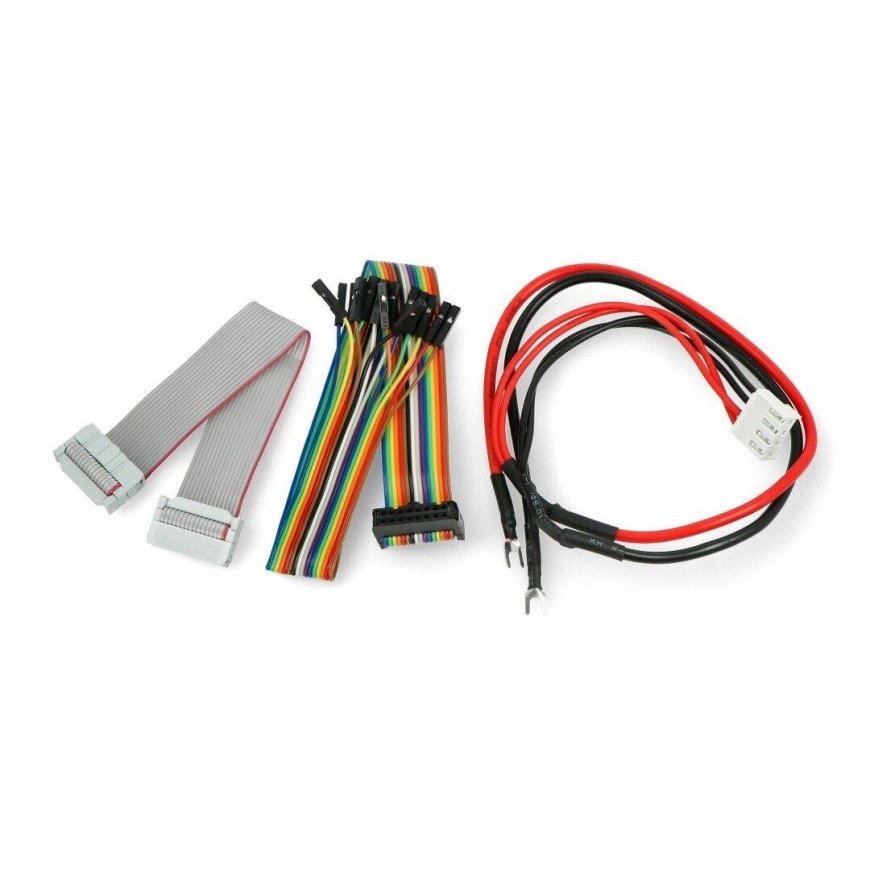

Included:
- XH2.54 to IDC cable x1
- IDC to IDC cable x1
- Power cable x1
