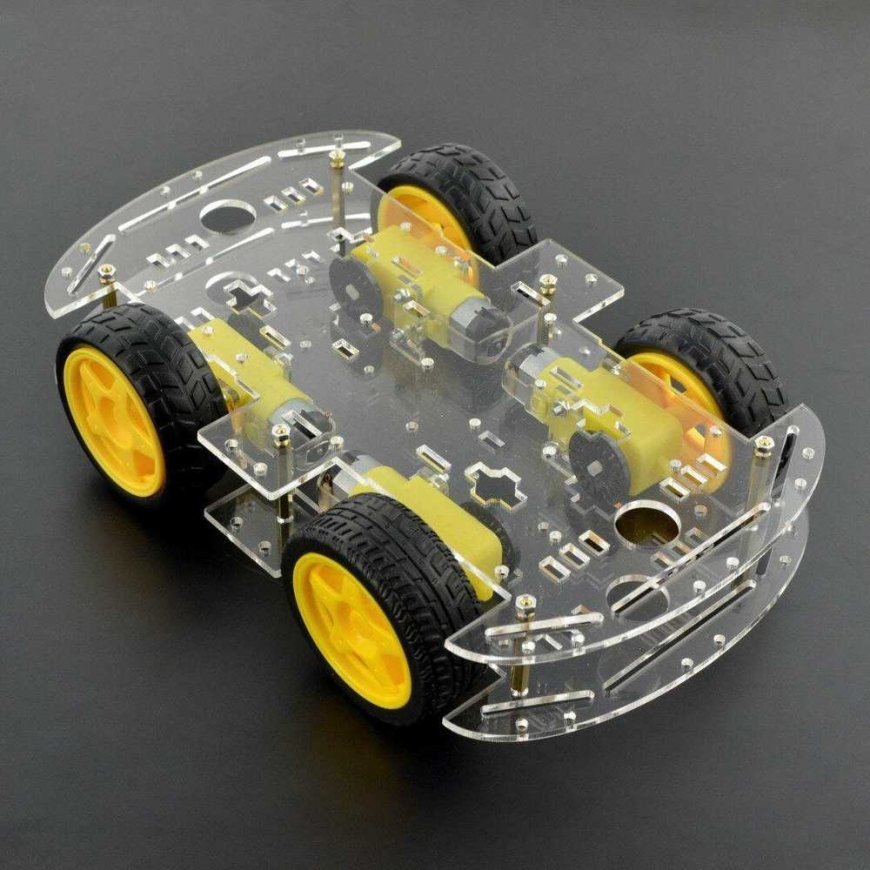

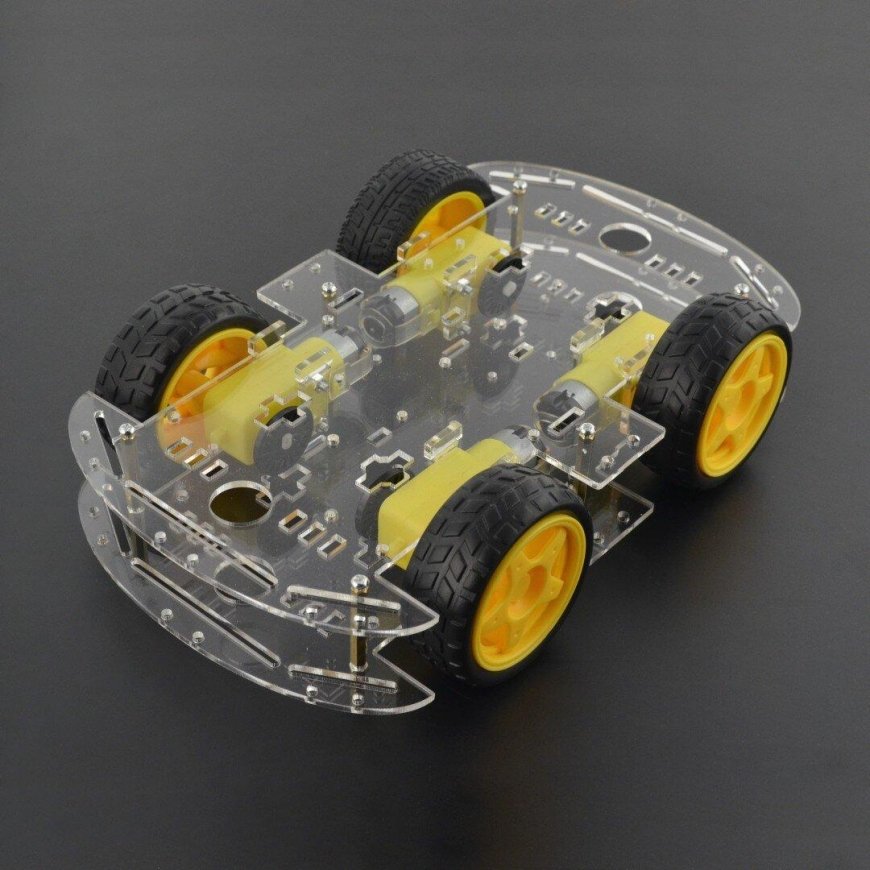

OEM Rectangular 4WD 4-wheel robot chassis with DC motor drive
25.13 €
3712304 AN-07289
5904422310127
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A clear, universal platform that allows you to build, for example, a line follower or a sumo robot. To control it, you can use any controller, including Arduino with a motor driver.
Specifications:
- Motor power supply voltage: 6 V max.
- Torque: 0.8 kg/cm (0.78 Nm)
- Motor no-load speed: 90 +/- 10 rpm
- Motor no-load current consumption: 190 mA (max. 250 mA)
- Motor current consumption when stationary: 1 A
- Wheels:
- Diameter: 65 mm
- Width: 30 mm
- Plastic rims with rubber tires
- Dimensions of the structure: 255 x 160 x 65 mm
- Two mounting platforms
- Four wheels with 65 mm diameter tires
- Four DC motors with gears
- Metal and plastic components (screws, nuts, etc.)
- A holder for four AA batteries (R6) may be included randomly in the set
