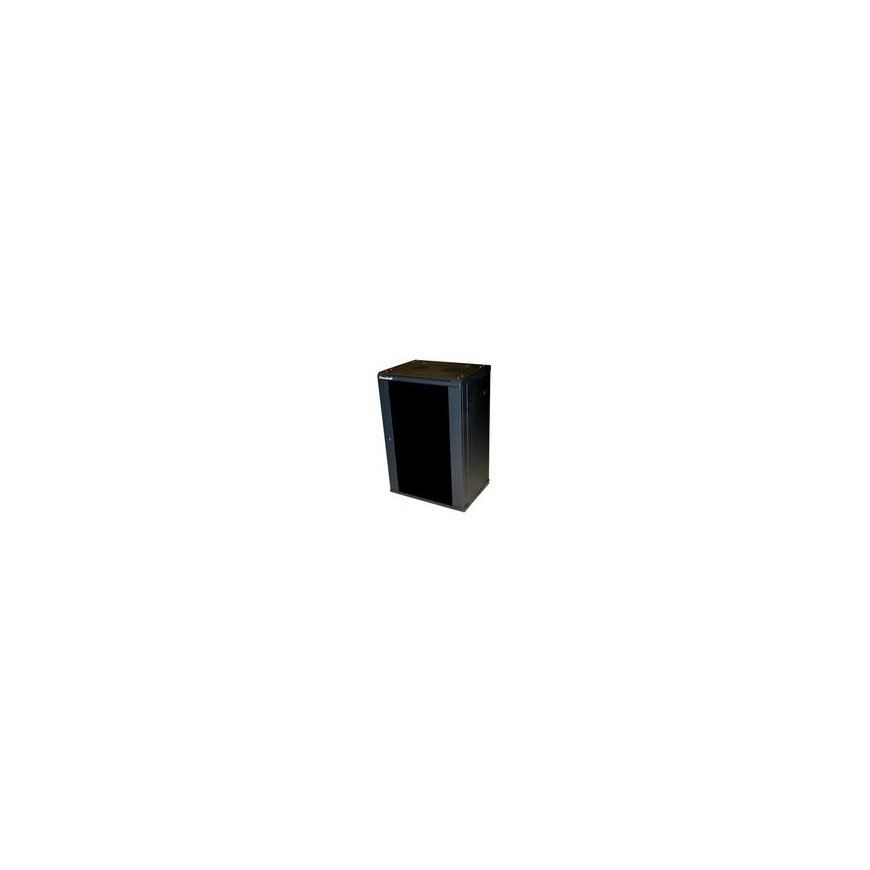

XtendLan 19" wall cabinet 9U 600x450, load capacity 60 kg, glass doors, welded, black
3712185 WS-9U-64-BLACK-P
8592457150466
Shipping 12-16 b.d.
All about the product
XtendLan 19" wall cabinet 9U
width 600mm, depth 450mm, load capacity 60kg, smoked glass doors, welded construction, black
Universal solid distribution panels designed for wall mounting. The cabinets are well made and have an elegant appearance. They are easy to attach due to the included patented mounting plate. They are made of rolled steel, bearing parts from 1.5 mm thick steel, others from 1.2 mm steel sheet. The construction allows for a static load of 60 kg. Comes with a mounting kit. Version: doors - safe tempered glass, changeable opening direction, lockable rear cover - full side cover - full, easily removable, can have a lockable top cover - perforated, with two fan positions
- the distribution panel part has four sliding vertical rails with perforations for mounting devices
- connecting material (cage nuts, washers, screws) is included with the cabinet
- the lower part of the distribution panel has a grounding point for connecting the grounding wire
- the upper and lower parts of the distribution panel have openings for cables and are covered with plugs
- complies with international standard IEC 60297-2
| Technical specifications: | |
| Dimensions: | 19" |
| Height: | 9U (501 mm) |
| Width: | 600 mm |
| Depth: | 450 mm |
| Material: | rolled steel |
| Thickness: | support part 1.5 mm, others 1.2 mm |
| Surface finish: | black, RAL9004 |
| Maximum load: | 60 kg |
