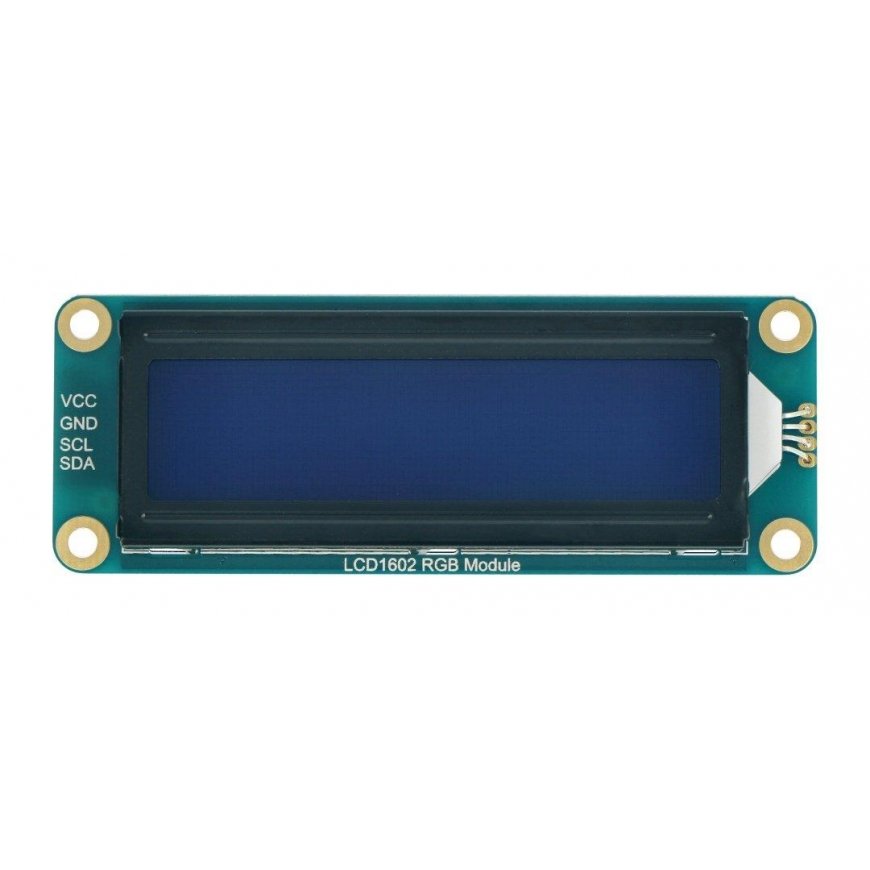

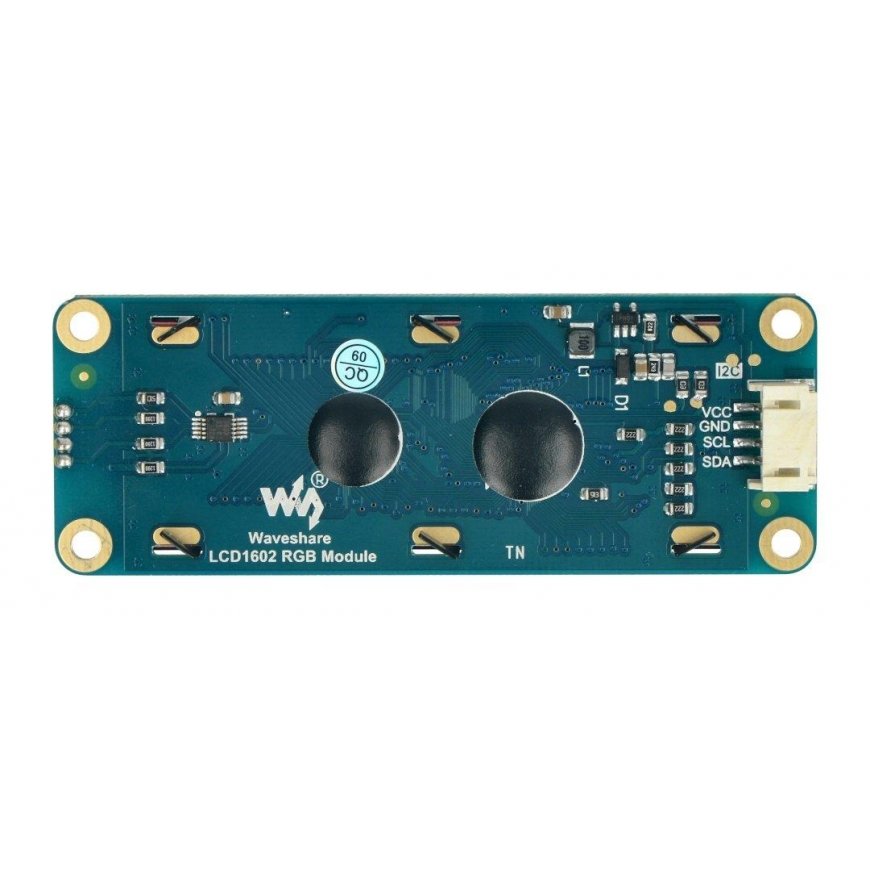

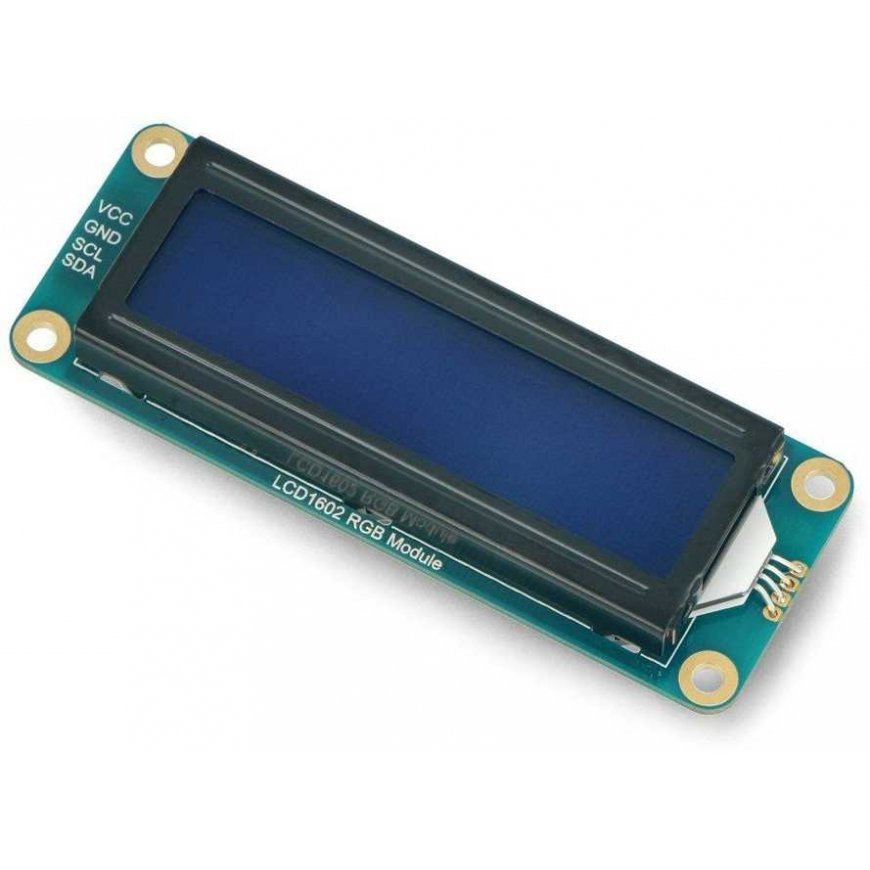

LCD1602 I2C screen 2x16 characters, color, RGB backlight, Waveshare 19537
29.00 €
3712064 AN-19361
5904422371913
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The LCD1602 display, produced by Waveshare, is a character digital screen. It features a built-in PCA9633 controller that allows customization of the displayed character colors. The user can choose from up to 16 million colors from the RGB palette. The display supports communication via the I2C bus. A special connection cable is included.
Main features:
- Can display 2x16 characters
- Adjustable RGB backlight color, with up to 16 million lighting colors available
- Module operating at 3.3 V / 5 V voltage
- Equipped with RGB controller PCA9633
- Type: character digital LCD
- Power supply voltage: 3.3 V / 5 V
- Interface: I2C bus
- Display resolution: 2x16 characters
- Touch screen: no
- Embedded chip:
- LCD controller: AiP31068
- RGB controller: PCA9633
- Backlight: selectable
- Backlight colors: RGB 16 million
- Display dimensions: 64.5 x 16 mm
- Module dimensions: 87 x 32 x 13 mm

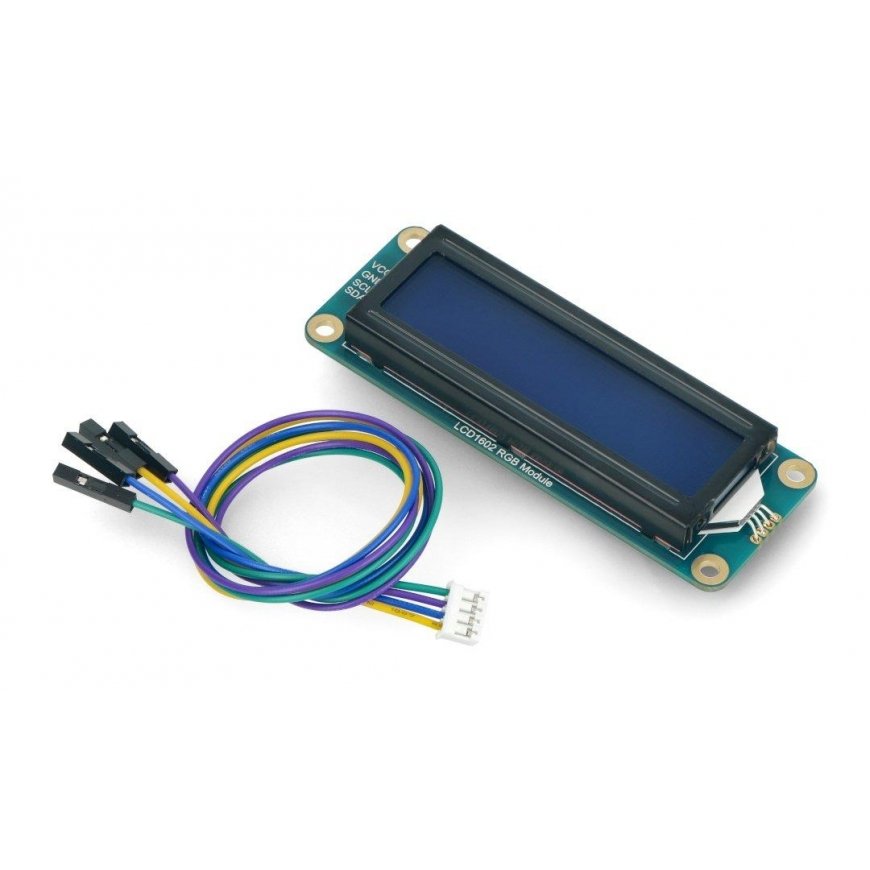

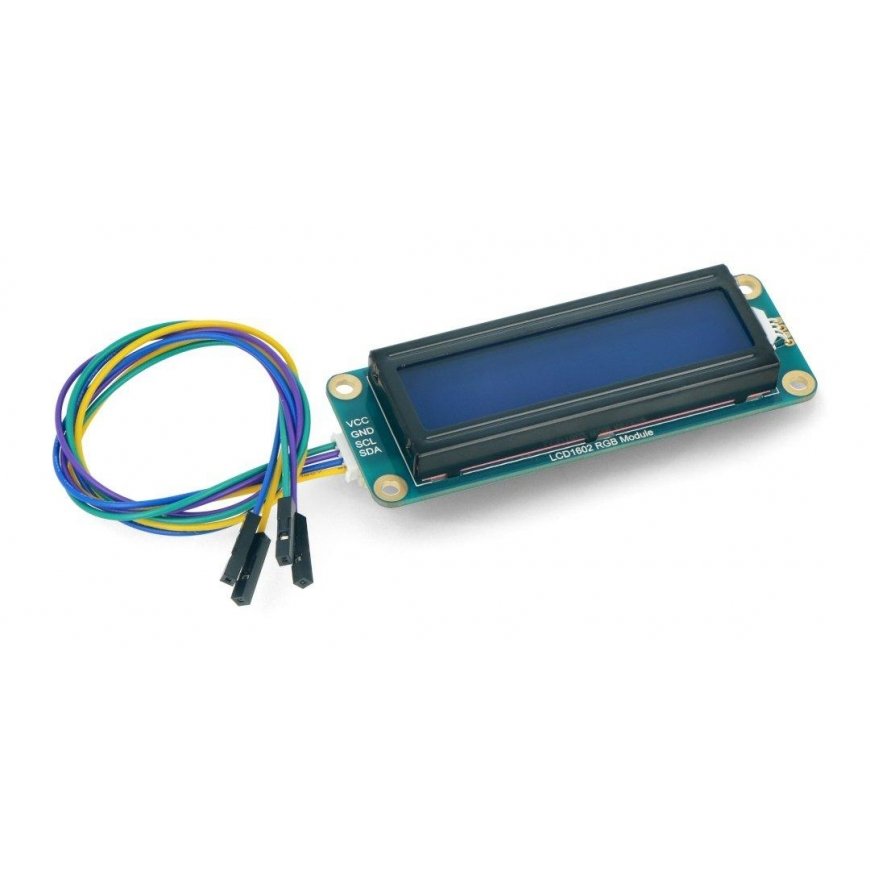

- LCD1602 I2C 2x16 character display
- 4-pin cable
