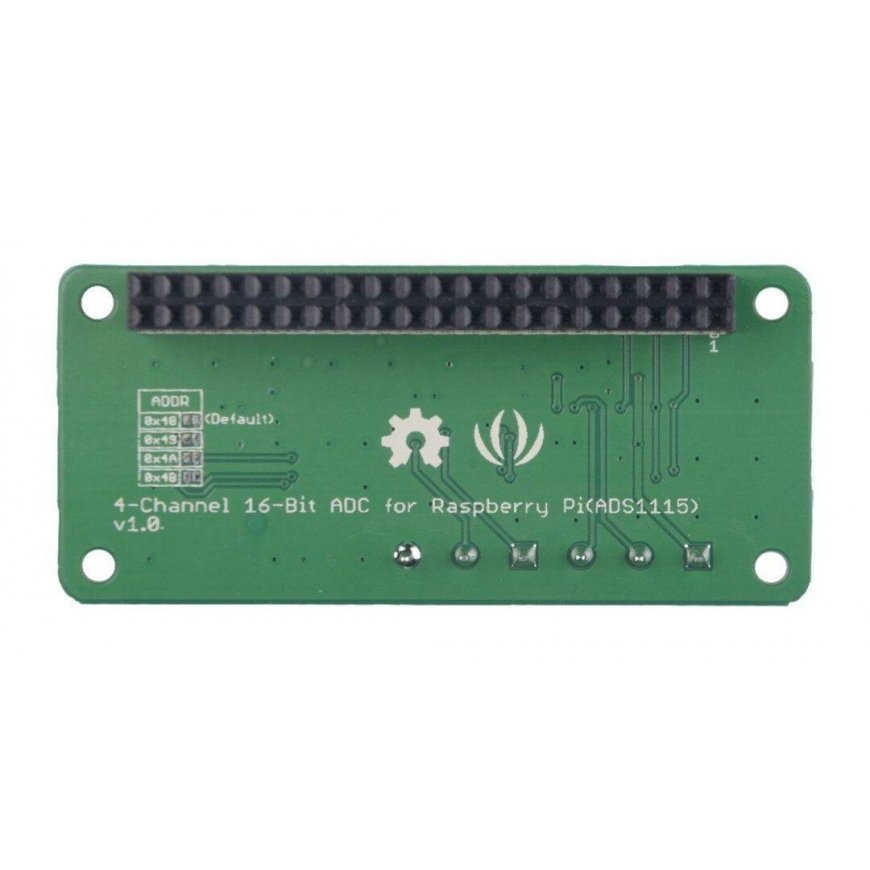

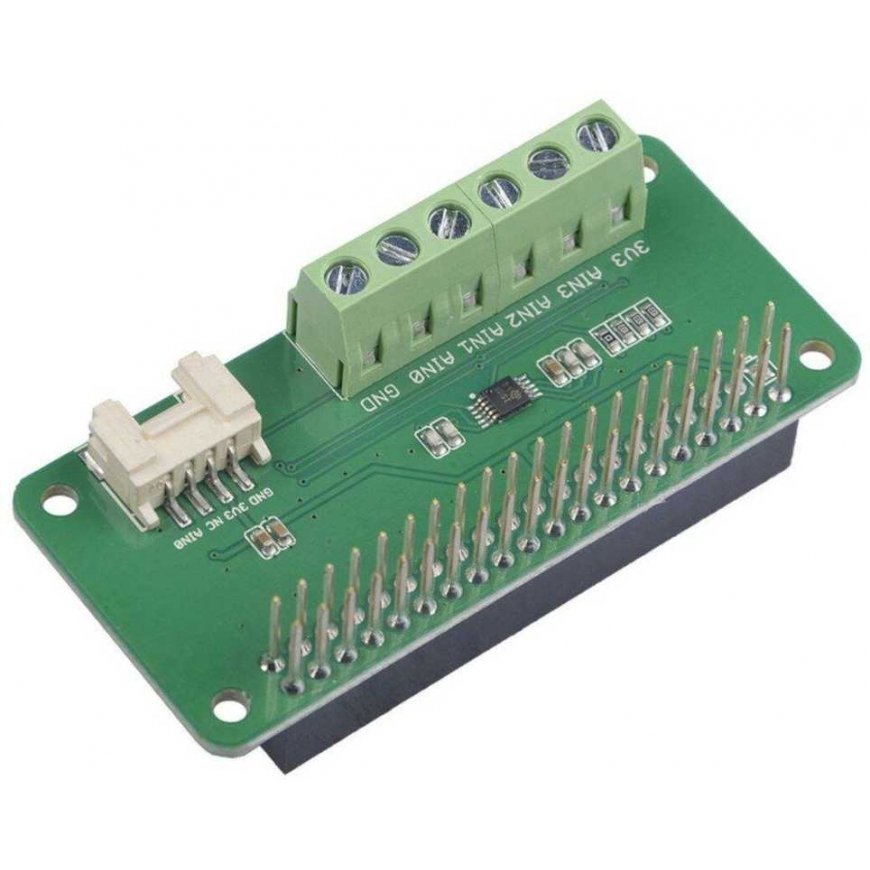

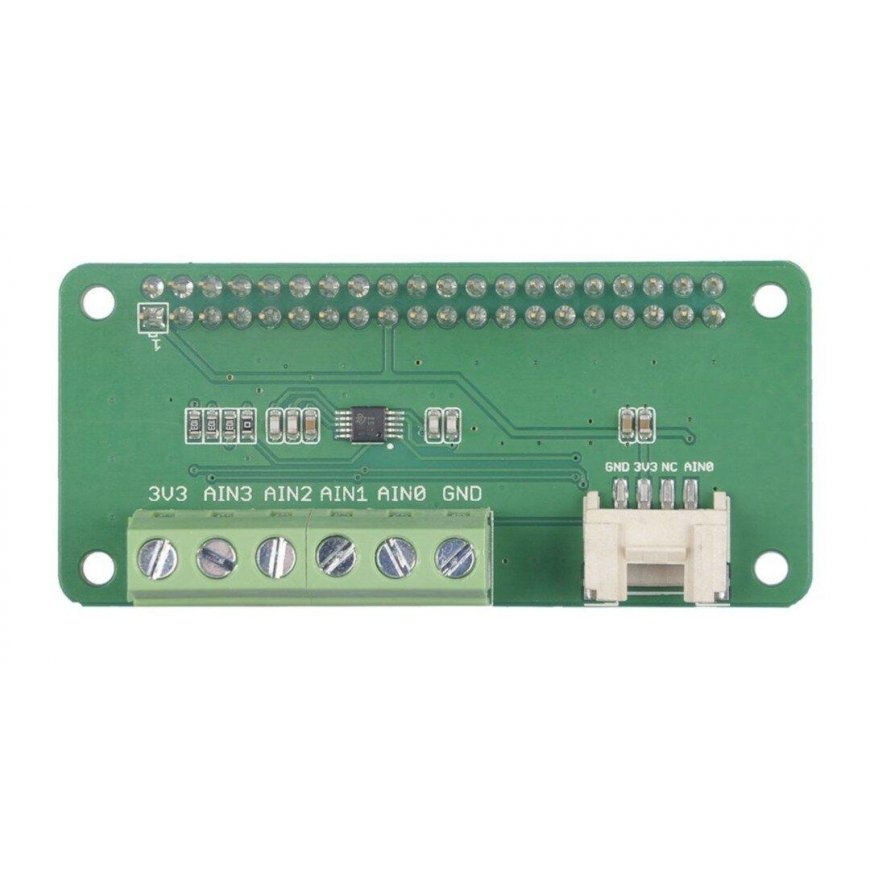

Seeed Studio Grove ADS1115, 4 channel 16 bit ADC for Raspberry Pi, Seeedstudio 103030279
3711528 AN-13814
5904422377427
Shipping 8-15 b.d.
All about the product
The Grove 4-channel 16-bit ADS1115 ADC is an analog-to-digital converter (ADC) designed in the form of an add-on for Raspberry Pi GPIO connections. It is a 4-channel ADC based on the ADS1115 from Texas Instruments, which is an accurate 16-bit system with low power consumption. The system operates at a voltage range of 3.3 V to 5 V and interacts with Raspberry Pi using GPIO connections. The ADC works with Raspberry A+ / B+ / 2B / 3B / 3B+ / Zero / Zero W versions.
Key Features:
- Low current consumption:
- continuous mode: only 150 µA
- Single-Shot Mode: automatic shutdown
- Wide power supply voltage range
- Input multiplexer (MUX) providing two differential inputs or four single-ended inputs
- Programmable comparator
- Internal reference voltage with low drift
- Internal oscillator
- Internal PGA
- Programmable data rate: from 8 SPS to 860 SPS
- Serial interface compatible with I2C
Included:
- 4-channel 16-bit ADC
- 4x dual-sided screws
- 8x screws
