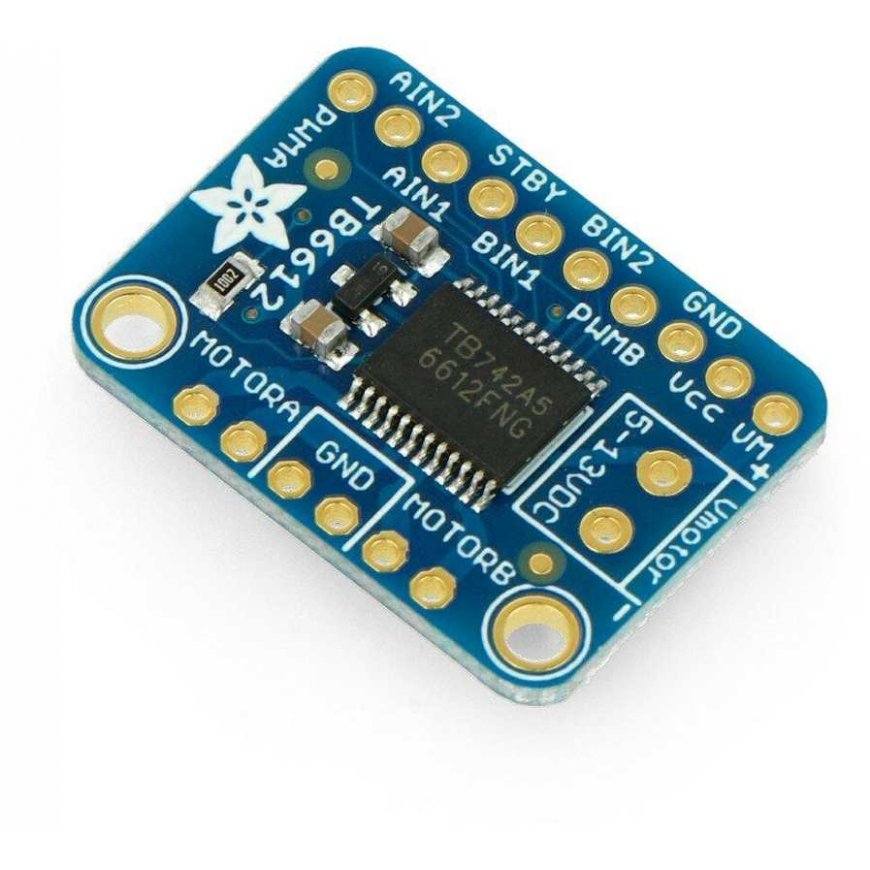

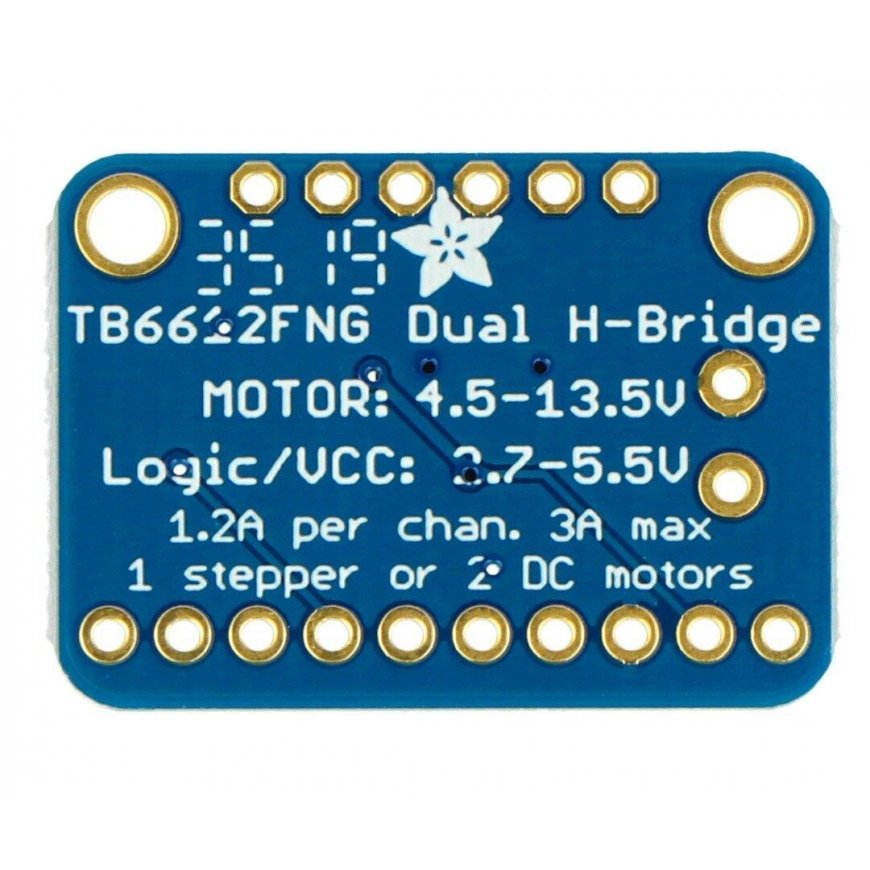

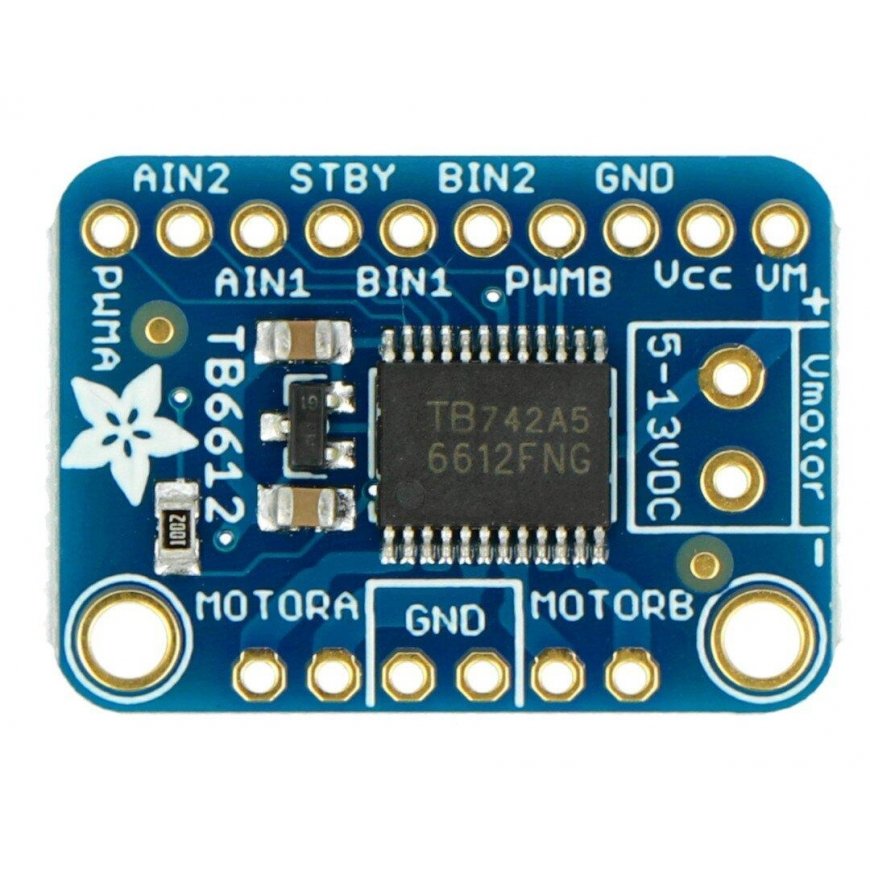

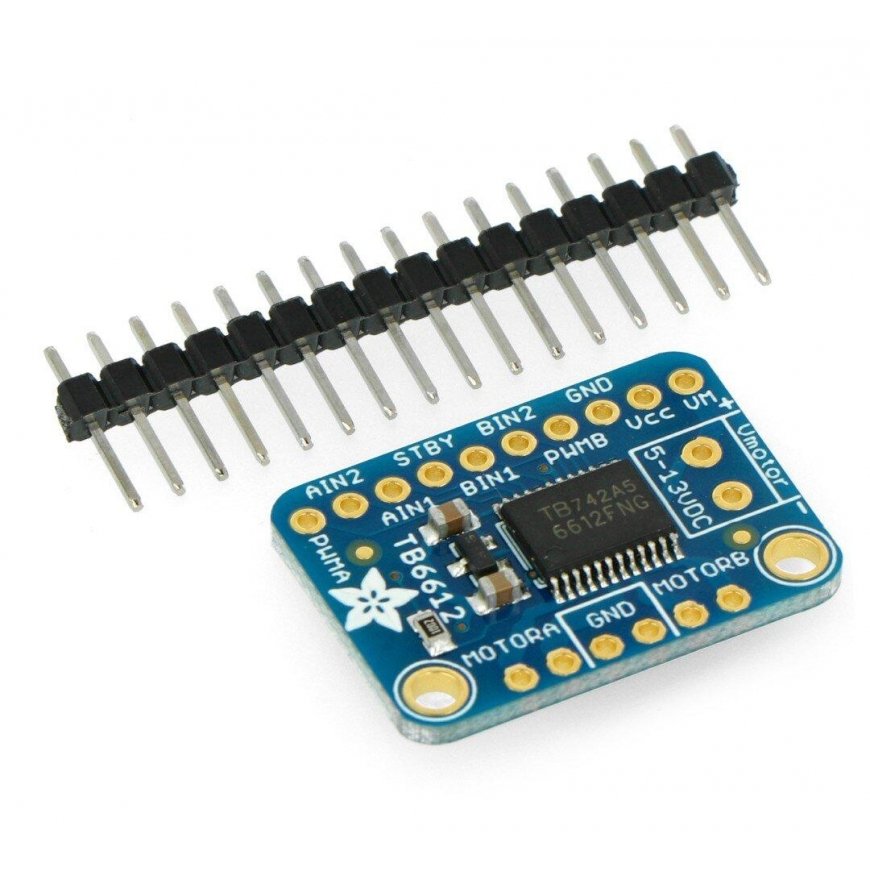

TB6612, dual channel 13.5V / 1.2A motor controller with connectors, Adafruit 2448
22.88 €
3711491 AN-15916
5904422324995
Shipping 8-15 b.d.
You are interested in this product?
All about the product
A dual-channel motor controller based on the TB6612FNG layout is required for the proper operation of passive components. The motor power ranges from 4.5 V to 13.5 V, and the logic voltage ranges from 2.7 V to 5 V. The module allows controlling two DC motors, stepper motors, or controlling two solenoids using the module with a microcontroller, such as Arduino.
Specifications:
- Power:
- Logic voltage: from 2.7 V to 5.5 V
- Motors: from 4.5 V to 13.5 V
- Controller: TB6612
- Current per channel: 1.2 A
- Single channel peak current: 3 A
- Supported motors:
- Two DC motors
- One stepper motor
- Dimensions: 27 x 19 x 3 mm
- Weight: 1.8 g
