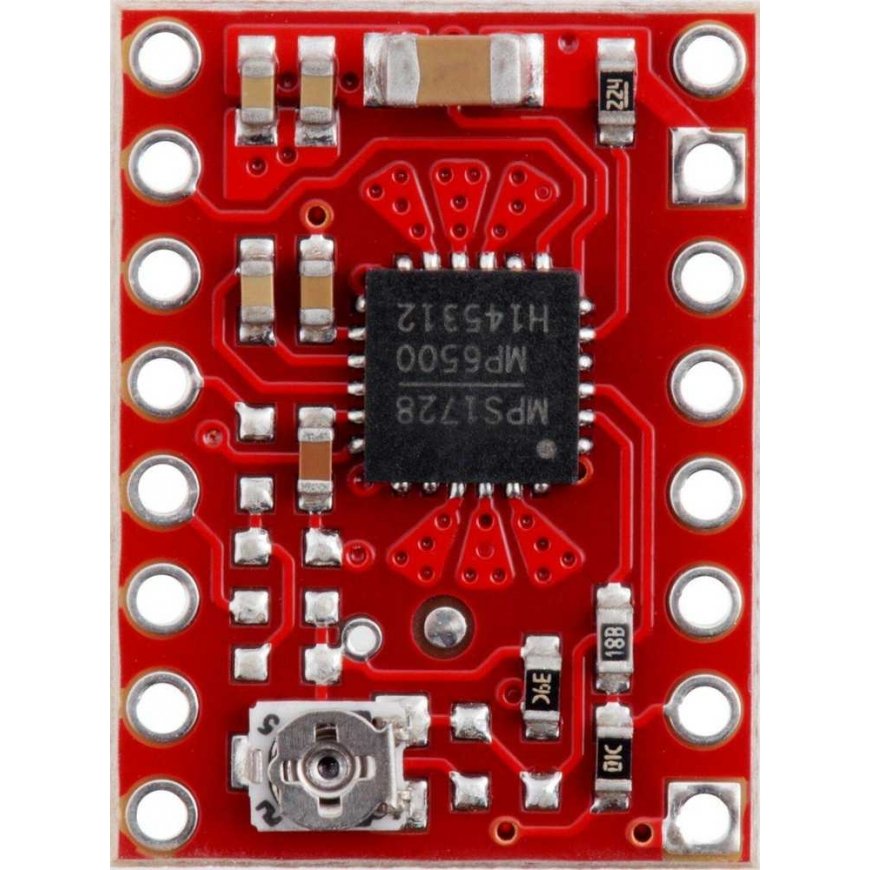

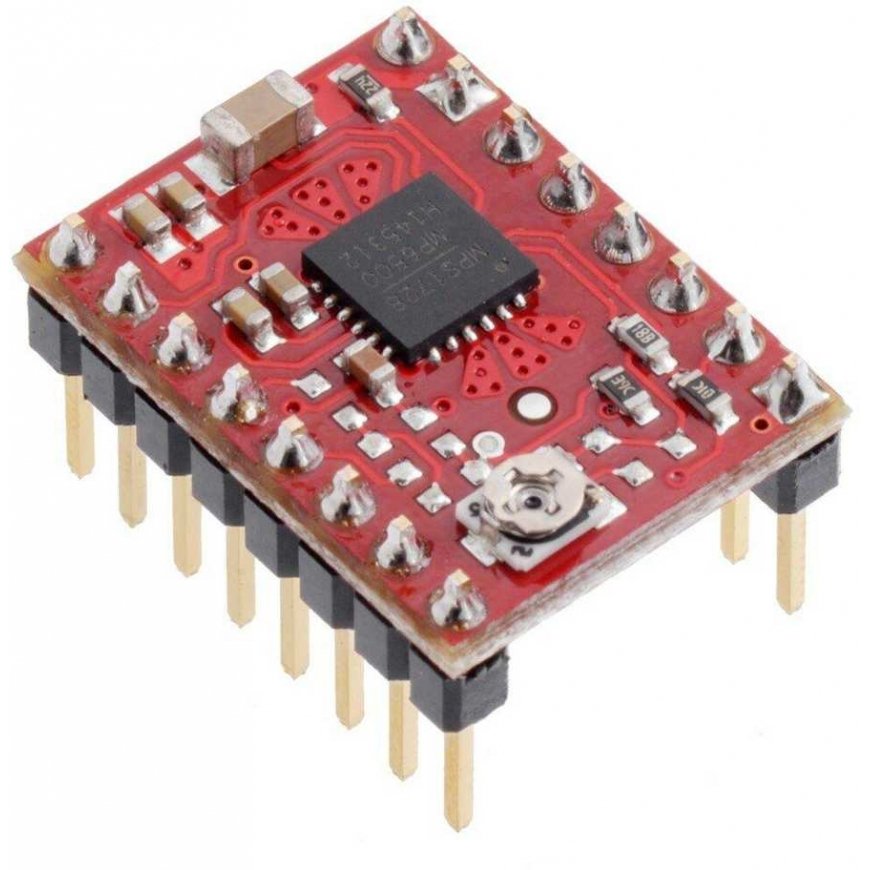

MP6500 stepper motor driver, digital current control (soldered pins), Pololu 2967
19.91 €
3708835 AN-12844
5904422320102
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The stepper motor controller is based on the MP6500 system. Powered from 4.5 V to 35 V, the maximum current consumption is 2.5 A per coil. Maximum resolution: 1/8 step. The module allows up to 1.8 A current flow without a heatsink. The current is controlled by a potentiometer. The module is available with soldered gold pin connectors.
Specifications:
- Motor supply voltage: from 4.5 V to 35 V
- Current: max. 1.8 A per coil (cooling up to 2.5 A)
- Logic part supply voltage: from 3.3 V to 5 V
- Simple control interface
- Operates in 4 different modes: full step, 1/2, 1/4, and 1/8

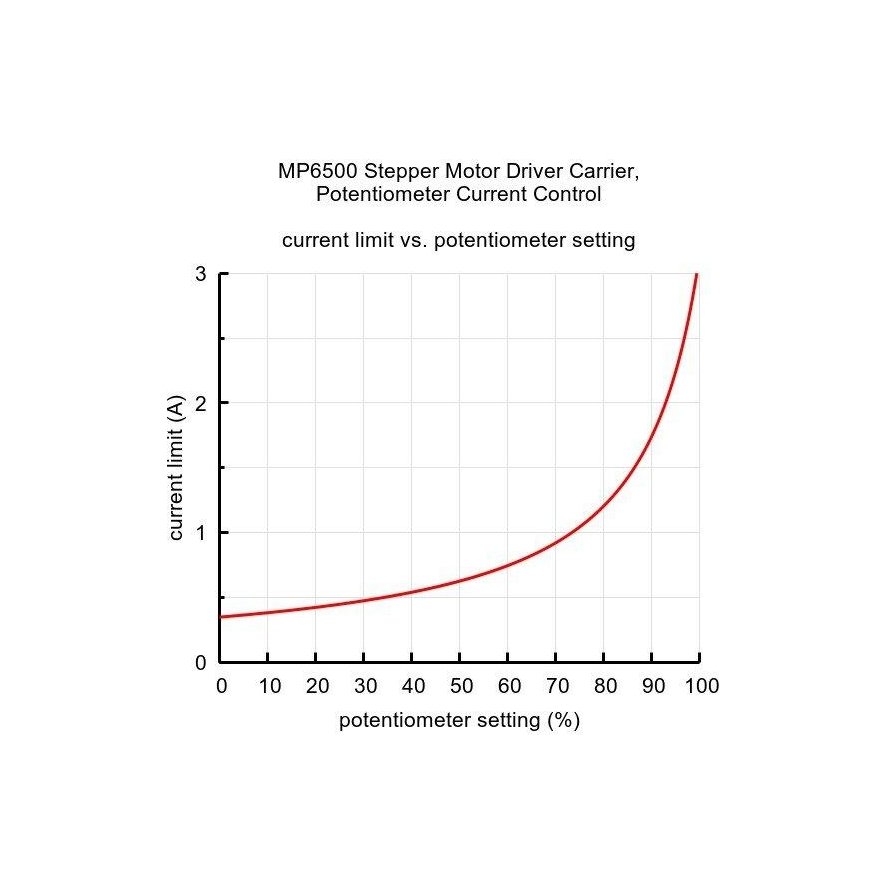

- Ability to adjust the motor current using a potentiometer
- Over-temperature protection
- Module dimensions: 20 x 15 mm
