Adafruit MPRLS - pressure sensor with connector tip 0-25 PSI I2C 3-5V
3708391 AN-12999
5904422300845
Shipping 8-15 b.d.
All about the product

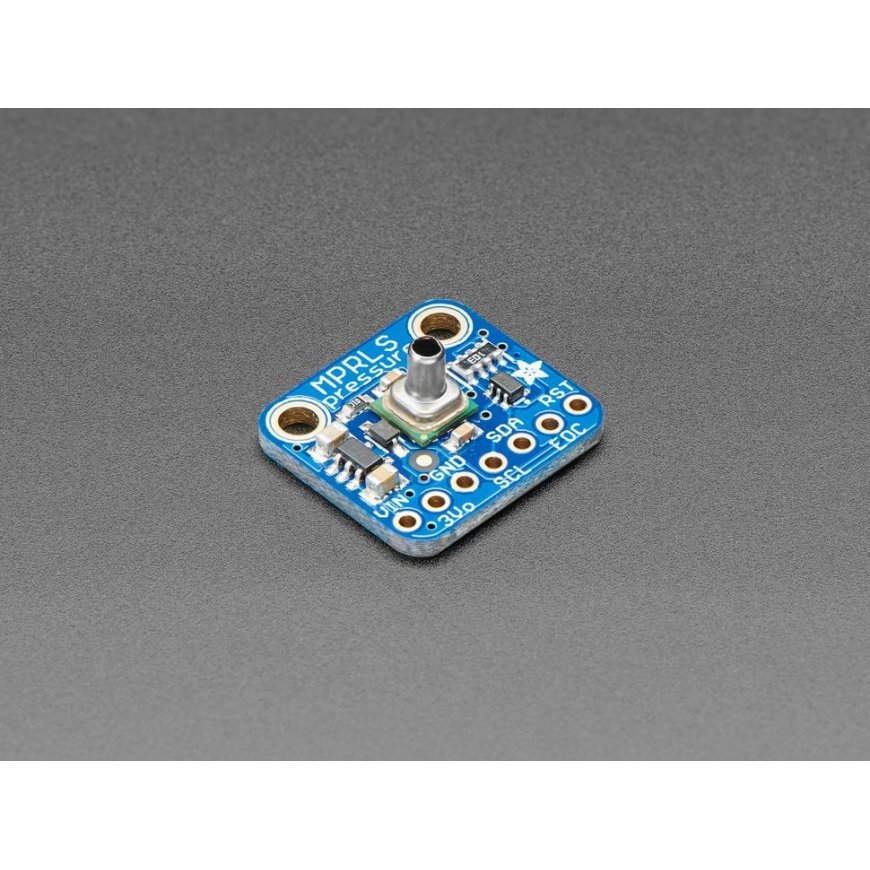

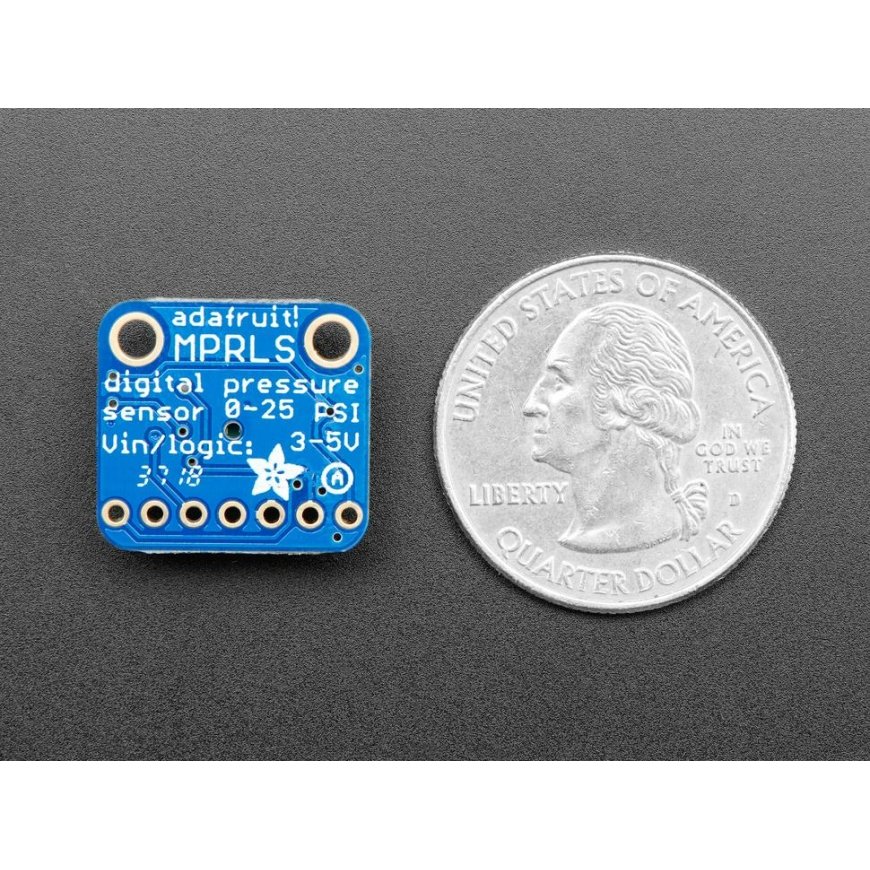

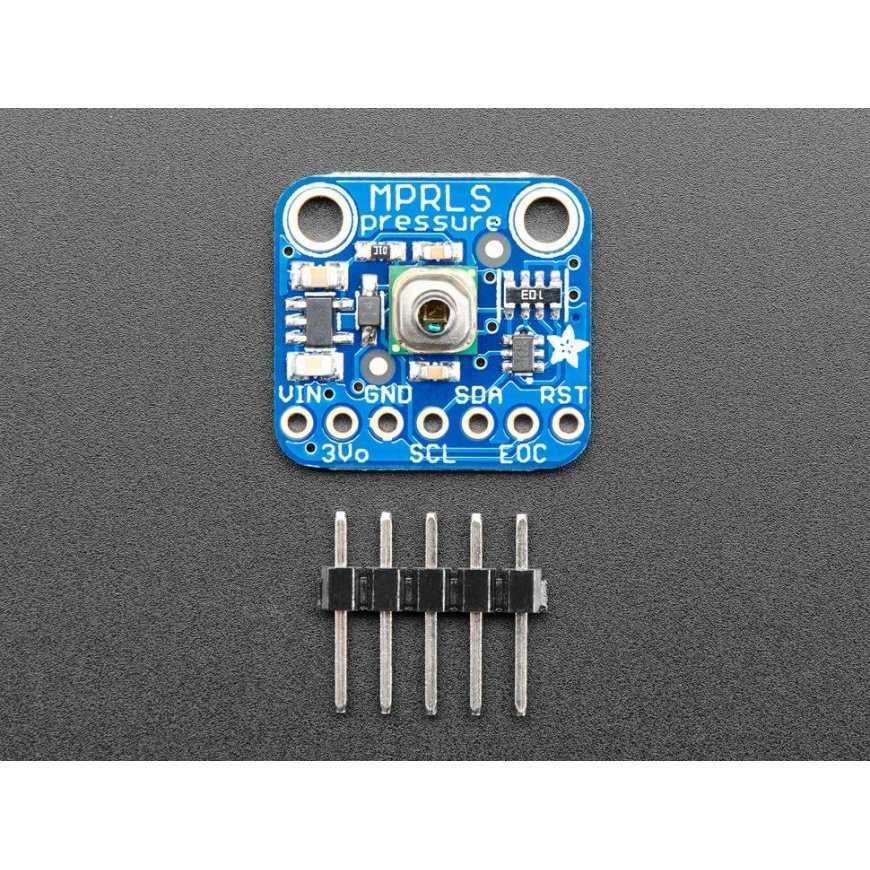

Adafruit company MPRLS pressure sensor with a connection tip. Inside we find a pressure sensor covered with silicone and calibrated and balanced 24 bit ADC. Absolute pressure can be measured 0-25 PSI range. The tip is made of stainless steel and measures 3.7mm x 2.5mm. The sensor is mounted on a PCB, along with a 3.3V regulator and level controller. This allows this sensor to be used with 3.3V or 5V microcontrollers.
Specifications:
Dimensions: 17.8mm x 16.7mm x 7.5mm / 0.7" x 0.7" x 0.3"
Weight: 1.1 g
Operating voltage: 3.3V - 5V
Pressure measurement range : 0-25 PSI
Interface: I2C
Additional information:
