E-paper E-Ink, 2.9" 296x128px, SPI, black and white, designed for Raspberry Pi Pico, Waveshare 19408
31.24 €
3707352 AN-18992
5904422371814
Shipping 11-18 b.d.
You are interested in this product?
All about the product

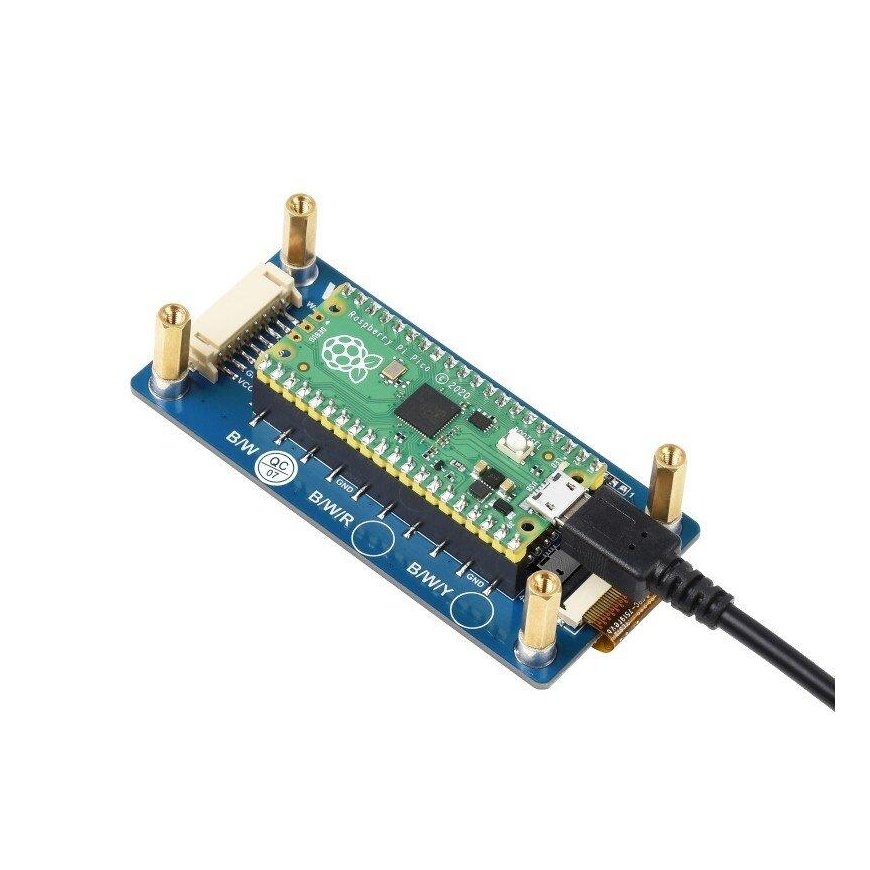

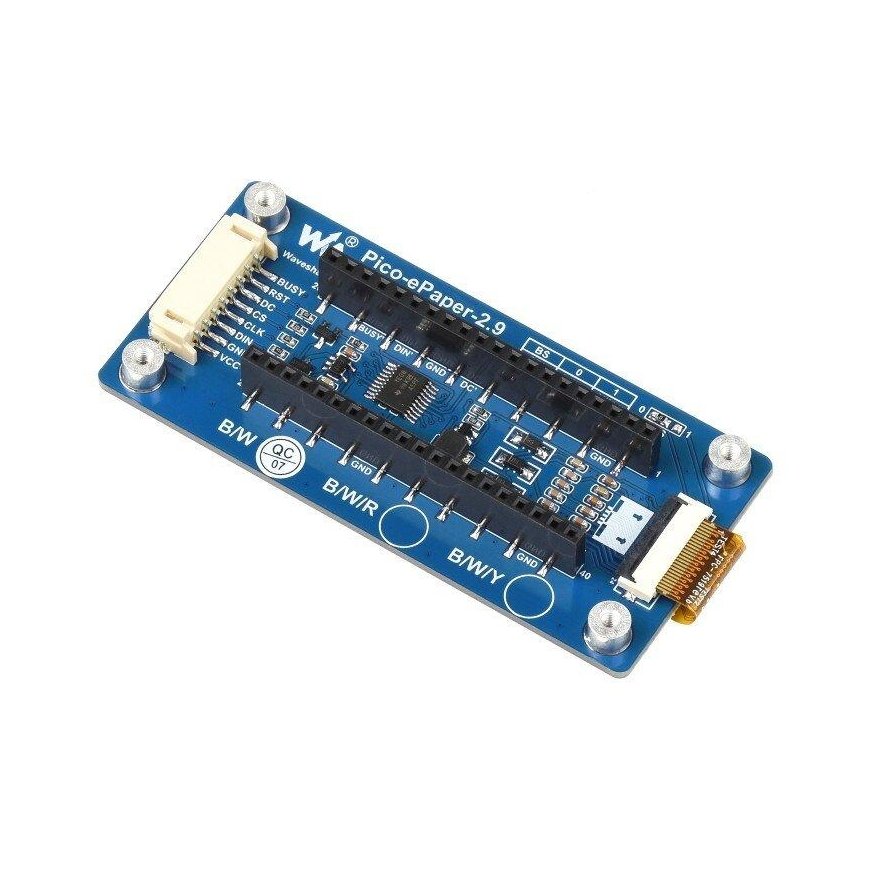

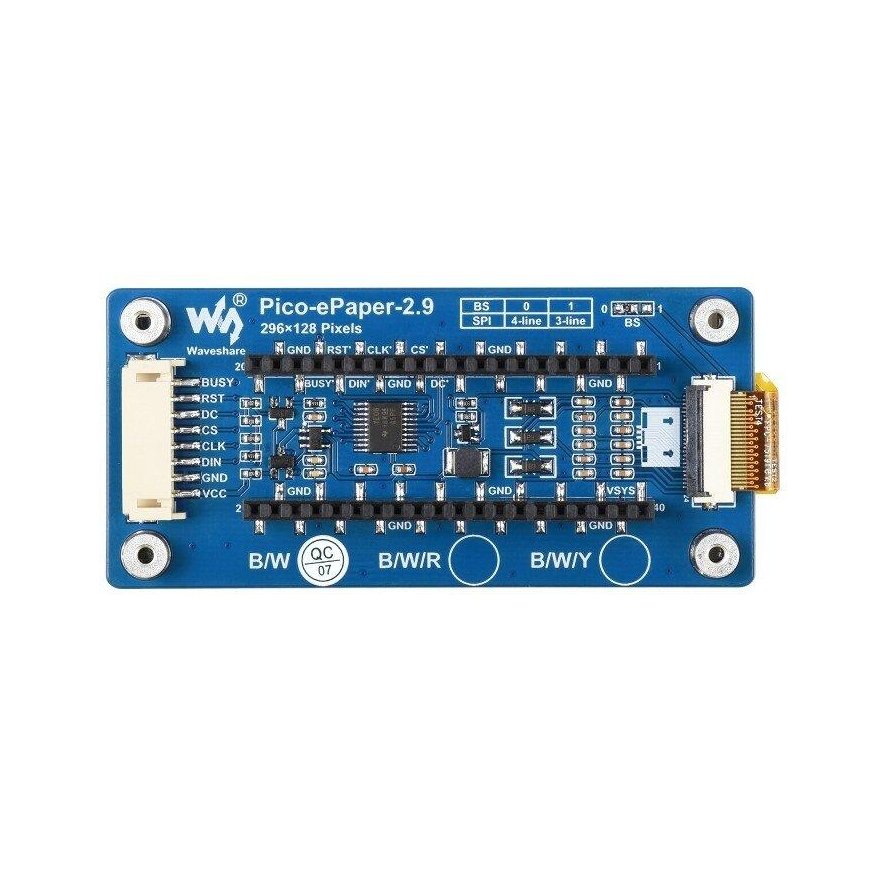

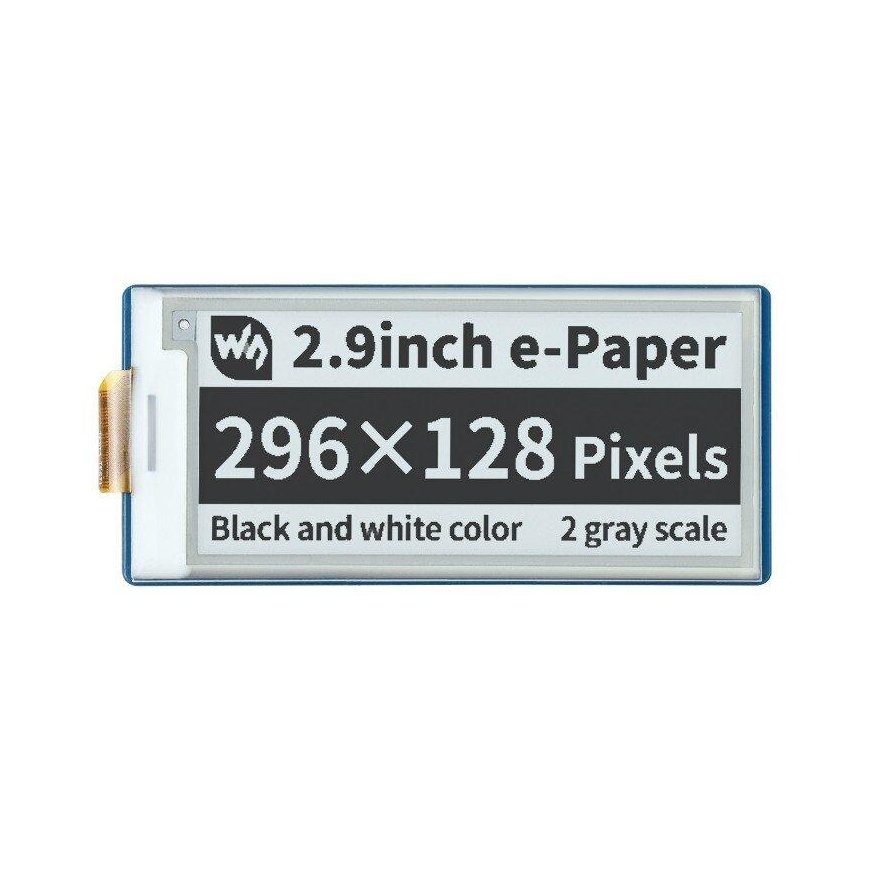

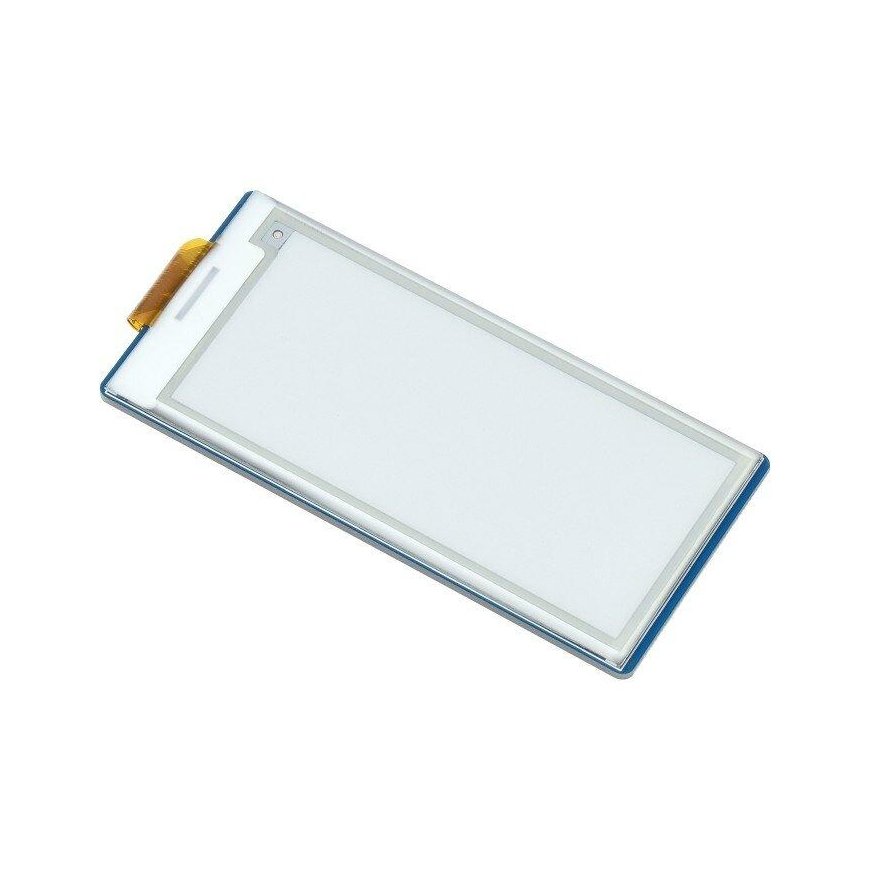

Waveshare Raspberry Pi Pico expansion - a display made using e-paper technology. The display diagonal is 2.9", resolution is 296x128px, and the pixel size is 0.138 x 0.138. The image is presented in two colors: black and white, with a grayscale of 2. The module features low power consumption and fast refresh time. It uses the SPI bus for interaction with the Raspberry Pi Pico.
Main features:
- E-paper technology used in e-readers
- The last image is displayed even when power is disconnected
- Low power consumption
- SPI interface
- Programmed using C/C++ and MicroPython
- The image is displayed in two colors: black and white
- Compatible with Raspberry Pi Pico
- Display type: e-paper
- Operating voltage: 3.3 V / 5 V
- Display diagonal: 2.9"
- Resolution: 296×128px
- Pixel size: 0.138 × 0.138
- Interface: 3-wire SPI, 4-wire SPI
- Displayed colors: black and white
- Grayscale: 2
- Partial refresh time: 0.3s
- Full refresh time: 2s
- Refresh power: 26.4 mW
- Standby current: <0.01 µA (almost none)
- Viewing angle: > 170°
- Dimensions: 82 x 38 mm
