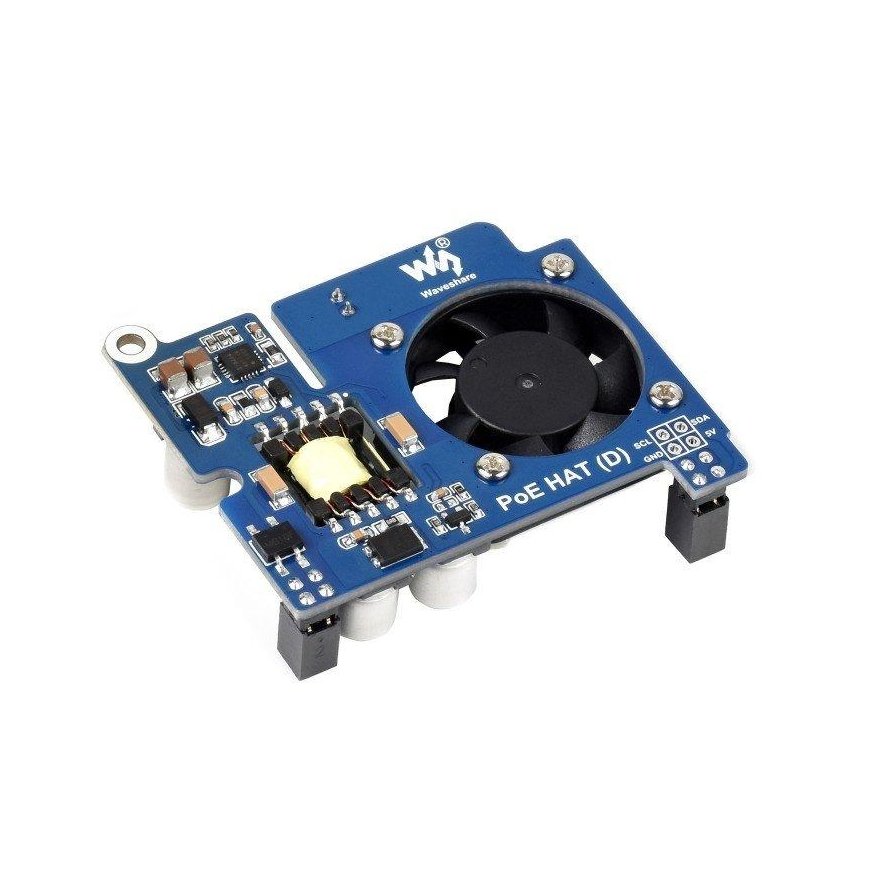

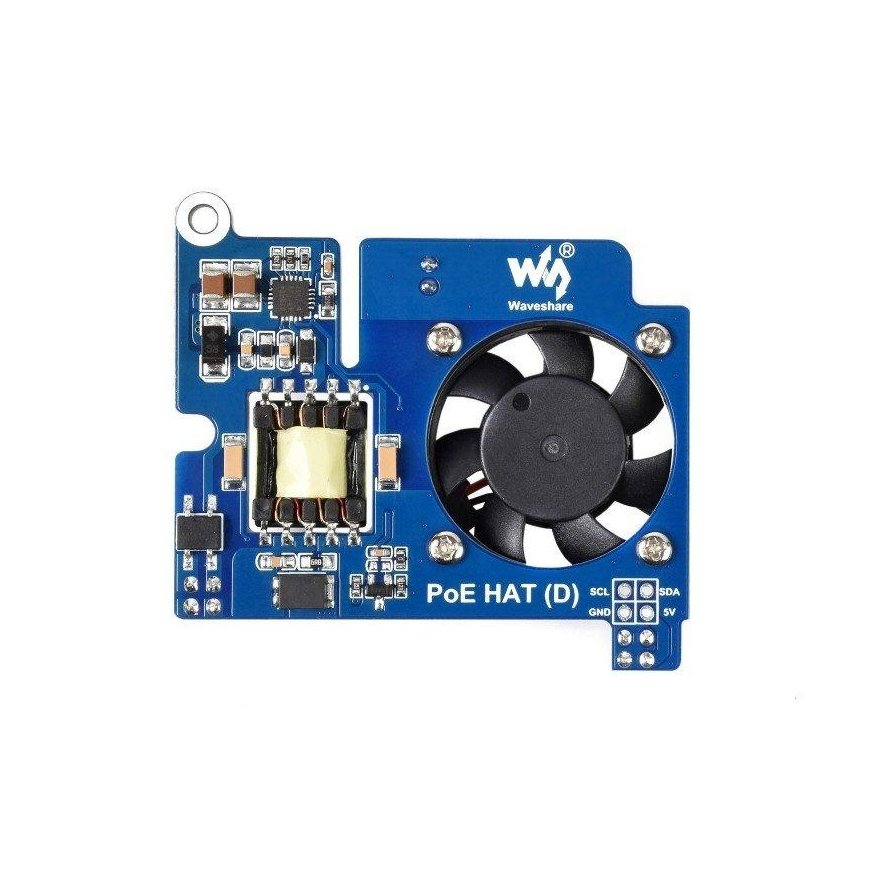

Power over Ethernet HAT (D), PoE and 802.3af network power extension, Raspberry Pi 3B+/4B, Waveshare 19532
3707267 AN-19593
5904422364632
Shipping 11-18 b.d.
All about the product

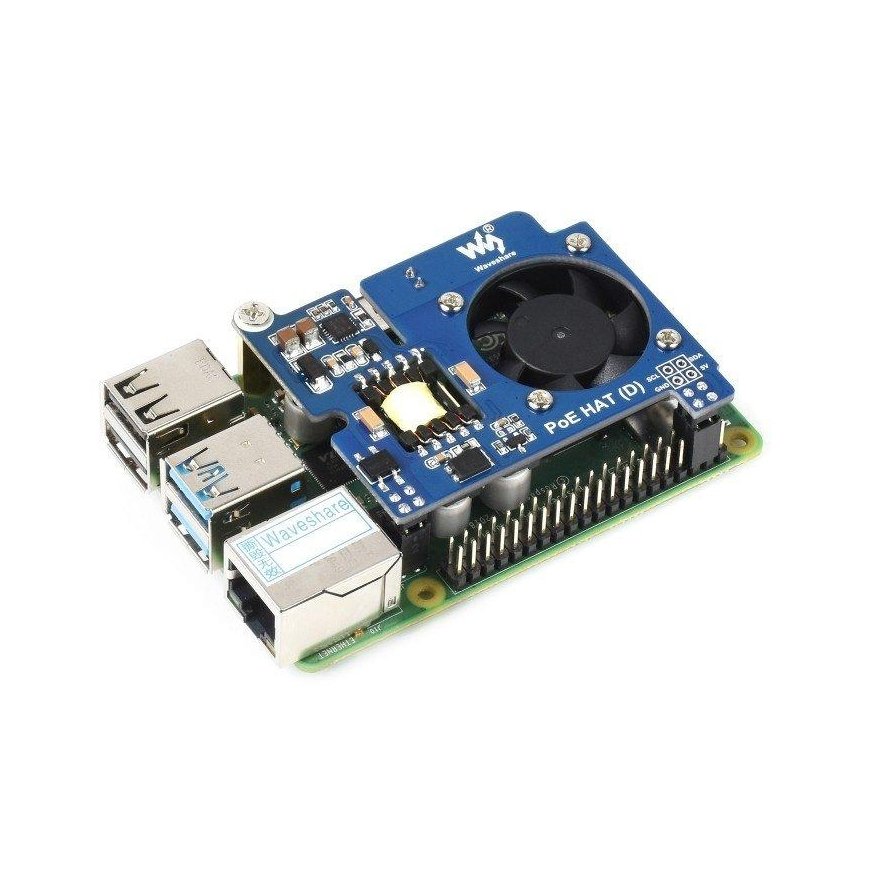

Power over Ethernet HAT (D) is an accessory module designed for Raspberry Pi 3B+ and 4B mini-computer versions. Its small size and specially designed structure allow it to be used with official Raspberry Pi cases. Power over Ethernet HAT provides a 802.3af network connection and powers the Raspberry Pi via the Ethernet connection simultaneously. The PoE input voltage ranges from 37 V to 57 V. The module has a powerful 5 V / 0.11 A fan. To operate the Power over Ethernet HAT properly, a PoE (Power over Ethernet) router/switch is required.
Key features:
- An accessory with a connector compatible with Raspberry Pi GPIO pins
- PoE (Power Over Ethernet) power accessory complies with the 802.3af standard

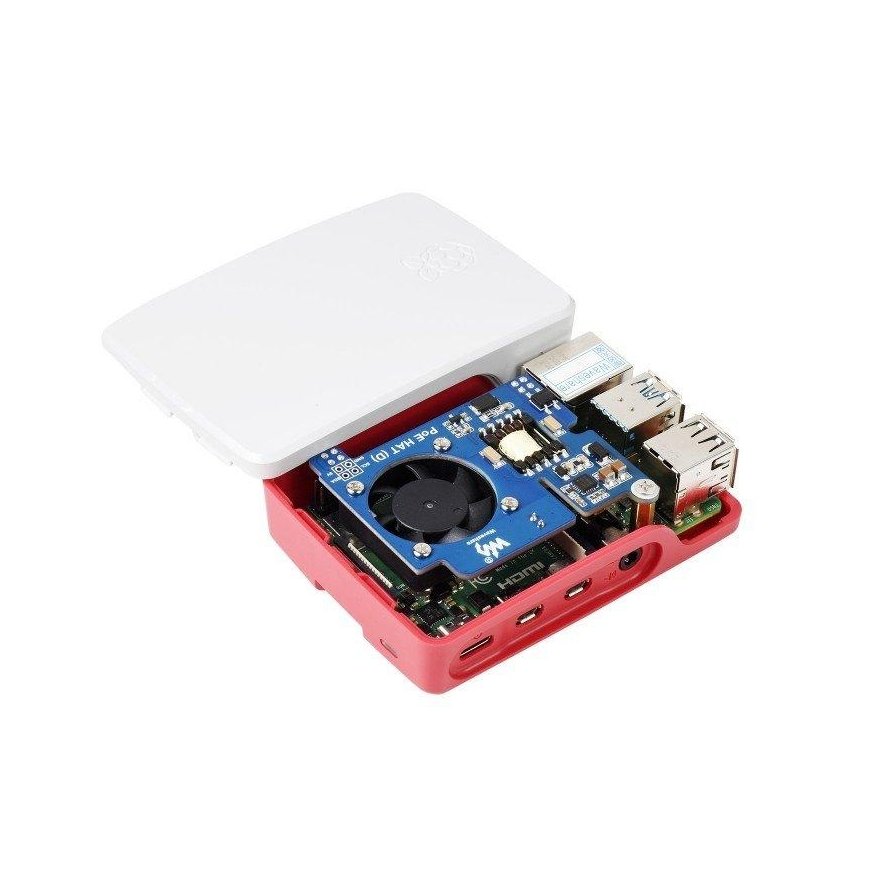

- Compatible with the official Raspberry Pi 4B and the official Raspberry Pi 3B+ / 3B / 2B case
- Fully isolated switch mode power supply (SMPS)

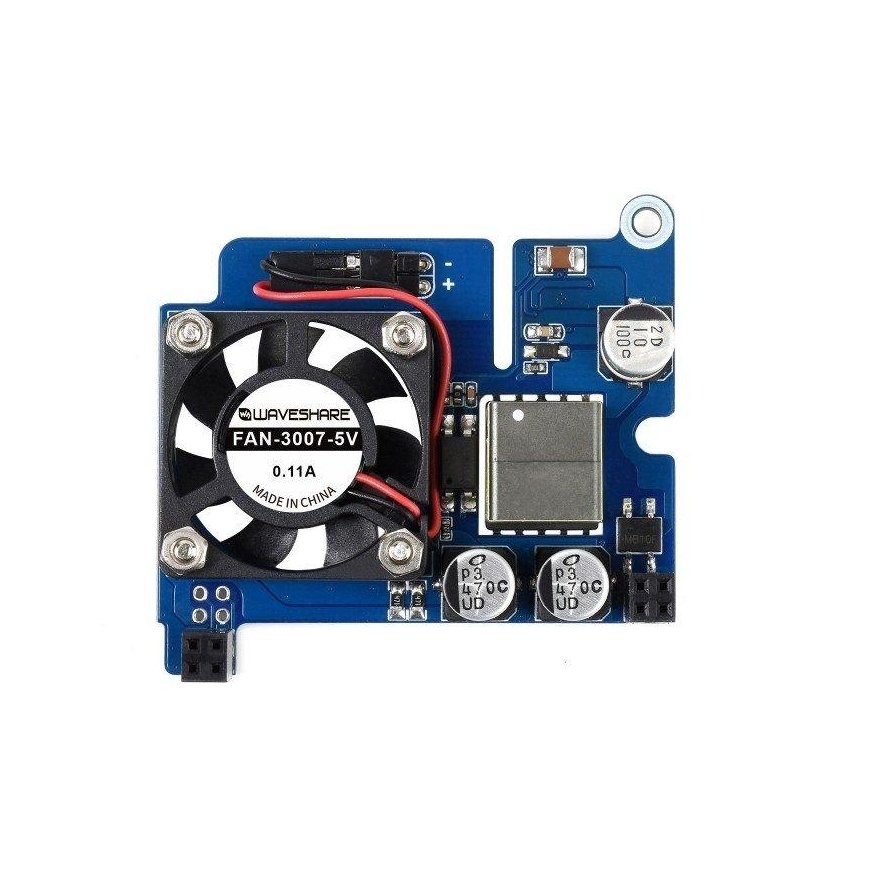

- Built-in cooling fan
- Type: power module
- Built-in chip: SI3404-A-GM
- Compatible with Raspberry Pi version 3B+ / 4B
- PoE power source: from 37 V to 57 V DC
- PoE power: 5 V / 2.5 A
- Network standard: 802.3af PoE
- Module dimensions: 56.5 mm x 65 mm
- Power over Ethernet HAT (D) - PoE and 802.3af network accessory
- Mounting elements:
- spacer - x1
- screw - x1
