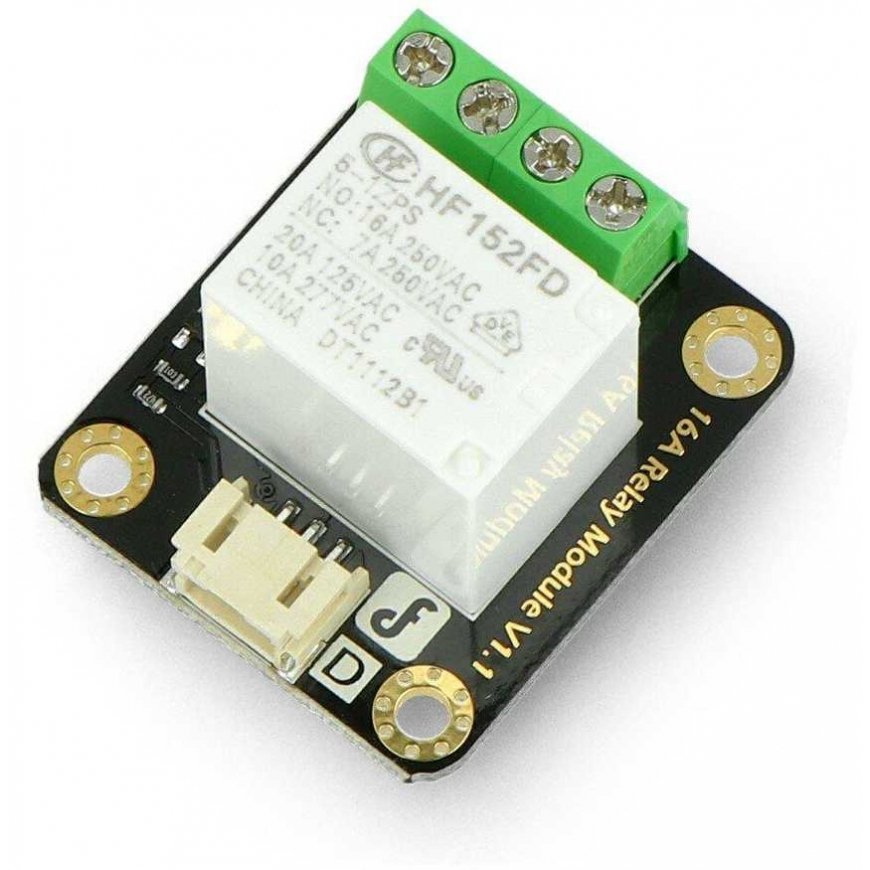

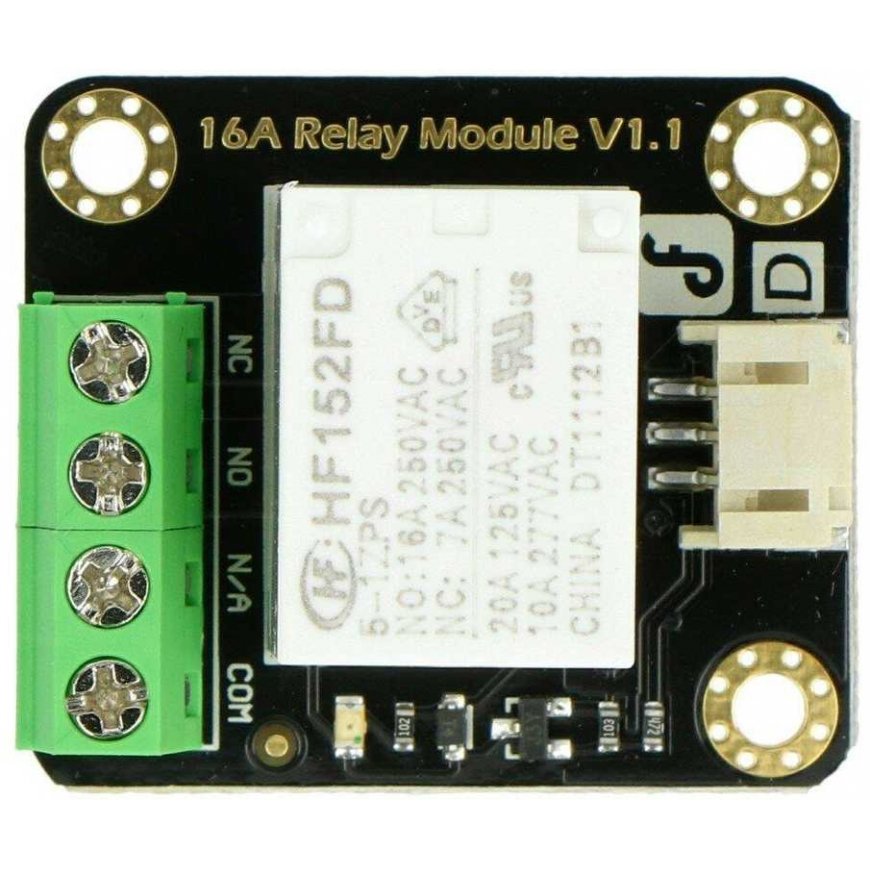

DFRobot Gravity, 1 channel relay, 277 VAC / 16 A contacts, 5 V coil
23.72 €
3705193 AN-11262
5904422376697
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Module with relay, allowing control of drives using up to 16 A current through microcontroller ports or any software package, such as Arduino. The package includes a cable designed for the DFRobot IO expansion module.
Specifications:
- Control voltage: 5 V DC
- Signal type: digital
- Maximum contact voltage: 277 V AC / 16 A / 24 V DC
- Maximum contact current: 16 A
- Delay time: 10ms
- Dimensions: 37 x 29 x 22 mm
Included:

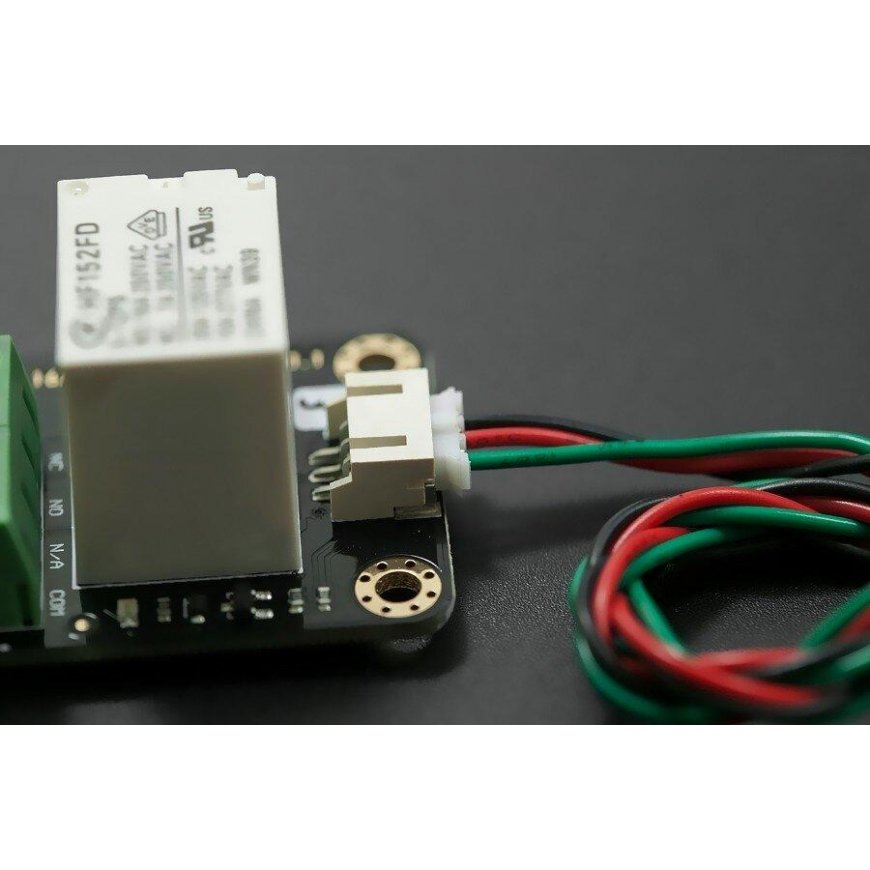

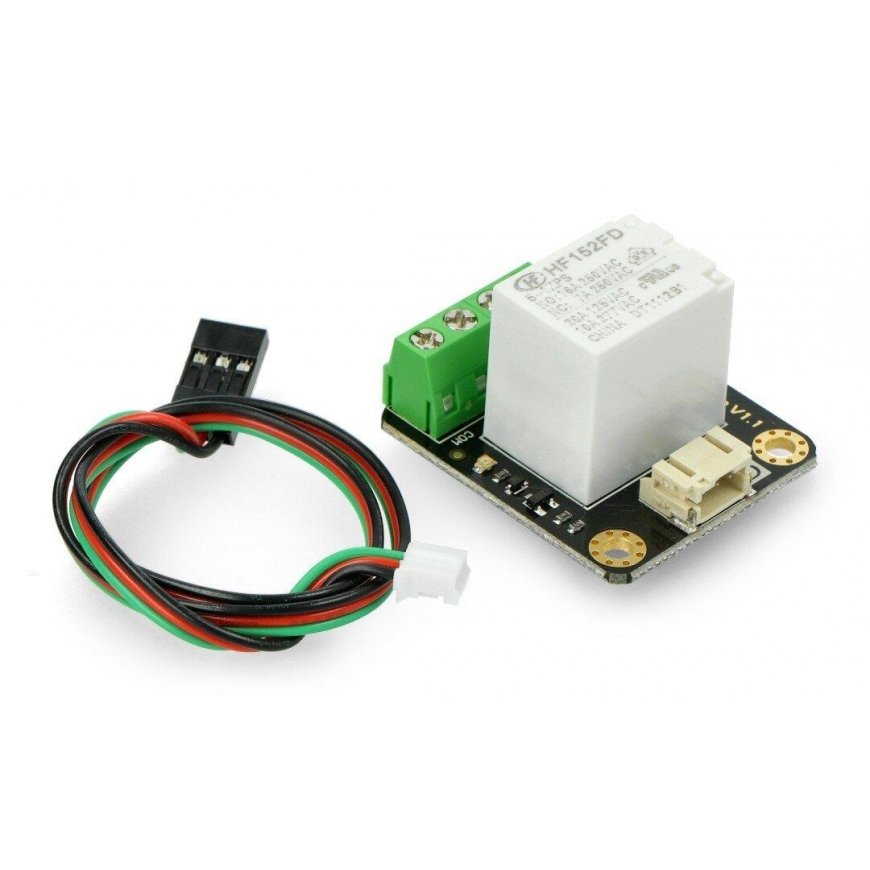

- Connecting cable x1
