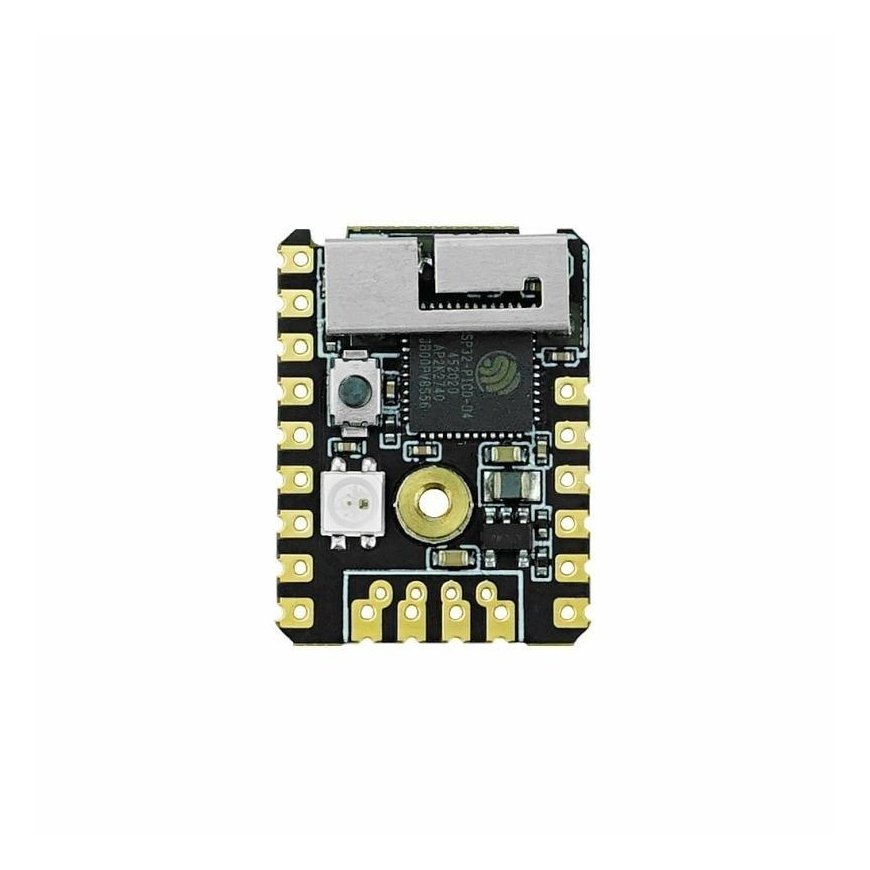

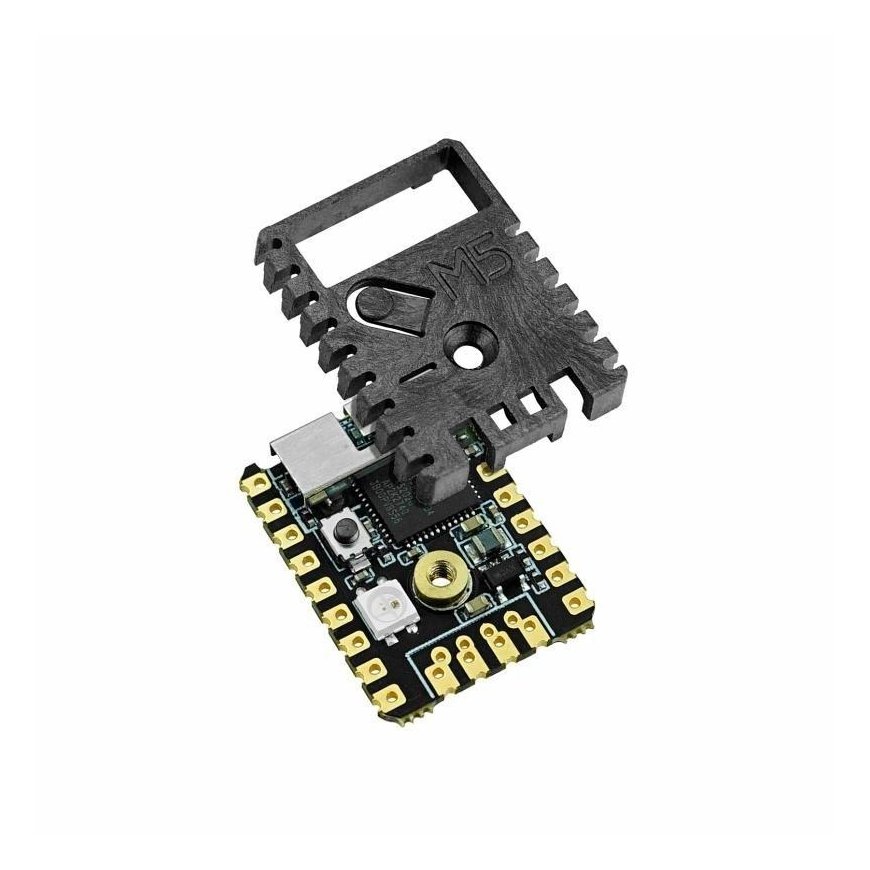

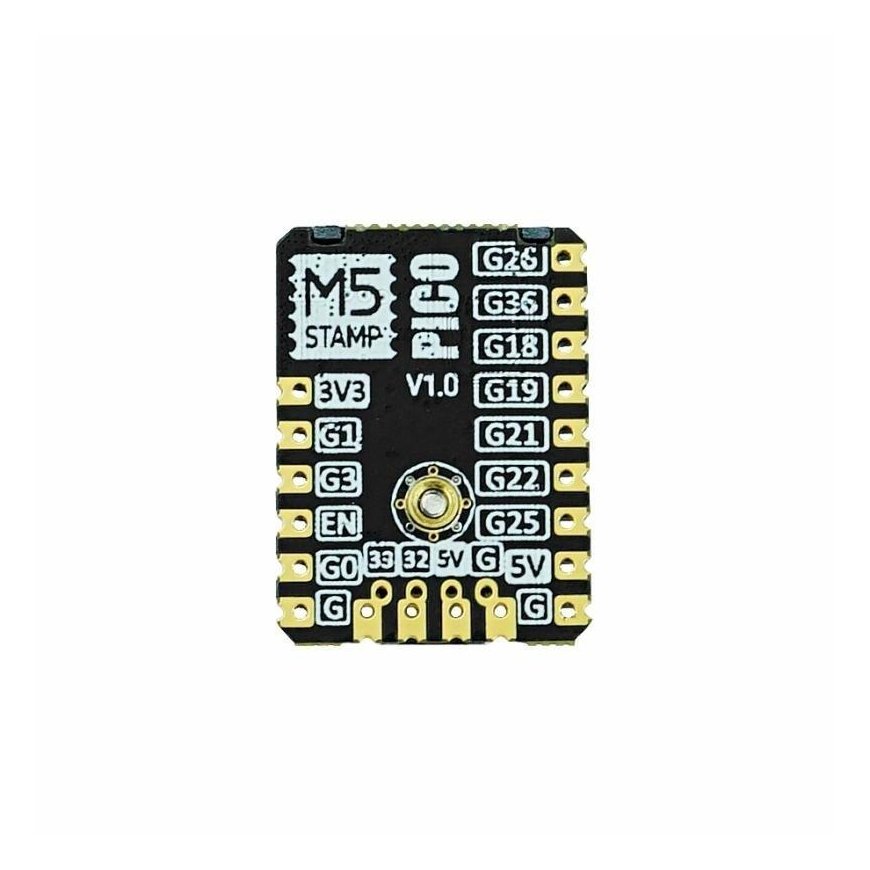

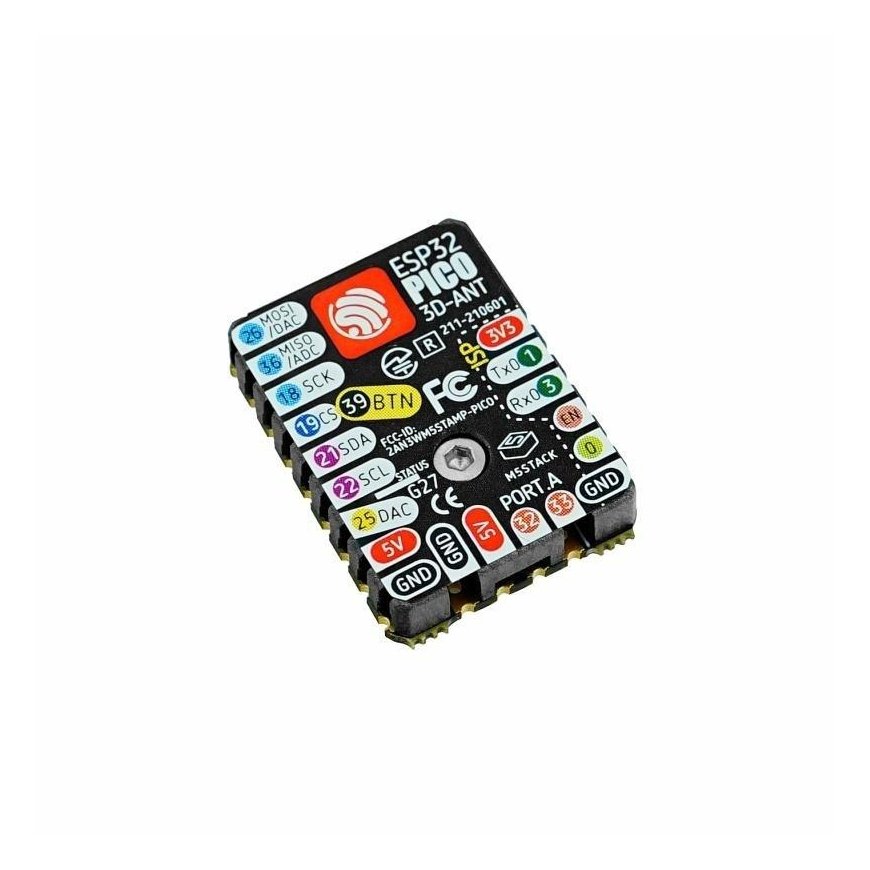

M5Stamp Pico - development module with ESP32-PICO-D4 - 5 pcs - M5Stack
69.01 €
Monthly payment from 2,68 €
3705012 AN-20158
5904422351298
Shipping 11-18 b.d.
You are interested in this product?
All about the product
M5Stamp Pico is a compact module from M5Stack with the ESP32-PICO-D4 microcontroller, 2.4 GHz WiFi / Bluetooth wireless communication, 600 DMIPS, 520 kB SRAM, and 4 MB Flash memory. It can be programmed using the UIFlow graphical editor. It is ideal for any application that needs to be implemented in a limited space or powered by a battery. It works well in projects related to home automation, smart sensors, and other IoT devices. The kit includes 5 M5Stamp Pico modules.
Key features:
- Chipset: ESP32-PICO-D4 (dual-band 2.4 GHz Wi-Fi and Bluetooth)
- Programmable with the UIFlow graphical editor
- Multi-IO pinout, support for multiple application forms (SMT, DIP, fly-by-wire)
- Integrated programmable RGB LEDs and buttons
- Compactness – miniature module
- Microcontroller: ESP32-PICO-D4 2.4 GHz WiFi / Bluetooth, 600 DMIPS, 520 kB SRAM
- Flash memory: 4 MB
- Input voltage: 5 V / 500 mA
- Power consumption:
- Sleep mode: 5 V / 29 mA
- WiFi STA mode: 5 V / 60 mA
- Bluetooth mode: 5 V / 84 mA
- Deep sleep mode: 5 V / 0.35 mA
- Wireless communication:
- AP mode: 16 m
- Bluetooth mode: 110 m
- Bluetooth class mode: 90 m
- User interface: programmable button and RGB LED
- Antenna: 3D 2.4 GHz
- Wi-Fi: 802.11 b/g/n (up to 150 Mb/s 802.11n), from 2.4 GHz to 2.5 GHz
- Bluetooth: V4.2 BR/EDR and BLE standard, NZIF receiver, sensitivity up to -97 dBm
- Pins: ADC and DAC, touch sensor, SD/SDIO/MMC main controller, SPI, SDIO/SPI slave controller, EMAC, PWM, LED PWM, UART, I2C, I2S, IR, GPIO

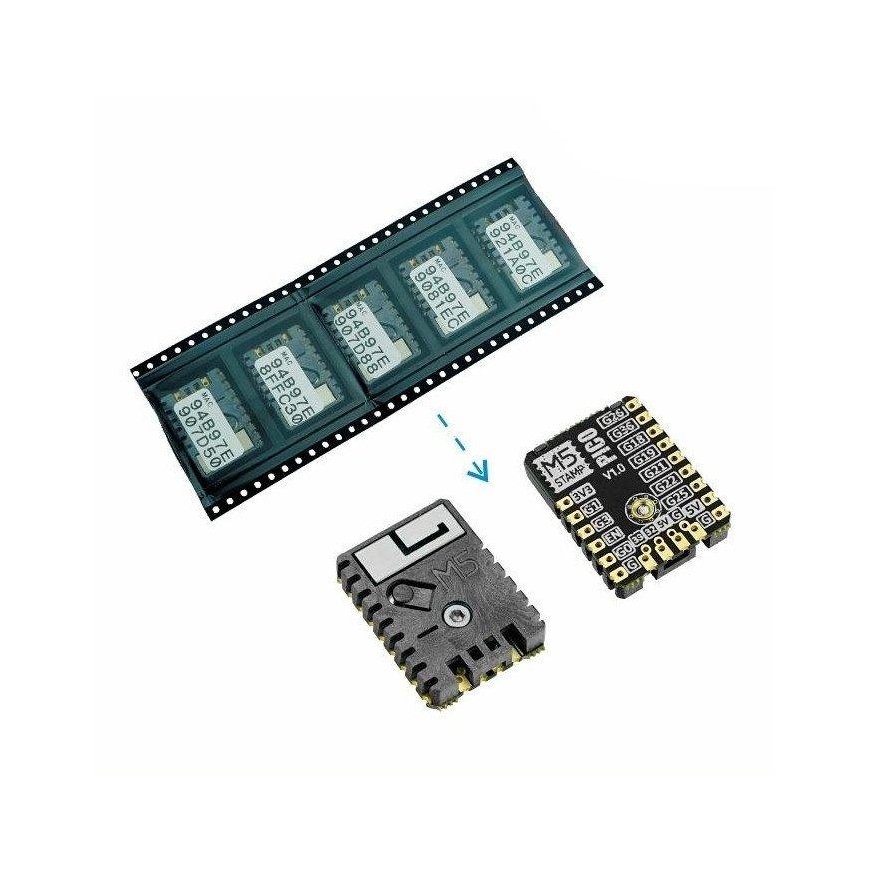

- Number of parts included: 5 pcs
- M5Stamp Pico - 5 pcs
- Sticker with wiring description - 5 pcs
