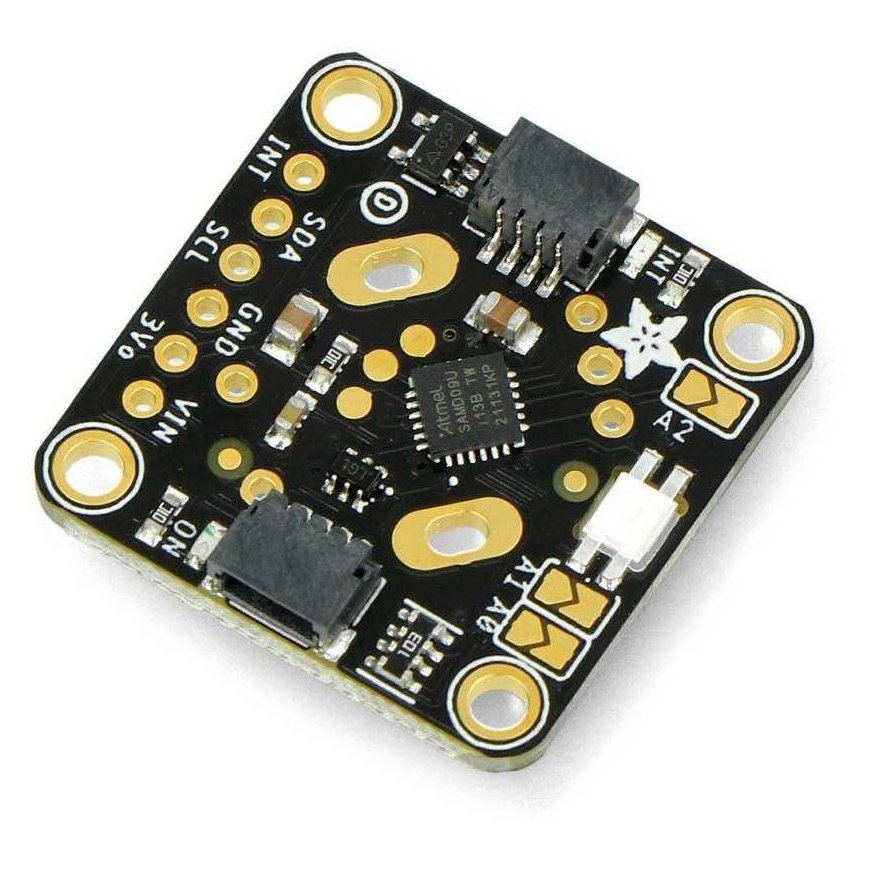

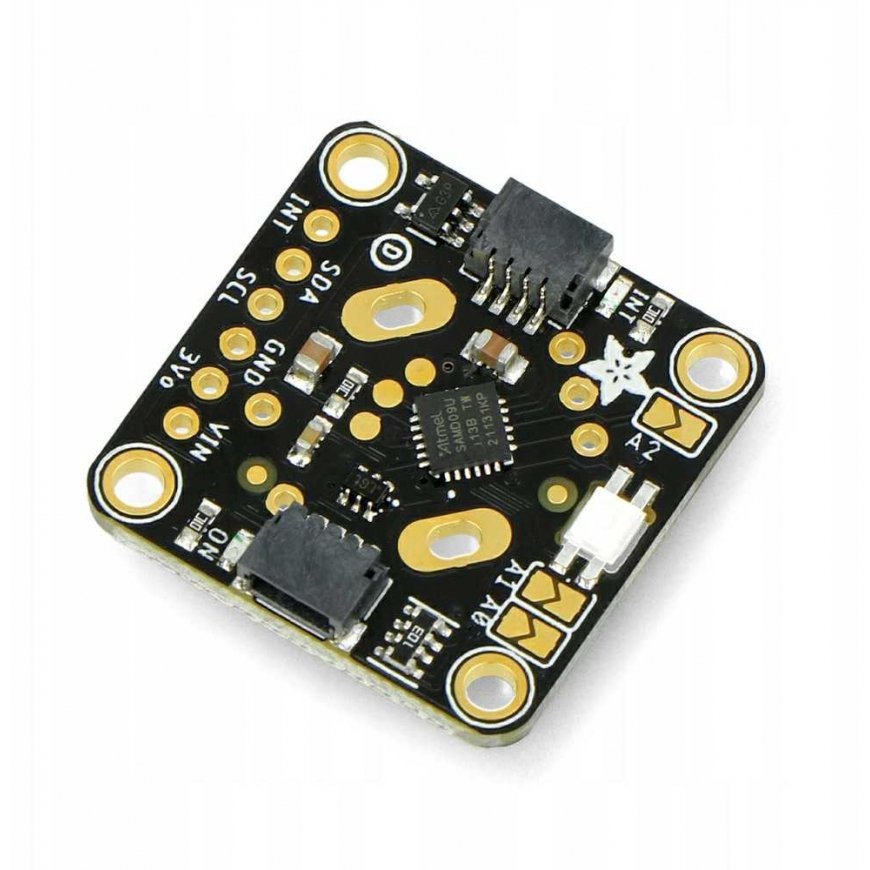

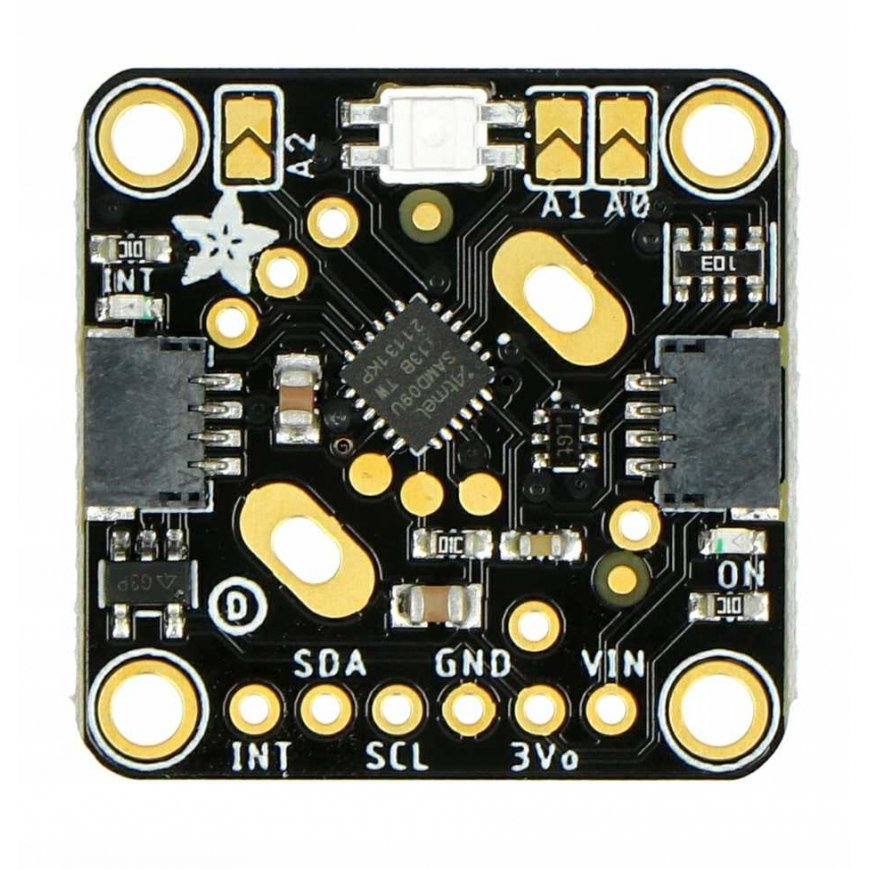

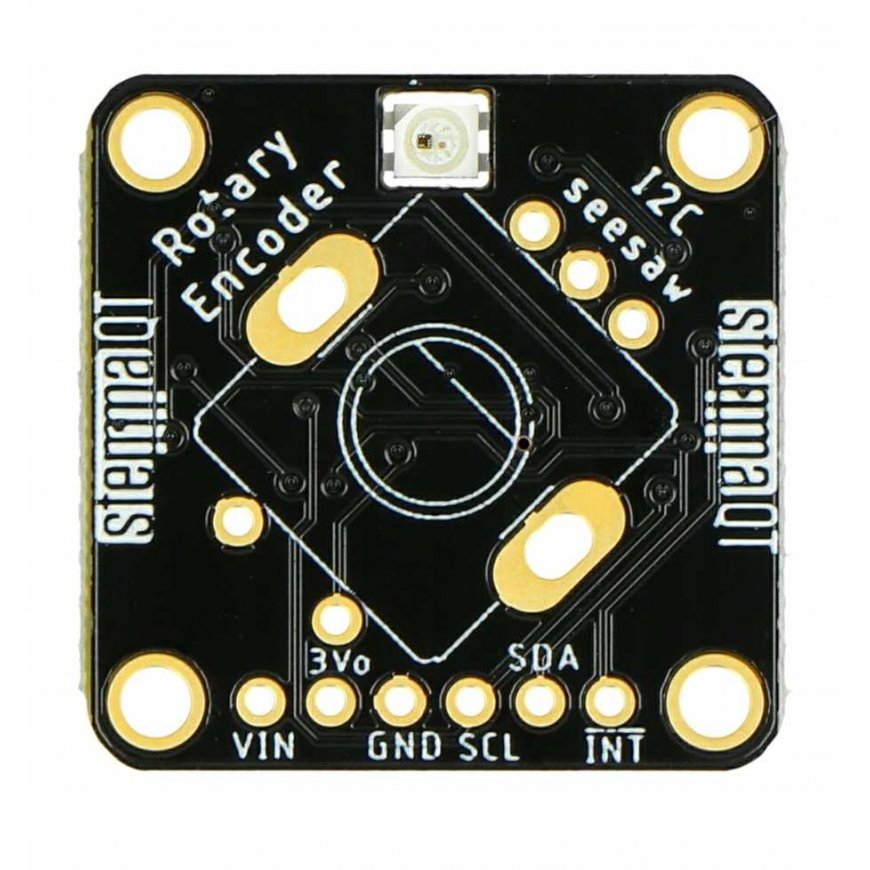

NeoPixel rotary encoder - I2C - STEMMA QT/Qwiic - Adafruit 4991
20.31 €
3704546 AN-19787
5903351245418
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Rotary encoder device, made by Adafruit. Equipped with a SAMD09 microcontroller, using the I2C interface. It has STEMMA QT/Qwiic connectors and pins in the form of soldering pads. Additionally, the module features configurable NeoPixel LEDs that can shine in any color.
Specifications:
- Type: rotary encoder device
- Supply voltage: from 3 V to 5 V
- Interface: I2C bus
- Interface address: 0x36
- Connectors:
- STEMMA QT/Qwiic
- Soldering pads
- Embedded LEDs:
- NeoPixel - can display any color
- Green and red LEDs - indicate operational status
- Module dimensions: 25.6 x 25.3 x 4.6 mm
- Weight: 2.4 g
- NeoPixel rotary encoder device - I2C - STEMMA QT/Qwiic

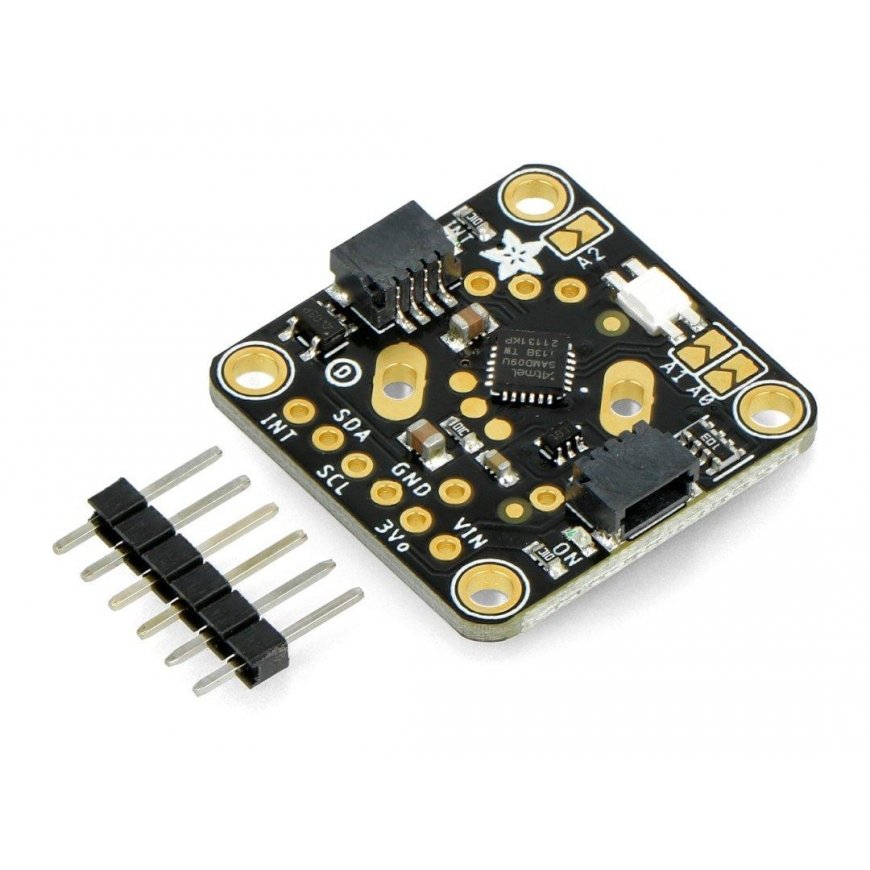

- 1x6 gold pin header - 2.54 mm pitch
