Beetle RP2040 - board with RP2040 microcontroller - DFRobot DFR0959
20.06 €
3704234 AN-22043
6959420922673
Shipping 11-18 b.d.
You are interested in this product?
All about the product

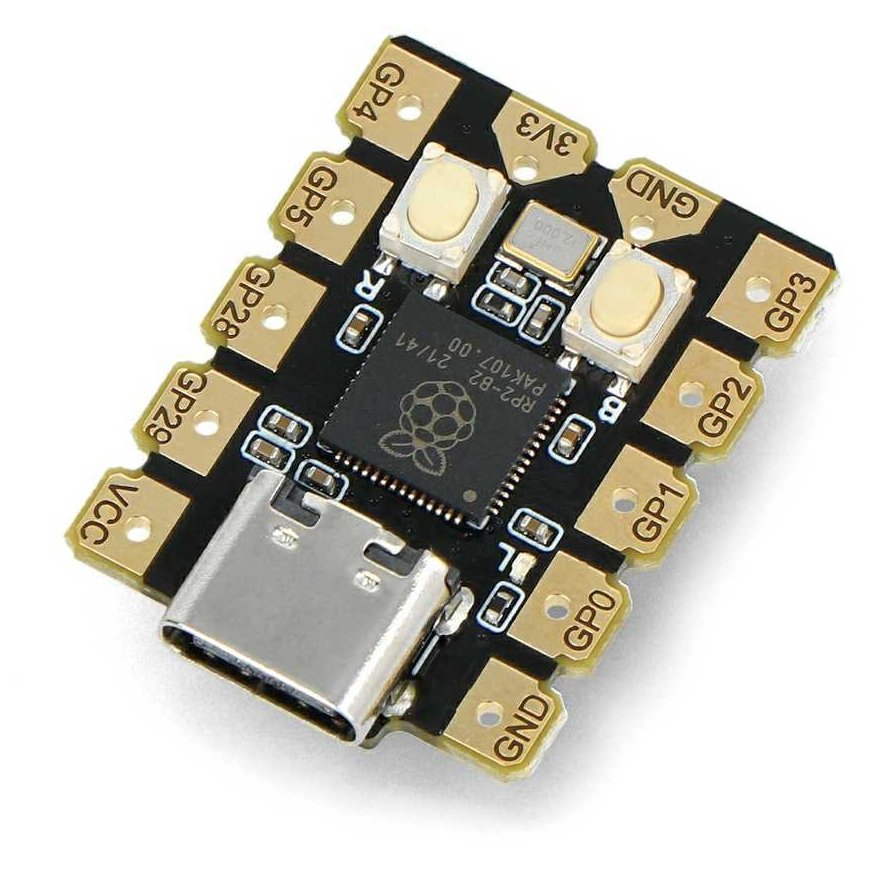

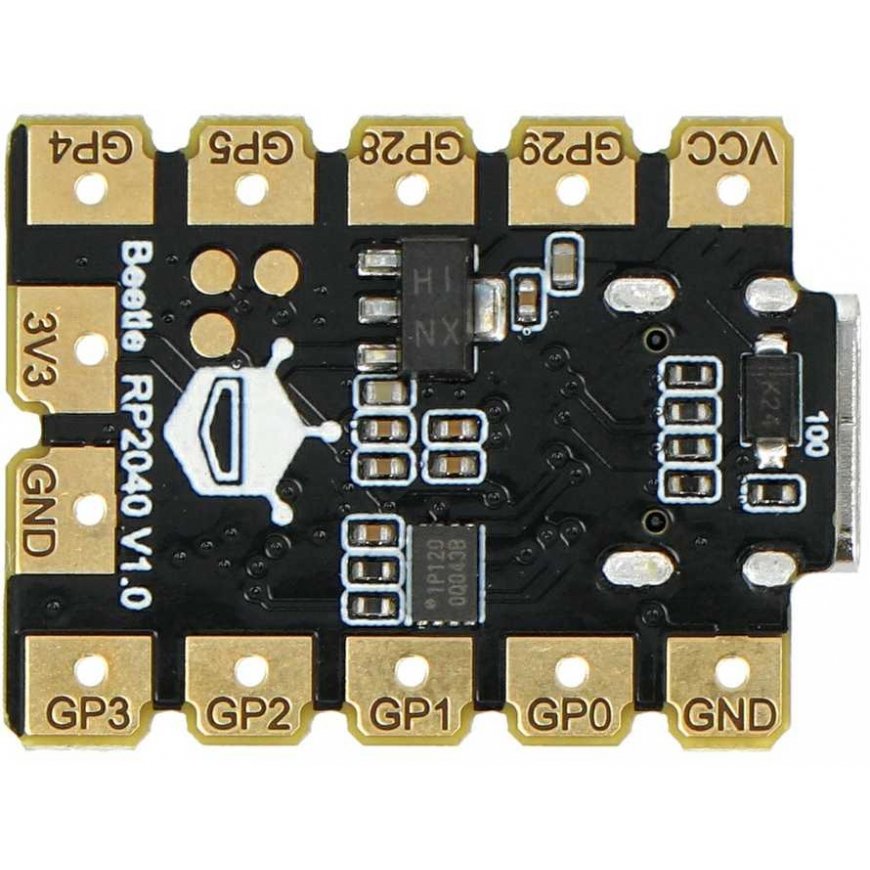

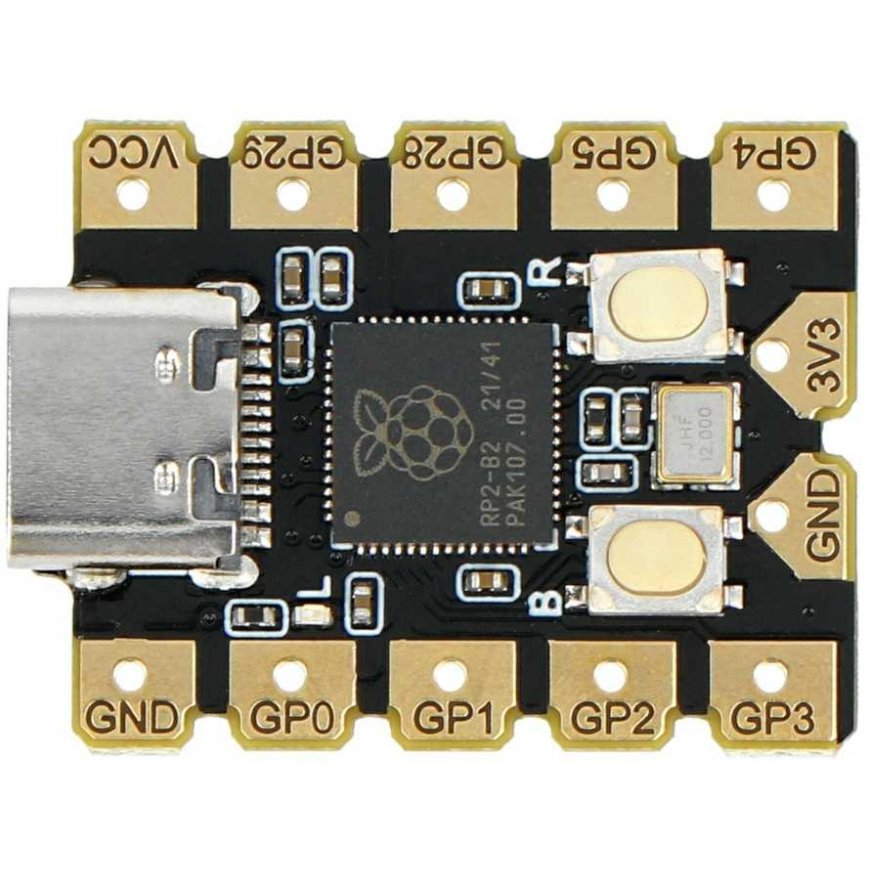

The small Beetle board created by DFRobot features the Raspberry Pi RP2040 microcontroller. The RP2040 ARM Cortex M0+ dual-core processor with a clock speed of 133 MHz has 264 kB of RAM and supports USB 1.1. The board has large soldering pad outputs that are additionally gold-plated for easier soldering of connectors or wires. The compact dimensions of the Beetle board - 27 x 20 mm - allow it to be used in small portable devices.
Main features:
- Based on the RP2040 chip
- 2 MB of flash memory
- Compact dimensions 27 x 20 mm
- Gold-plated solder pads for easier soldering
- Programmable with C++, MicroPython, and Arduino
- 8 GPIO pins, 2x I2C, 2x UART, 1x SPI, 8x digital port, 2x analog port
- Built-in LED
- Type C USB interface
- Compatible with USB 1.1
- Chip: Raspberry Pi RP2040
- Clock speed: 133 MHz
- RAM memory: 264 KB
- Flash memory: 2 MB
- Power supply: from 3.3 V to 5 V
- Logic voltage: 3.3 V
- USB interface: Type C USB
- Interfaces:
- 8x GPIO
- 2x I2C
- 2x UART
- 8x digital port
- 2x analog port
- 1x reset button
- 1x boot button
- 1x LED
- Programming: C++, MicroPython, Arduino C, Mind+ graphical programming
- Solder pin size: 4 x 3.5 mm
- Pin pitch: 2.54 mm
- PCB material: FR-4
- Gold-plated solder joints
- Solder material: lead-free, environmentally friendly
- Dimensions: 27 x 20 x 4.91 mm

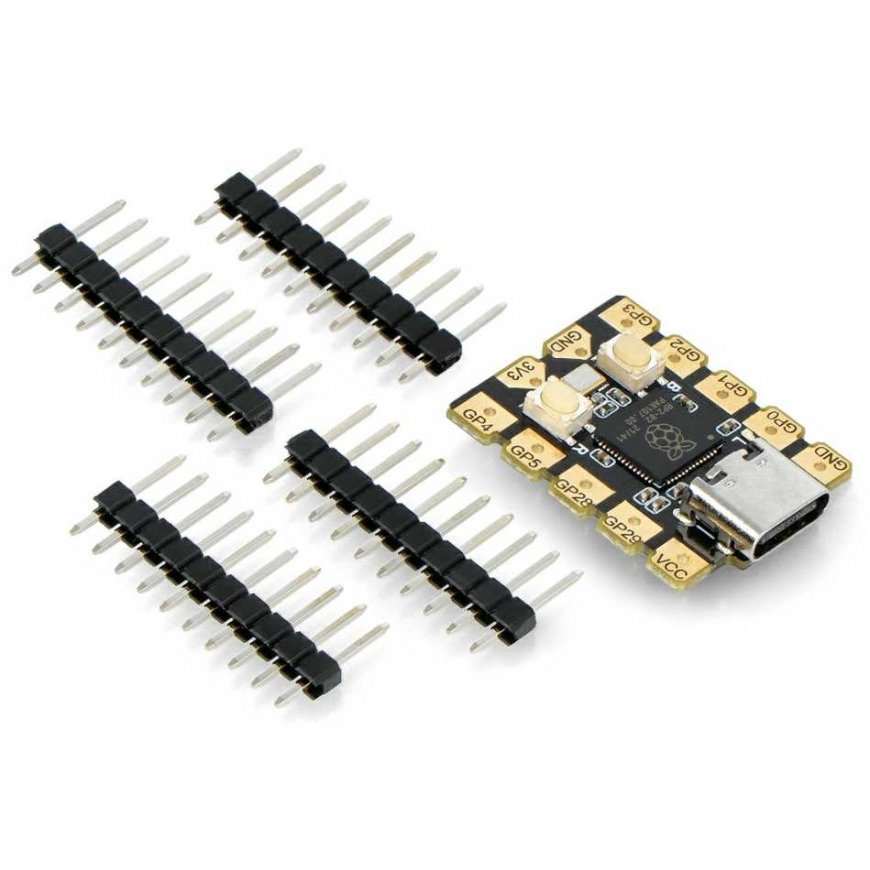

- Beetle RP2040 - board with RP2040 microcontroller - DFRobot DFR0959
- Set of gold pin connectors
