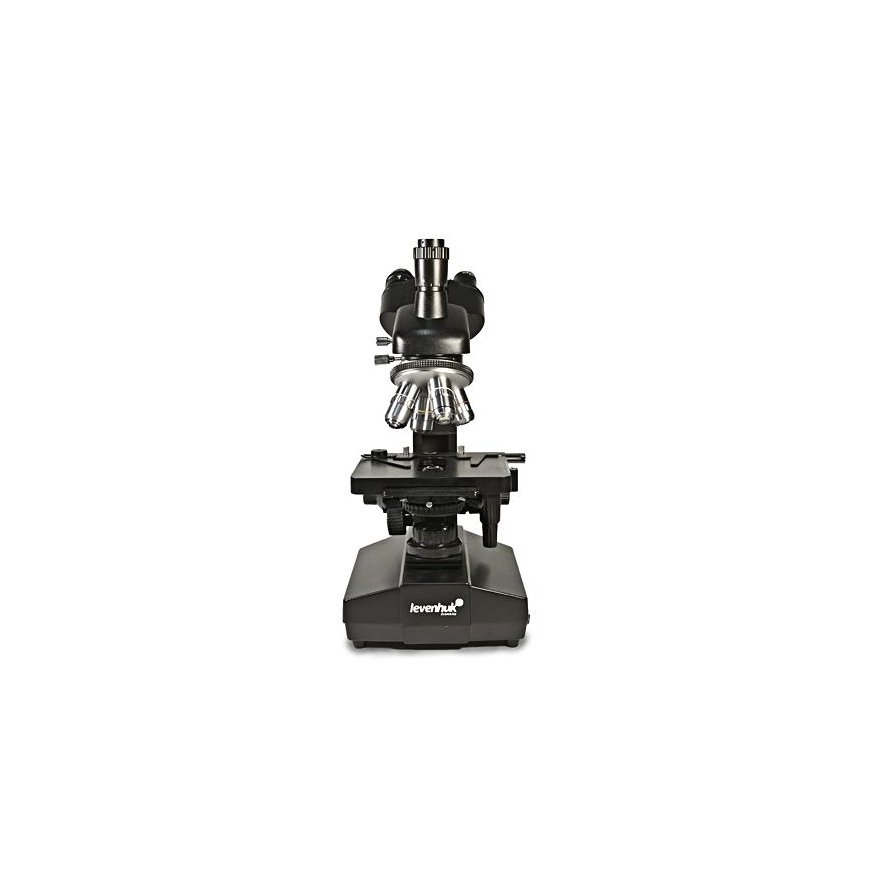

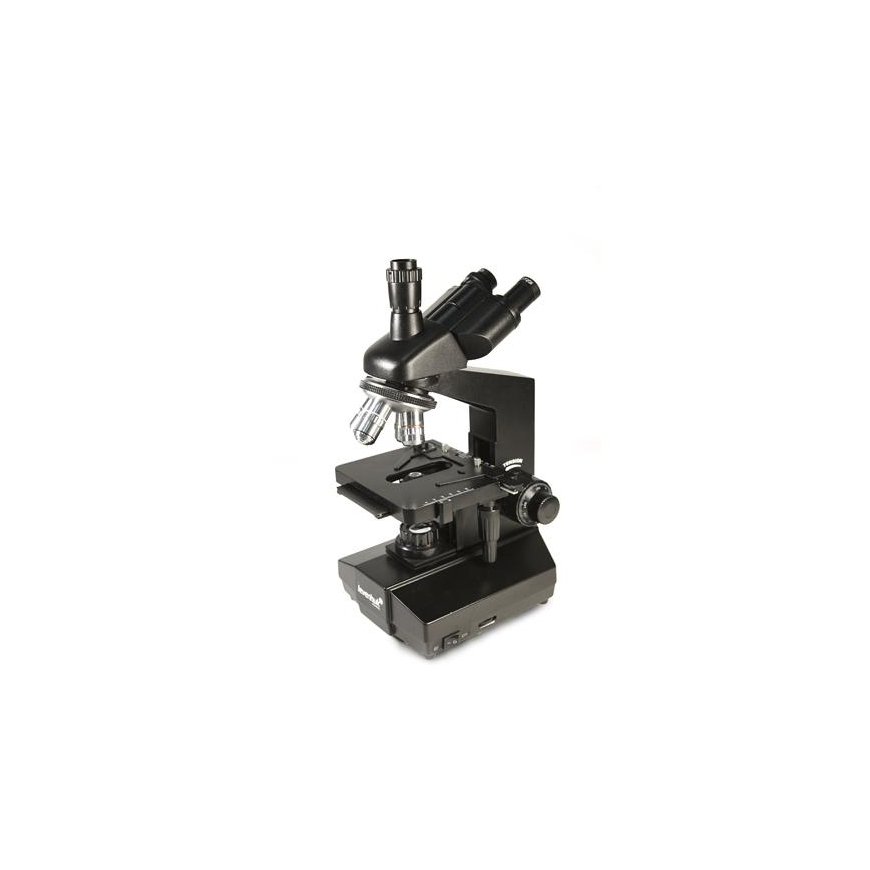

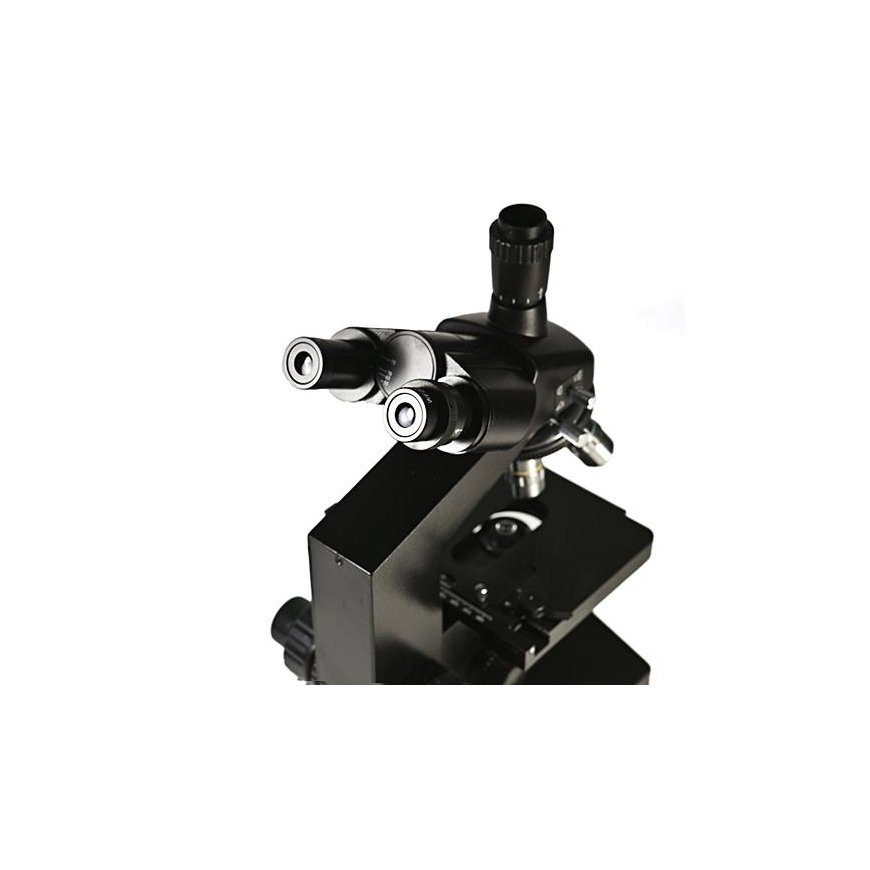

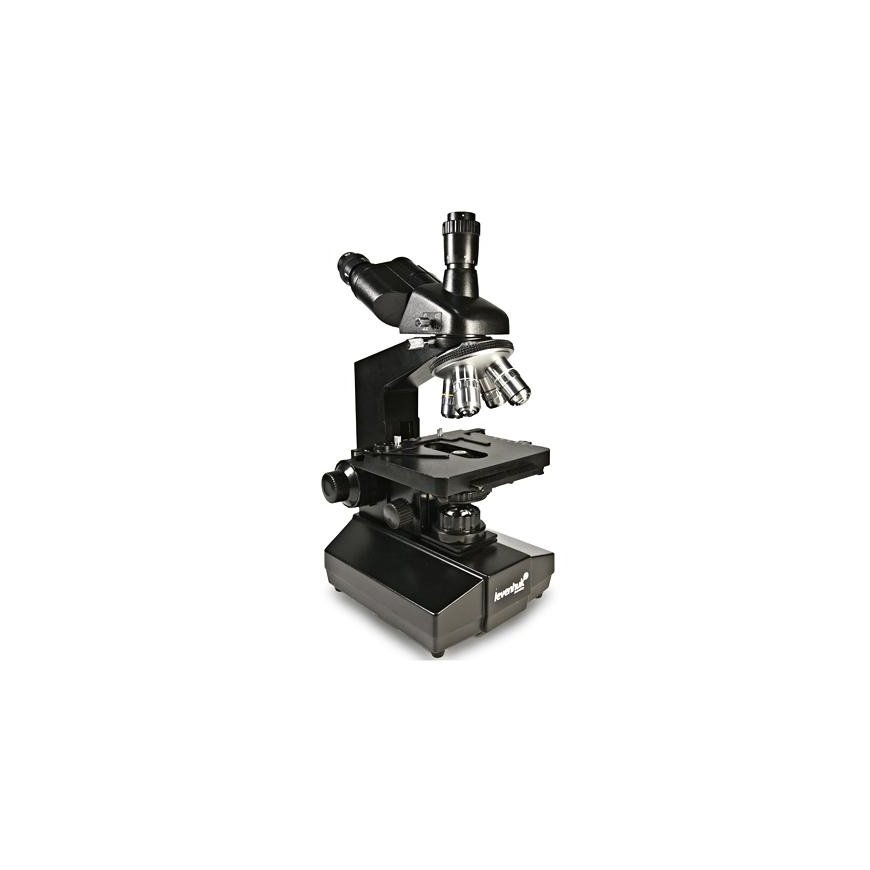

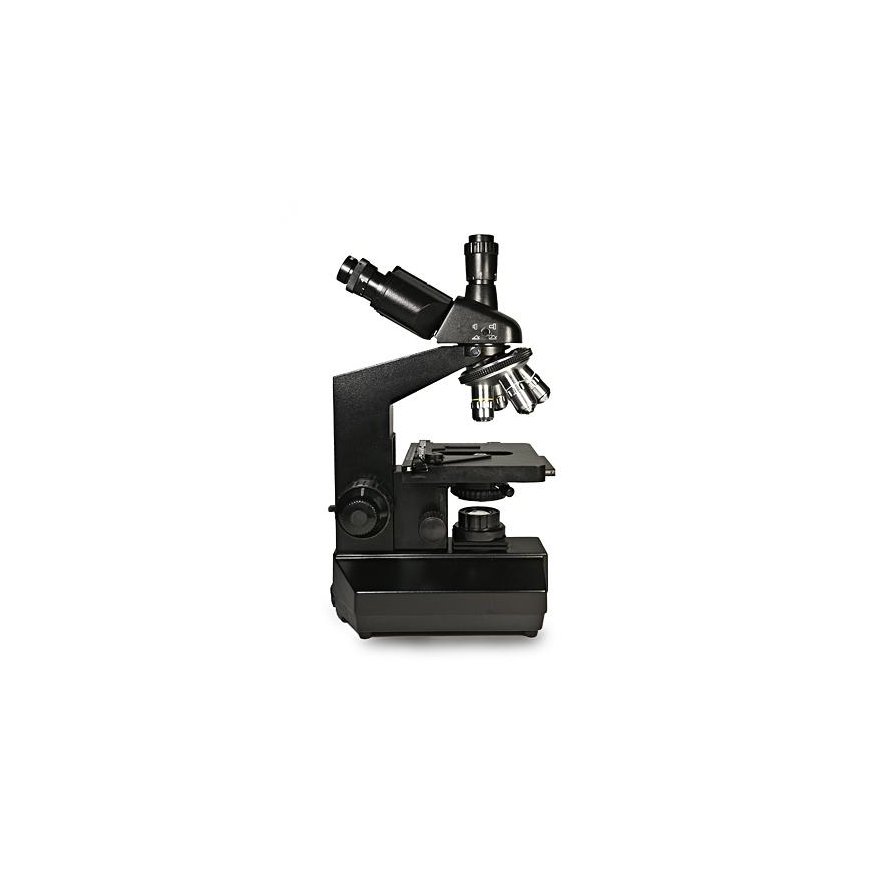

Levenhuk 870T Biological Trinocular Microscope
3704131 24613
5905555004471
Shipping 9-12 b.d.
All about the product
Levenhuk 870T is a reliable biological trinocular microscope that may be used for the bright field observations. It is commonly used in various medical laboratories for clinical research in dermatology, biochemistry, cytology and other scientific studies. Due to the trinocular design of the head, this model may be turned into a digital microscope with an addition of an eyepiece digital camera.The head of the microscope is inclined at 30 degrees and may be rotated 360 degrees around its axis. Four objective lenses on the revolving nosepiece, Köhler illumination method, adjustment of the aperture and field diaphragms make this microscope a perfect tool for serious observations.The stage (140x155 mm, 5.5x6.1 in) moves along two axes. Focusing the view is achieved by rotating the coarse and fine focus wheels that raise or lower the stage itself, thus bringing the sample closer to or farther away from the objective lens. Both focus systems have smooth movements in 25 mm (1 in) increments for coarse and 0.002 mm (0.00008 in) for fine.There is a variable brightness 6V 20W halogen lamp installed in the base of the microscope that acts as an illumination source.
Features:
- Magnification: 40–1000x
- Oil immersion
- Condenser: Abbe with iris diaphragm
- Two-axes stage
- Fine and coarse focusing
- Halogen illumination with brightness adjustment
- Household power supply
The kit includes:
- Microscope stand with base
- Trinocular head
- Plan achromatic objectives: 4x, 10x, 40x, 100x (oil)
- Mirror
- Eyepieces: paired, wide field WF10x, WF20x
- Filters (blue, yellow, green)
- Bottle of immersion oil
- Eyepiece extension tube and focusing extension tube
- Adapter for installing a digital camera
- AC adapter
- User manual and lifetime warranty
Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Technical specifications
Head: trinocular
Optical material: glass
Magnification: x40-2000
Eyepieces: pair, wide field PLAN WF10x, PLAN WF20x
Objectives: PLAN WF: 4x, 10x, 40x, 100x (oil immersion)
Revolving nosepiece: 4 objectives
Distance between eyes, mm: 55-75
Stage, mm: 140x155, movable along two axes
Stage movement range, using focusing mechanism, mm: X-Y: 70x50
Eyepiece diopter adjustment, diopters: ±5
Condenser: Abbe, 1.25 N.A, high-class with iris diaphragm and dark field condenser
Focusing: fine: 0.002 mm; coarse: 25 mm
Illumination: halogen lamp 6V/20W
Power: 220V power cord
Usage: General-purpose product.
Can be used by children over 3 years old.
