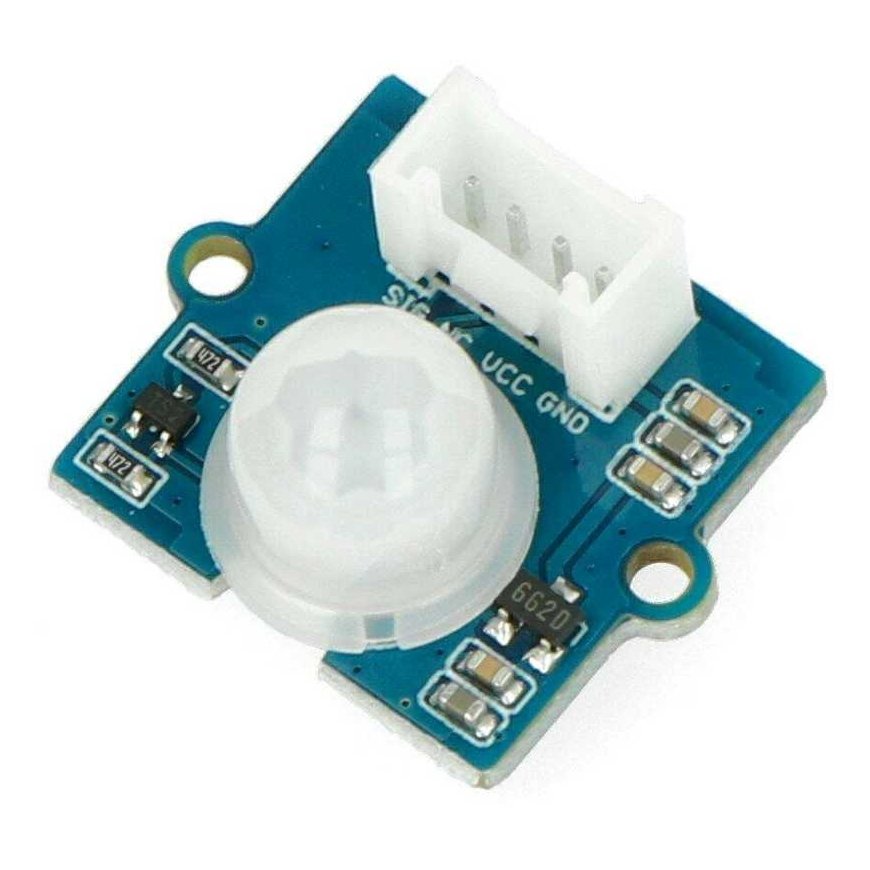

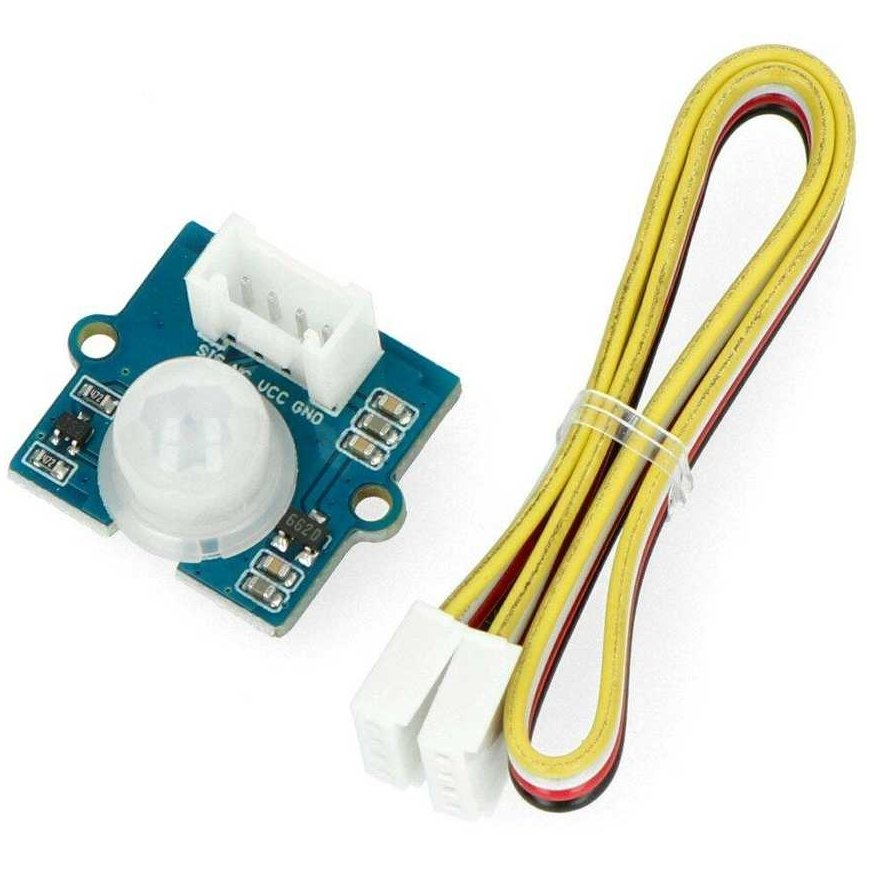

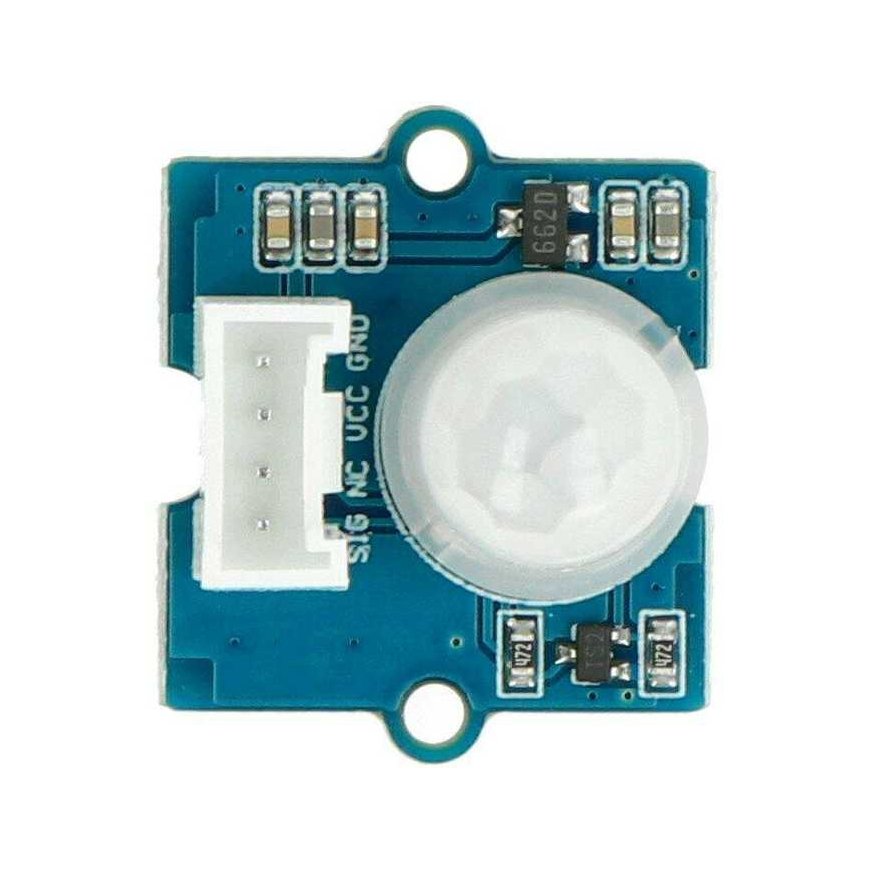

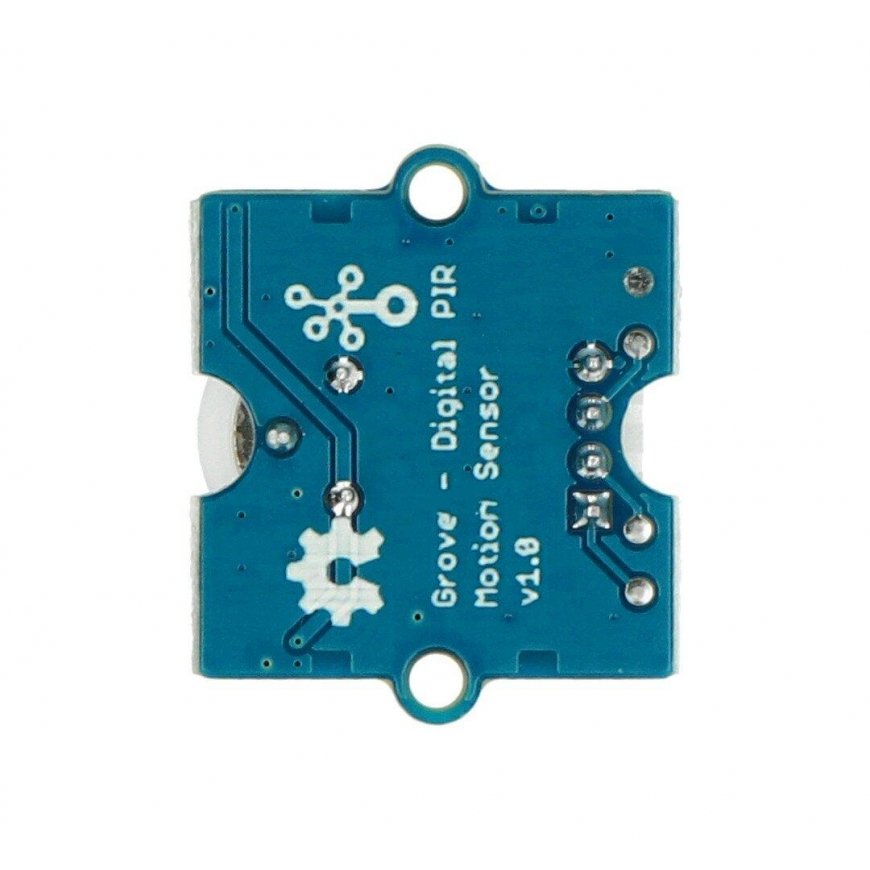

Seeed Studio Grove, digital PIR motion sensor, Seeedstudio 101020793
19.77 €
3703920 AN-16909
5904422378288
Shipping 11-18 b.d.
You are interested in this product?
All about the product
PIR motion sensor using IR diodes. This allows generating a low or high state at the output. No Arduino library is required for operation. Detects movement from 3.2 m to 12 m. Powered from 3 V to 5 V. The Grove connector makes it easy to connect the sensor to the main module.
Specifications:
- Supply voltage: from 3 V to 5 V
- Detection angle: 100°
- Detection distance: from 3.2 m to 12 m
- Response time: up to 1s
- Operating temperature: from -20 °C to 85 °C
- Interface: Grove
- Dimensions: 20 x 20 x 11.5 mm
- Weight: 3 g
Links:
Manufacturer's page
Manual
