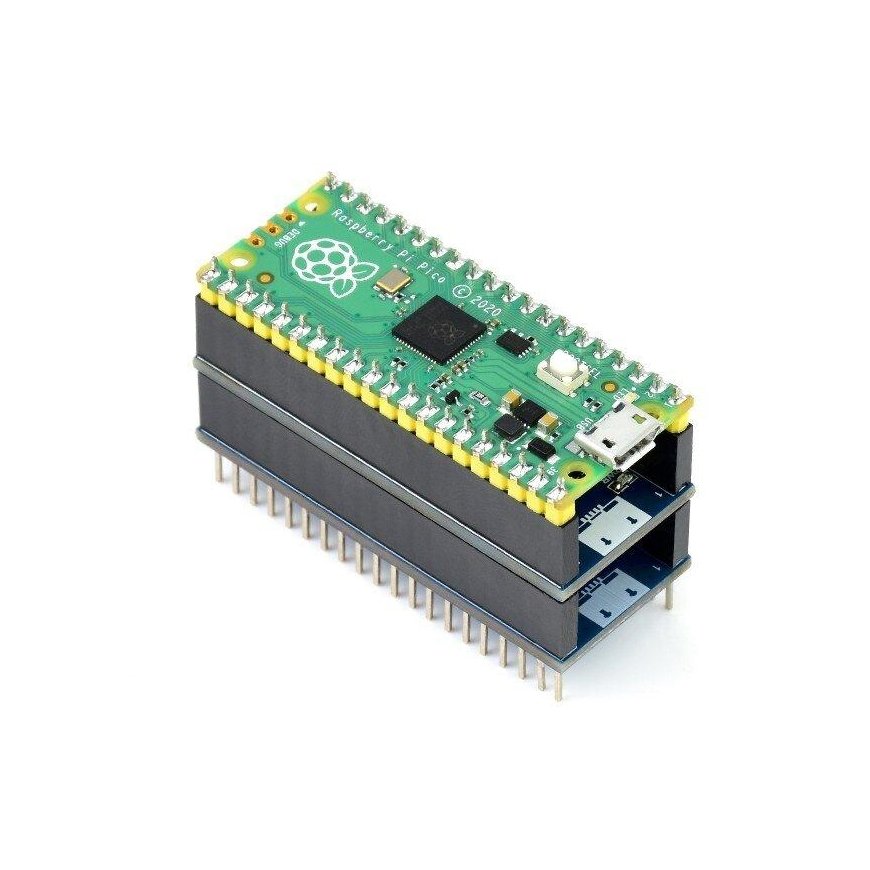

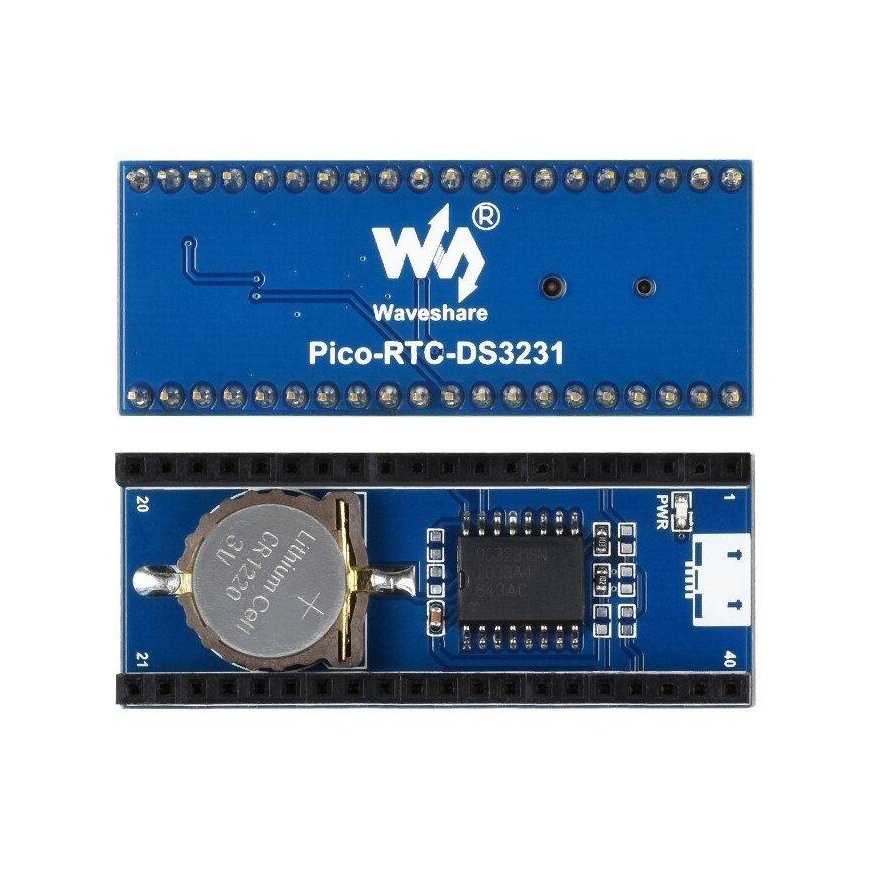

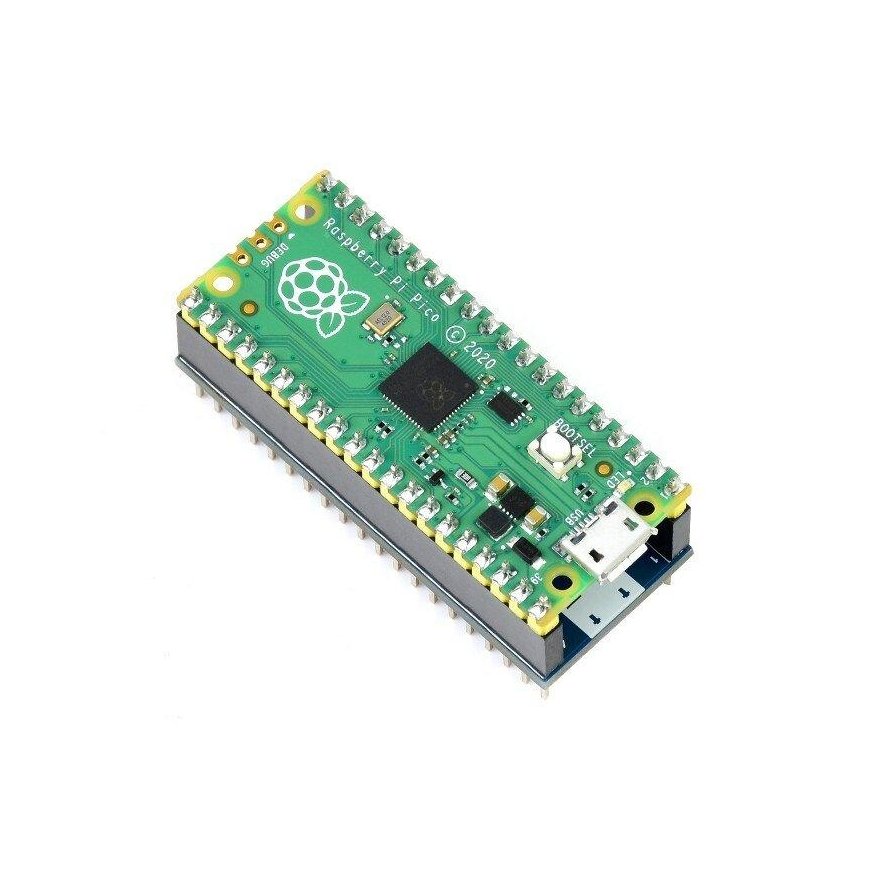

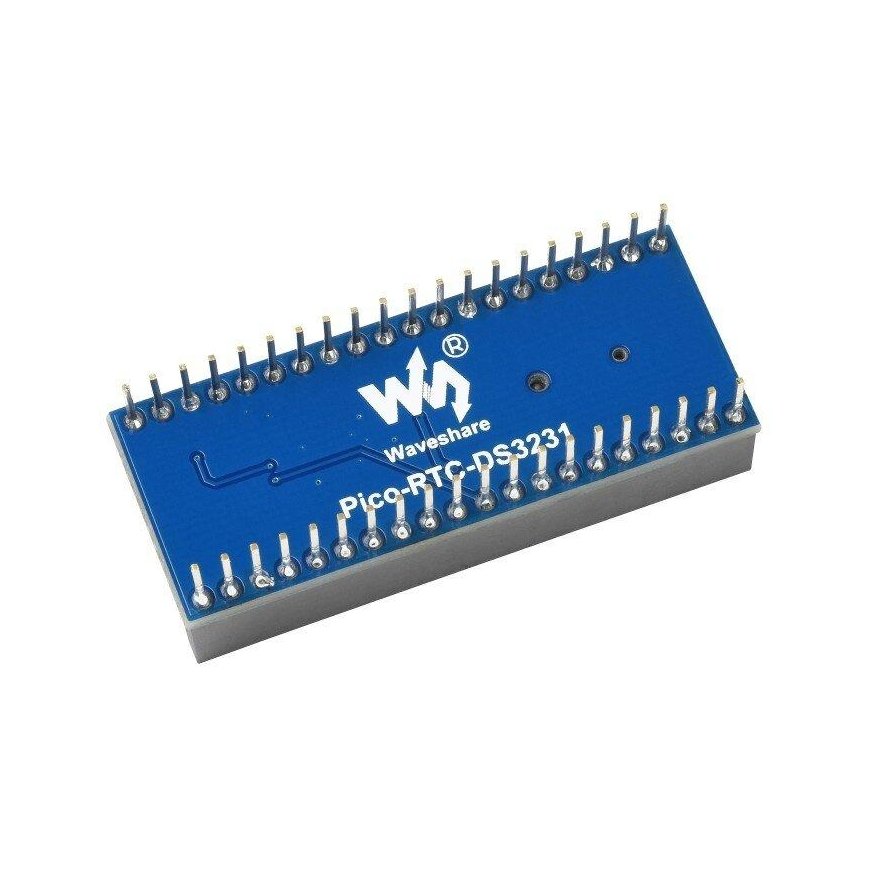

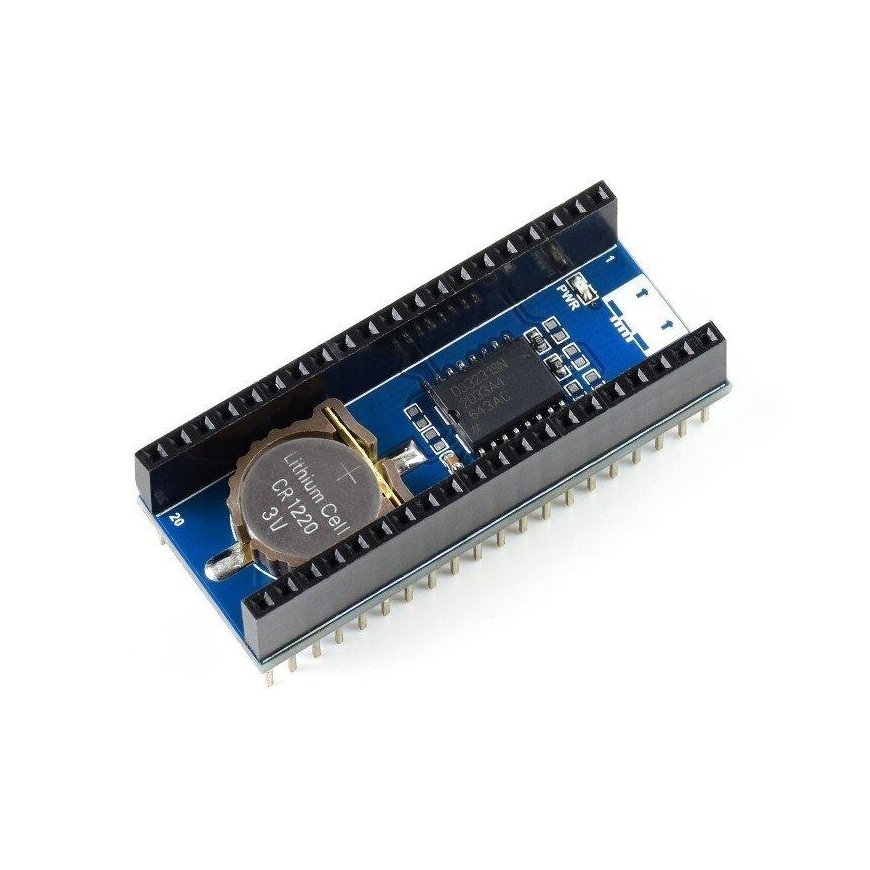

RTC DS3231 module, real-time clock, I2C, designed for Raspberry Pi Pico, Waveshare 19426
3703242 AN-18989
5904422371586
Shipping 11-18 b.d.
All about the product
Raspberry Pi Pico expansion module in the form of a real-time clock (RTC). With a high-precision chip DS3231, it uses the I2C bus to interact with the Raspberry Pi Pico. Its design allows for the addition of multiple peripheral devices that connect to each other. The board has an additional holder for CR1220 coin batteries. The RTC clock counts seconds, minutes, hours, days, months, and years, with leap year compensation valid until 2100. Time is displayed in two formats: 24-hour or 12-hour with AM/PM indicator. Additionally, it has two programmable alarms.
Specifications:
- Compatible with Raspberry Pi Pico
- RTC chip: DS3231
- Real-time calculation: seconds, minutes, hours, days, months, and years (with leap year compensation valid until 2100)
- Time format: 24-hour/12-hour with AM/PM indicator
- Alarm: 2 programmable alarms
- Operating voltage: 3.3 V
- Alternative power source: CR1220 battery
- Built-in holder for additional battery: yes
- Power consumption: 100 nA (during backup)
- Interface: I2C
- Equipped with standard connectors for connecting to Raspberry Pi Pico
- Operating temperature: from -40 °C to 86 °C
- External dimensions: 52 x 21 mm
