Garni Technology GARNI 1NG – integrated sensor
3702966 GARNI1NG
8592733021428
This product is no longer in stock
All about the product

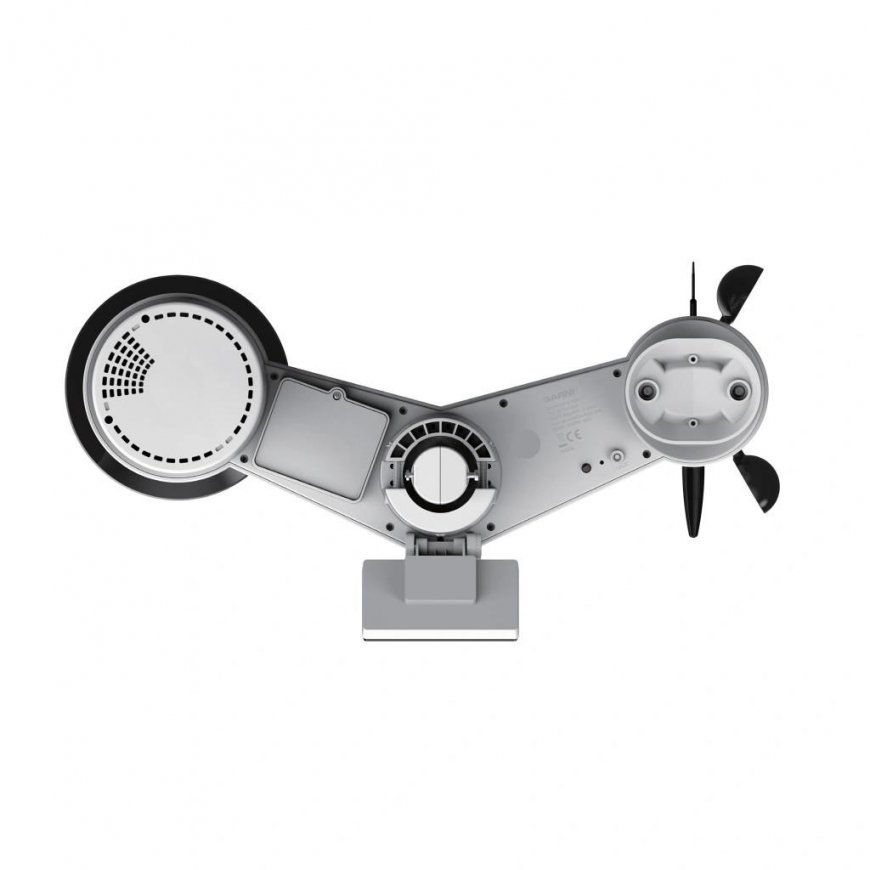

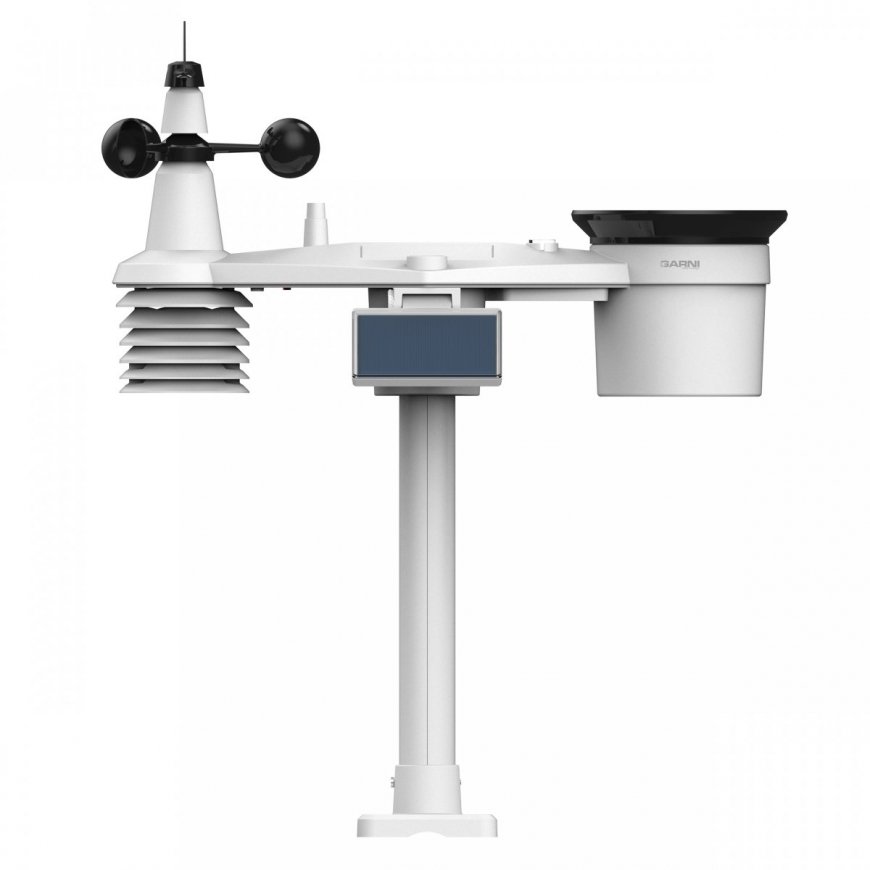

Integrated Sensor GARNI 1NG
The integrated wireless sensor GARNI 1NG is designed for GARNI 3015 Arcus, GARNI 3015 Arcus 2GEN, GARNI 2055 Arcus, GARNI 2055 Arcus 2GEN, GARNI 2040 Arcus, GARNI 2040 Arcus 2GEN, GARNI 2040 Arcus 2GEN, GARNI 2040 Arcus 2GEN, GARNI 2040 Arcus 2GEN, GARNI 201085 Arcus weather GARNI GTway Plus WiFi weather stations.
The integrated 7-in-1 GARNI 1NG wireless sensor measures outdoor temperature and relative humidity, wind speed and direction, precipitation amount, UV index, and solar radiation, with data transmitted to the main device up to 150 m away (in open space).
The integrated 7-in-1 wireless sensor has a solar panel and a built-in capacitor, which is located next to the rain gauge funnel and supplies power to the sensor. The capacitor is powered by the solar panel. If the capacitor is not charged, the integrated 7-in-1 wireless sensor will be powered by backup batteries. If the solar panel is exposed to direct sunlight (100,000 lux) for 4 hours, the built-in capacitor will fully charge and power the sensor for 1 day. The energy from the backup batteries will not be consumed.
If the built-in capacitor is not fully charged, and direct sunlight on the solar collector is insufficient for a long enough time, the sensor will be powered by backup batteries. Once the capacitor is charged, power will be supplied from the capacitor.
If the capacitor is completely discharged, and the sensor is placed away from sunlight, the backup battery will supply power for approximately 1 year.
The specified backup battery life is only an estimate; the actual battery life will vary depending on the environmental conditions in which the integrated 7-in-1 wireless sensor is used.
The angle of the solar panel can be adjusted vertically from 0° to 15°, 30°, 45°, and 60°, depending on the area in which the weather station operates.
Capacitor
- capacity about 12 mAh
- daily power consumption 4.5 mAh
- full charge after 4 hours at 100,000 lx exposure - power time for sensors 48 hours
- full charge after 8 hours at 30,000 lx exposure - power time for sensors 48 hours
Solar Panel
- 0.5 W power (at 40,000 lux)
Specifications
| Parameters | |
|---|---|
| Designed for model | GARNI 3015 Arcus, GARNI 3015 Arcus 2GEN, GARNI 2055 Arcus, GARNI 2055 Arcus 2GEN, GARNI 2040 Arcus, GARNI 1085 Arcus, GARNI 2060 Arcus, GARNI GTway Plus |
| Temperature measurement range / tolerance | -40°C to +60°C (from -40 to -20°C ±1°C, from -19.9 to 0°C ±0.7°C, from +0.1 to +60°C ±0.4°C) (SENSIRION sensor) |
| Temperature measurement resolution | 0.1°C |
| Measurement range relative humidity / tolerance | from 1% to 99% (from 1 to 9 % ± 5 %, from 10 to 90 % ± 3.5 %; from 91 to 99 % ± 5 %) (SENSIRION sensor) |
| Measurement resolution relative humidity | 1 % |
| Wind speed measurement range / tolerance | from 0 to 50 m/s; from 0 to 180 km/h; from 0 to 112 miles per hour; from 0 to 97 knots < 5 m/s: ±0.8 m/s; > 5 m/s: ±10 % (depending on which value is greater) |
| Wind speed resolution | 0.1 m/s, 0.1 km/h, 0.1 mph, 0.1 knot |
| Wind direction measurement | Yes |
| Wind direction measurement resolution | 16 positions or 360° |
| Precipitation measurement | Yes |
| Total precipitation measurement range | from 0 to 19999 mm |
| Precipitation resolution | 0.1 mm |
| Precipitation amount required to tip the bucket | 0.254 mm (0.01 inches) ± 7 % or 1 bucket tip |
| UV index measurement range | from 1 to 16 |
| UV index measurement resolution | 1 |
| Illuminance (solar radiation) / tolerance measurement range | From 0 to 200 Klux |
| Illuminance resolution (solar radiation) | 0.1 |
| Wireless sensor signal range | 150 m in open space |
| Transmission frequency | 868 MHz |
| Data transmission interval | Wind speed and direction, UV index, solar radiation intensity 12 seconds, temperature, relative humidity, and precipitation 24 seconds |
| Power supply | Integrated capacitor with solar panel support, backup battery 3 pcs 1.5 V AA type (not included) |
| Capacitor parameters int. sensors | capacity about 12 mAh daily power consumption 4.5 mAh full charge after 4 hours at 100,000 lx exposure - power time for sensors 48 hours full charge after 8 hours at 30,000 lx exposure - power time for sensors 48 hours |
| Solar panel parameters | Power 0.5 W (at 40,000 lux) |
| Overall dimensions | 390 x 230 x 165 mm |
| Weight | 599 g (without batteries and stand) |
| Color | Light gray, rain gauge funnel, wind vane, and wind direction indicator in black |
| Ability to stand/hang | Can be mounted on a pole or on a flat surface |
| Pole / rod diameter | from 35 to 40 mm |
