Touchscreen - capacitive LCD 4.3" 800x480px I2C/RGB, Waveshare 16249
49.00 €
Monthly payment from 2,16 €
3702724 AN-15508
5904422343484
Shipping 11-18 b.d.
You are interested in this product?
All about the product

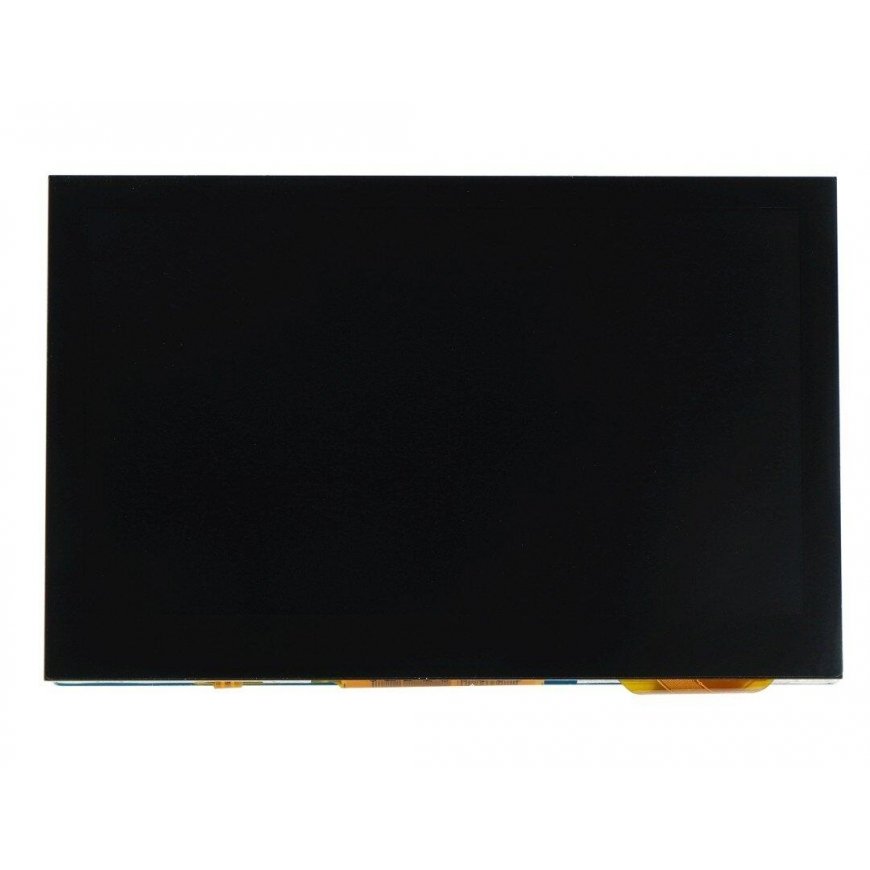

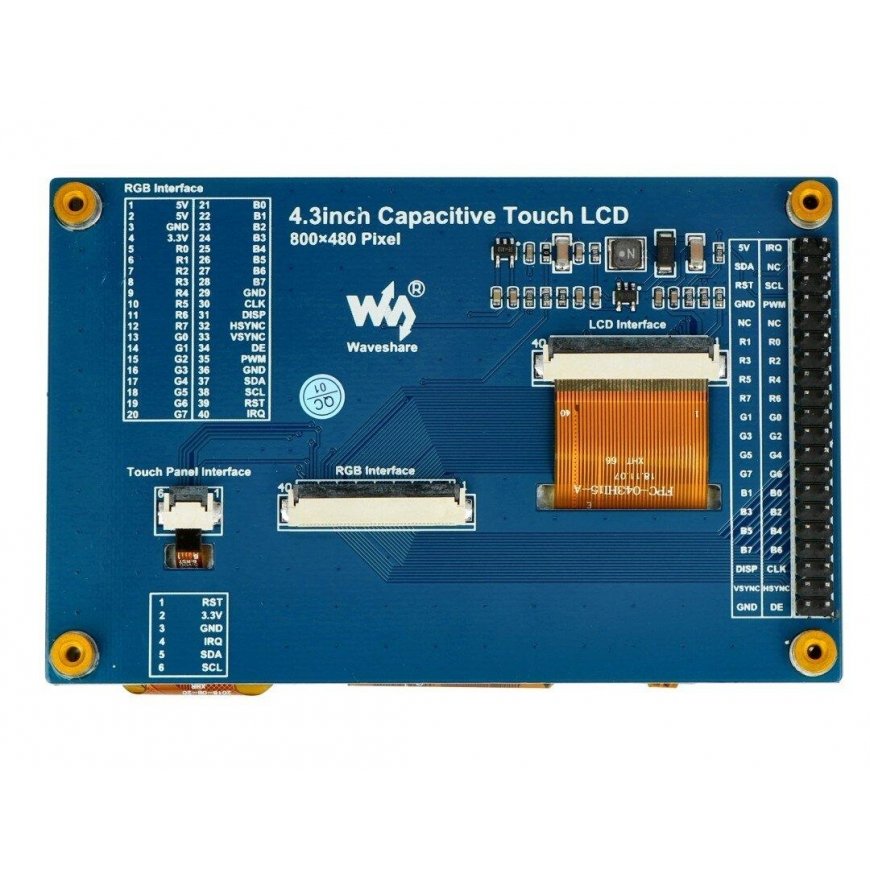

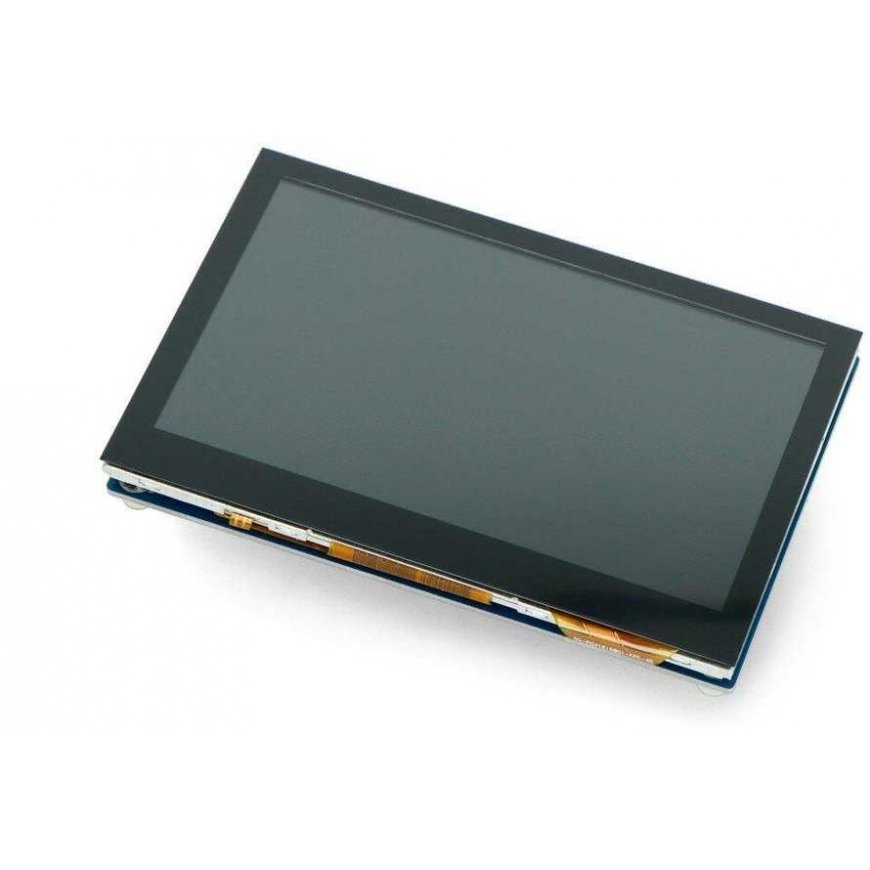

4.3" capacitive touch screen with 800x480px resolution. Interacts with the main module via I2C or 24-bit RGB interface. Works with Waveshare Open746I-C and Open429I-C platforms. Powered by 5 V, and logic voltage is 3.3 V.
Specifications:
- Type: IPS
- LCD interface: 24-bit RGB
- Touch interface: I2C
- Number of colors: 16,777,216
- Touch controller: GT911

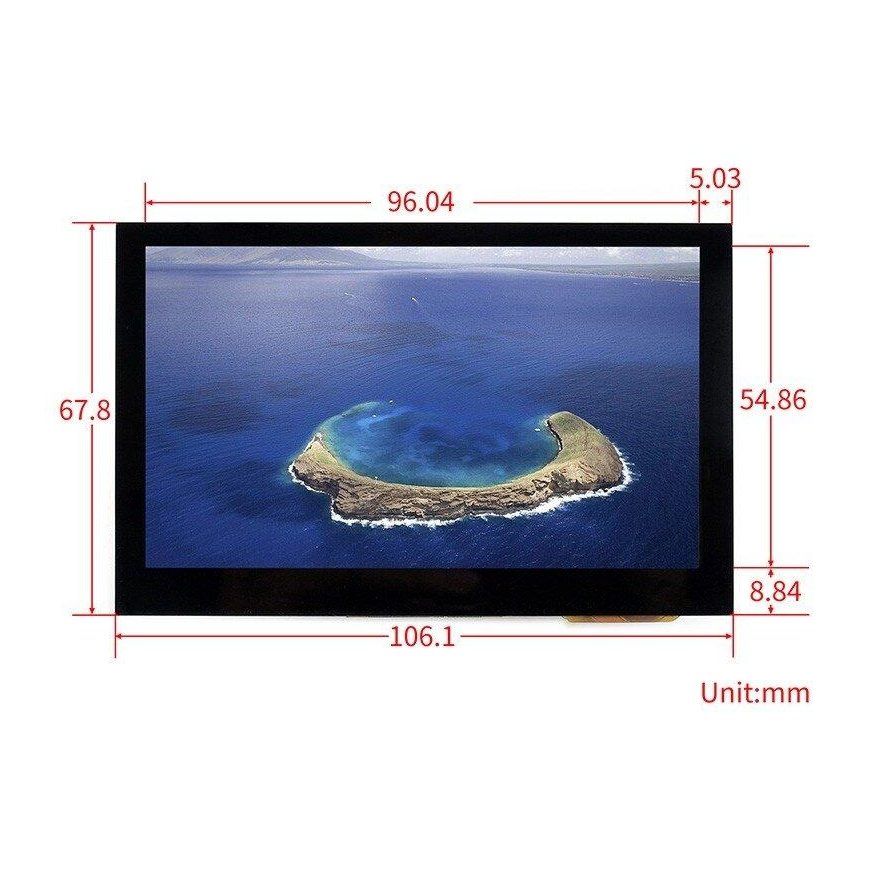

- Screen dimensions: 95.04 x 53.86 mm
- Pixel size: 0.1188 x 0.1122 mm
- Backlight: LED
- Resolution: 800x480px
- Diagonal: 4.3"
- Power voltage: 5 V
- Operating voltage: 3.3 V
- External dimensions: 106 x 68 mm

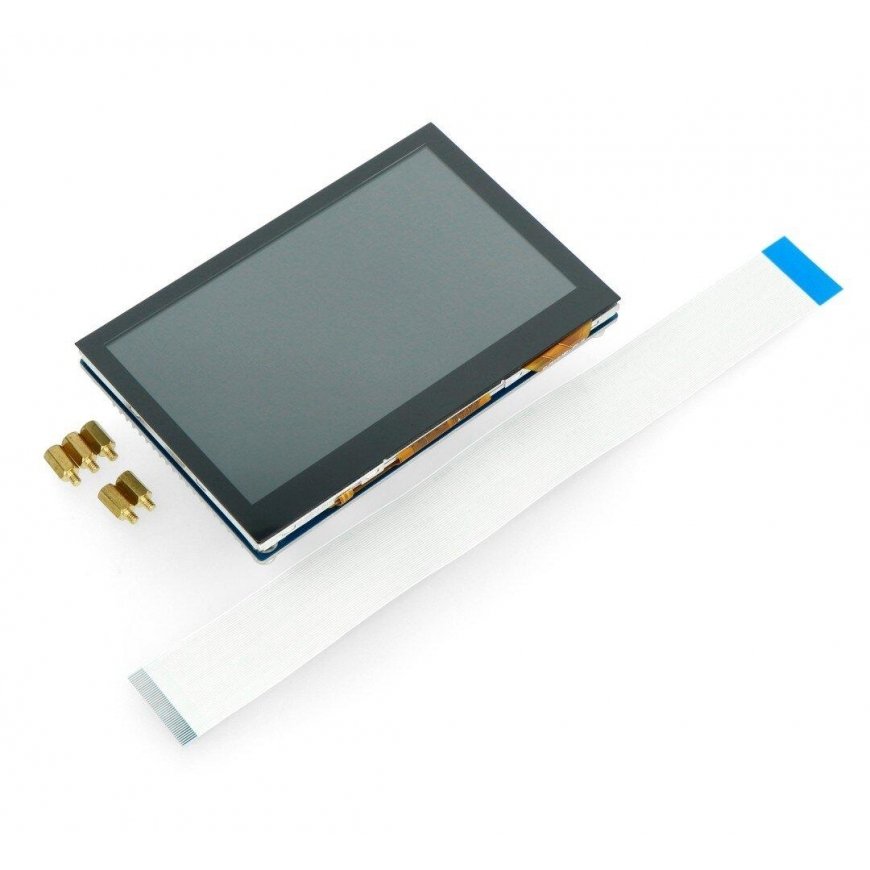

Included:
- 4.3” capacitive touch screen
- 40-pin FFC cable
- Screw set
